Product Overview

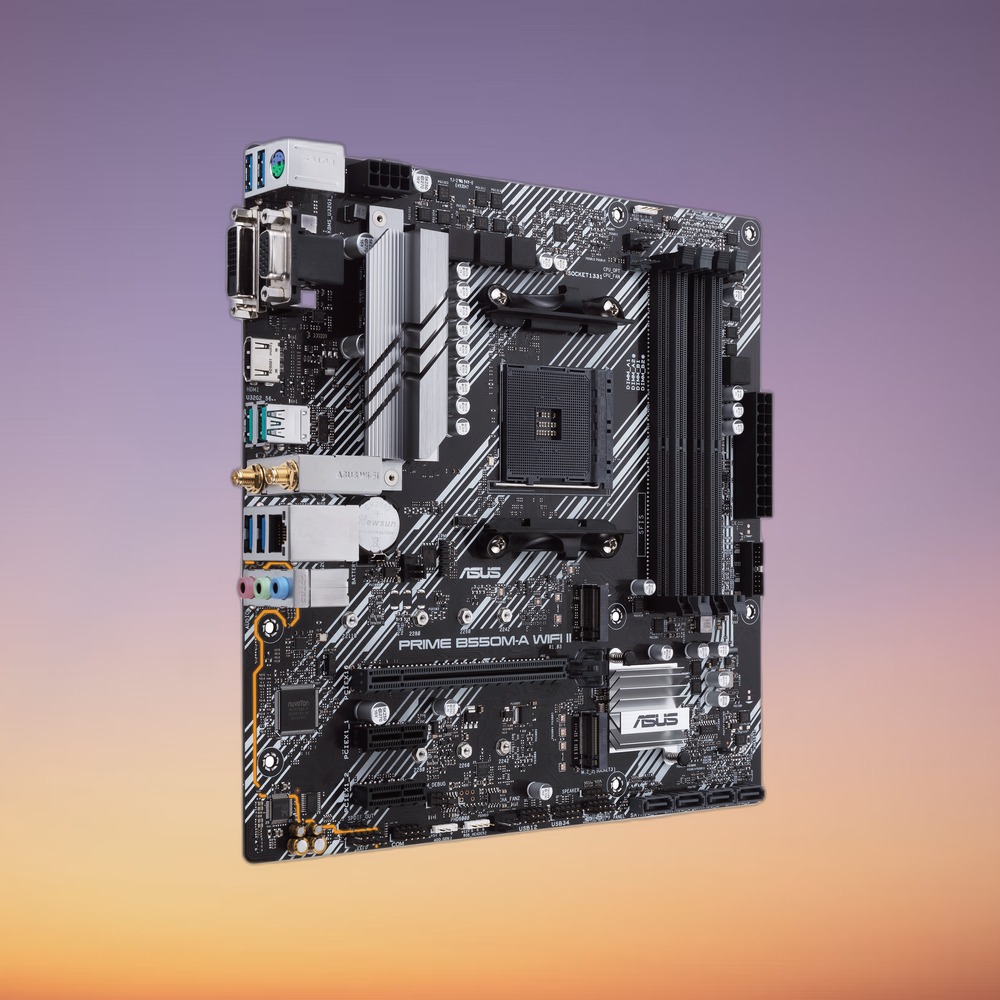

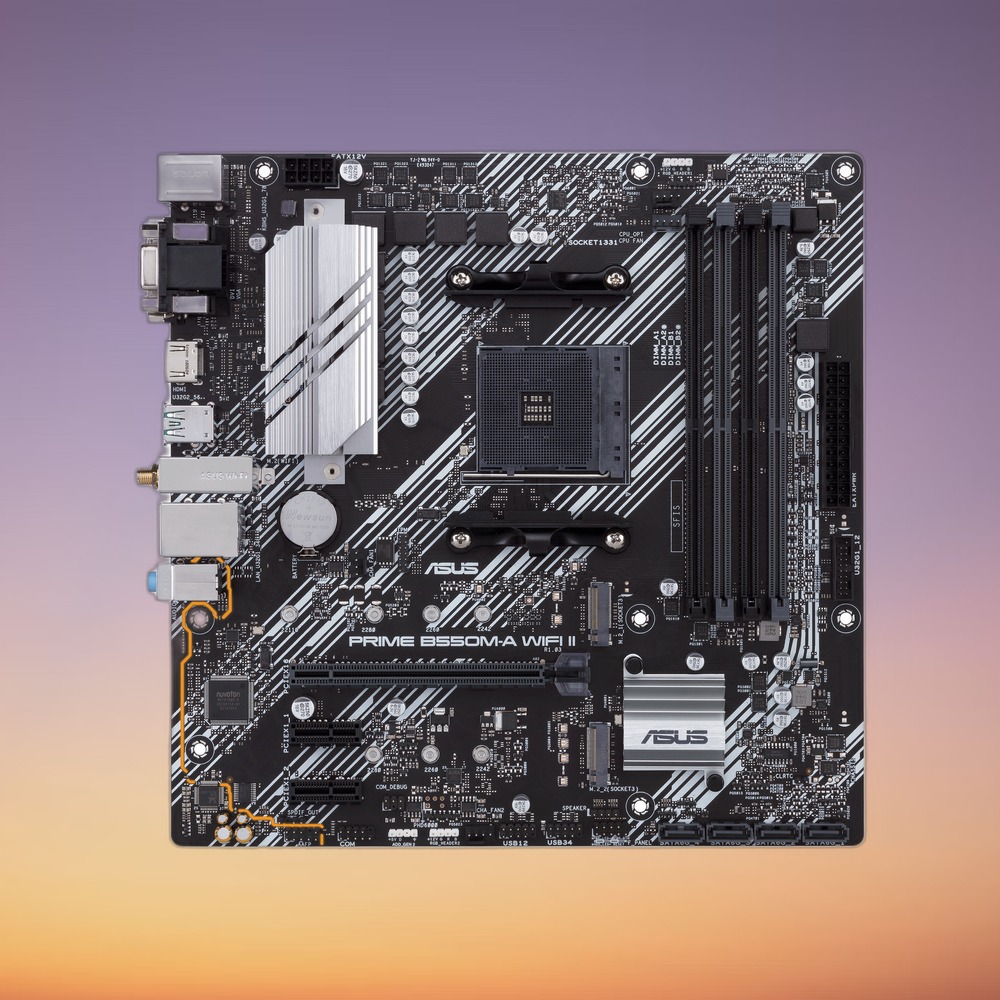

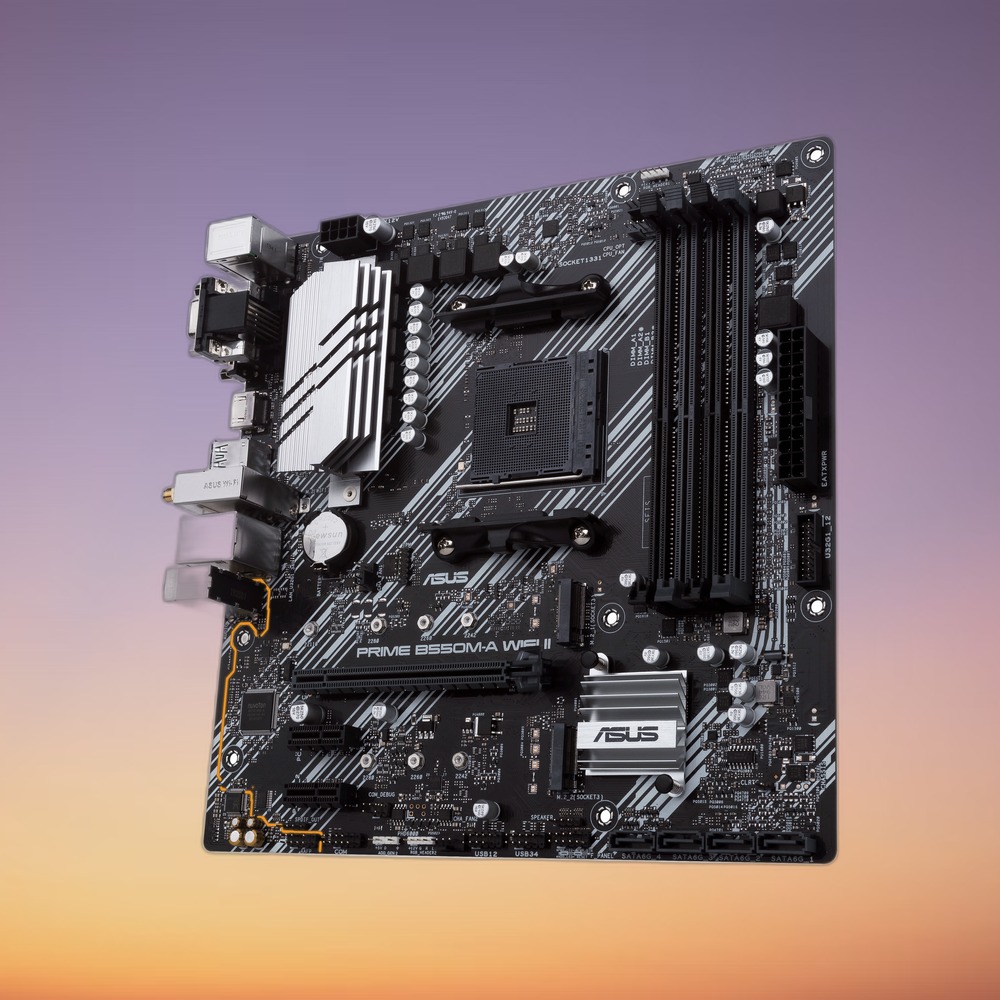

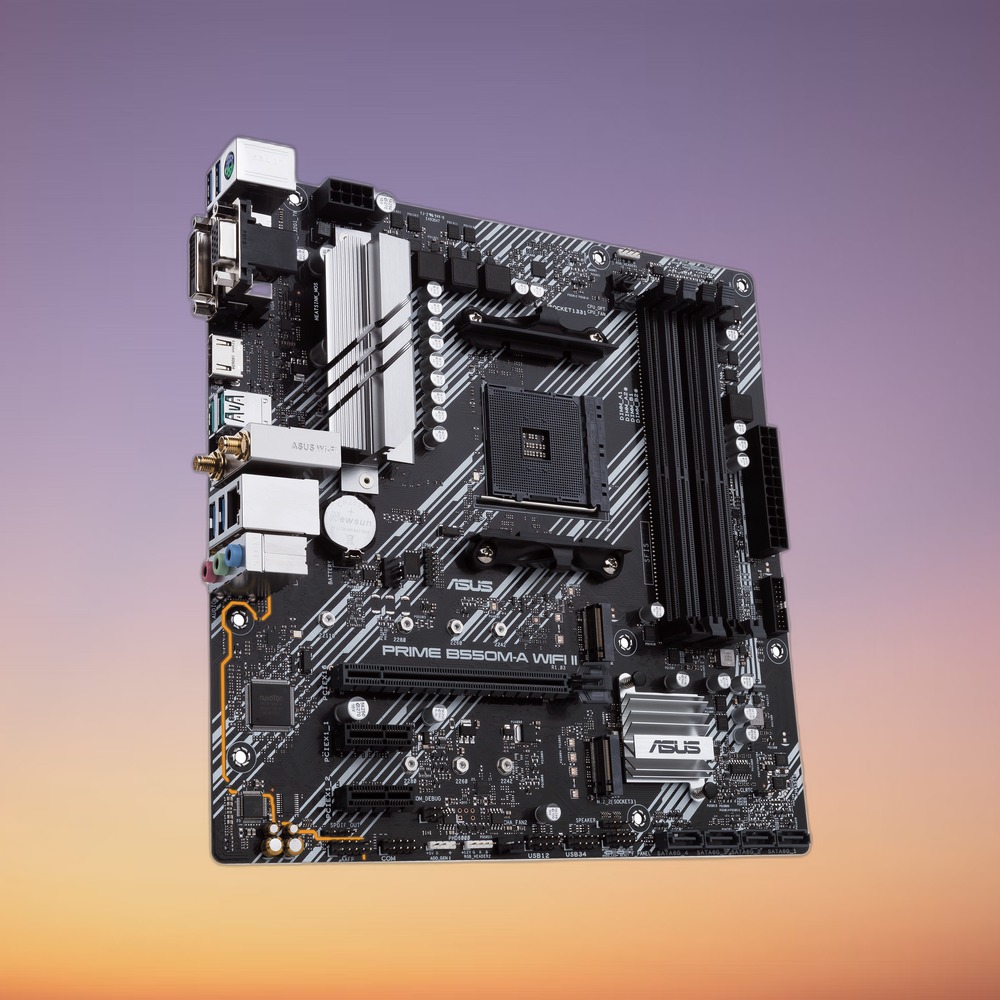

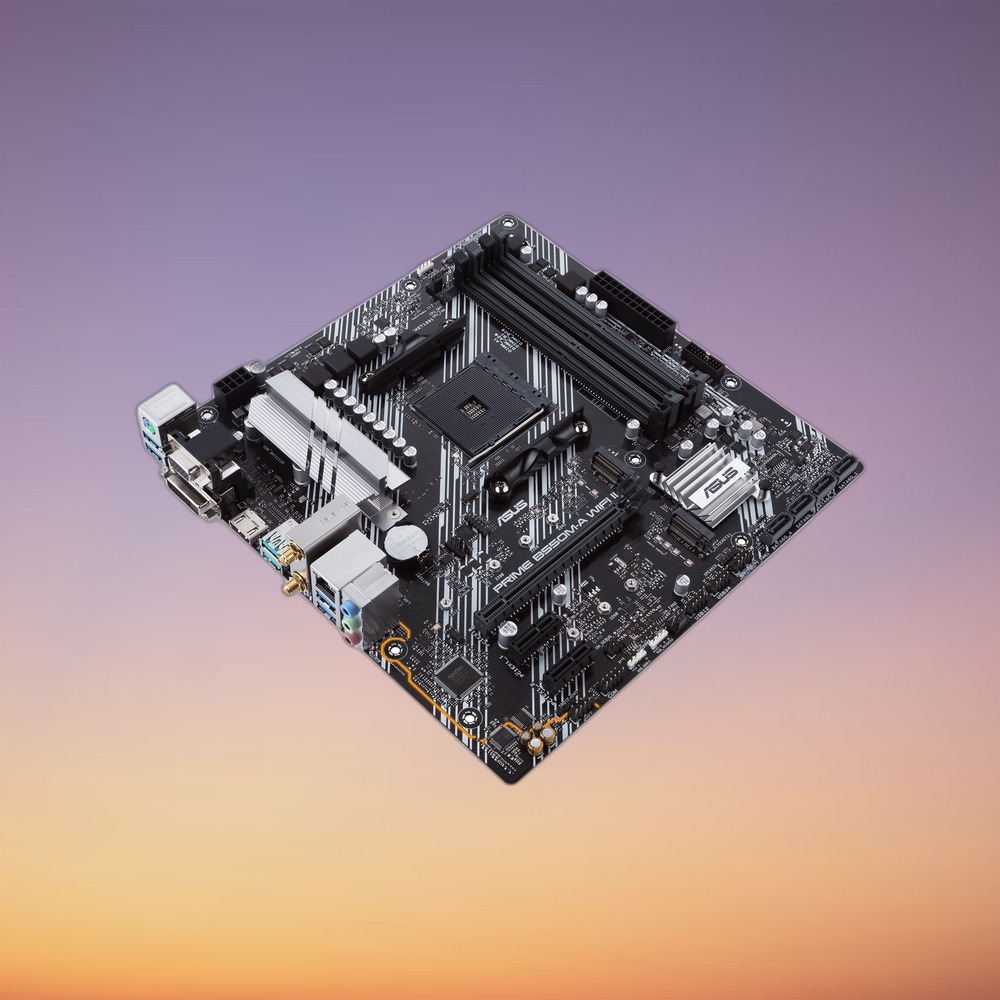

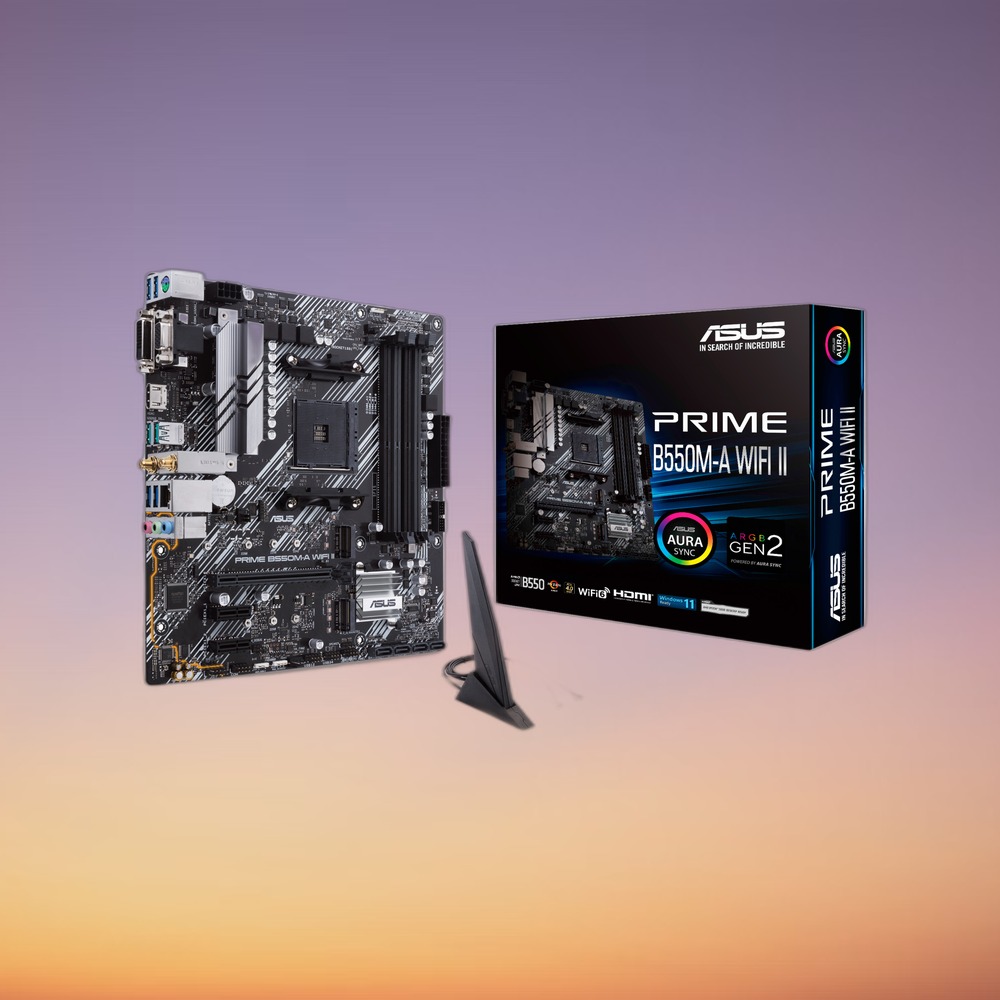

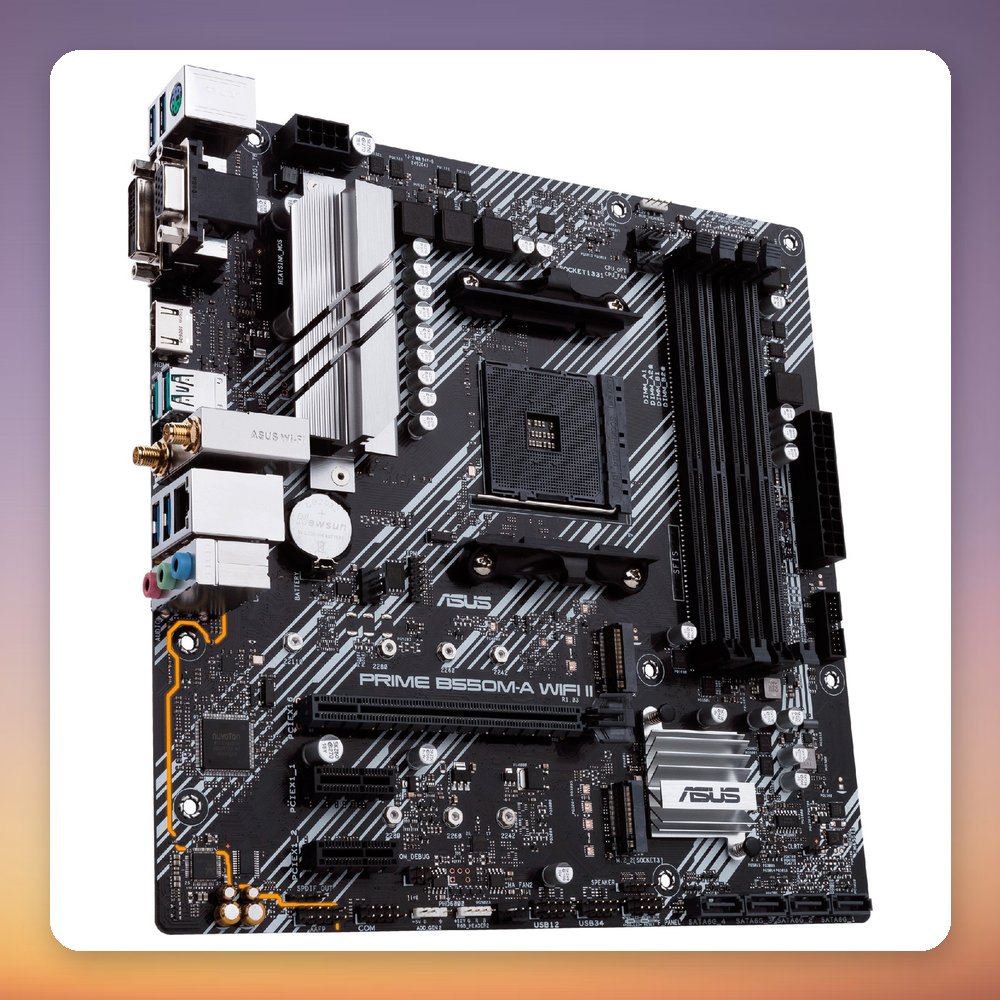

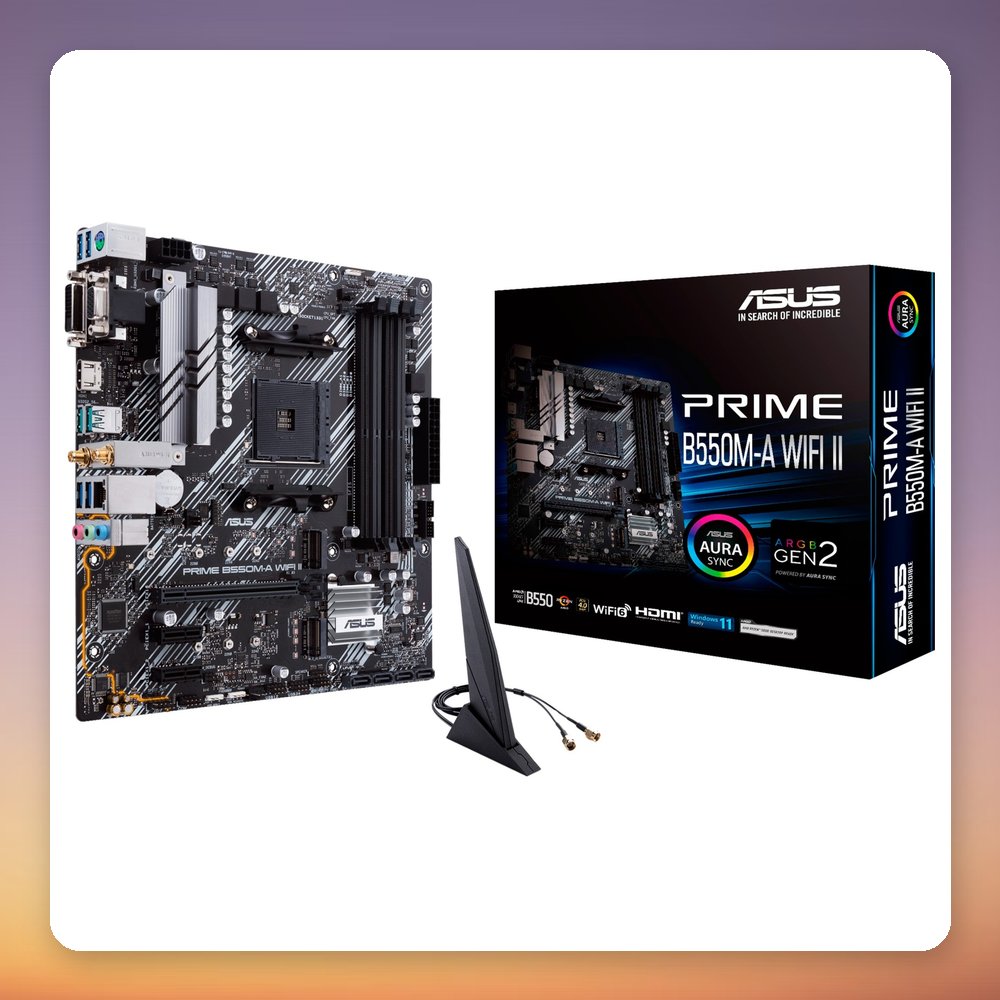

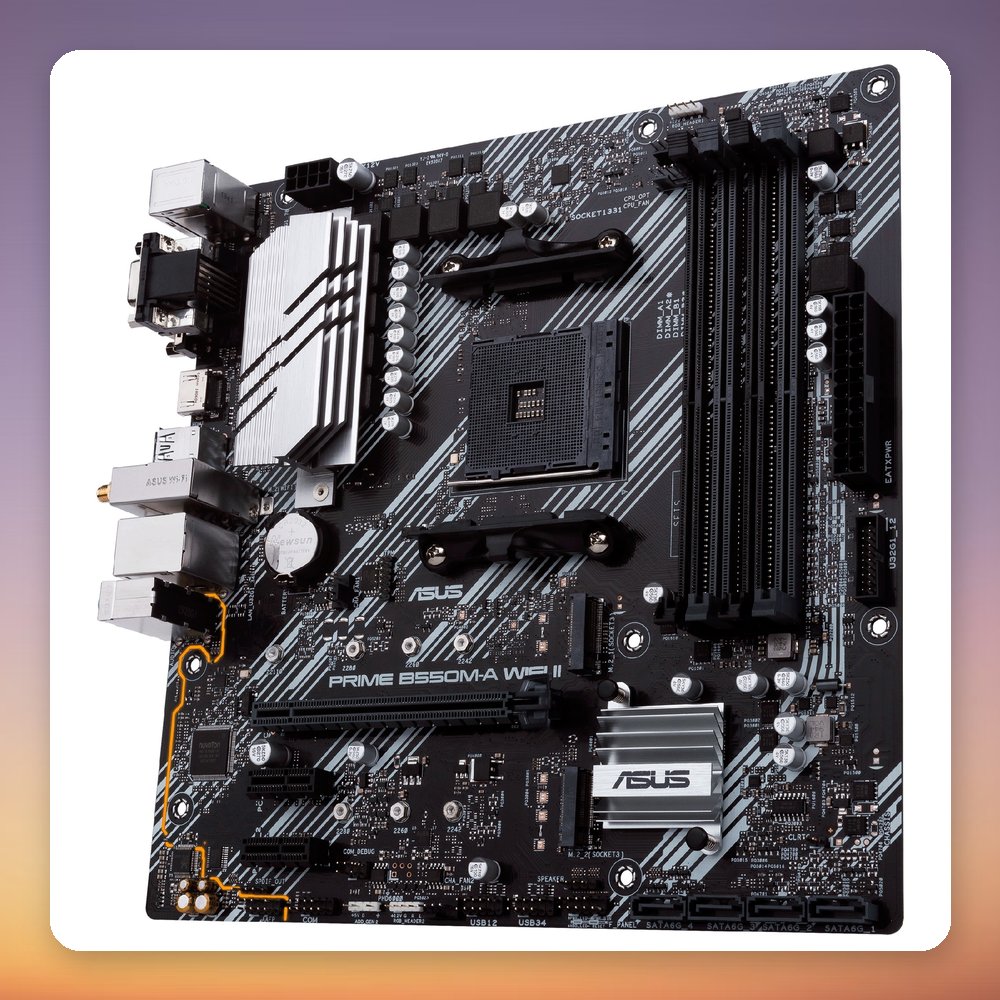

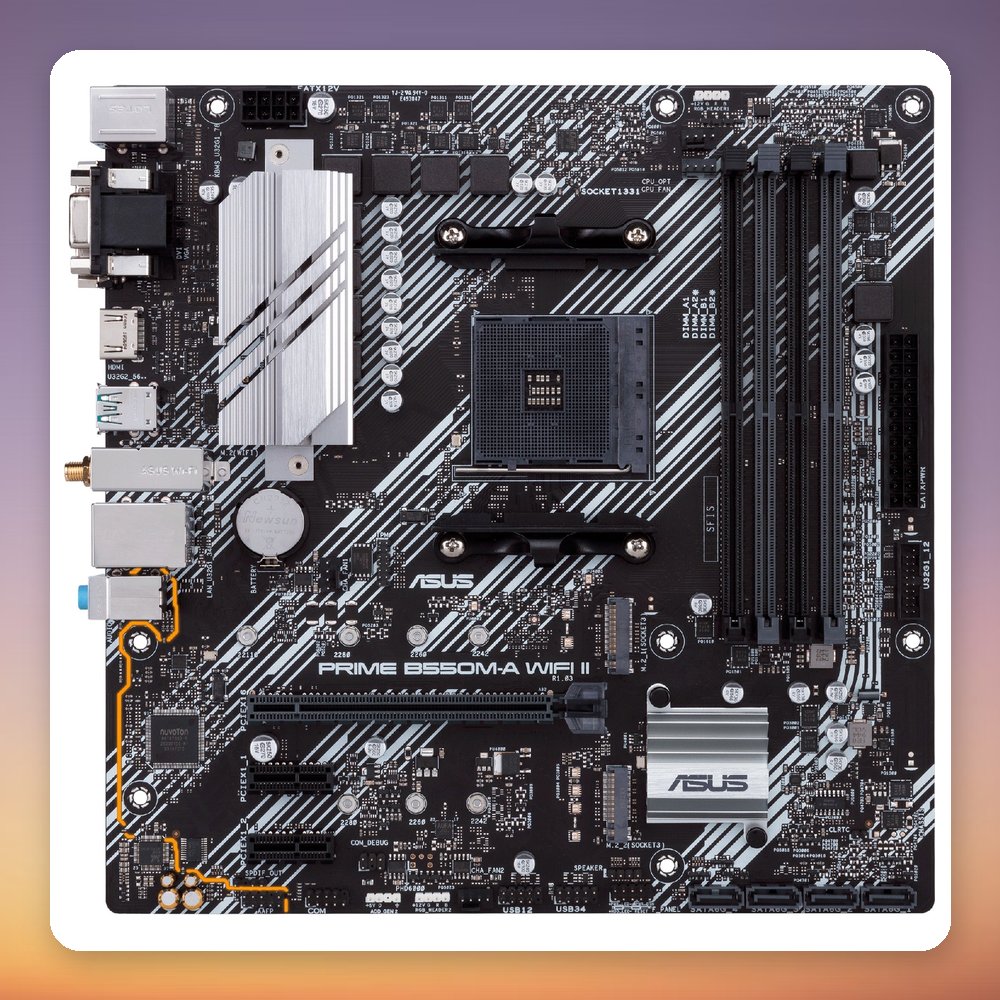

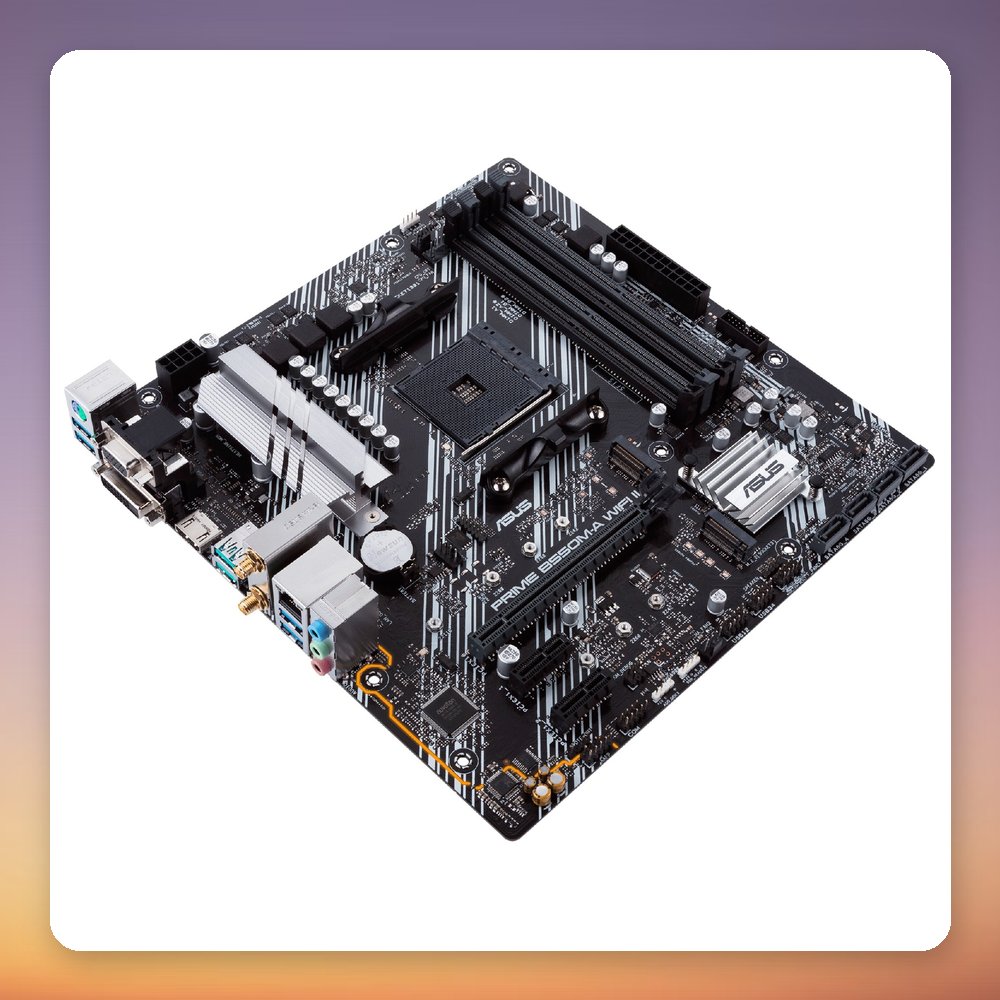

The ASUS PRIME B550M-A WIFI II is a micro ATX motherboard for Socket AM4 built on the AMD B550 chipset. It combines Wi-Fi 6 (2×2) and Bluetooth 5.2 with two M.2 slots (the first running at PCIe 4.0 and taking up to 22110 drives), four SATA III ports and a PCIe 4.0 x16 slot, in a compact board that supports up to 128 GB of DDR4.

It suits compact and mid-sized AM4 builds based on AMD Ryzen 3000 and 5000 Series processors. Four DDR4 slots run in dual channel with speeds up to DDR4-4866 (overclocked), and the rear panel offers HDMI, DVI-D and VGA outputs for CPUs with integrated graphics, plus 2 x USB 3.2 Gen 2 and 4 x USB 3.2 Gen 1. A VRM heatsink with thermal pad, four 4-pin PWM fan headers and Aura Sync RGB headers are included. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME B550M-A WIFI II
• MPN: 90MB19X0-M0EAY0
• EAN: 4711081309741
• Socket: AMD AM4
• Chipset: AMD B550
• Form factor: micro ATX
• Compatible processors: AMD Ryzen 3000 and 5000 Series
• Memory: 4 x DDR4 DIMM, dual channel, up to 128 GB, ECC (unbuffered) supported
• Memory speed: DDR4-2133 to DDR4-4866 (O.C.)
• Expansion slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
• M.2 slots: 2 x M.2 (M key): slot 1 PCIe 4.0 (up to 22110), slot 2 PCIe 3.0 (up to 2280)
• SATA: 4 x SATA III 6 Gb/s, RAID 0/1/10
• Networking: Realtek RTL8111H Gigabit LAN, Wi-Fi 6 (802.11ax) 2×2, Bluetooth 5.2

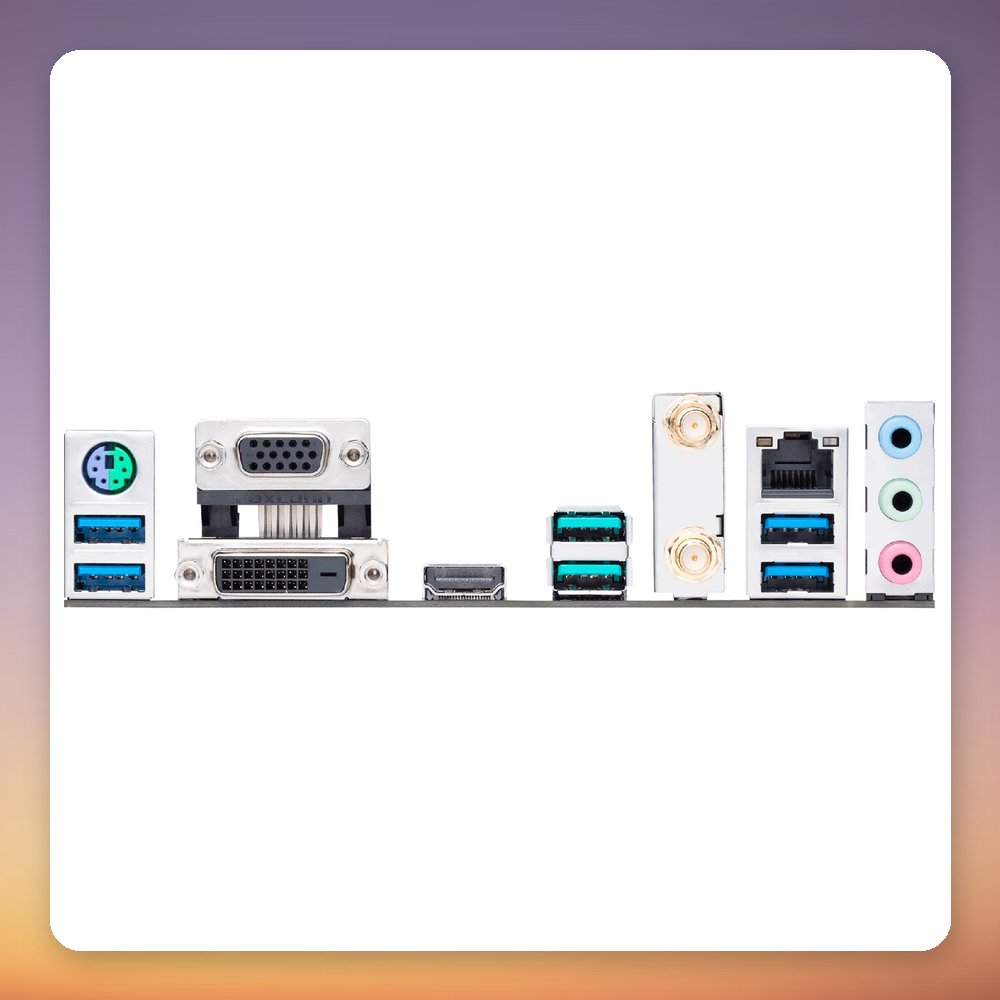

• Rear USB: 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A
• Video outputs: HDMI 2.1, DVI-D, VGA (CPU with integrated graphics required)
• Audio: Realtek ALC887, 7.1 channel
• Fan/RGB headers: 4 x 4-pin PWM fan, 2 x RGB, 1 x addressable RGB (Aura Sync)
• Dimensions (W x D): 244 x 244 mm
