Product Overview

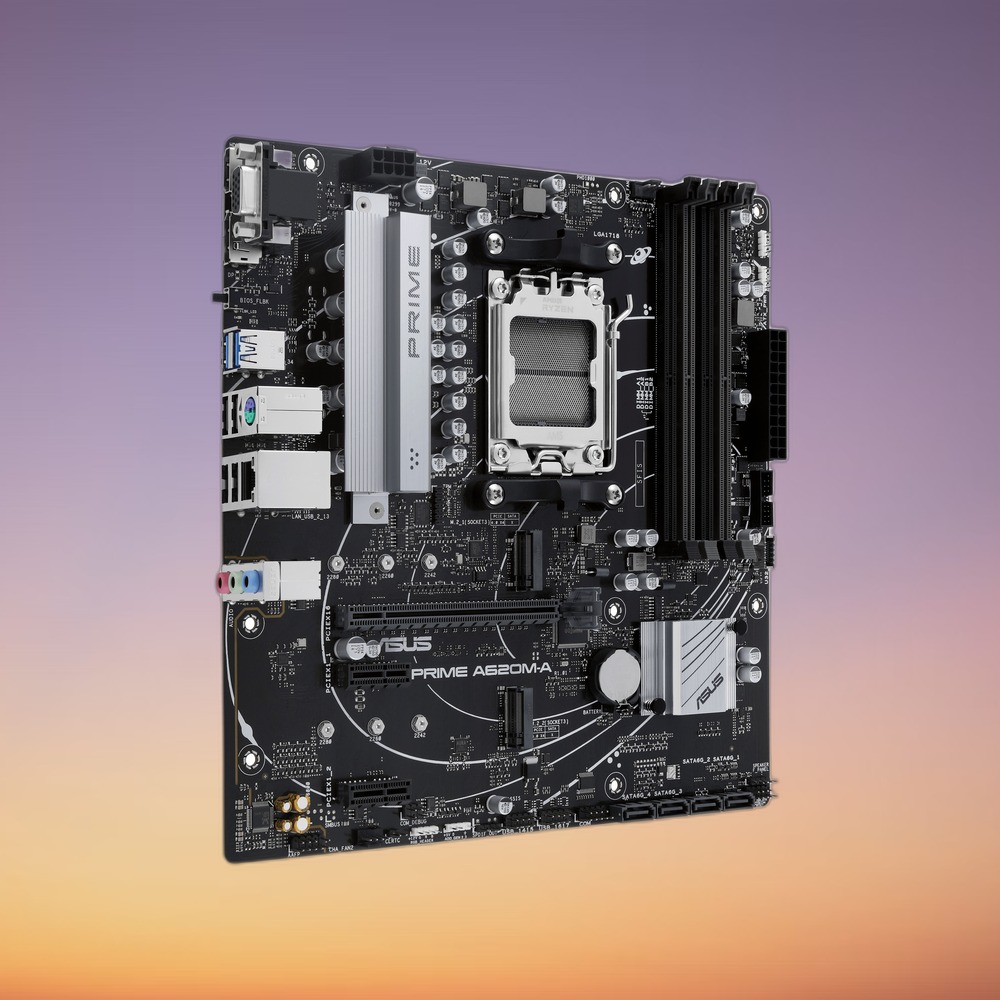

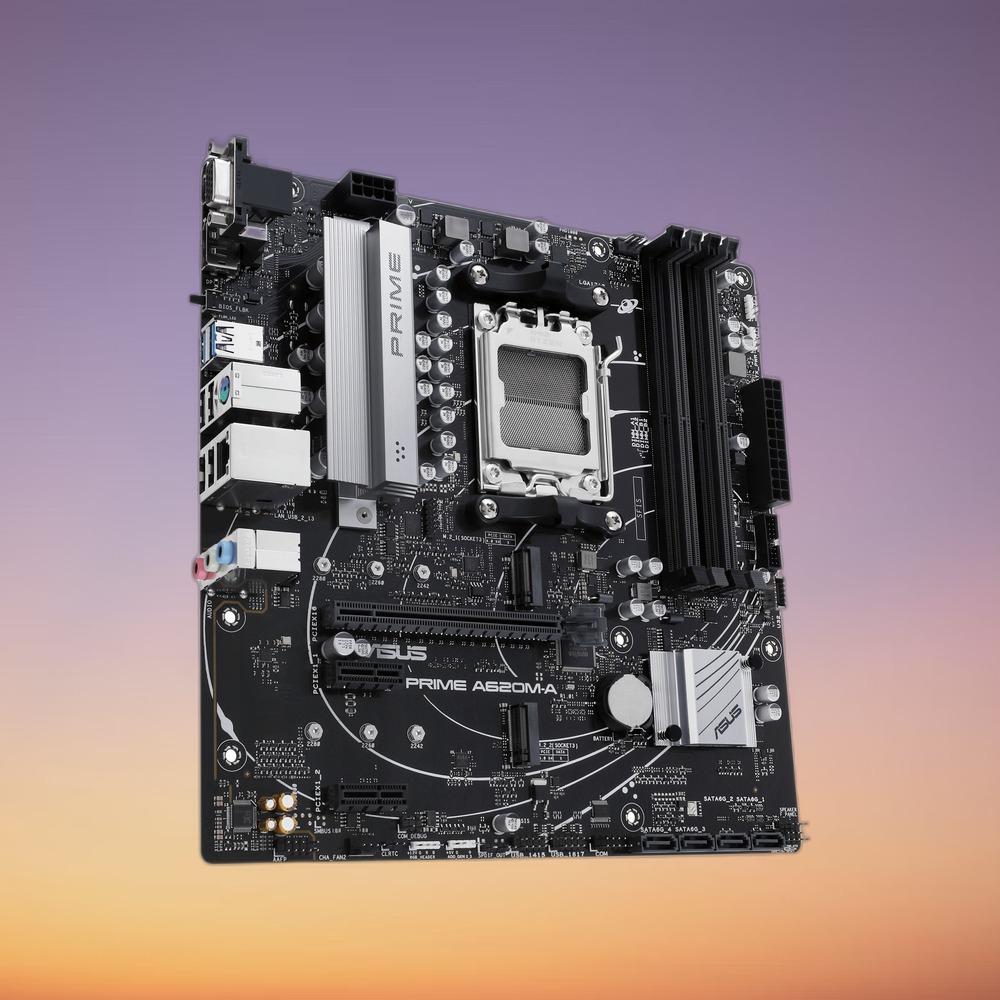

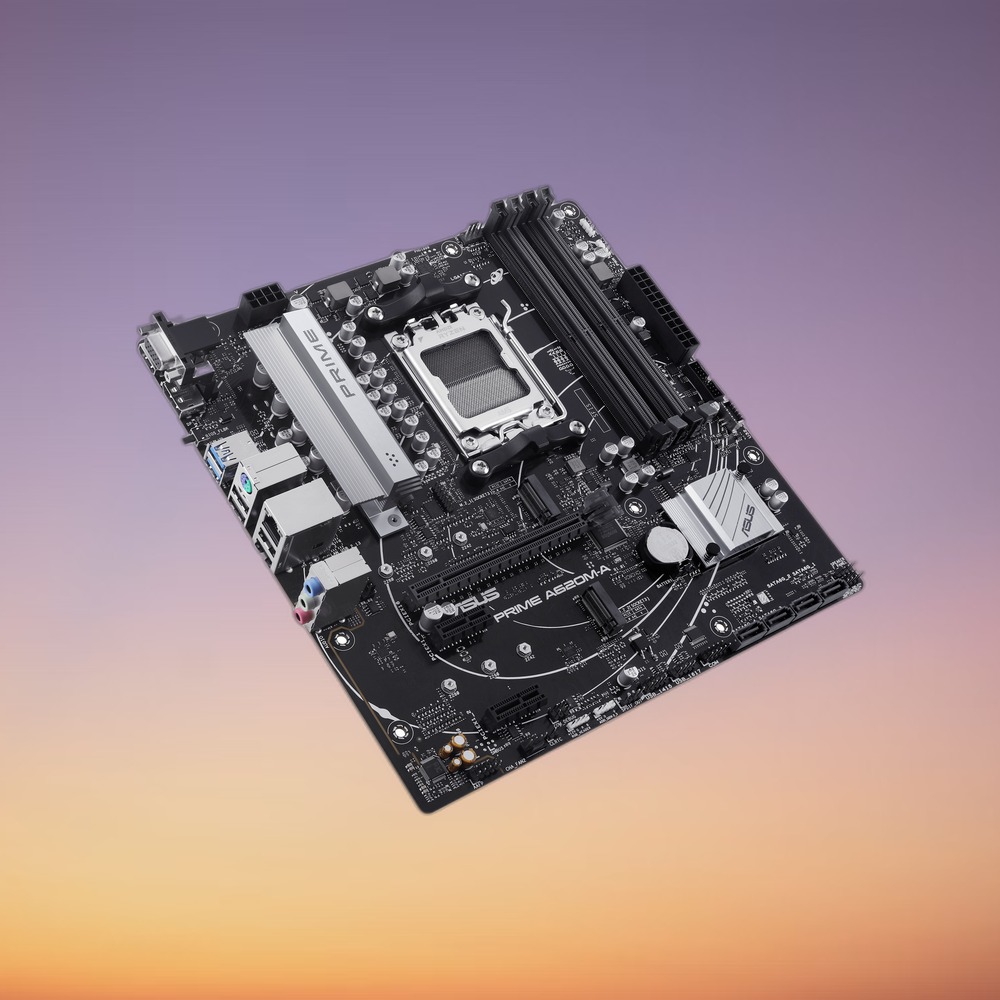

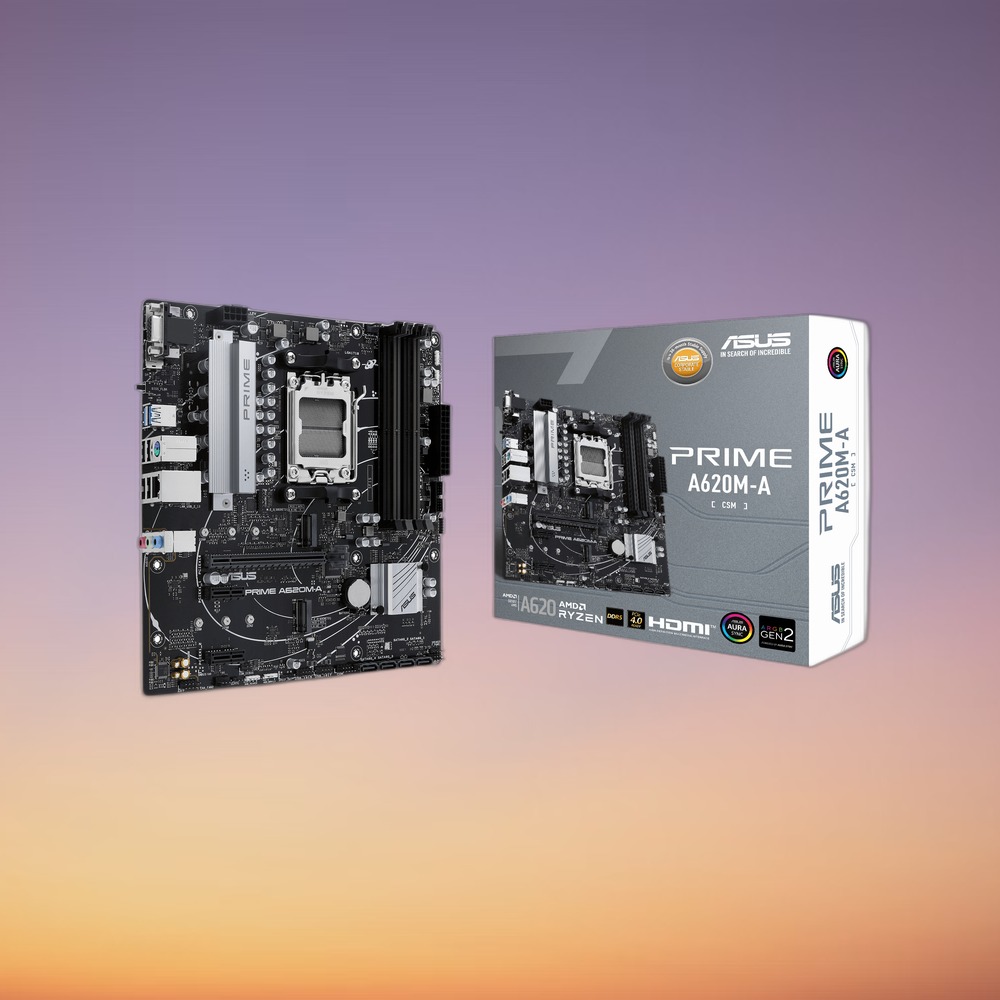

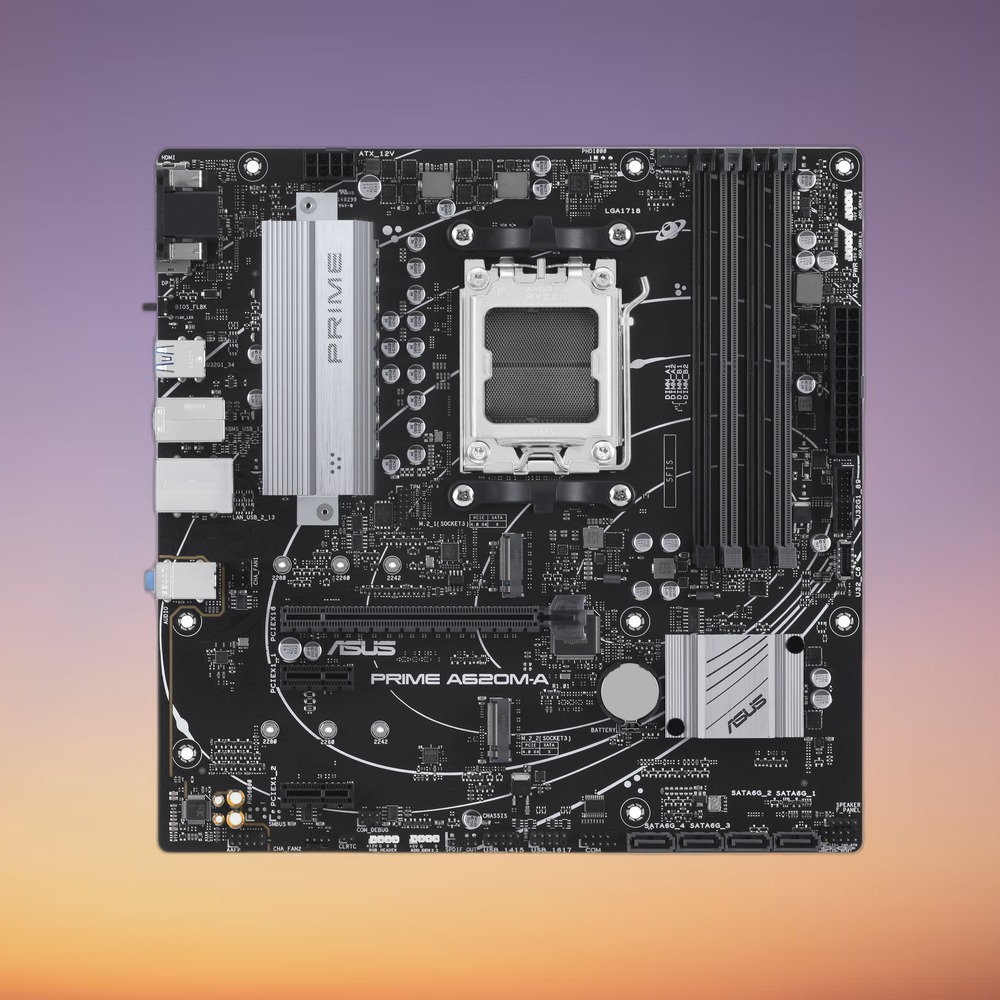

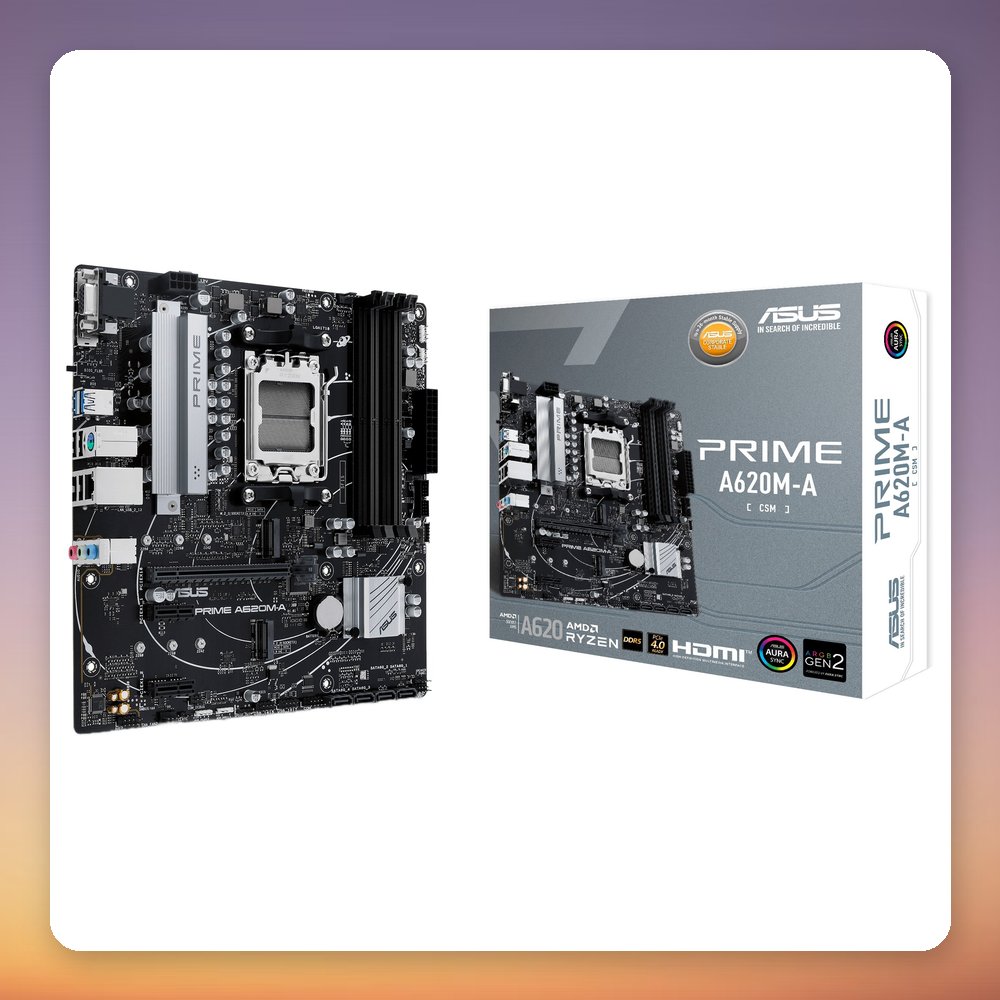

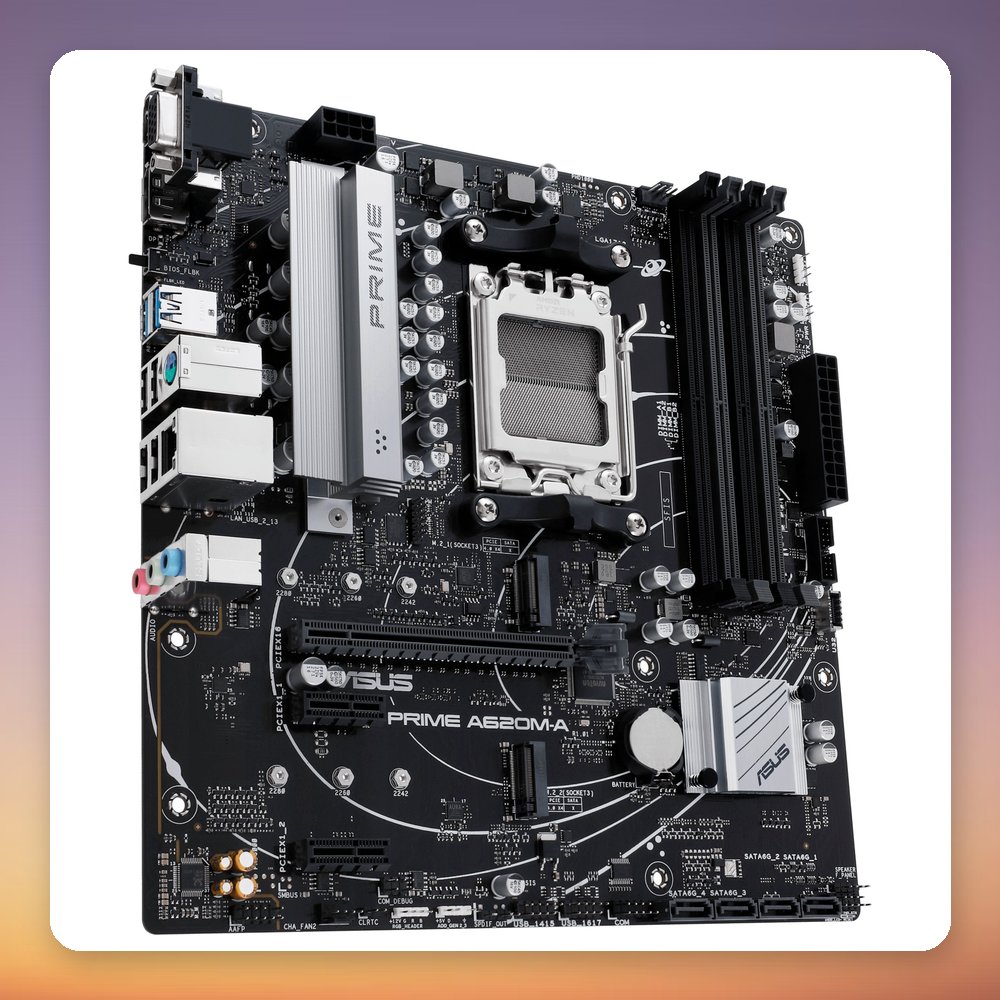

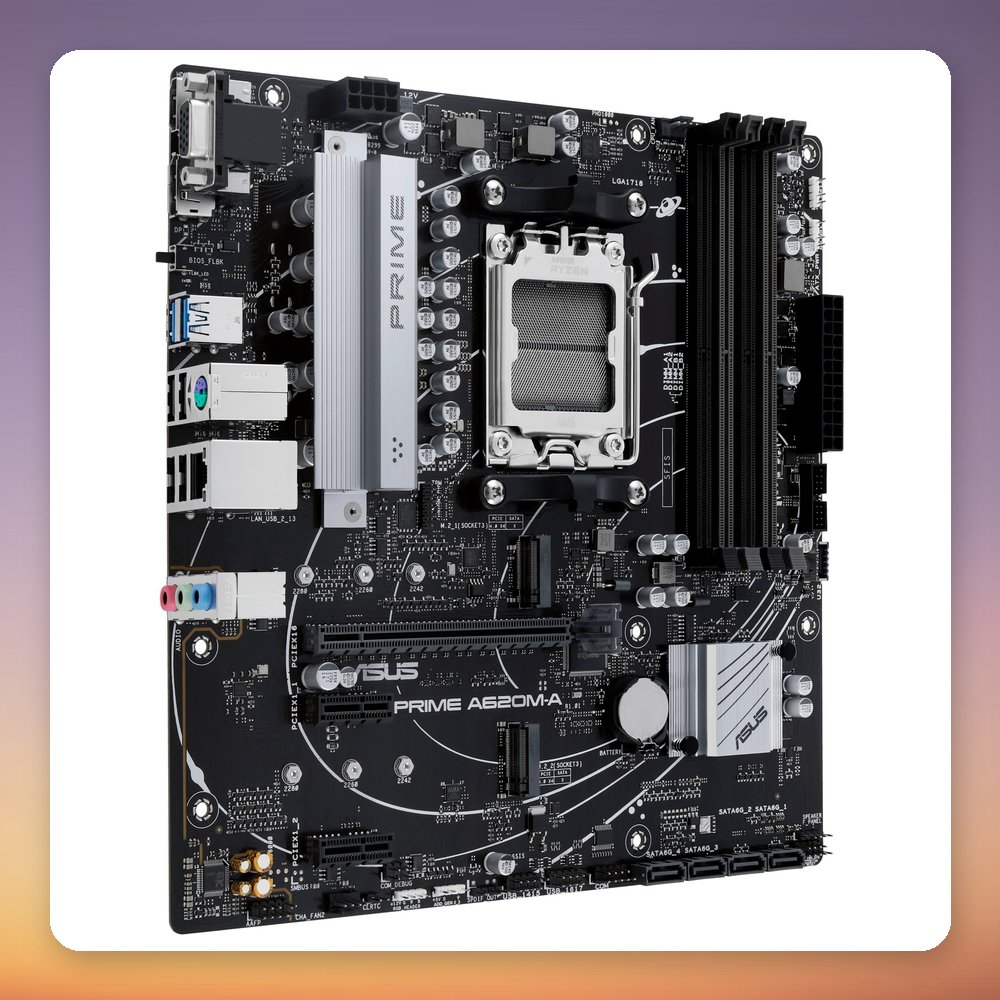

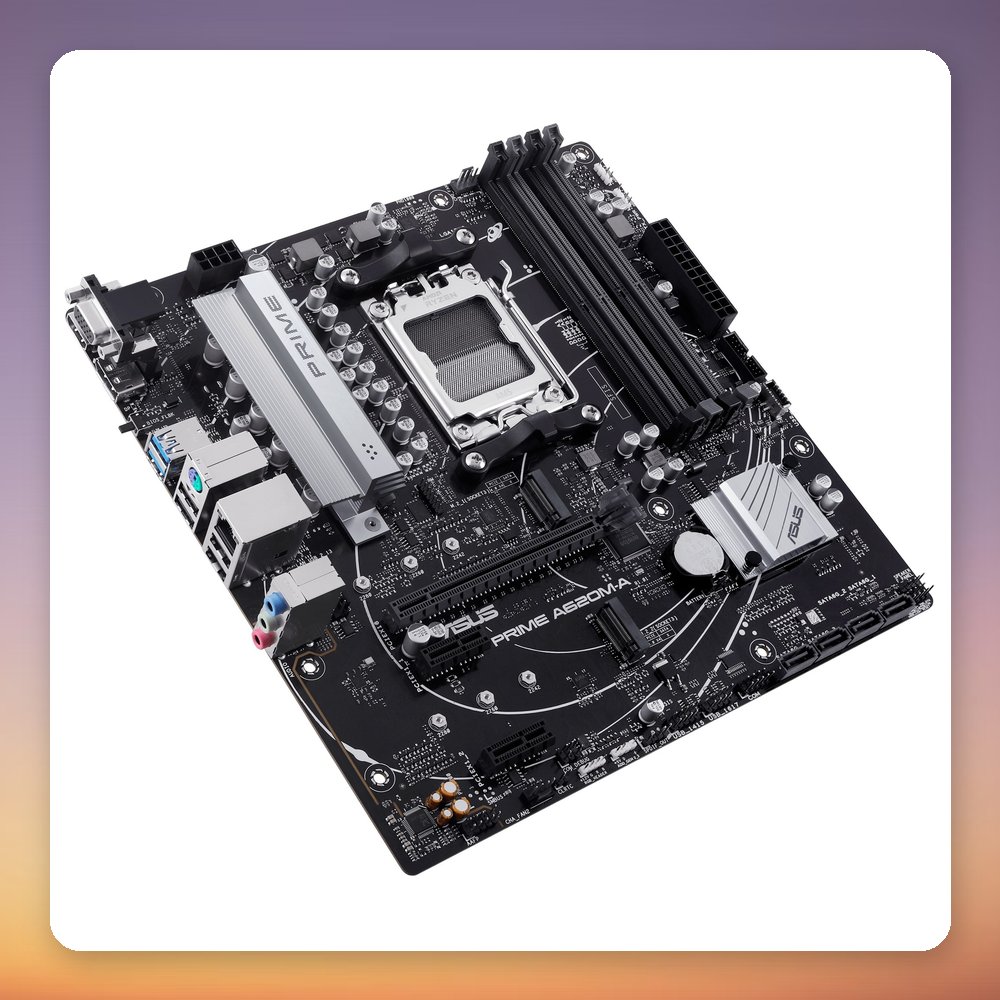

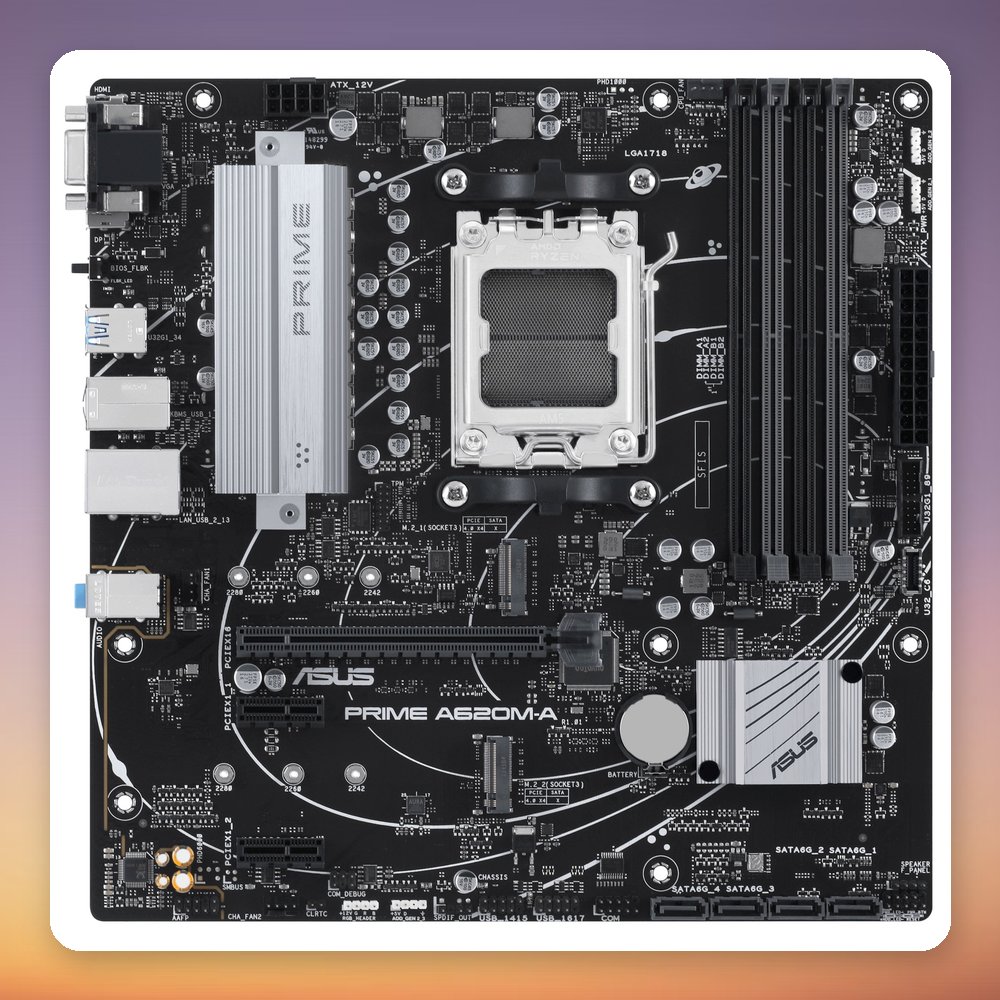

The Asus PRIME A620M-A-CSM Socket AM5 motherboard is a micro ATX board built on the AMD A620 chipset. It takes four DDR5 DIMM slots in dual-channel, supports Ryzen 7000, 8000 and 9000 series processors, and offers two PCIe Gen 4.0 M.2 slots plus four SATA ports. Video outputs include HDMI, DisplayPort and VGA, usable with a CPU that has integrated graphics.

This is a compact, affordable base for a home or office PC, or a small gaming build around an AM5 Ryzen CPU. It includes Gigabit Ethernet, Realtek 7.1-channel audio, one PCIe 4.0 x16 slot, two PCIe x1 slots and three addressable RGB headers with AURA Sync. As a Corporate Stable Model (CSM), it comes with ASUS Control Center Express IT management software. A BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME A620M-A-CSM
• MPN: 90MB1F10-M0EAYC
• EAN: 4711387176405
• CPU socket: AMD Socket AM5
• Chipset: AMD A620
• Form factor: Micro ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB (Wave data)
• Memory speed: DDR5-4800 to 7600+ (OC)
• M.2 slots: 2x M.2 (Key M), PCIe Gen 4.0, 42-80 mm
• SATA ports: 4x SATA III, RAID 0/1/10
• Expansion slots: 1x PCIe x16 (Gen 4.0), 2x PCIe x1
• Video outputs: HDMI, DisplayPort, VGA

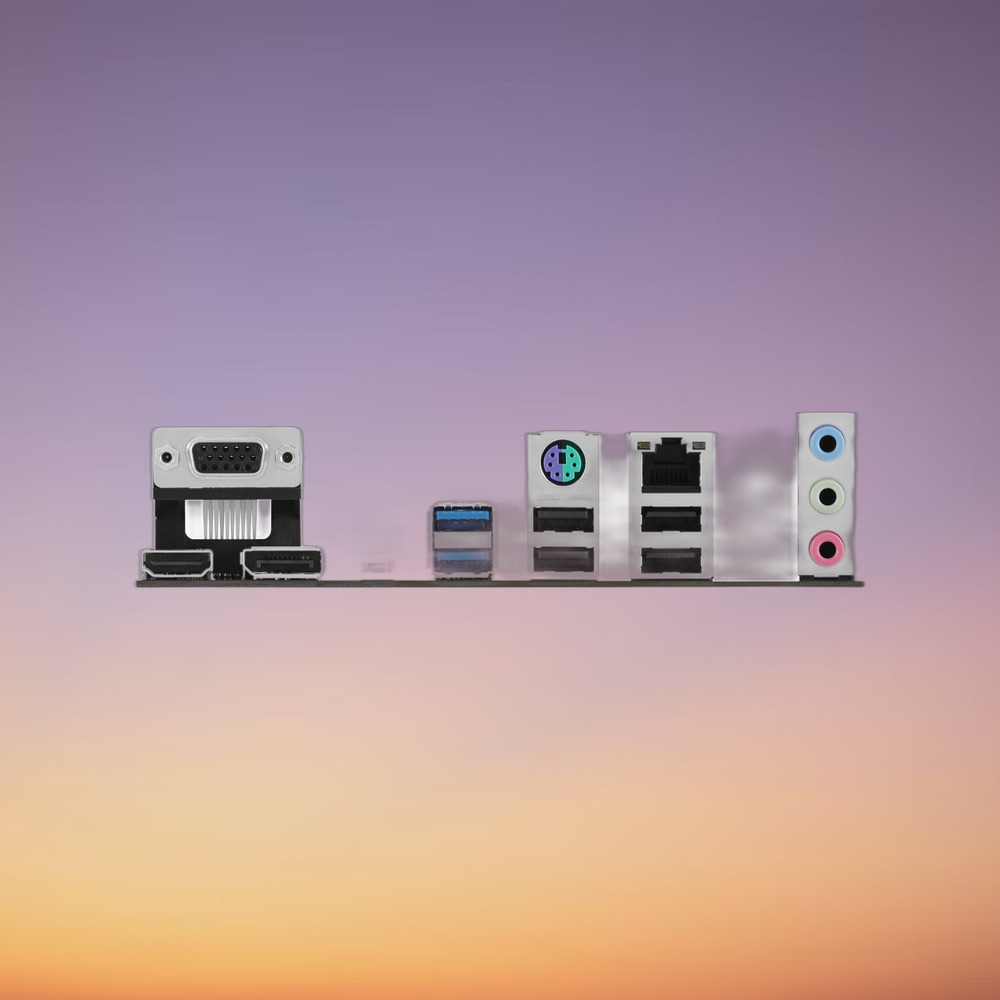

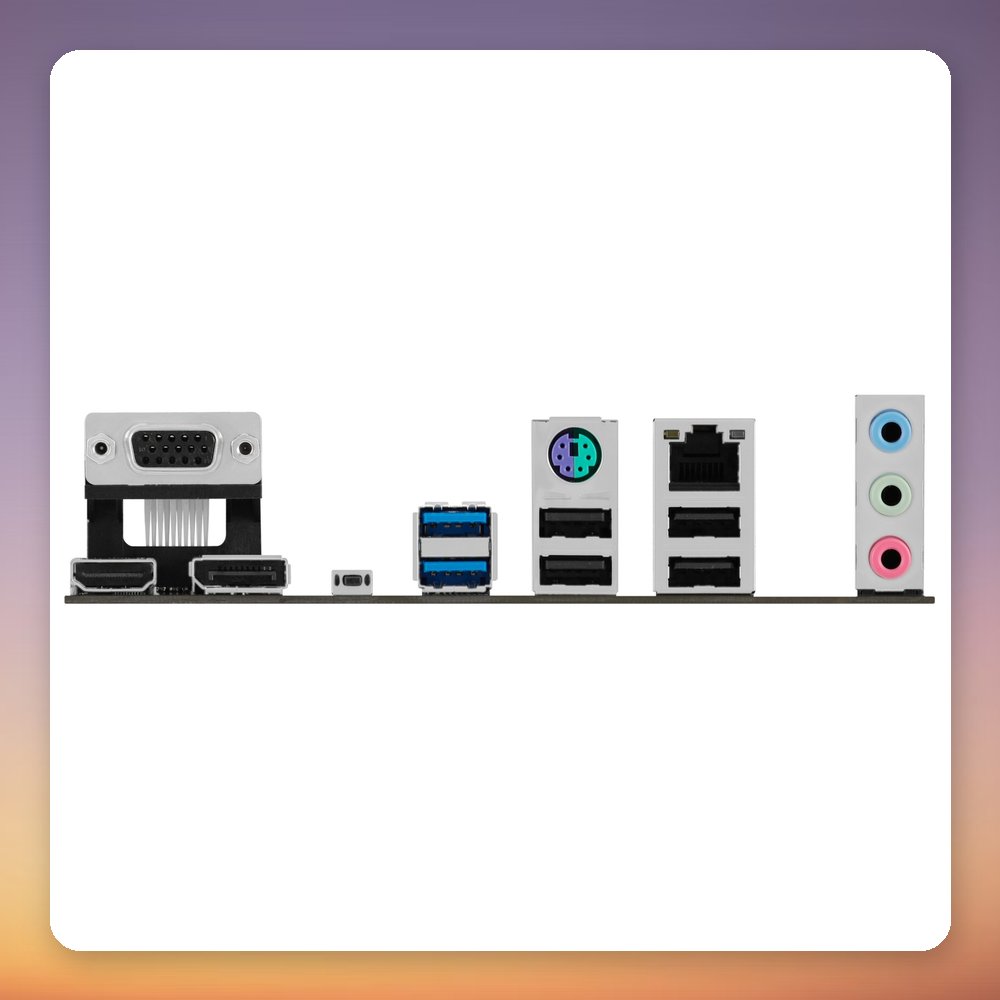

• Rear USB: 2x USB-A 3.2 Gen 1, 4x USB-A 2.0, PS/2 combo
• Networking: Gigabit Ethernet (RJ-45), no Wi-Fi
• Audio: Realtek 7.1 channel HD Audio
• RGB: 3x addressable RGB, 1x RGB header, AURA Sync
• Power connectors: 24-pin ATX + 8-pin ATX12V
• Dimensions (W x D): 244 x 244 mm
• Package weight: 1.36 kg
