Product Overview

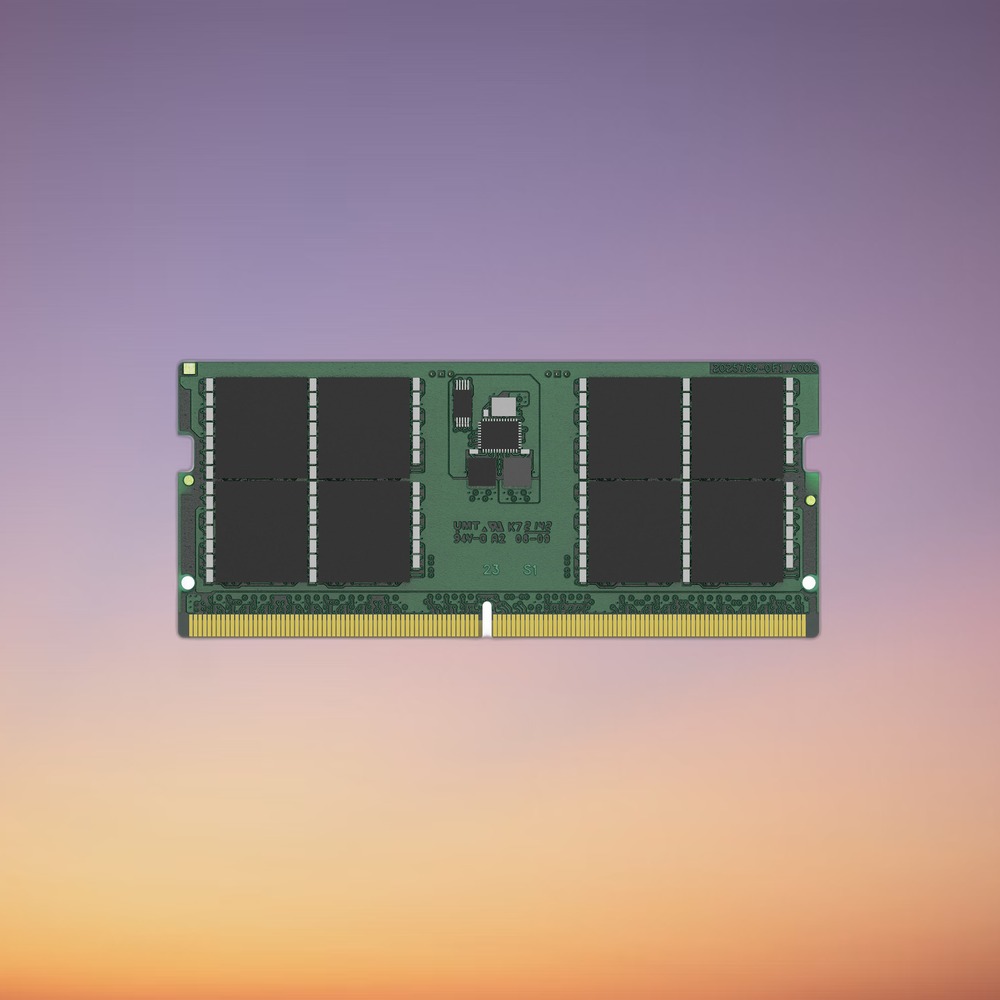

The Kingston ValueRAM DDR5-5600 SO-DIMM is a single 32 GB module (PC5-44800) in the 262-pin SO-DIMM format used in laptops. It is dual-rank with 8 memory chips per module, runs at 1.1 V and uses a CAS latency of CL46 at 5600 MT/s. As unbuffered, non-ECC memory with on-die ECC, it is a straightforward way to add a large amount of RAM in one module.

This module suits laptop and other SO-DIMM-based systems that support DDR5-5600 memory, whether you are upgrading an existing machine or filling a free slot. A single 32 GB stick gives you generous capacity without needing a kit. It carries a gold-plated connector, an SPD profile and RoHS compliance, and measures 69.6 mm wide by 30 mm high, so it fits standard SO-DIMM sockets.

Specification

• Manufacturer: Kingston
• Model: ValueRAM KVR56S46BD8-32
• MPN: KVR56S46BD8-32
• EAN: 0740617334036
• Capacity: 32 GB (1 x 32 GB)
• Memory type: DDR5
• Speed: DDR5-5600 (PC5-44800), 5600 MT/s
• Timings: CL46-45-45
• Form factor: 262-pin SO-DIMM
• Voltage: 1.1 V
• Ranking: Dual rank (double-sided)
• Memory chips: 8 per module
• ECC: No (on-die ECC only)
• Buffering: Unregistered (unbuffered)
• Dimensions (W x H): 69.6 mm x 30 mm
• Operating temperature: 0 – 85 °C
• Colour: Green
