Product Overview

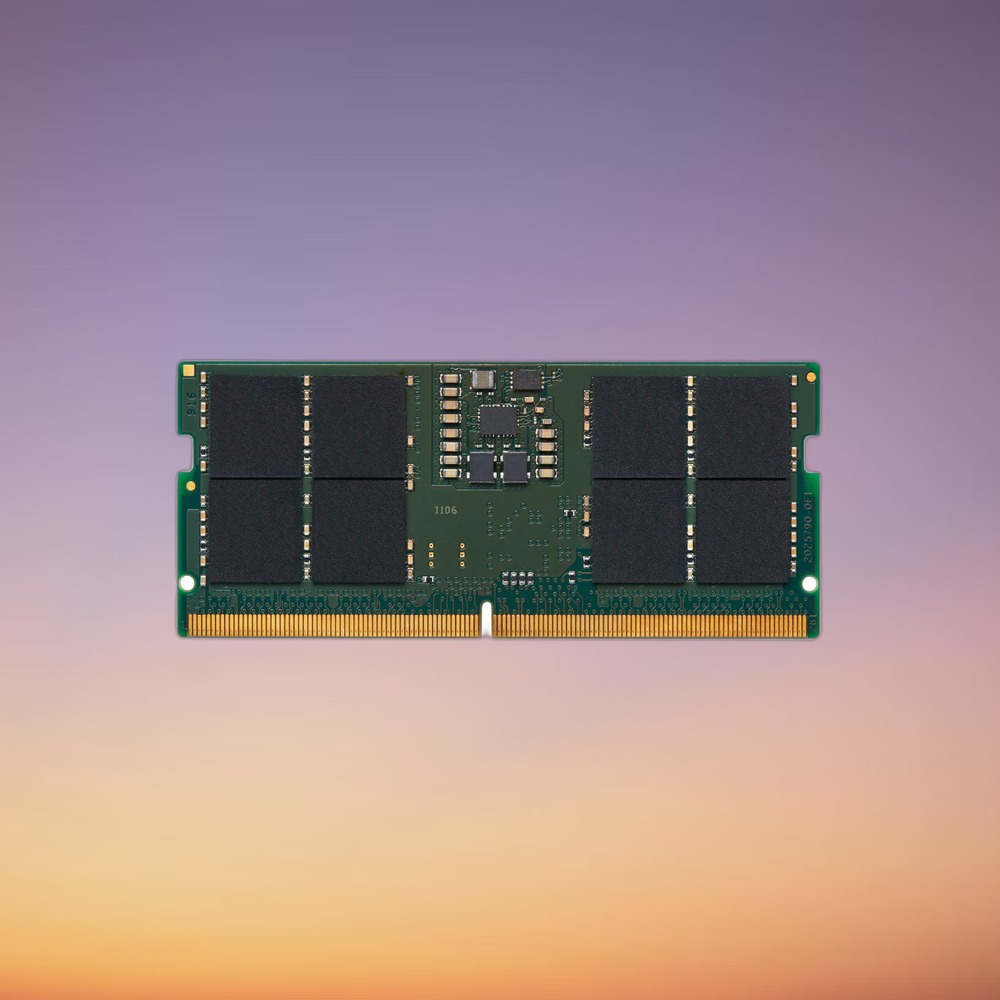

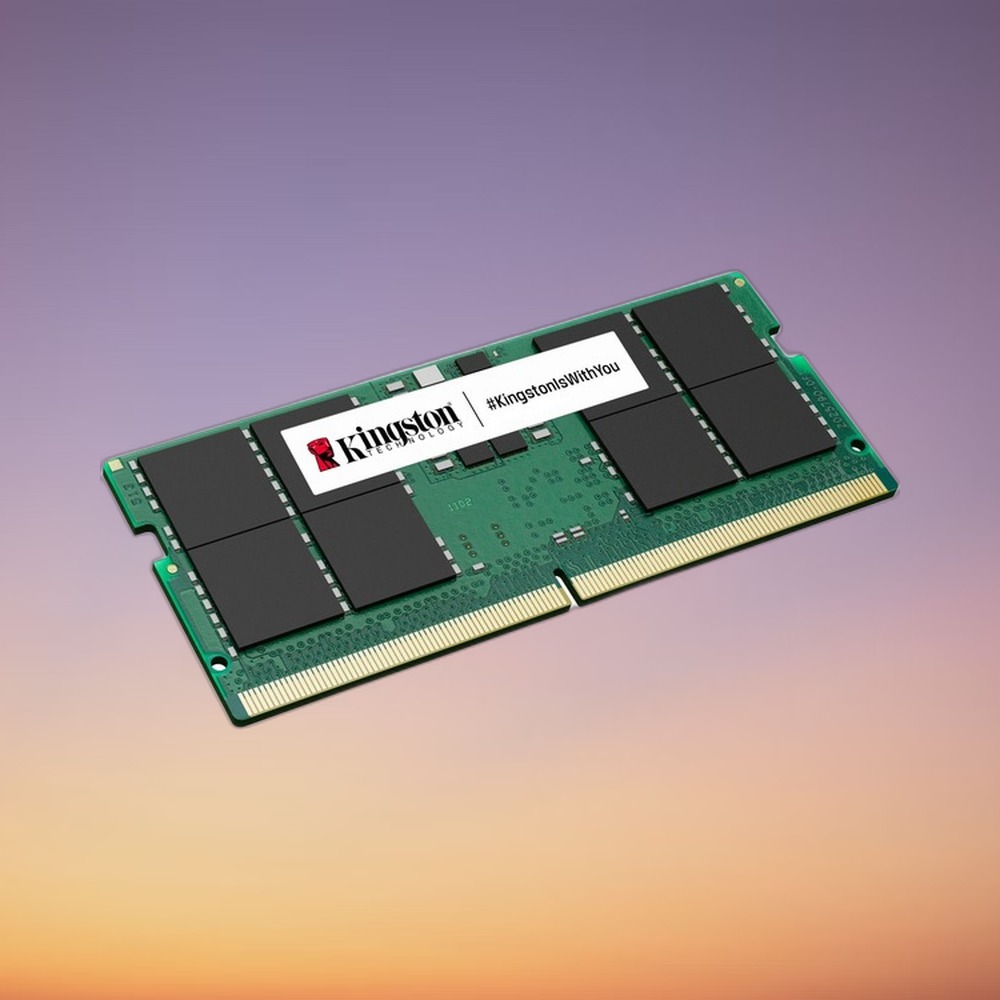

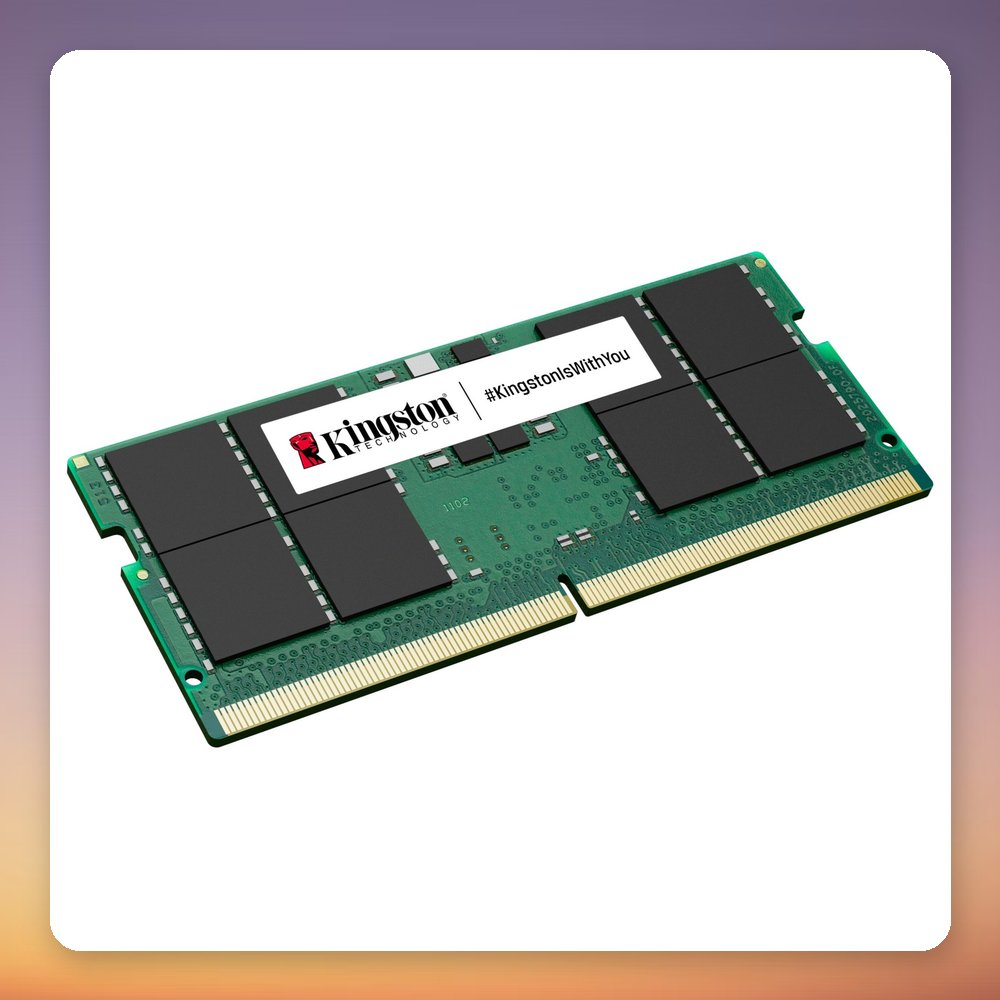

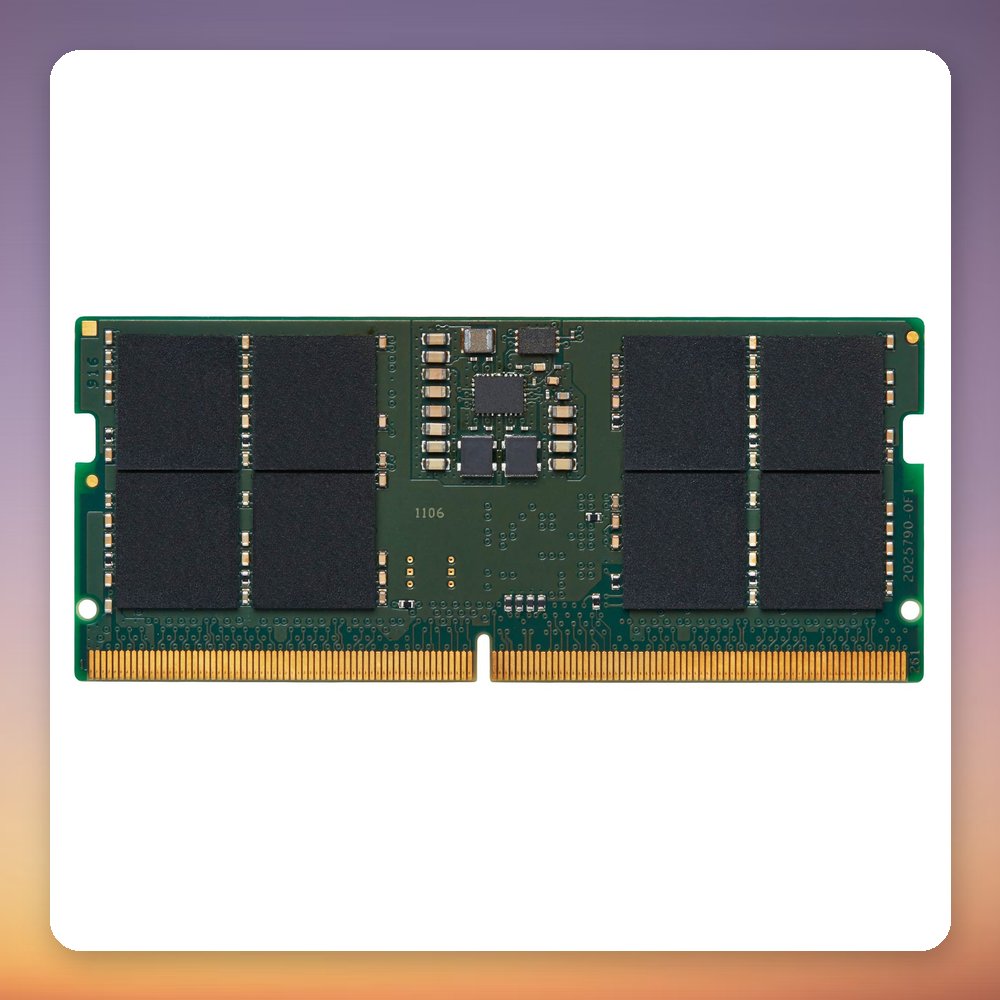

The Kingston ValueRAM DDR5-5600 SO-DIMM is a single 16 GB laptop memory module that runs at 5600 MT/s (PC5-44800) on just 1.1 V. It uses 8 memory chips on one side of the module, is single-rank, and has timings of CL46-45-45. It is unbuffered, non-ECC and comes in the standard 262-pin SO-DIMM format.

This module suits laptop and compact PC upgrades where a plain, reliable DDR5 stick is all you need. Kingston lists it for laptops, so check your system supports DDR5 SO-DIMMs at 5600 MT/s before ordering. It measures 69.6 mm wide and 30 mm high, features gold-plated contacts, on-die ECC, an SPD profile and RoHS compliance, and is halogen-free. Add a second module to build a dual-channel 32 GB setup.

Specification

• Manufacturer: Kingston
• Model: ValueRAM KVR56S46BS8-16
• MPN: KVR56S46BS8-16
• EAN: 7406173340500
• Capacity: 16 GB (1 x 16 GB)
• Memory type: DDR5
• Speed: DDR5-5600 (PC5-44800), 5600 MT/s
• Timings: CL46-45-45
• Voltage: 1.1 V
• Form factor: 262-pin SO-DIMM
• Module type: Unbuffered, non-ECC (on-die ECC)
• Ranking: Single-rank, single-sided, 8 chips
• Suitable for: Laptops
• Dimensions (W x H): 69.6 x 30 mm
• Colour: Green
• Operating temperature: 0 – 85 °C
