Product Overview

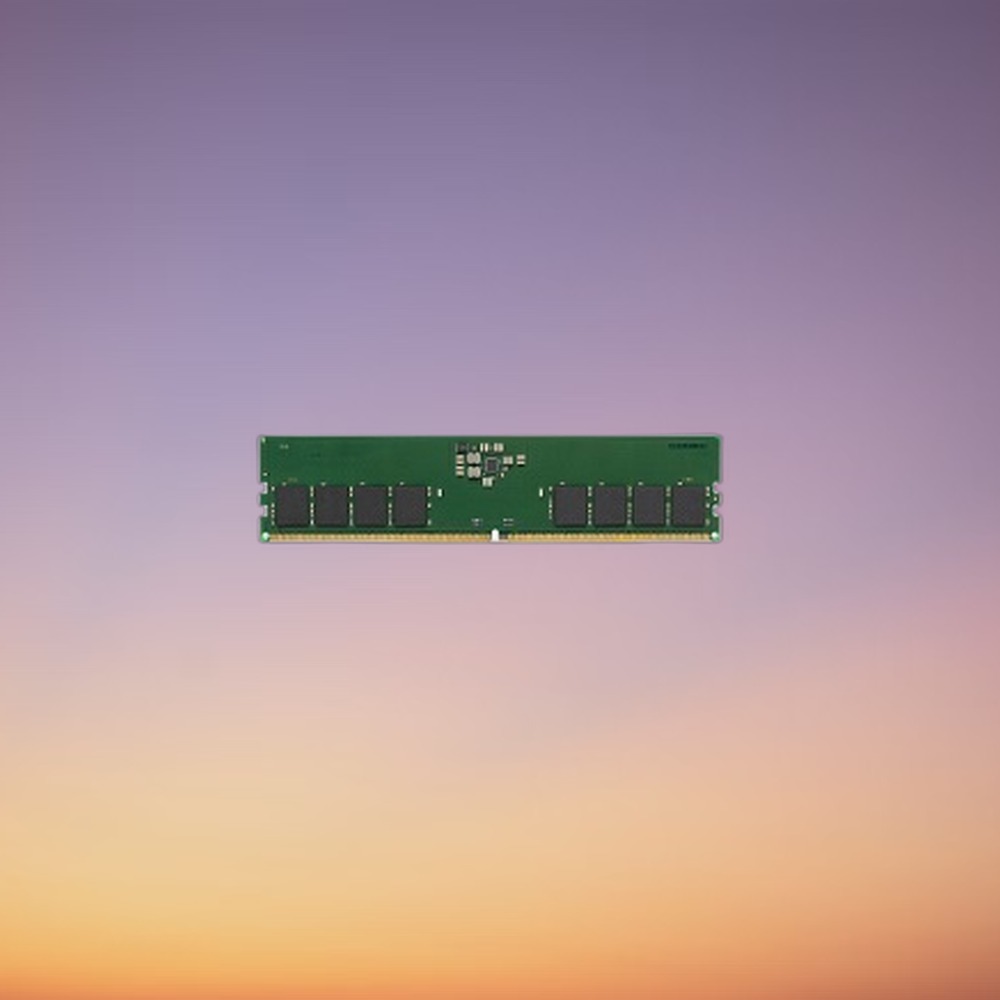

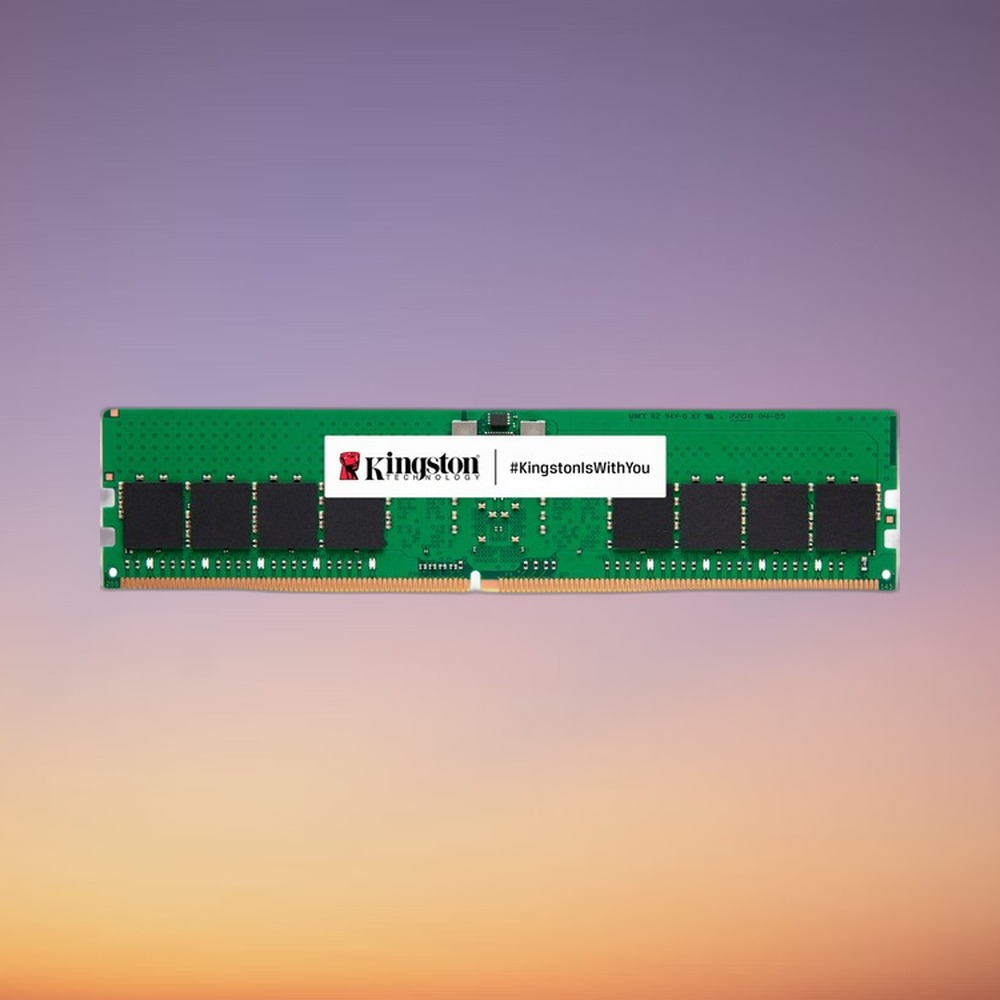

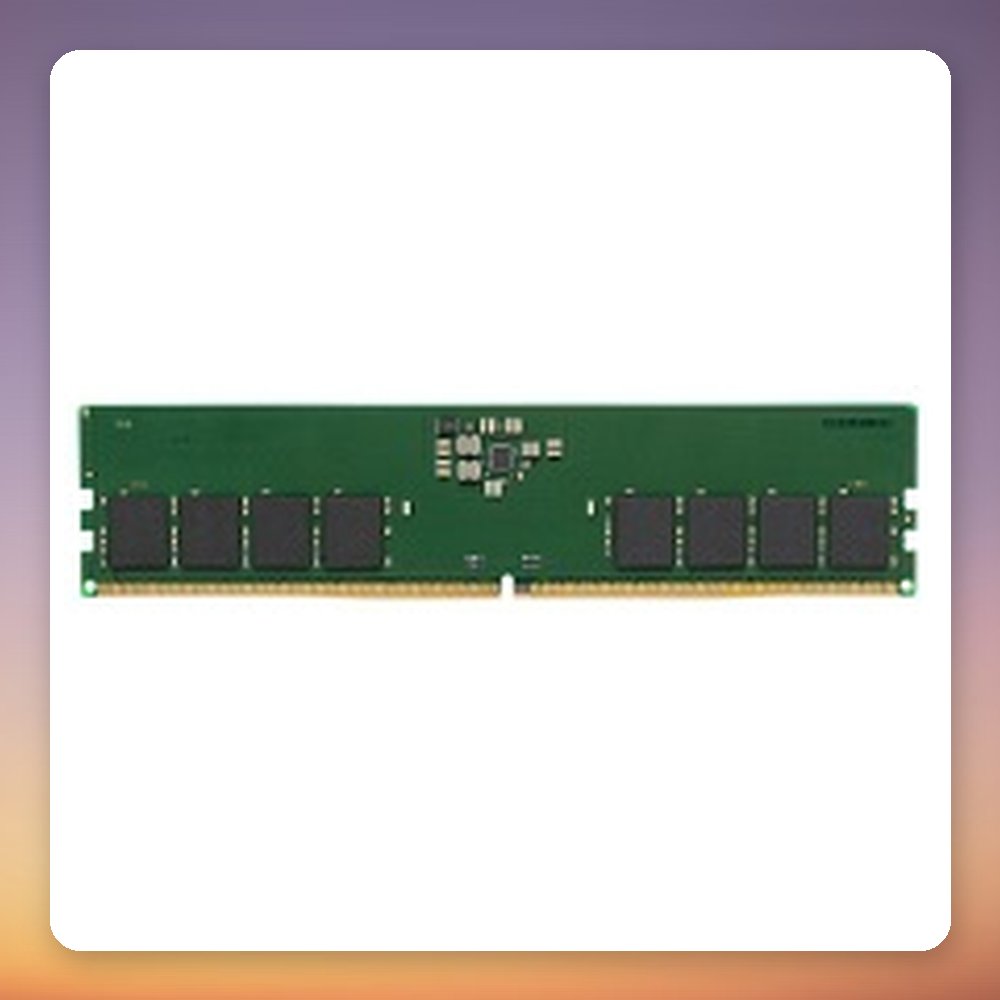

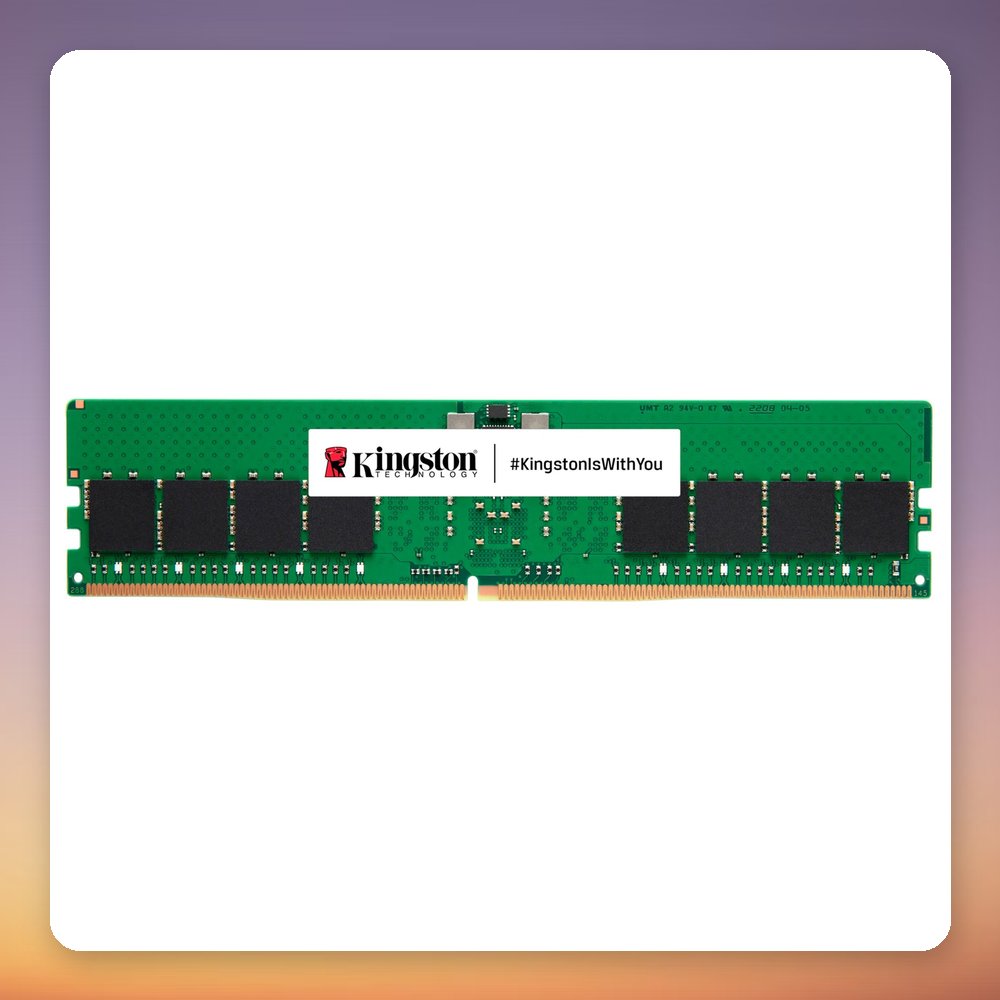

The Kingston ValueRAM DDR5-5600 is a single 16 GB module in the standard 288-pin unbuffered DIMM format. It runs at 5600 MT/s (PC5-44800) with tested timings of CL46-45-45 at the JEDEC-standard 1.1 V, so it needs no overclocking profile to reach its rated speed. It also includes on-die ECC, which is built into the DDR5 chips.

This is a straightforward, no-frills module for anyone who wants reliable DDR5 without paying for RGB or heat spreaders. Being a single 16 GB stick, it suits a first DDR5 build or an upgrade where you plan to add a second matching module later for dual-channel. It uses the SPD profile, is RoHS compliant and halogen-free, and has gold-plated contacts.

Specification

• Manufacturer: Kingston
• Model: ValueRAM
• MPN: KVR56U46BS8-16
• EAN: 7406173328270
• Capacity: 16 GB (1 x 16 GB)
• Memory type: DDR5
• Speed: DDR5-5600 (PC5-44800), 5600 MT/s
• Timings (CL-tRCD-tRP): 46-45-45
• Voltage: 1.1 V
• Form factor: 288-pin DIMM
• Buffering: Unbuffered (unregistered)
• ECC: No (on-die ECC included)
• Memory ranking: 1
• Colour: Green
• Dimensions (W x H): 133.3 x 31.2 mm
• Operating temperature: 0 – 85 °C
