Product Overview

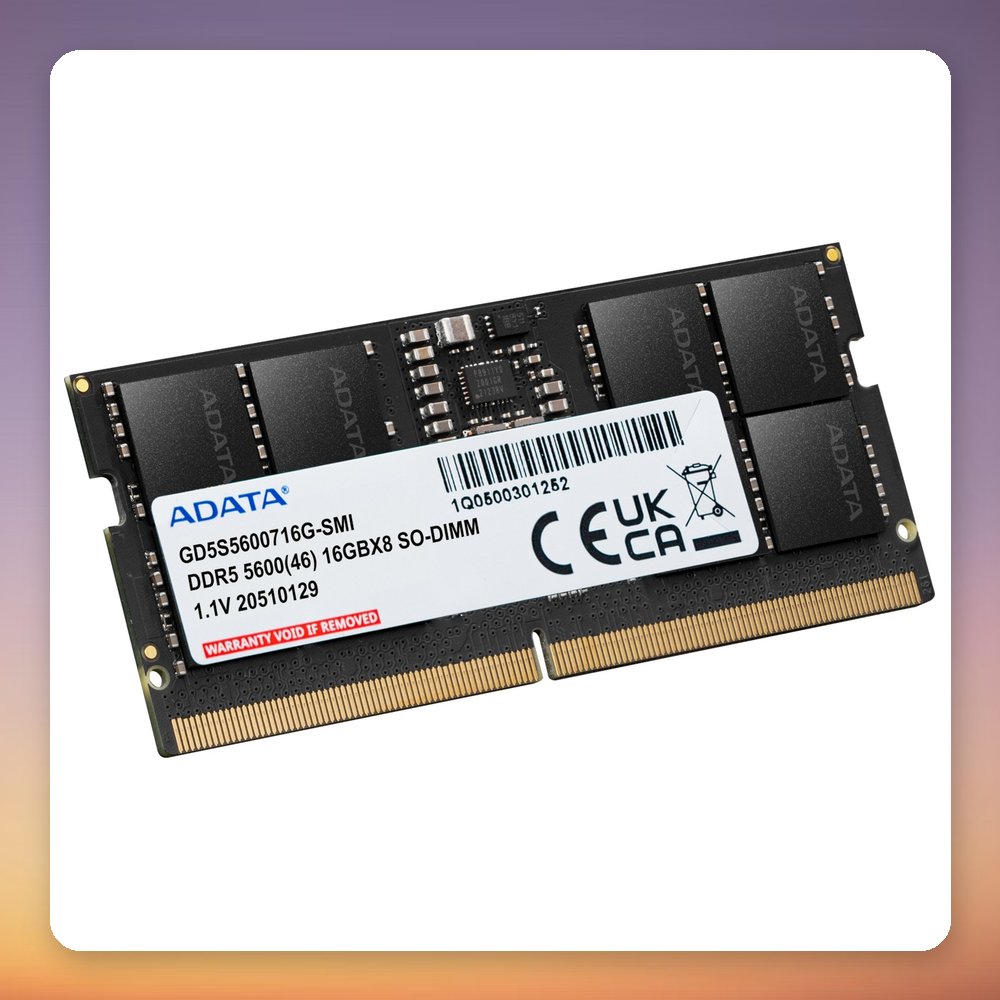

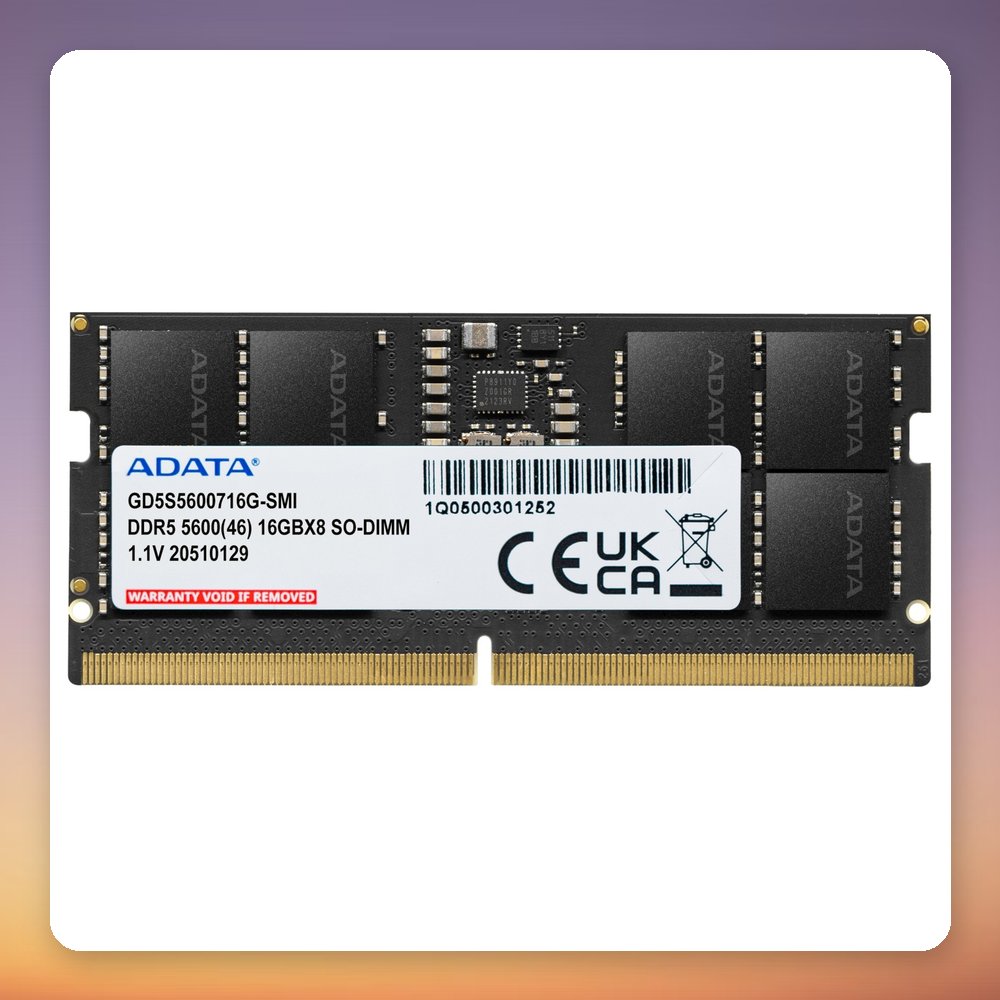

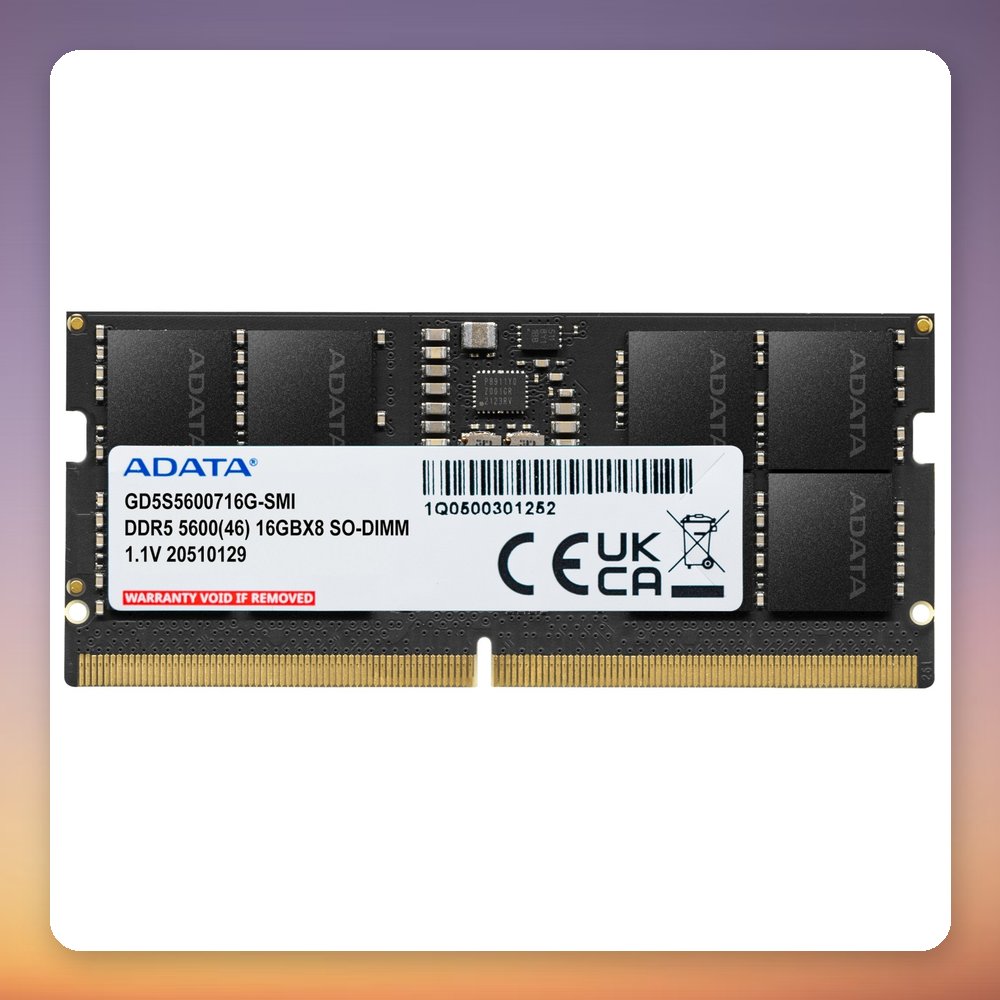

The ADATA Gold DDR5-5600 SO-DIMM is a single 16 GB (1×16 GB) 262-pin memory module in the ‘Gold’ series, built for laptops. It runs at DDR5-5600 (PC5-44800, 2800 MHz physical clock) on just 1.1 V and uses timings of 46-45-45, which puts it in the mainstream range for SO-DIMM DDR5.

This module suits laptop and compact system upgrades where a single 16 GB DDR5 stick is needed, or where two sticks can be paired for 32 GB. ADATA says the Gold line uses tightly screened and sorted memory ICs, which are tested for consistent behaviour, and the module includes on-die ECC and a built-in power management IC (PMIC) for supply stability. It comes in a black finish and supports an operating temperature of 0 to 85 °C.

Specification

• Manufacturer: ADATA
• Model: Gold GD5S5600716G-SMI
• MPN: GD5S5600716G-SMI
• EAN: 47110859460410
• Capacity: 16 GB (1 x 16 GB)
• Memory type: DDR5
• Speed: DDR5-5600 (PC5-44800)
• Physical clock: 2800 MHz
• Timings: CL46-45-45
• Voltage: 1.1 V
• Form factor: SO-DIMM, 262-pin
• On-die ECC: Yes
• Colour: Black
• Operating temperature: 0 – 85 °C
• Weight: 8.6 g
• Dimensions (W x H x D): 55 x 9 x 170 mm (package)
