Product Overview

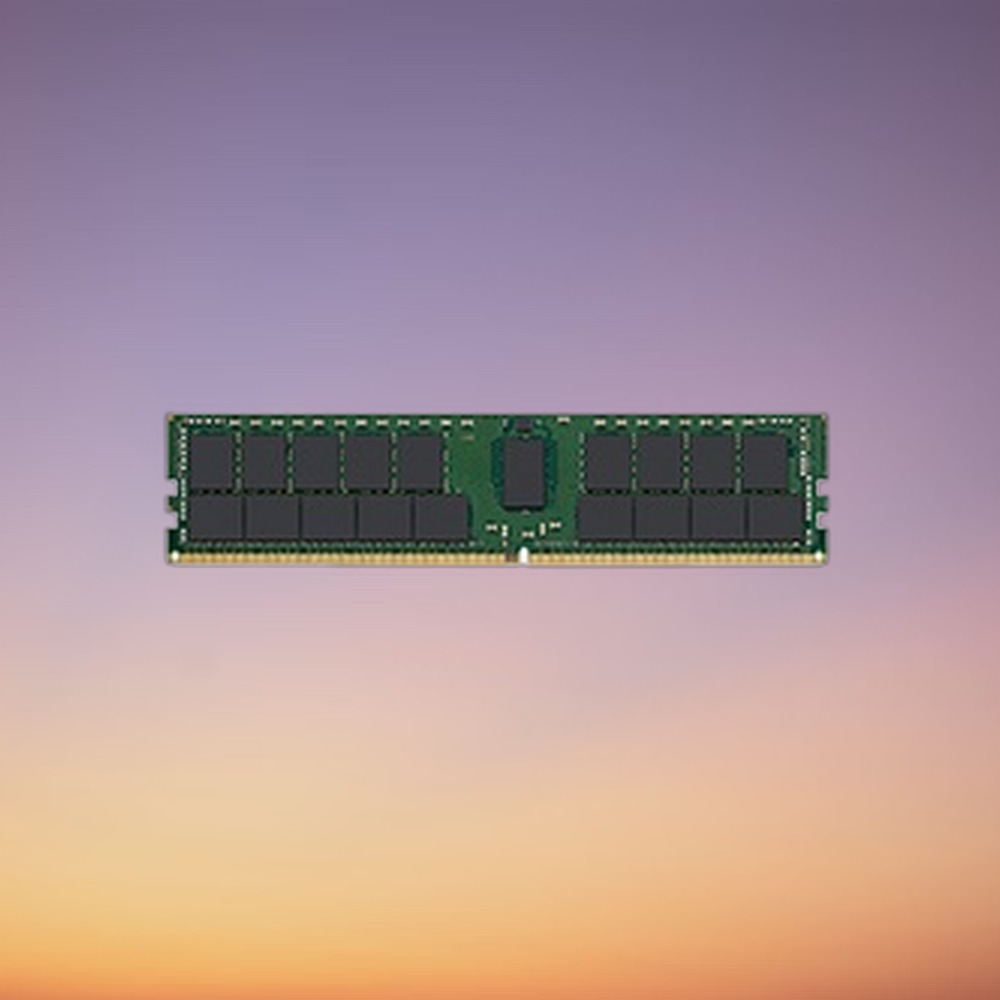

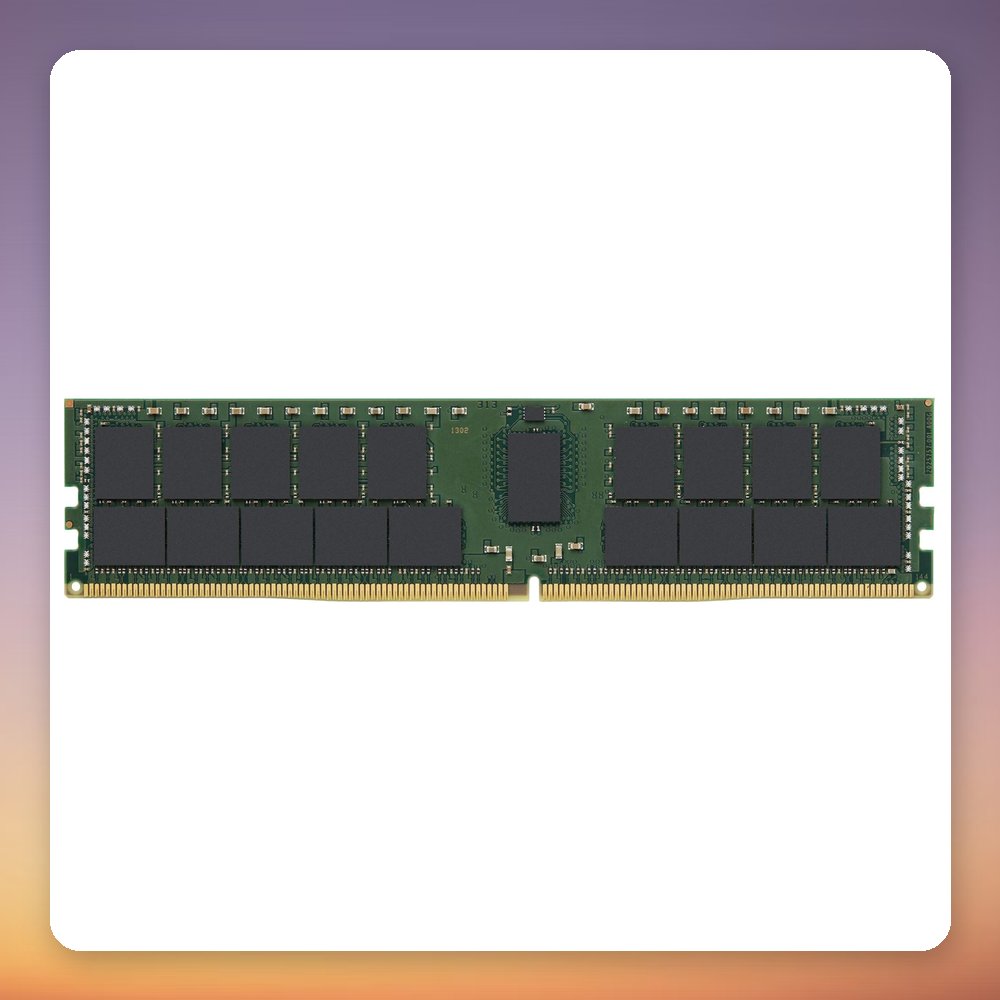

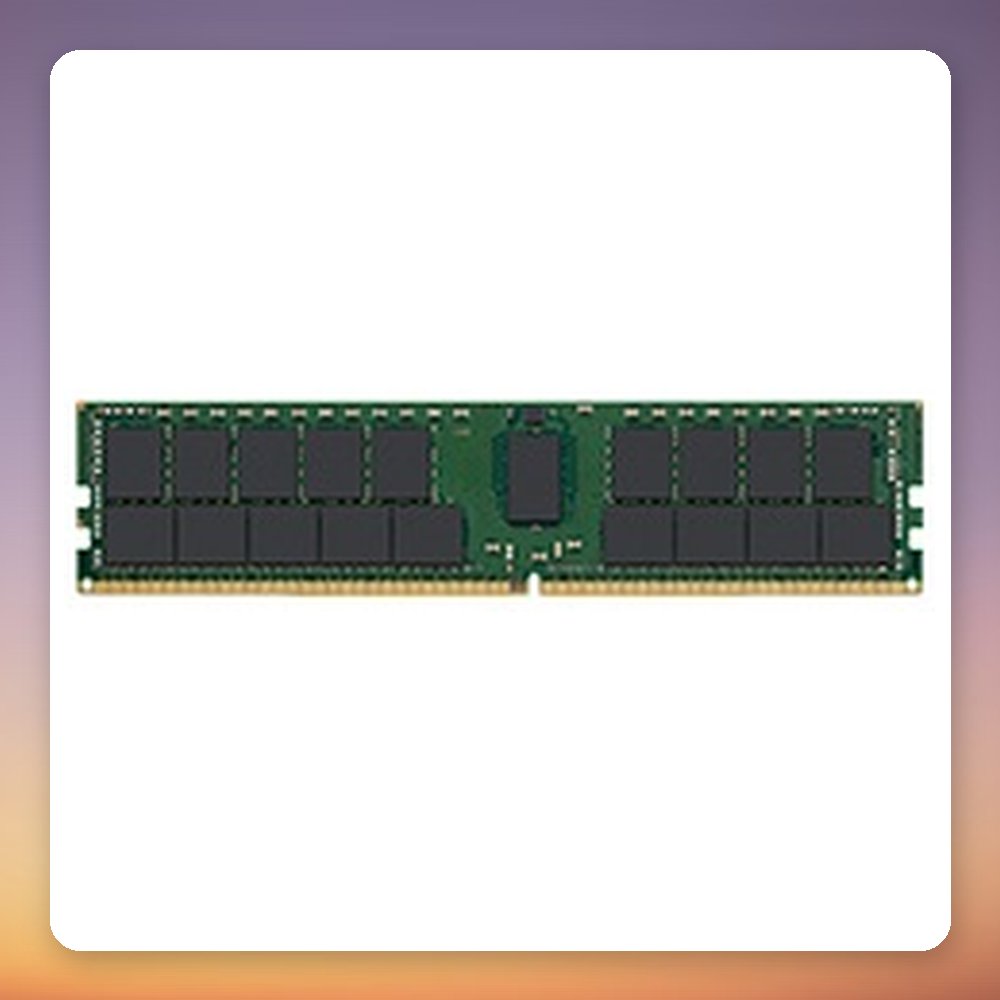

The Kingston DDR4-3200 ECC Registered memory module is a single 64 GB DIMM with 288 pins, running at 3200 MT/s (PC4-25600) with timings of 22-22-22. What sets it apart from standard desktop RAM is the combination of ECC error correction and registered (buffered) design, together with a dual-sided layout using 36 memory chips per module and a 2-rank configuration.

With 64 GB on one module, it suits servers and workstation-class systems that need a lot of memory on a single slot, and Icecat lists it as a component for PC/Server use. Because it is registered ECC memory, it needs a platform that supports registered DIMMs. The module is JEDEC-standard, gold-plated and RoHS compliant, and measures 133.3 mm wide and 31.2 mm high in a black finish.

Specification

• Manufacturer: Kingston
• Model: KSM32RD4/64HCR
• MPN: KSM32RD4/64HCR
• EAN: 0740617326710
• Capacity: 64 GB (1 x 64 GB)
• Memory type: DDR4
• Speed: DDR4-3200 (PC4-25600), 3200 MT/s
• Timings: CL22-22-22
• Error correction: ECC
• Buffering: Registered (buffered)
• Form factor: 288-pin DIMM
• Memory ranking: 2
• Memory chips: 36 per module, double-sided
• Voltage: 1.2 V (Wave lists up to 1.35 V)
• Profile: Intel XMP 2.0
• Module configuration: 8192M x 72
• Standard: JEDEC
• Lead plating: Gold
• Width x Height: 133.3 mm x 31.2 mm
• Colour: Black
