Overview

The Gainward GeForce RTX 5070 Ti Phoenix-S GS is a high-performance graphics card powered by NVIDIA’s GeForce RTX 5070 Ti GPU. This advanced GPU is part of the NVIDIA Blackwell architecture, offering exceptional gaming realism, enhanced speed, and improved power efficiency. It supports cutting-edge AI-driven features such as Frame Generation, Multi Frame Generation, and immersive VR experiences.

Key features include Real-Time Ray Tracing, Ray Reconstruction, NVIDIA Ansel for creating detailed in-game screenshots, and NVIDIA G-SYNC and G-SYNC HDR for smoother visuals. Additionally, it incorporates NVIDIA DLSS 4 for superior upscaling, ShadowPlay, Highlights, NVENC Gen 9, and AV1 encoding and decoding capabilities.

The GPU on the Gainward GeForce RTX 5070 Ti Phoenix-S GS is equipped with 8,960 CUDA cores and is paired with 16 GB of GDDR7 memory, which operates on a 256-bit memory interface. This combination ensures top-tier performance for demanding gaming and creative applications.

Technical Specification

• Type – graphics card
• EAN – 4710562245530
• Manufacturer number – NE7507TS19T2-GB2031K
• Slot – PCIe x16 version 5.0
• Occupied slots – 3
• GPU:
  Designation – NVIDIA GeForce RTX 5070 Ti
  GPU class – NVIDIA GeForce RTX Gaming
  Clock frequency – 2300 MHz
  GPU Boost clock – 2452 MHz
  Stream processors – 8960
  Support – DirectX 12 Ultimate, OpenGL 4.6
• Memory:
  Capacity – 16 GB (GDDR7)
  Connection – 256 bits
  Effective clock – 28 GHz

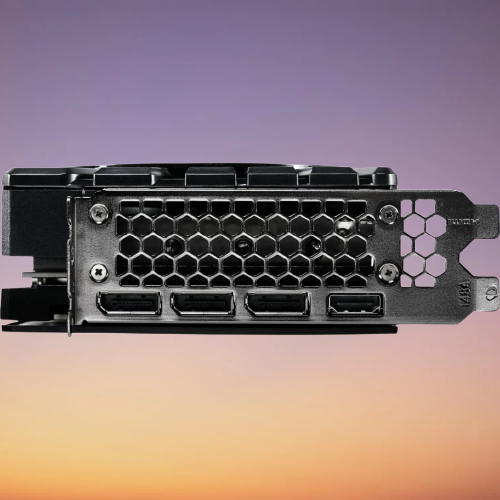

• Connections – 1 x HDMI version 2.1b / 3 x Displayport version 2.1b
• Power supply:
  Average consumption – 300 W
  Connections – 1x 16-pin (12VHPWR) power connector
  Required power supply – min. 750 W

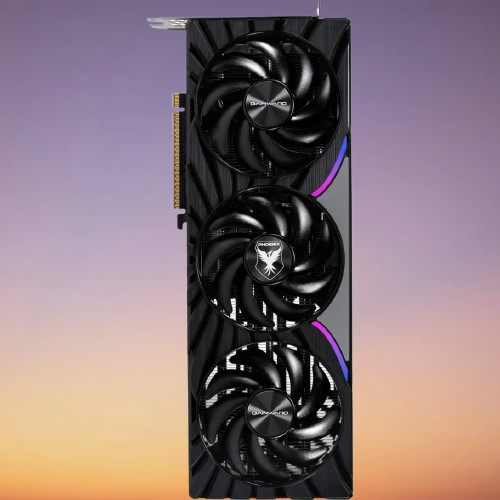

• Cooling – cooling with fan
• Operating systems Supports – Windows 11, Windows 10
• Feature – NVIDIA DLSS 4, Reflex 2, RTX Video, RTX Remix, NVIDIA Broadcast, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, NVIDIA App, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Encoder: Gen 9, NVENC Decoder: Gen 6, AV1 Encoder and Decoder, Raytracing Cores: Gen 4, TensorCores (AI): Gen 5
• More information – Max. resolution: 4K at 480Hz or 8K at 120Hz with DSC
• Notice – For the power supply, a power supply with a native 16-pin connector or a power supply with 2x 8-pin PCIe for the included adapter is required
• Dimensions – Width: 133.1 mm x Height: 60 mm x Depth/Length: 331.9 mm
• Accesories – Power adapter


  ---
