Product Overview

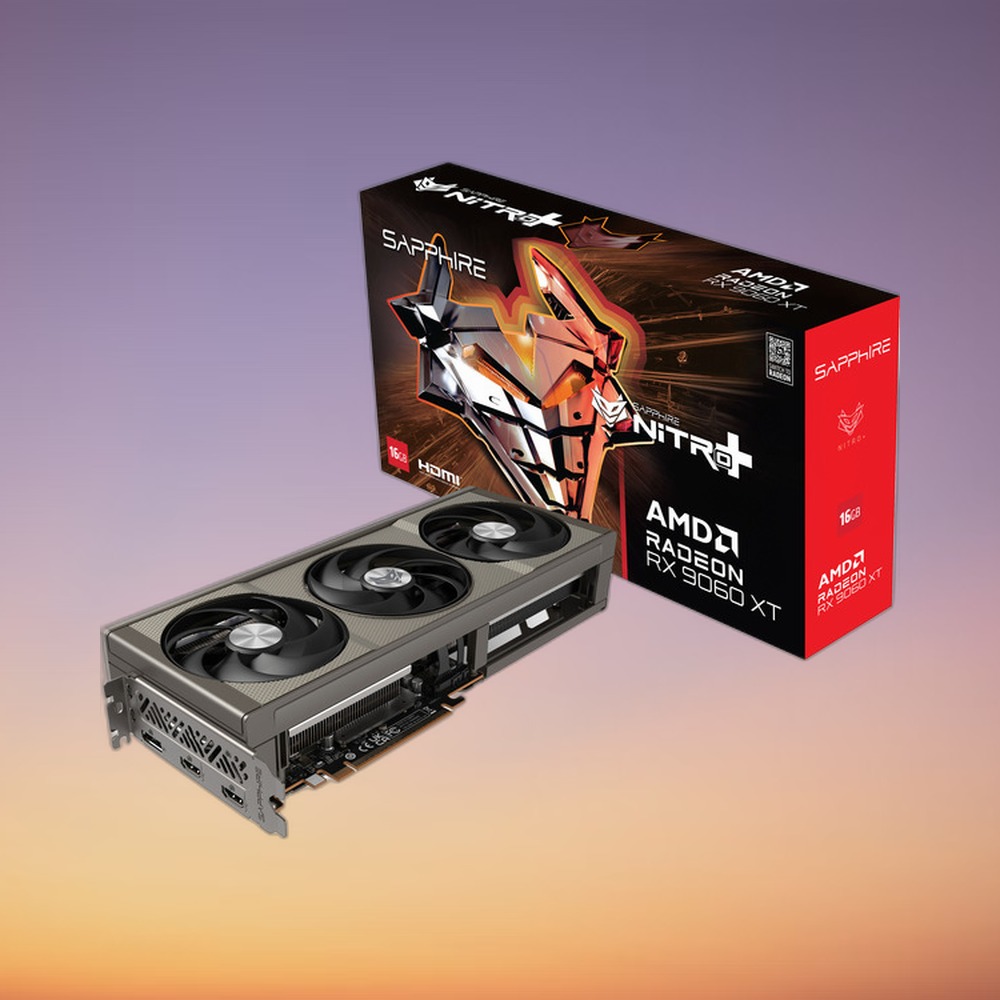

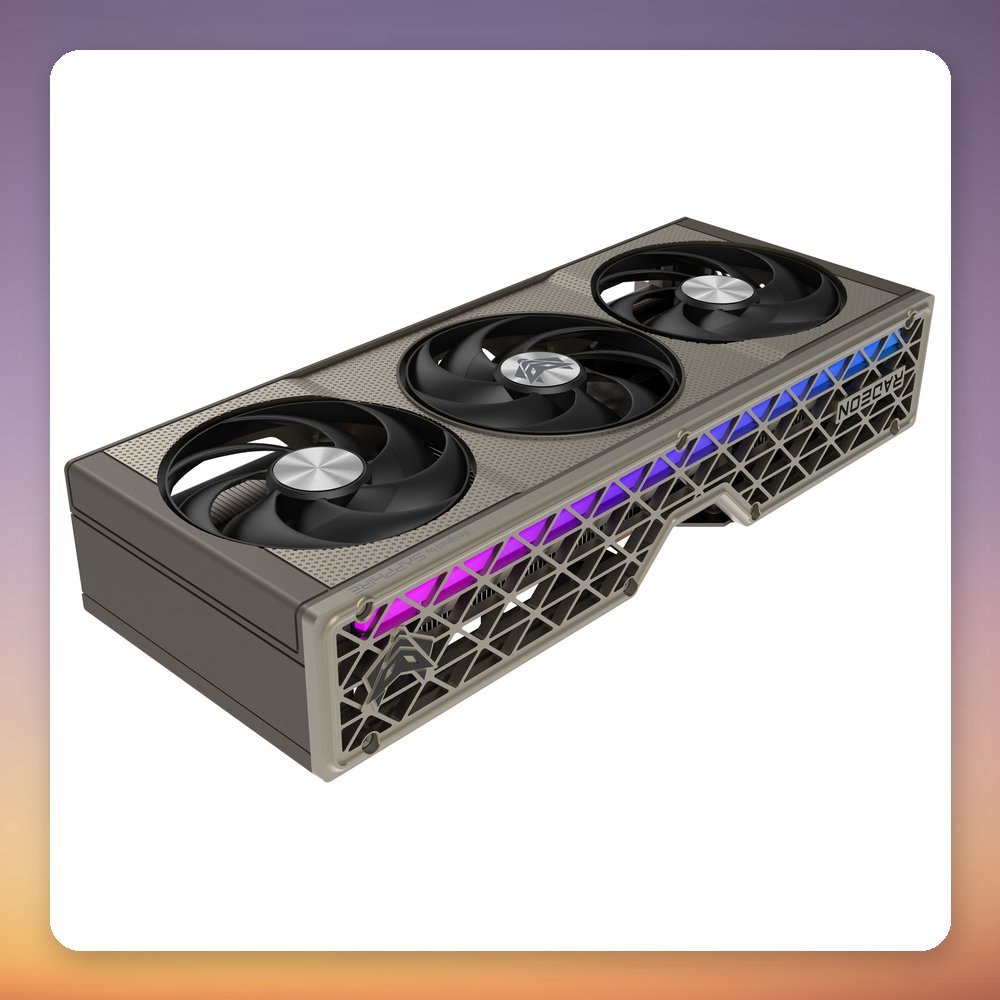

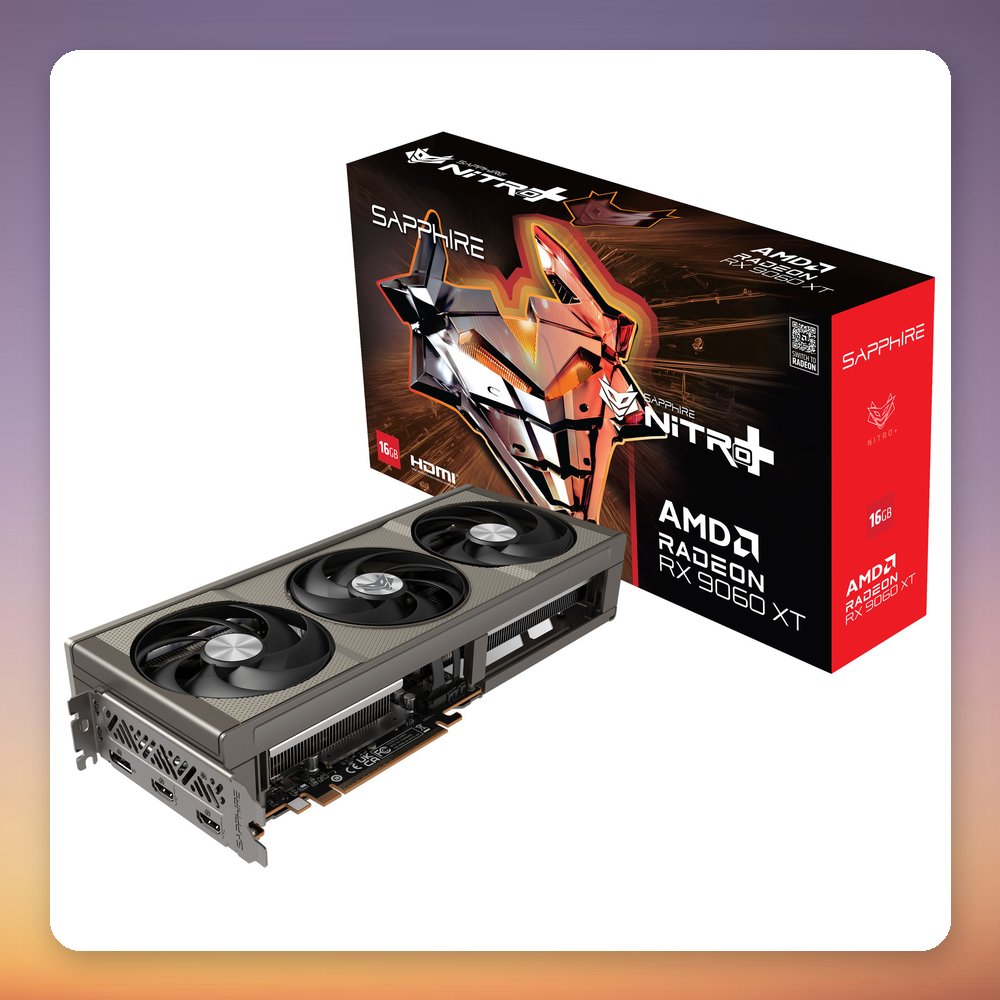

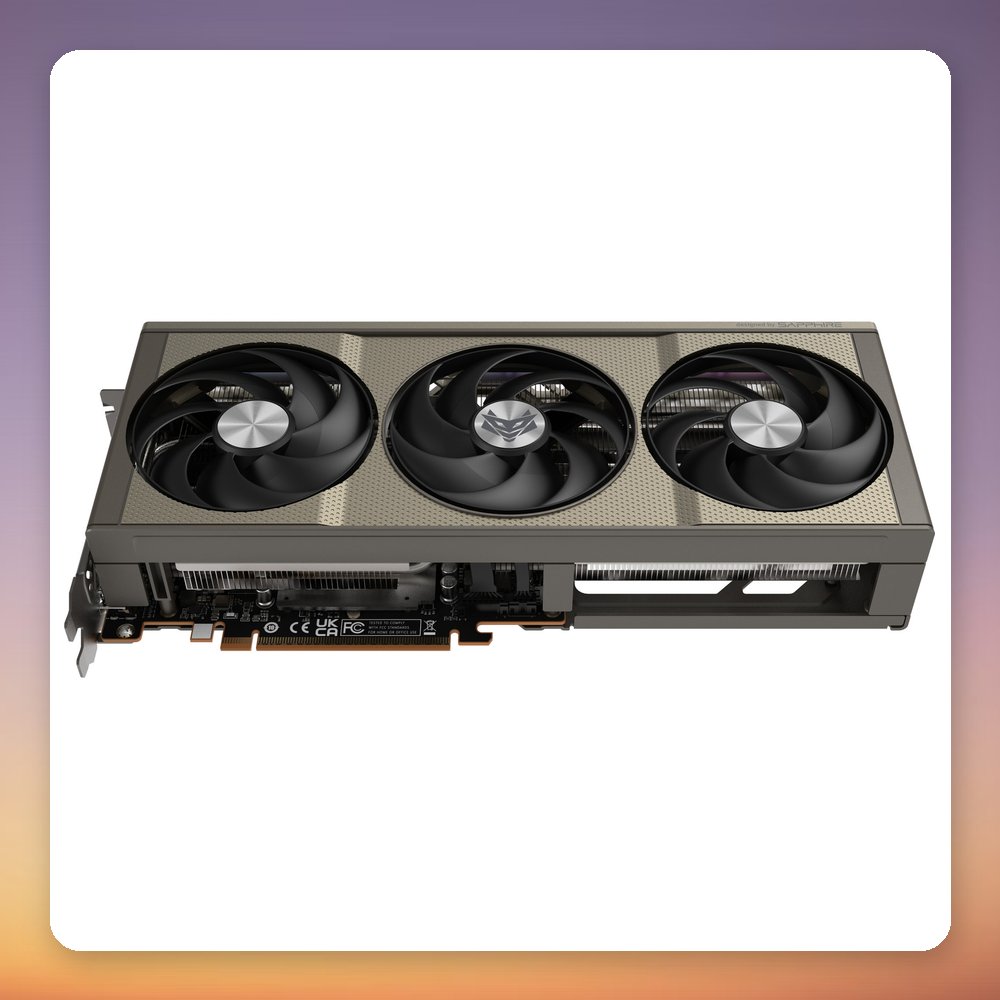

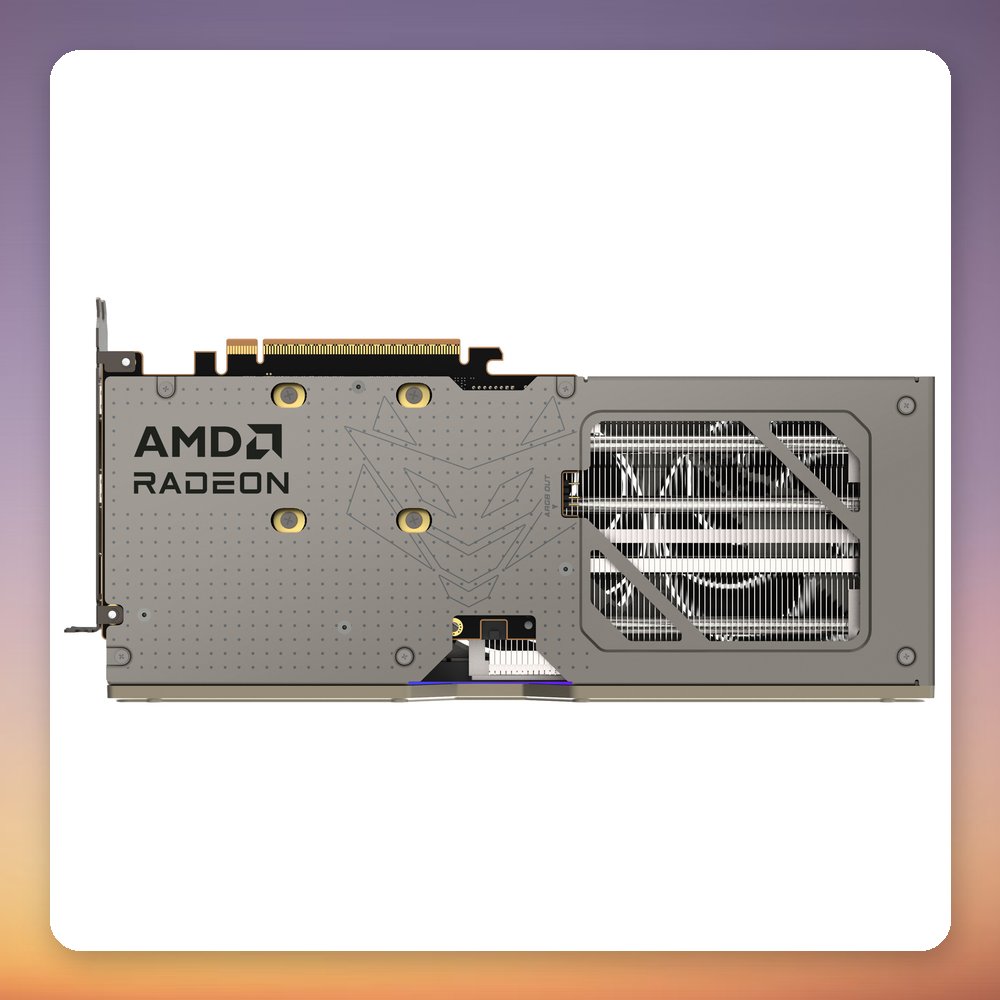

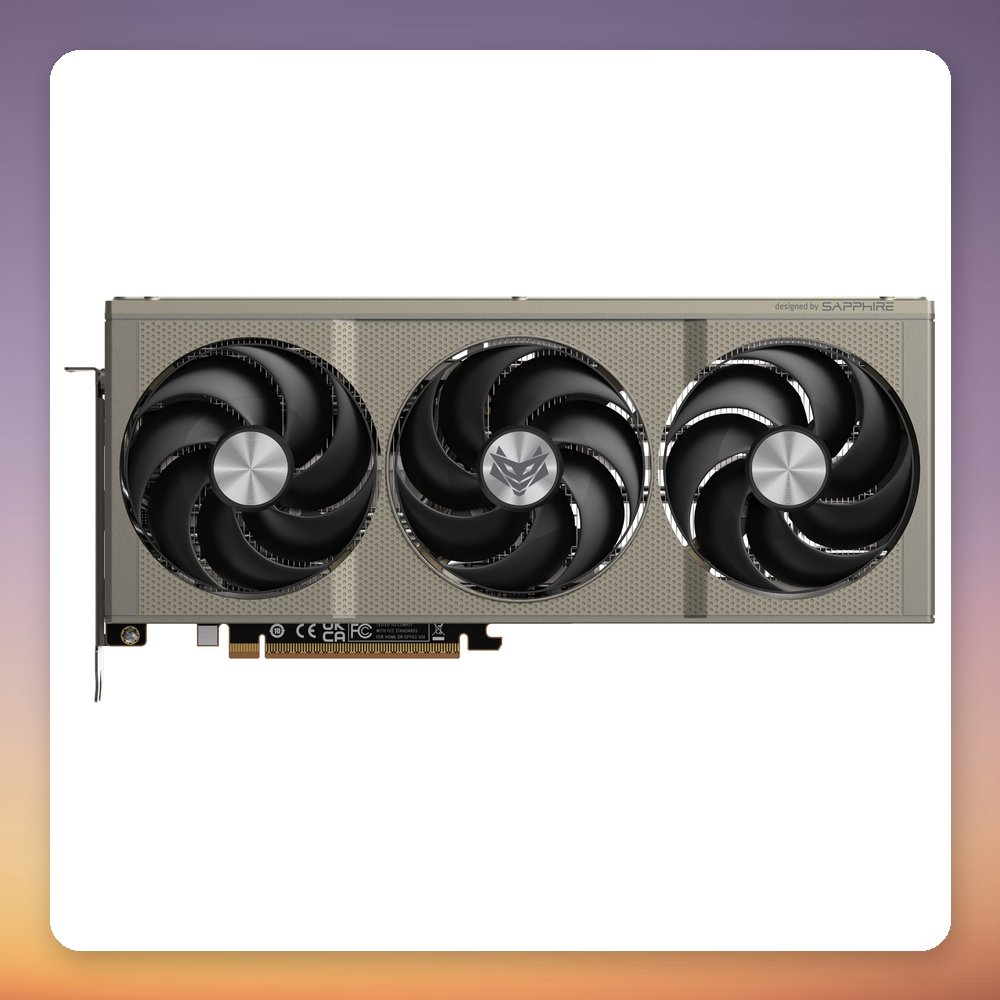

The Sapphire Radeon RX 9060 XT NITRO+ is a PCIe 5.0 graphics card built on AMD’s RDNA 4 architecture, with 2048 stream processors, 32 Compute Units and 16 GB of GDDR6 memory on a 128-bit bus. It boosts to 3320 MHz with a 2780 MHz gaming clock and delivers 320 GB/s of memory bandwidth, aimed at smooth 1440p and 1080p gaming.

This card suits mid-range gaming builds that want a large 16 GB frame buffer without a high power draw. It averages 185 W, needs a single 8-pin connector and a minimum 550 W power supply. It occupies 2.7 slots and measures 300 mm in length, so check case clearance. Outputs are 2x HDMI 2.1b and 1x DisplayPort 2.1a, with FSR 4 AI upscaling and AV1 encode/decode supported.

Specification

• Manufacturer: Sapphire
• Model: Radeon RX 9060 XT NITRO+
• MPN: 11350-01-20G
• EAN: 4895106296619
• GPU: AMD Radeon RX 9060 XT
• Architecture: AMD RDNA 4
• Stream Processors: 2048
• Compute Units: 32 (3rd Gen RT, 2nd Gen AI Accelerators)
• Boost Clock: 3320 MHz
• Gaming Clock: 2780 MHz
• Memory: 16 GB GDDR6, 128-bit, 20 Gbps, 320 GB/s
• Interface: PCIe x16 5.0

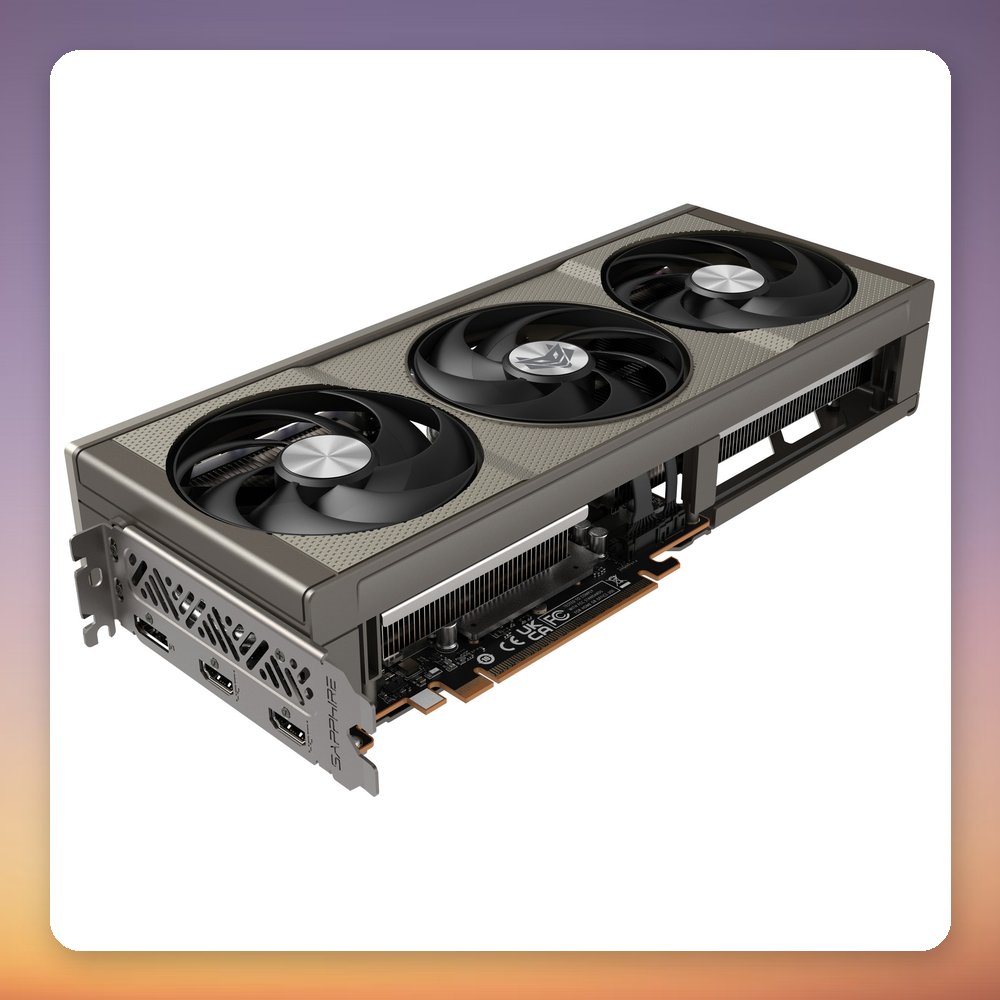

• Outputs: 2x HDMI 2.1b, 1x DisplayPort 2.1a
• Power Connector: 1x 8-pin (6+2)
• Average Power Consumption: 185 W
• Minimum PSU: 550 W
• Slots Occupied: 2.7
• Dimensions (W x H x D): 131 x 55 x 300 mm
