Product Overview

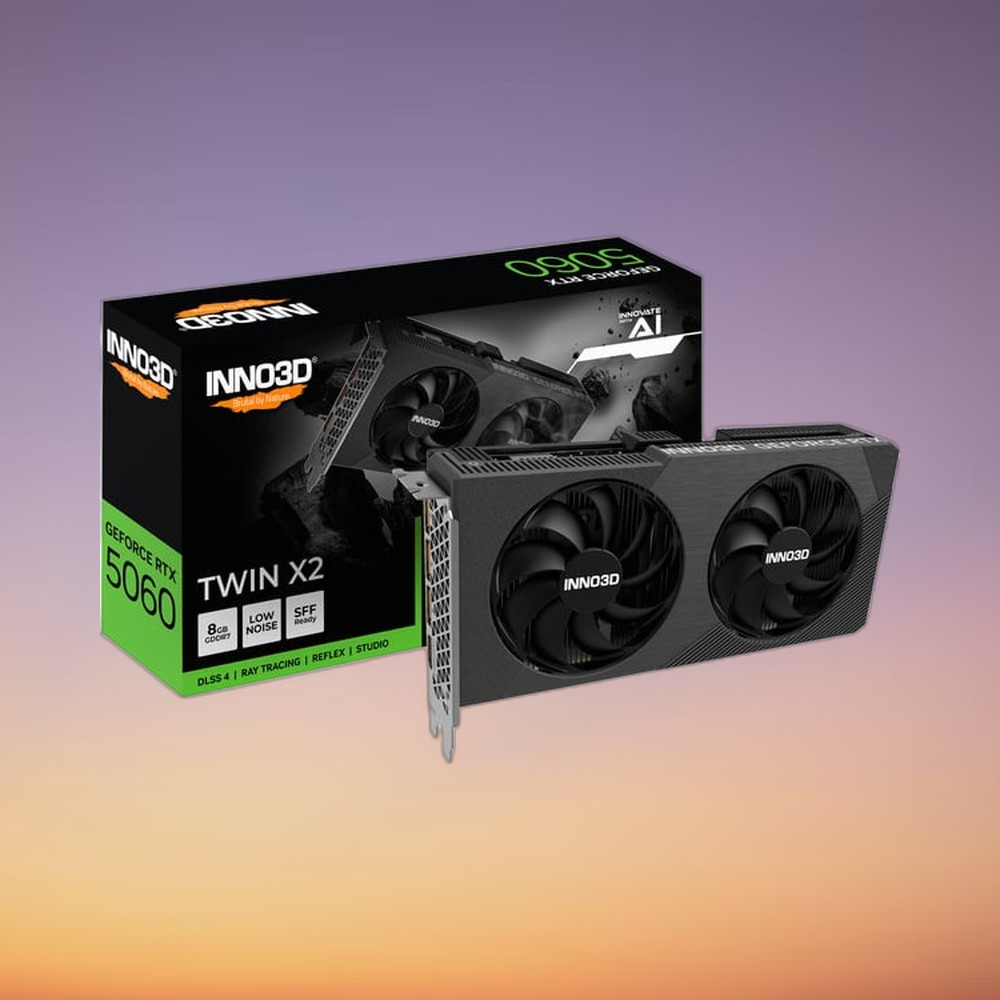

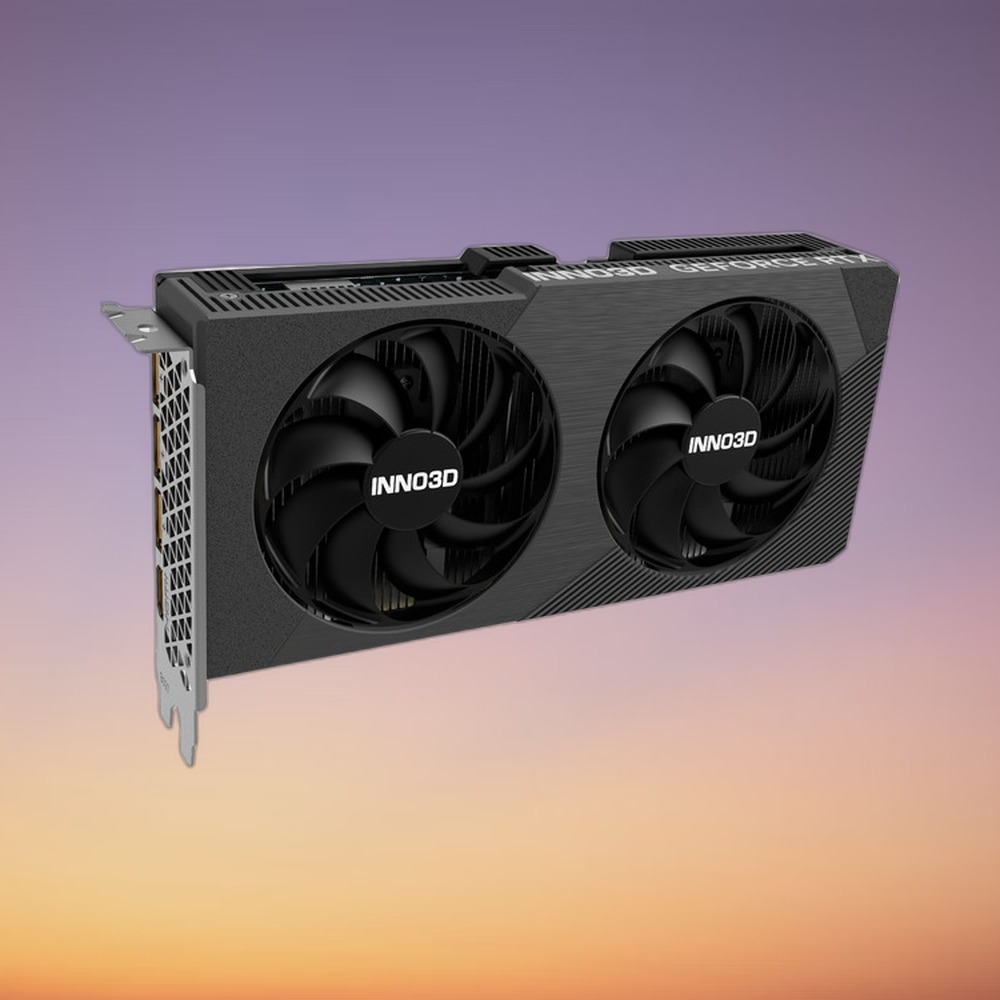

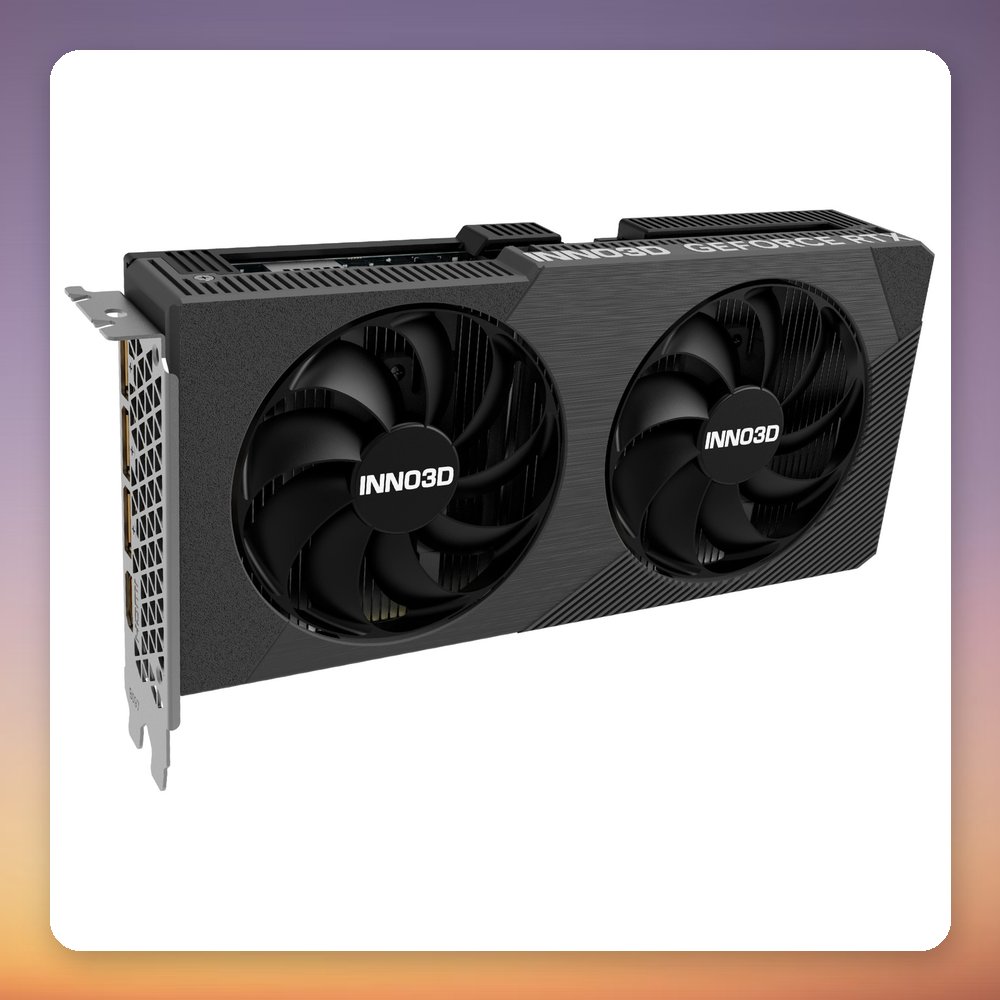

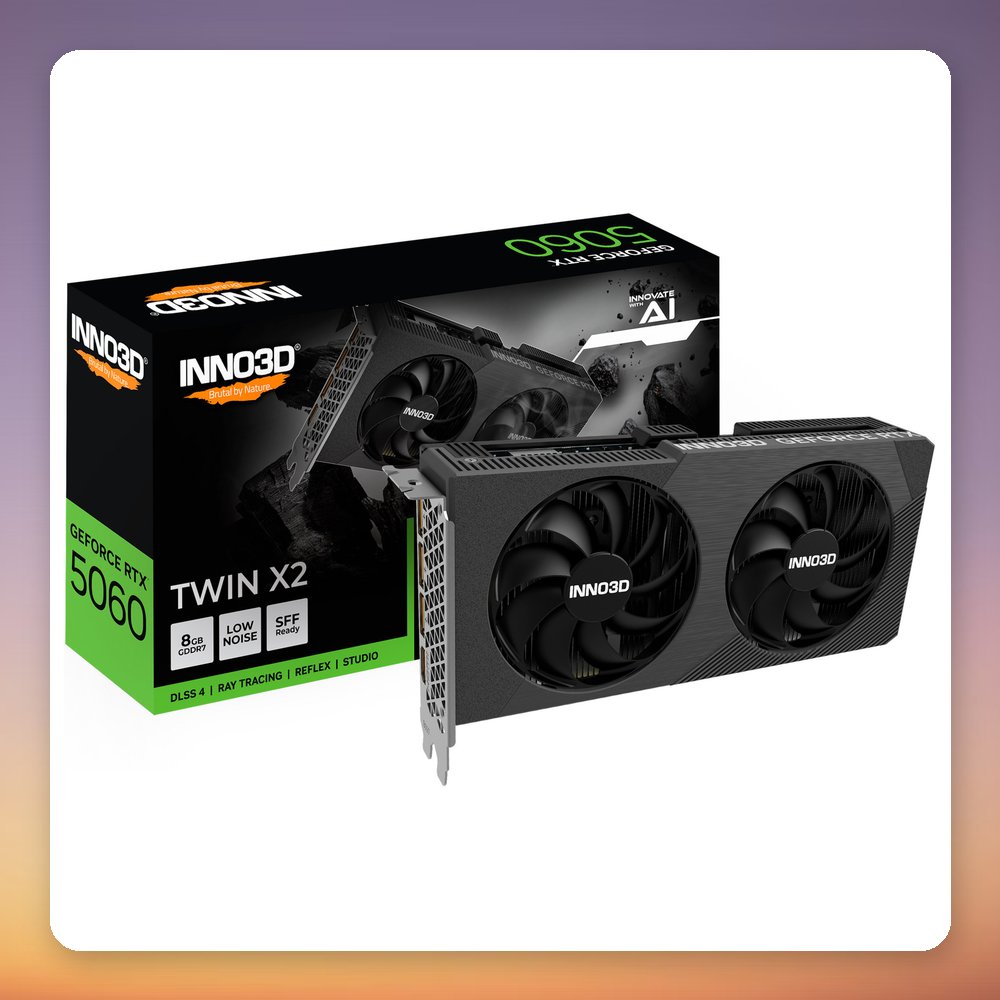

The Inno3D GeForce RTX 5060 TWIN X2 8 GB is a PCIe 5.0 graphics card built on the NVIDIA GeForce RTX 5060 GPU and the Blackwell architecture. It pairs 3,840 CUDA cores and a 2,497 MHz boost clock with 8 GB of GDDR7 memory on a 128-bit bus at 28 Gbps, and it supports DLSS, Multi Frame Generation and real-time ray tracing.

This card suits 1080p-class gaming builds and compact systems, as it takes up two slots and measures 250 mm in length. It needs one 8-pin (6+2) power connector and a PSU of at least 450 W, with an average power consumption of 145 W. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, with up to 4K at 480 Hz or 8K at 120 Hz using DSC. NVENC Gen 9 and AV1 encode/decode are included for streaming and recording.

Specification

• Manufacturer: Inno3D
• Model: GeForce RTX 5060 TWIN X2
• MPN: N50602-08D7-195071N
• EAN: 8886307701169
• GPU: NVIDIA GeForce RTX 5060
• CUDA cores: 3,840
• Boost clock: 2,497 MHz
• Memory: 8 GB GDDR7
• Memory bus: 128-bit
• Memory data rate: 28 Gbps
• Interface: PCIe 5.0 x16
• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Power connector: 1x 8-pin (6+2)
• Average power consumption: 145 W
• Minimum PSU: 450 W
• Slots occupied: 2
• Cooling: Fan cooling
• Dimensions (W x H x D): 116 x 41 x 250 mm
• Max. resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
