Product Overview

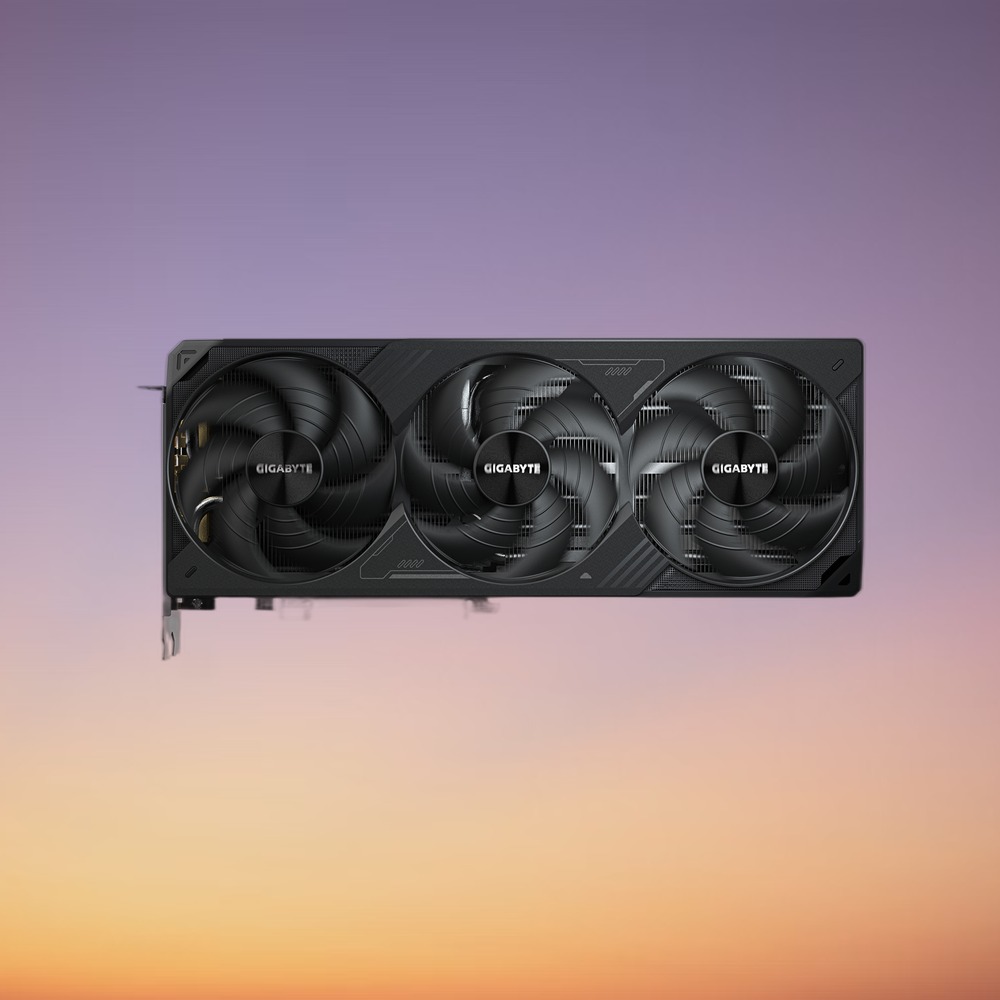

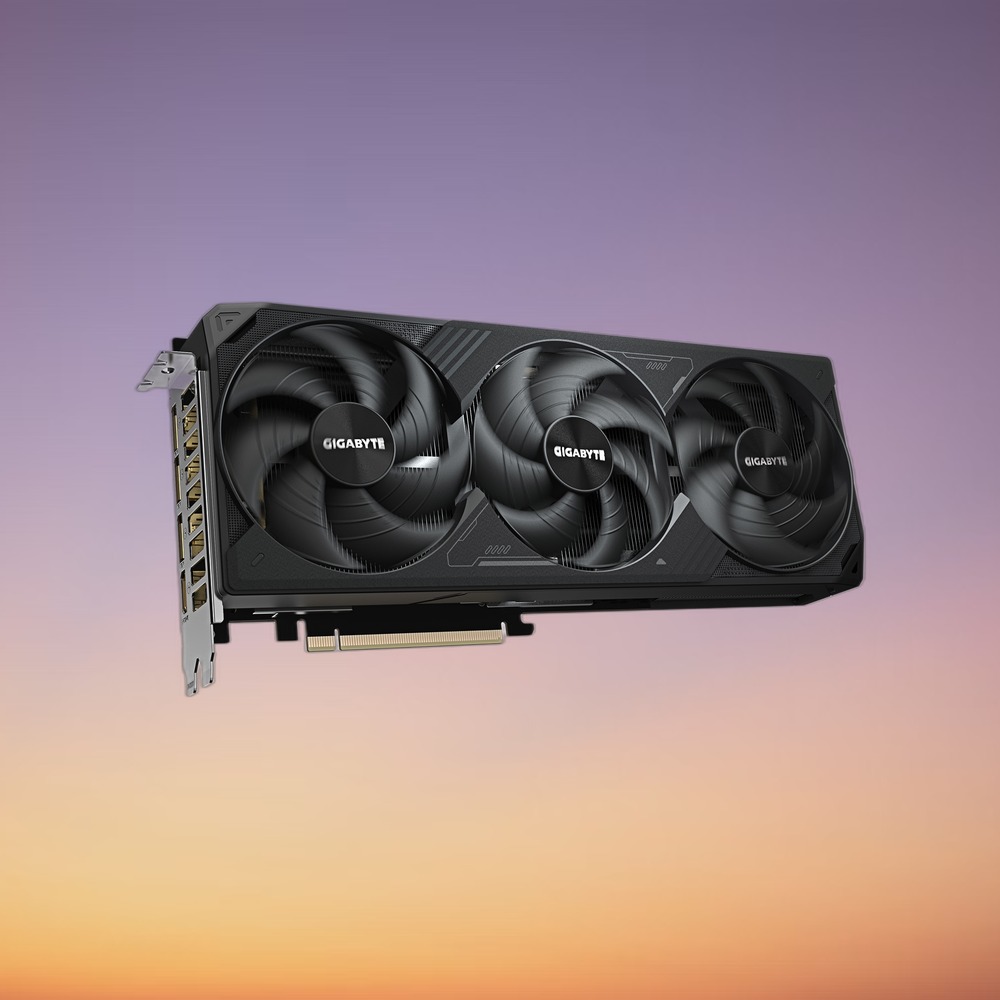

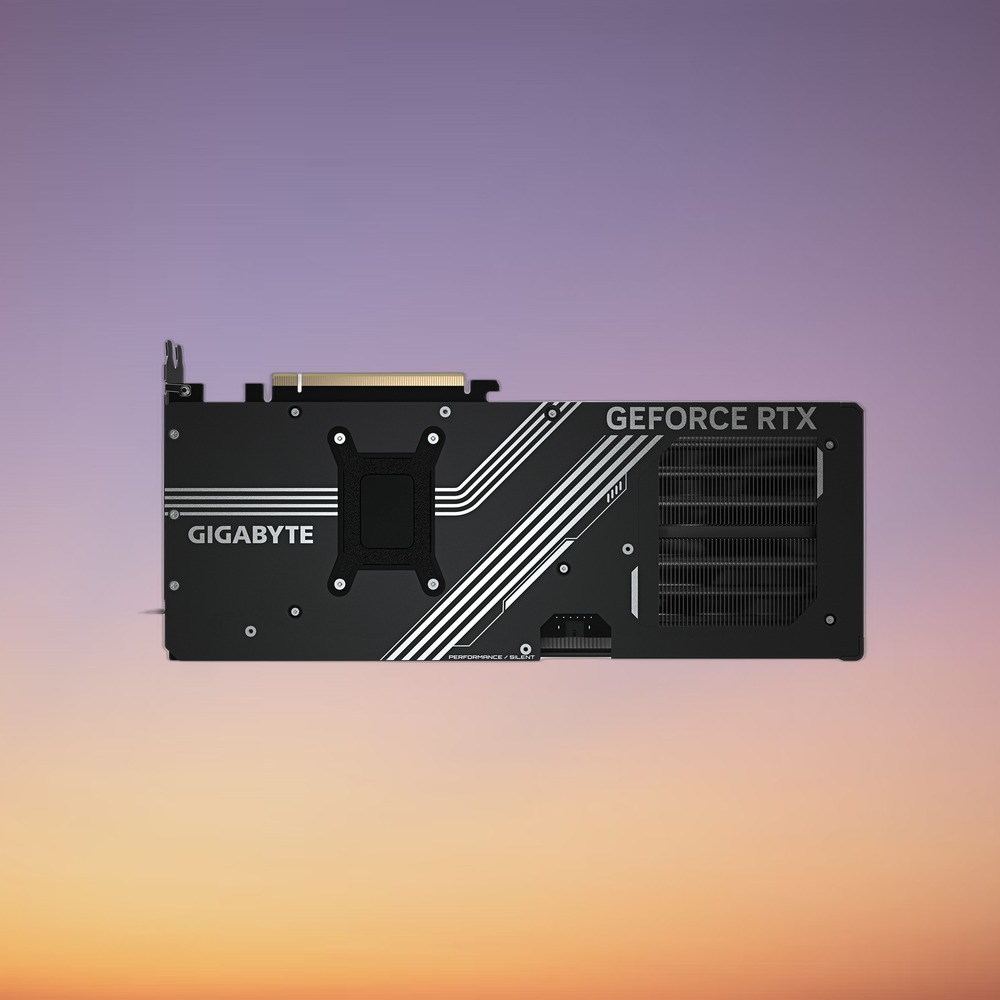

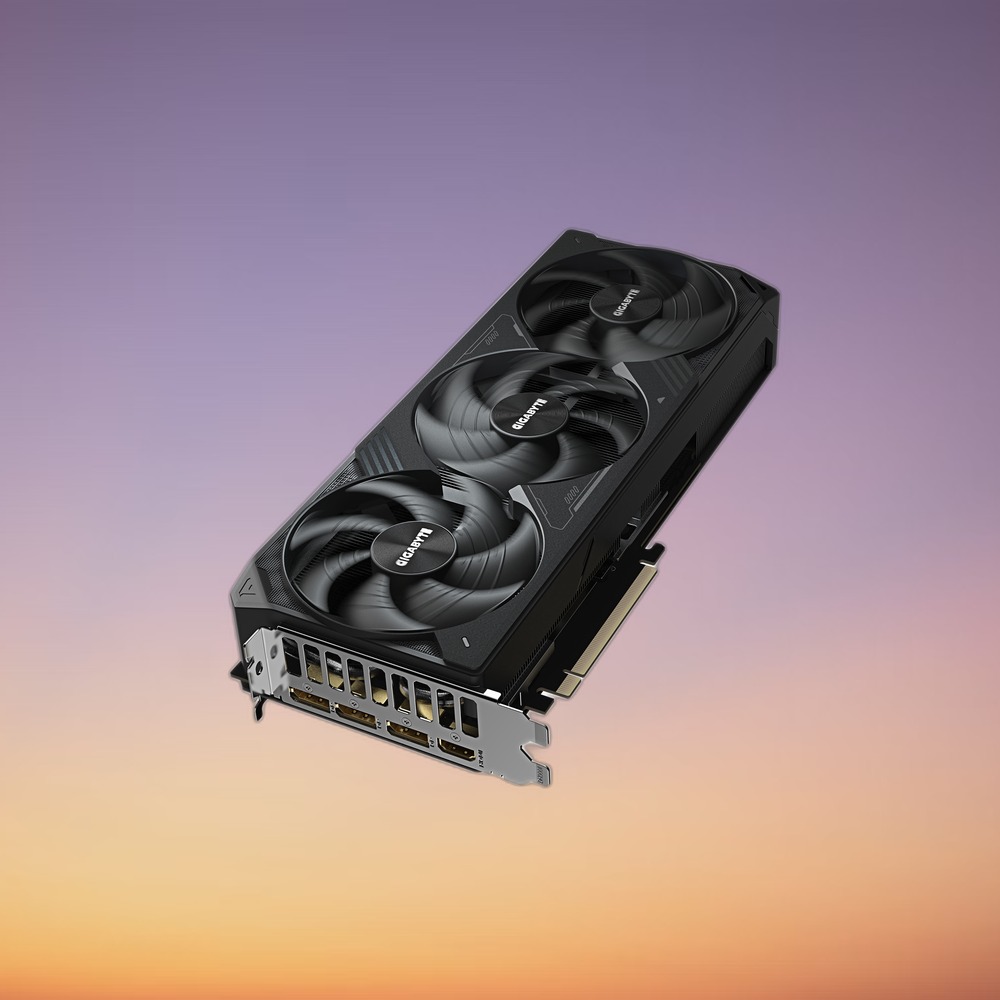

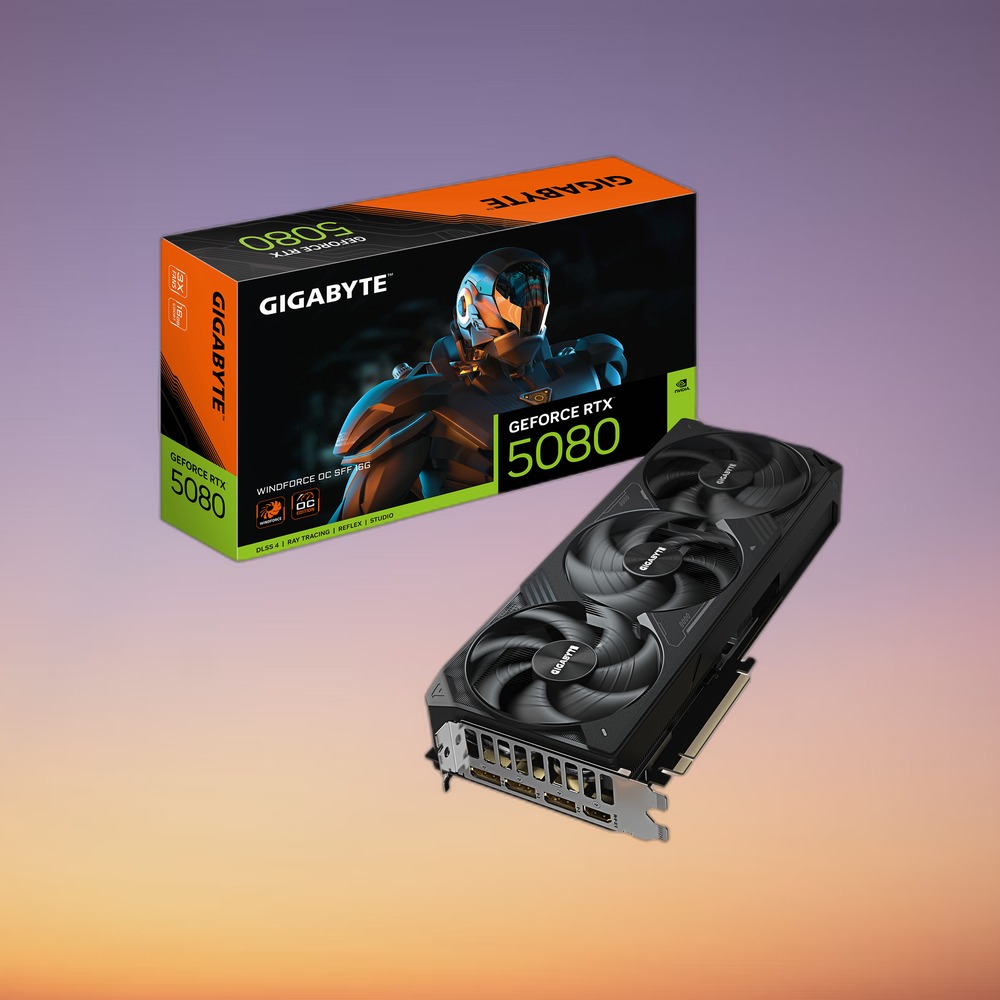

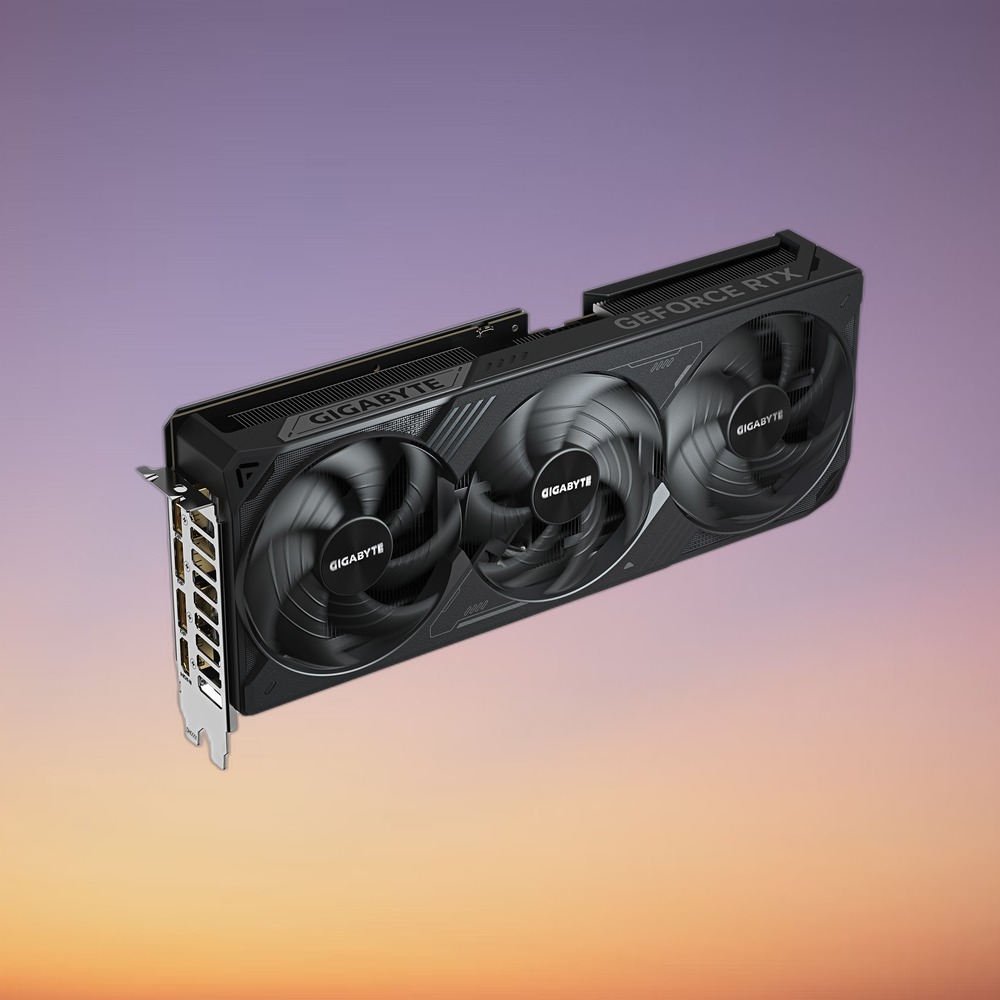

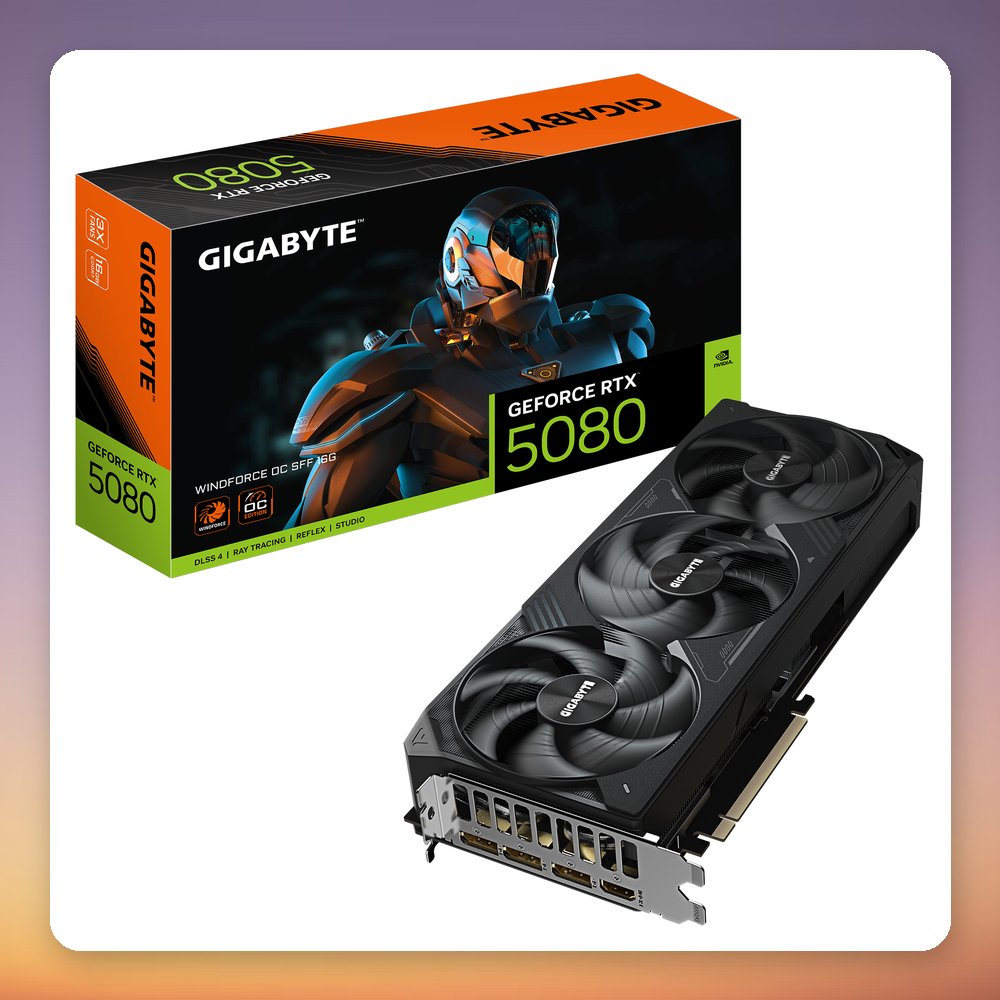

The GigaByte GeForce RTX 5080 WINDFORCE OC SFF 16 GB is an NVIDIA GeForce RTX 5080 graphics card with 16 GB of GDDR7 memory on a 256-bit bus and a processor frequency of 2670 MHz. It is built as an SFF-ready card, measuring 304 mm long and occupying 2.5 slots, and it is cooled by the GIGABYTE WINDFORCE 3X system with three fans.

With a PCI Express x16 5.0 interface, one HDMI 2.1b port and three DisplayPort 2.1a outputs, it supports up to four displays and resolutions up to 7680 x 4320 pixels. It suits compact and small form factor gaming builds as well as standard cases that have room for a 304 mm card. Power comes through a single 16-pin connector, and GigaByte lists a minimum system power supply of 850 W. The card comes with a 3-year manufacturer warranty.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5080 WINDFORCE OC SFF 16G
• EAN: 4719331355845
• GPU: NVIDIA GeForce RTX 5080
• Processor frequency: 2670 MHz
• Memory: 16 GB GDDR7
• Memory bus: 256-bit
• Memory clock speed: 30000 MHz
• Interface: PCI Express x16 5.0
• Video outputs: 1x HDMI 2.1b, 3x DisplayPort 2.1a
• Maximum resolution: 7680 x 4320 pixels
• Maximum displays: 4
• Cooling: GIGABYTE WINDFORCE 3X, 3 fans
• Power connector: 1x 16-pin
• Minimum PSU: 850 W
• Card size: 304 x 126 x 50 mm (L x H x D), 2.5 slots
• Weight: 2 kg
• Manufacturer warranty: 3 years
