Product Overview

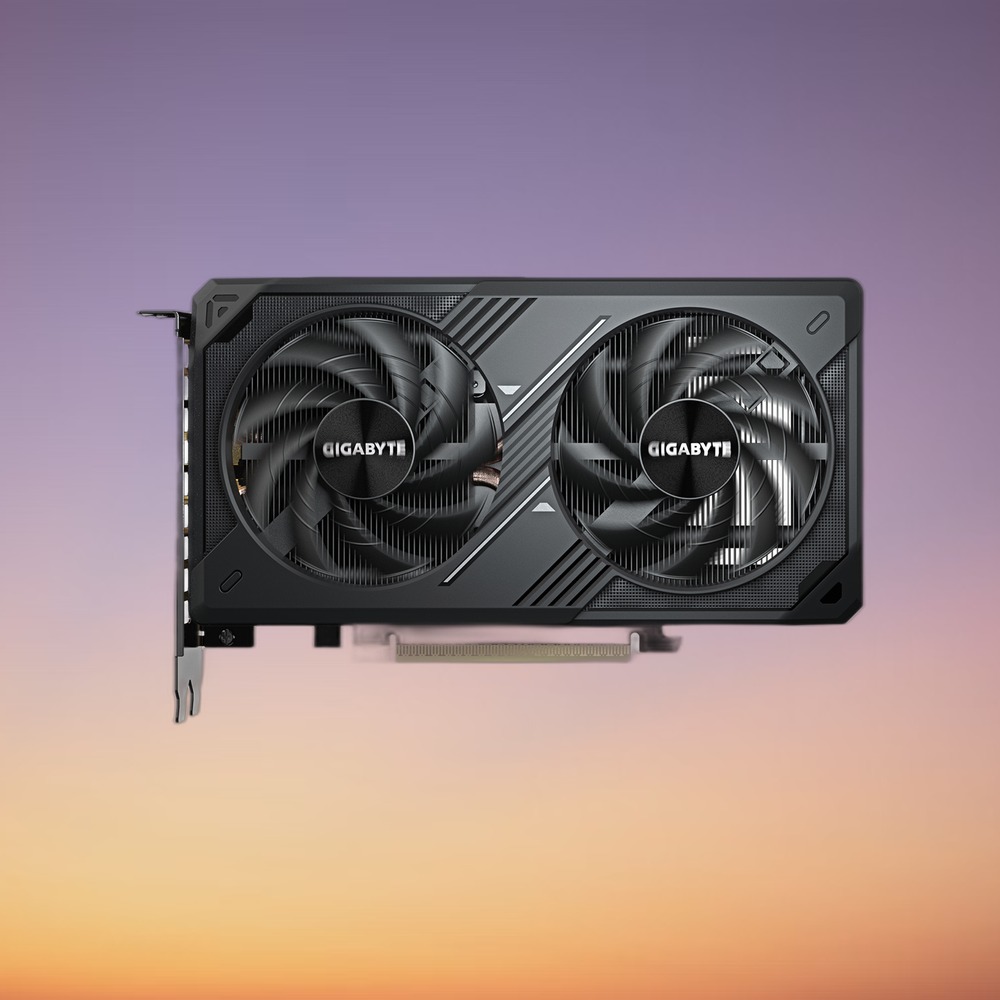

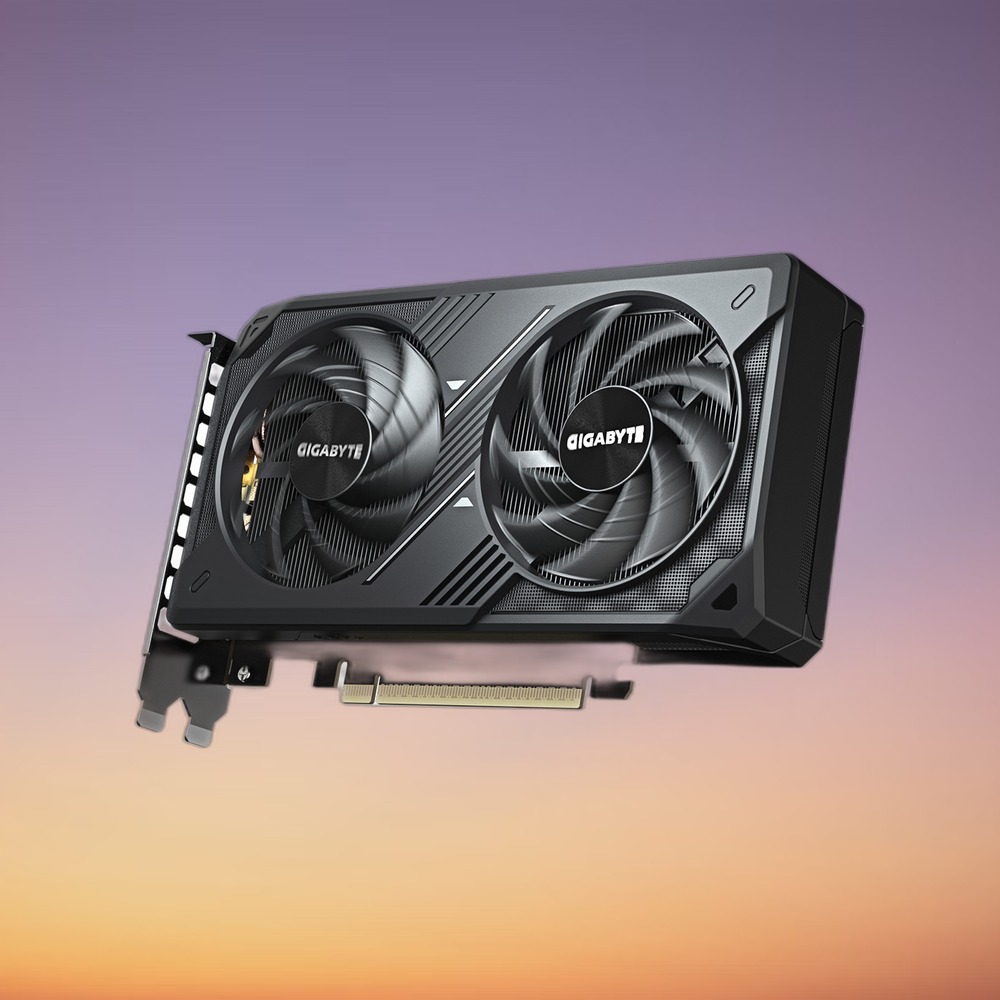

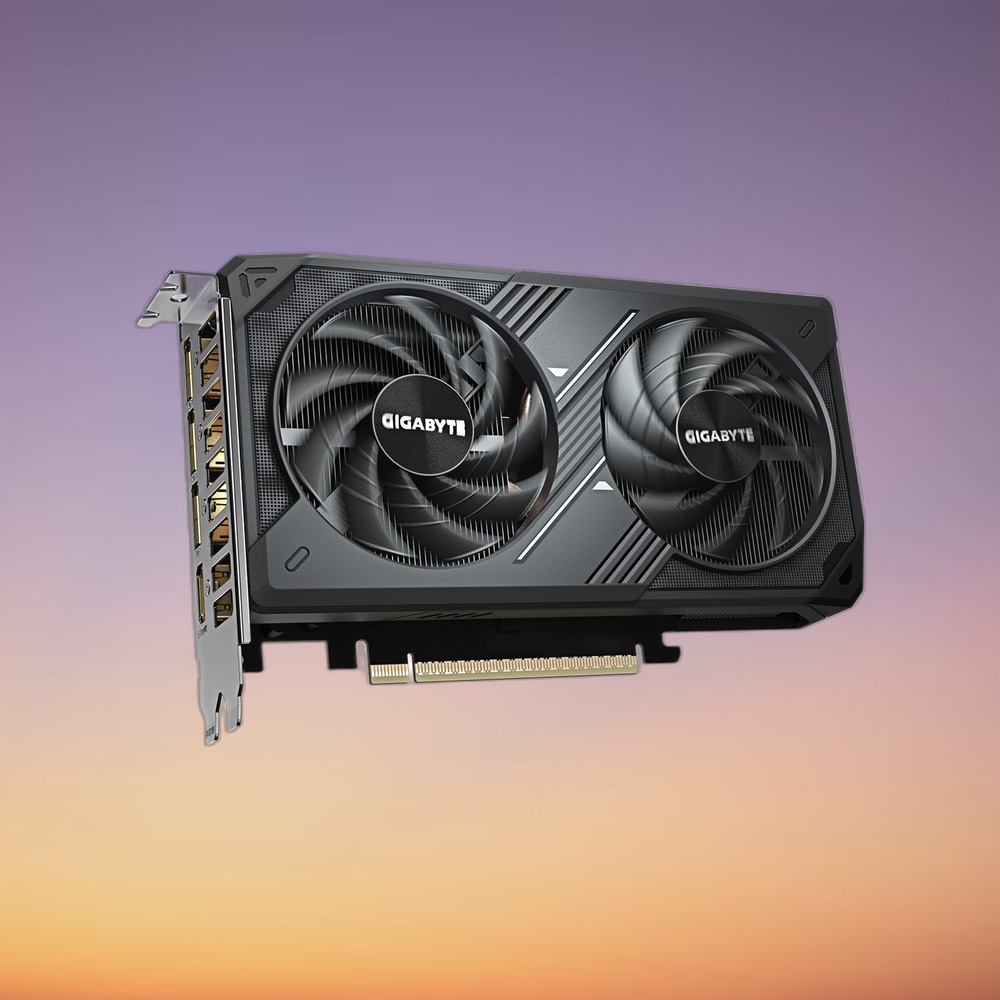

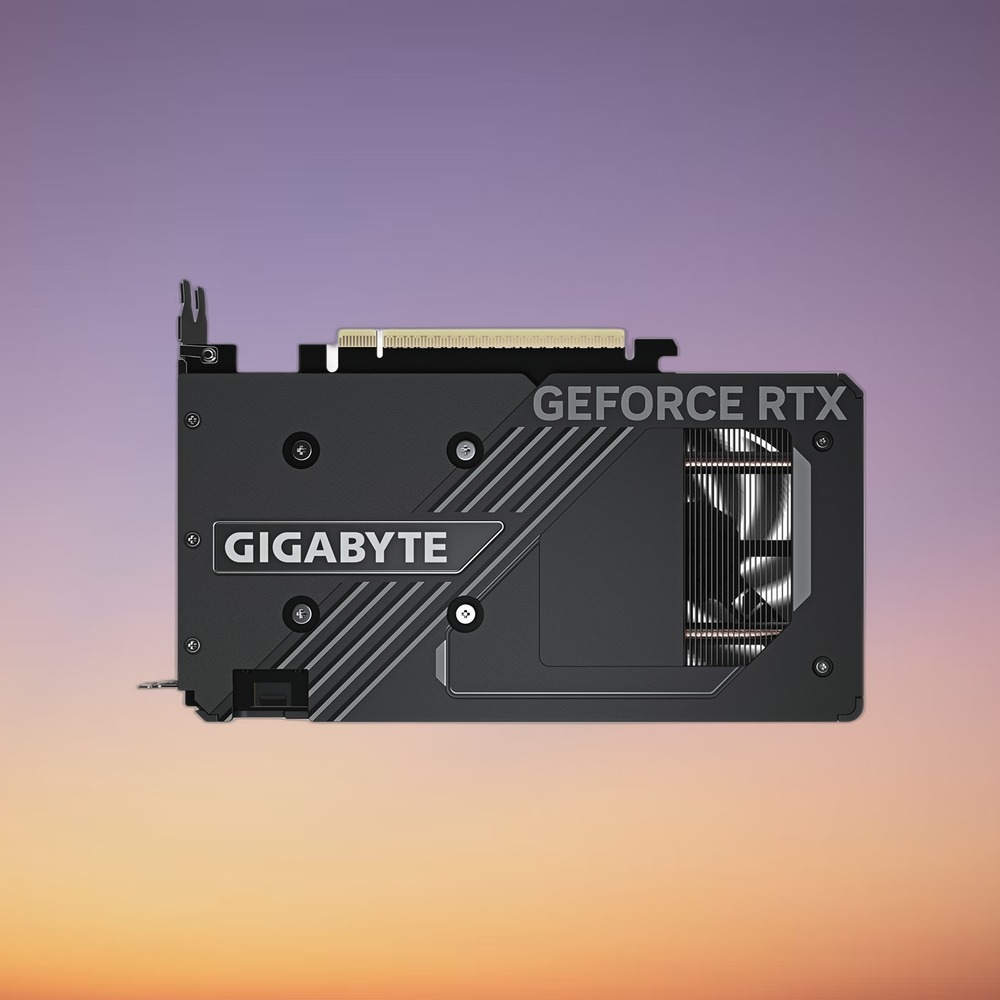

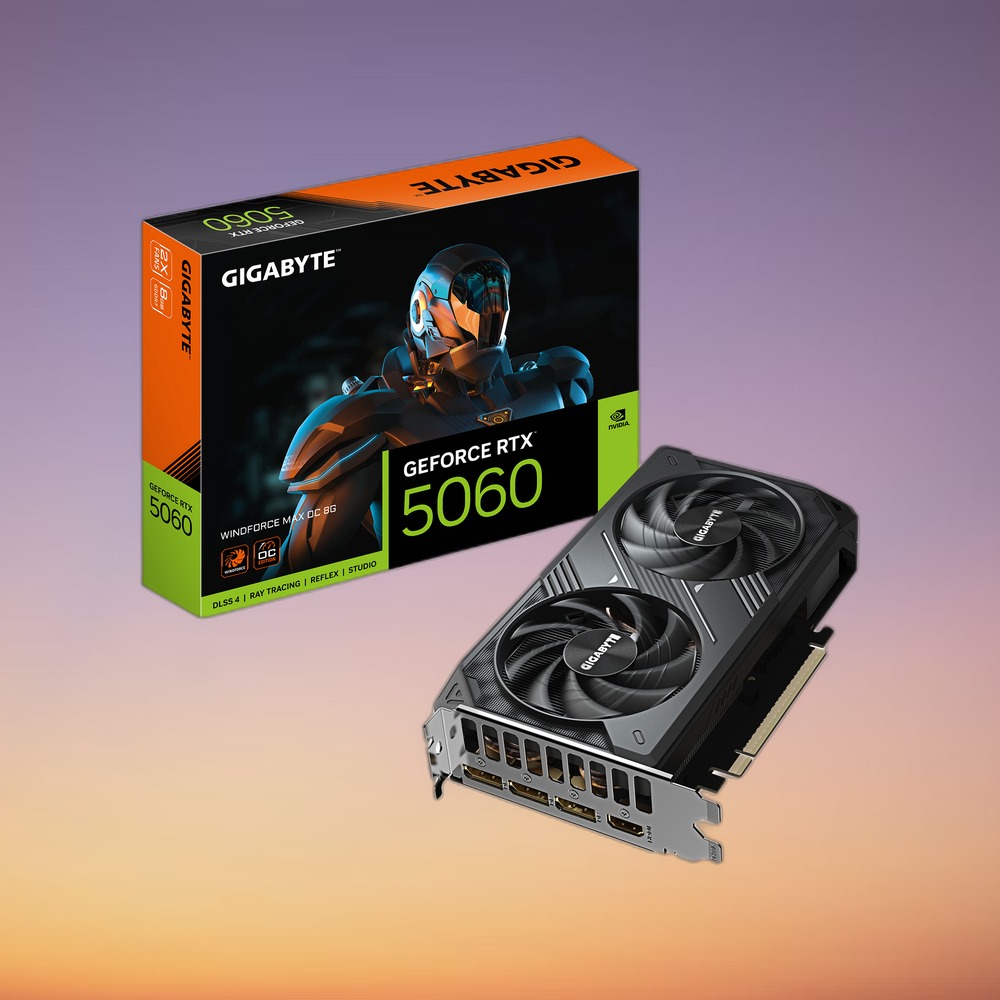

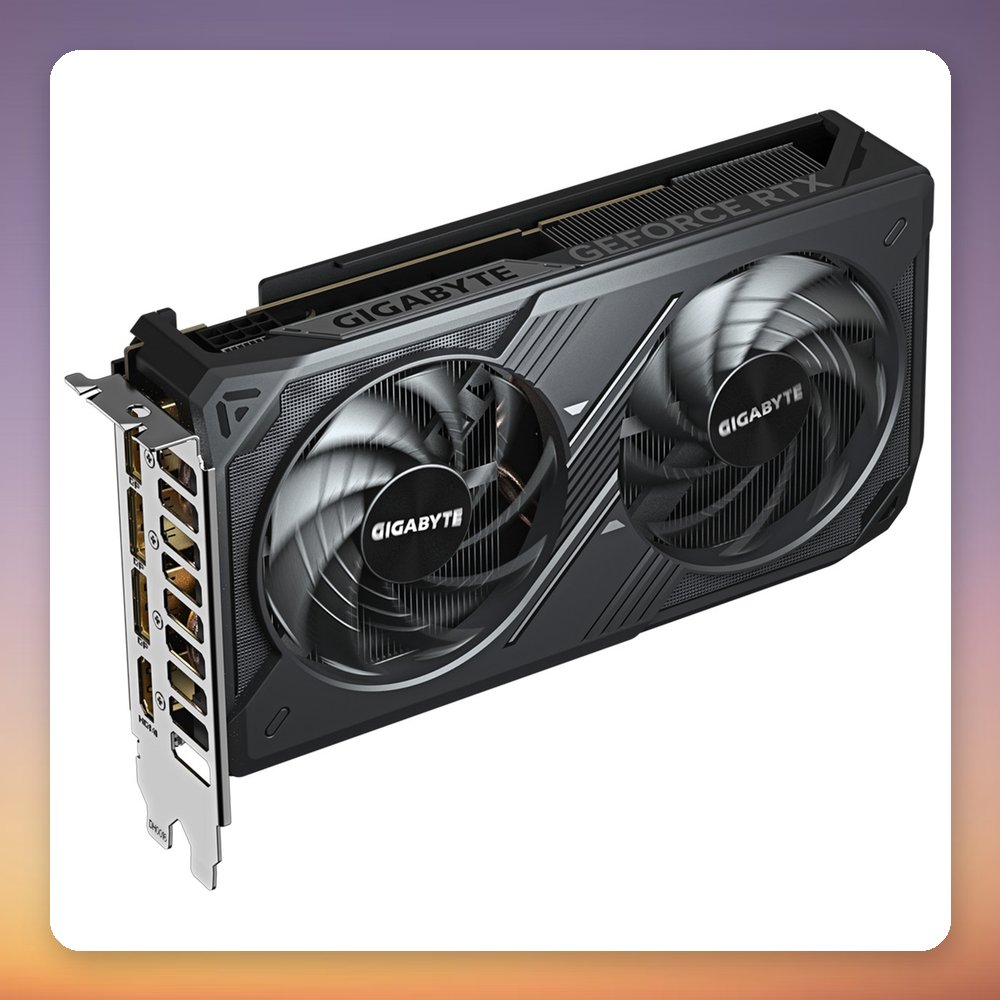

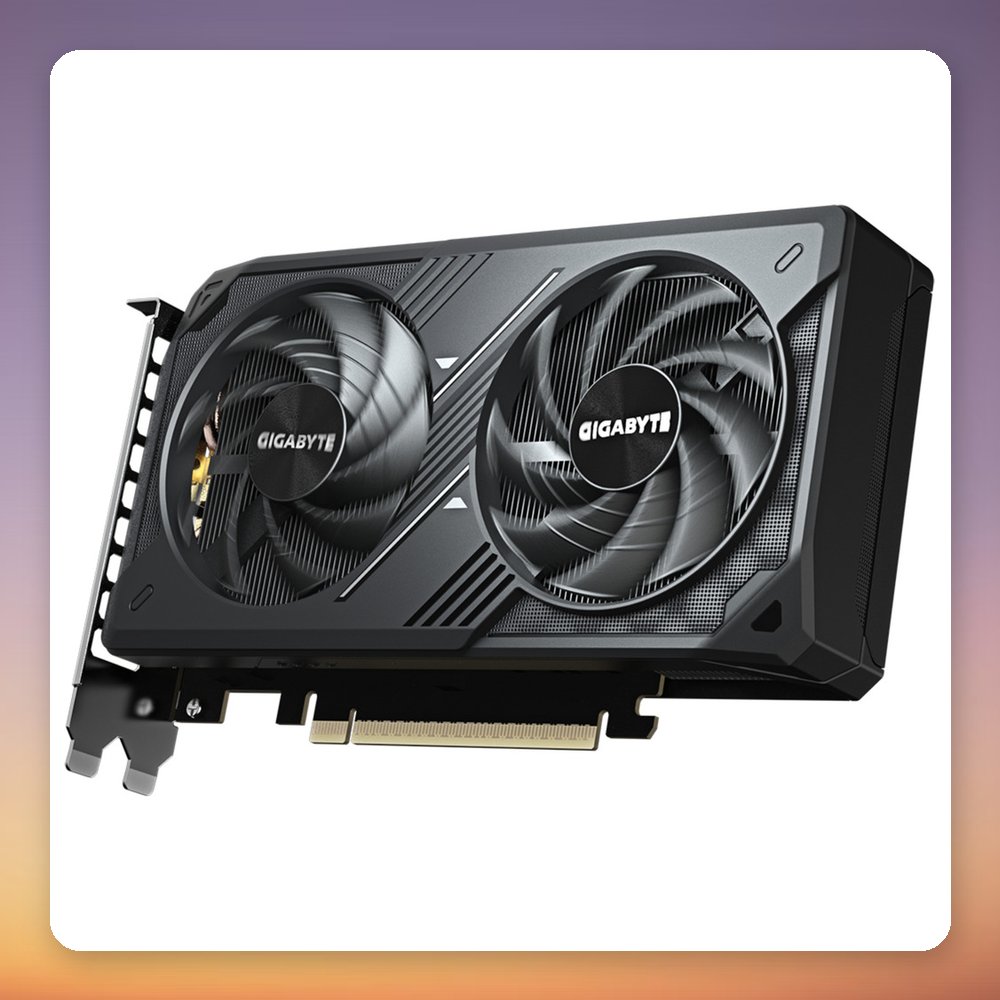

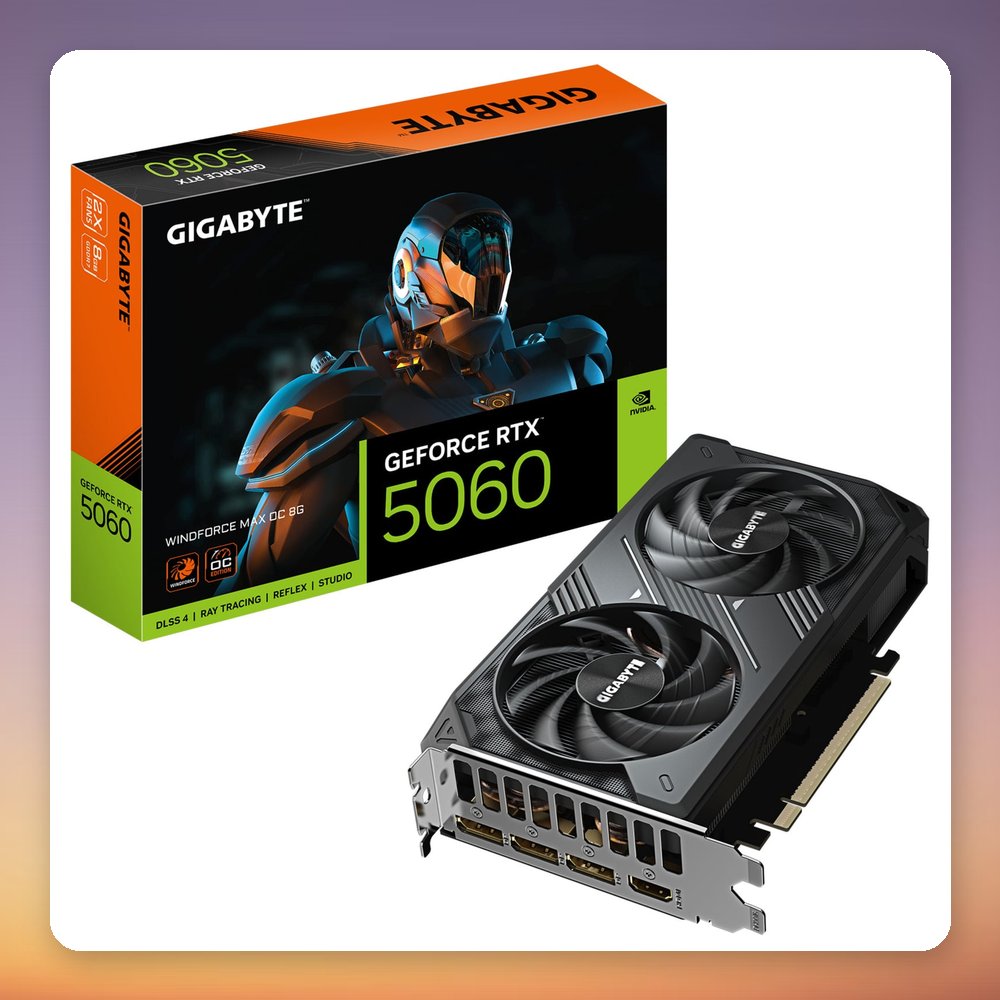

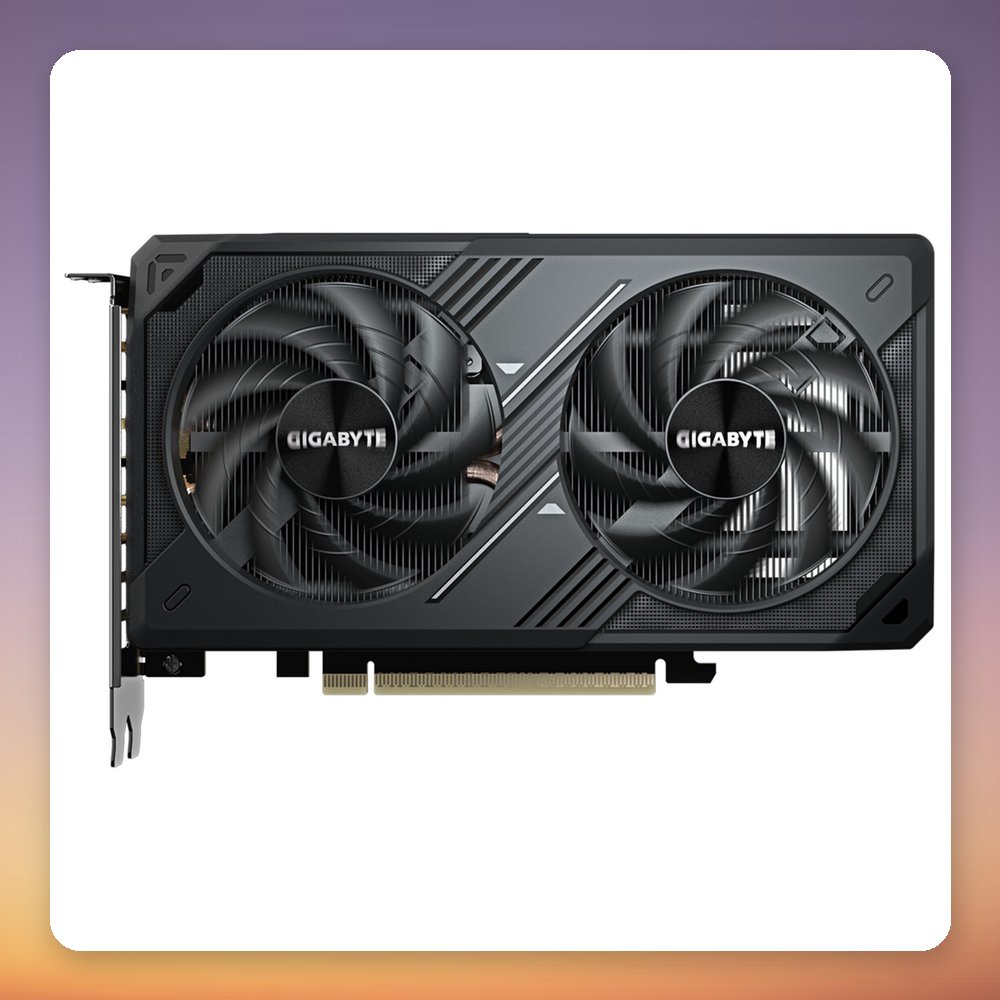

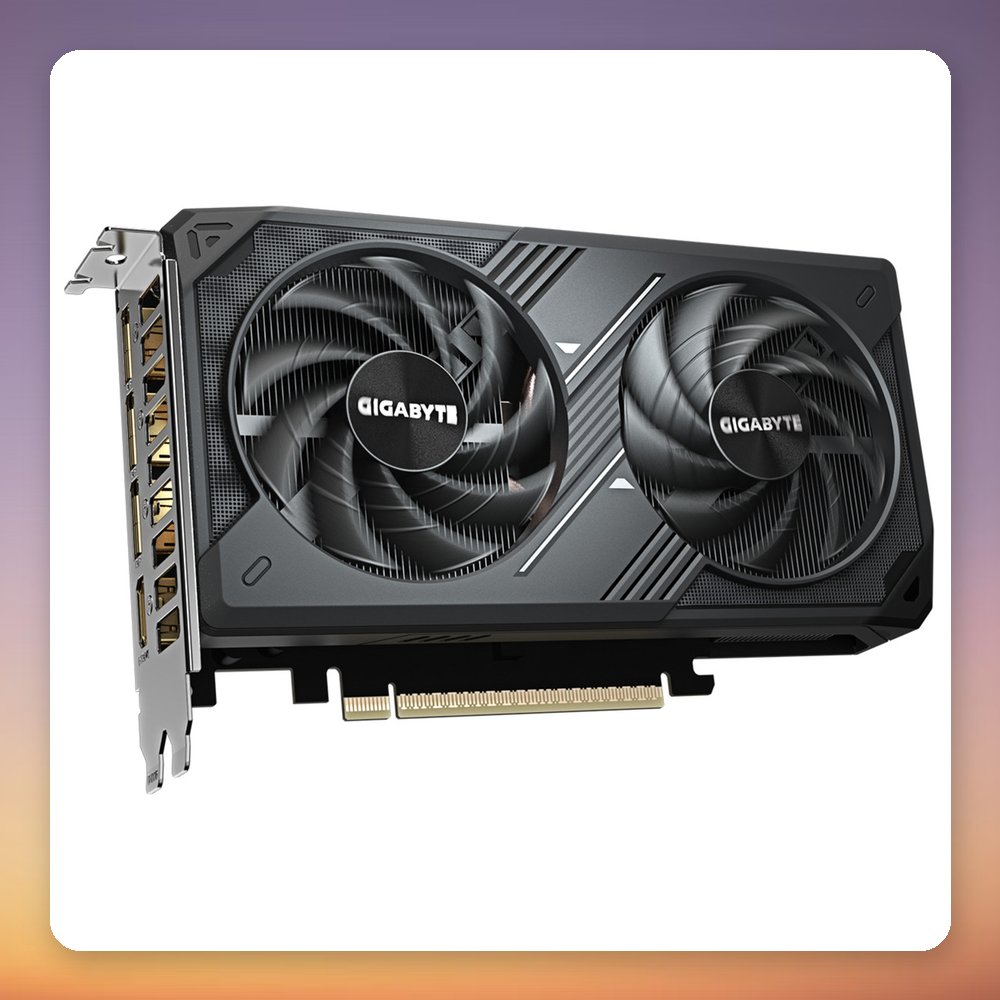

The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G is a factory-overclocked graphics card built on the NVIDIA Blackwell architecture. It runs at 2512 MHz and carries 3840 CUDA cores with 8 GB of GDDR7 memory on a 128-bit bus at 28 Gbit/s. Its compact 199 mm, 2-slot WINDFORCE 2X cooler with two fans keeps it small, and it needs only a single 8-pin power connector.

It suits compact and mid-range gaming PCs where case space and power budget matter, with a PCIe 5.0 x16 interface and a length of just 199 mm. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to 4 displays. DLSS, Reflex 2, 4th-gen ray tracing cores, 5th-gen Tensor cores, AV1 encoding and decoding and NVIDIA G-SYNC are supported, and it works with Windows 11 and Windows 10.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5060 WINDFORCE MAX OC 8G
• MPN: GV-N5060WF2MAX OC-8GD
• EAN: 4719331356699
• GPU: NVIDIA GeForce RTX 5060
• CUDA Cores: 3840
• GPU Clock: 2512 MHz (overclocked edition)
• Memory: 8 GB GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbit/s
• Interface: PCI Express 5.0 x16

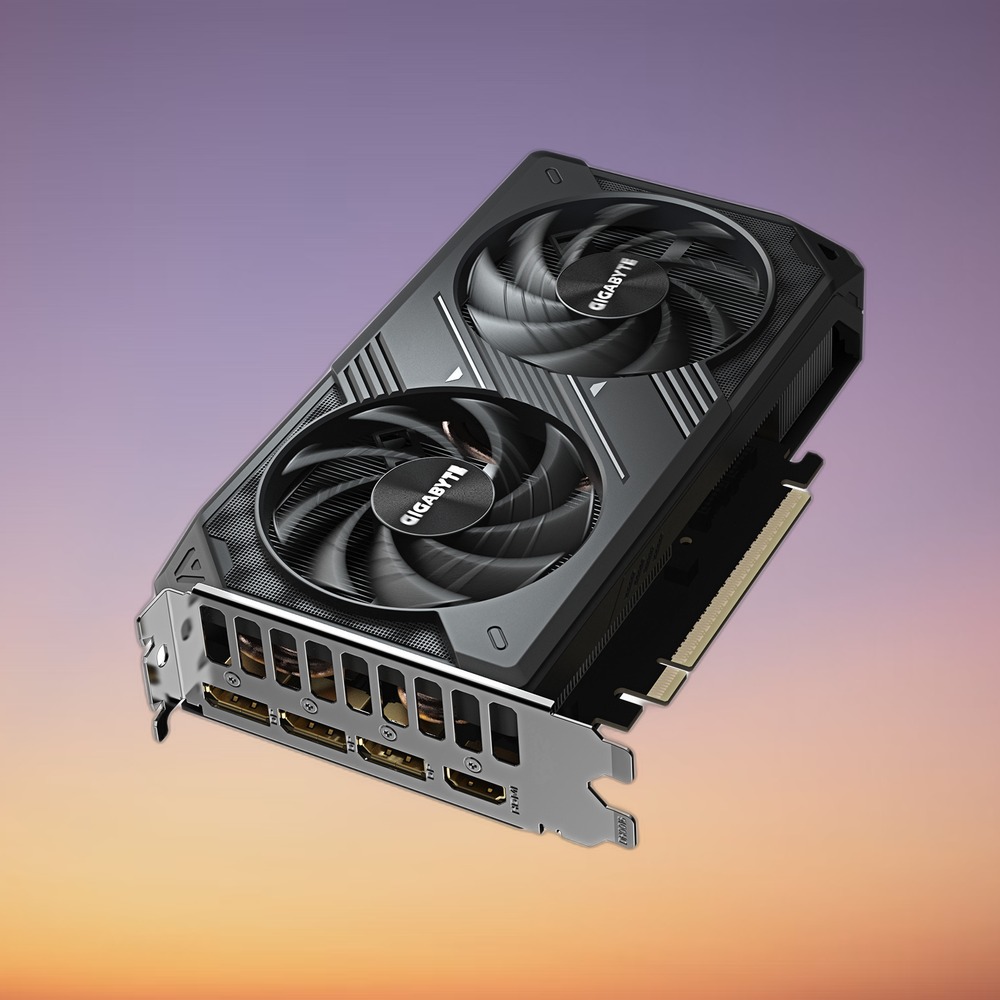

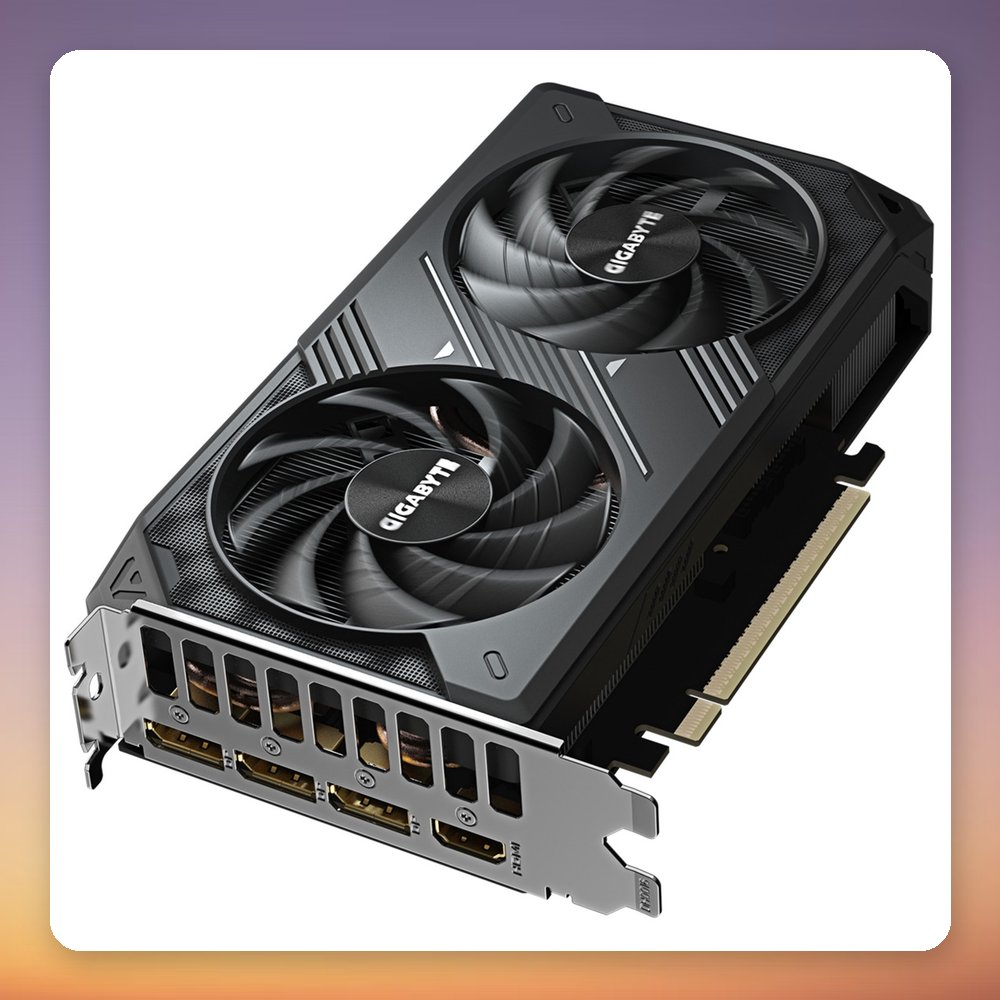

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Power Connector: 1x 8-pin
• Cooling: WINDFORCE 2X, 2 fans
• Slots: 2
• Dimensions (W x H x D): 116 x 40 x 199 mm
• Weight: 490 g
• Manufacturer warranty: 3 years
