Product Overview

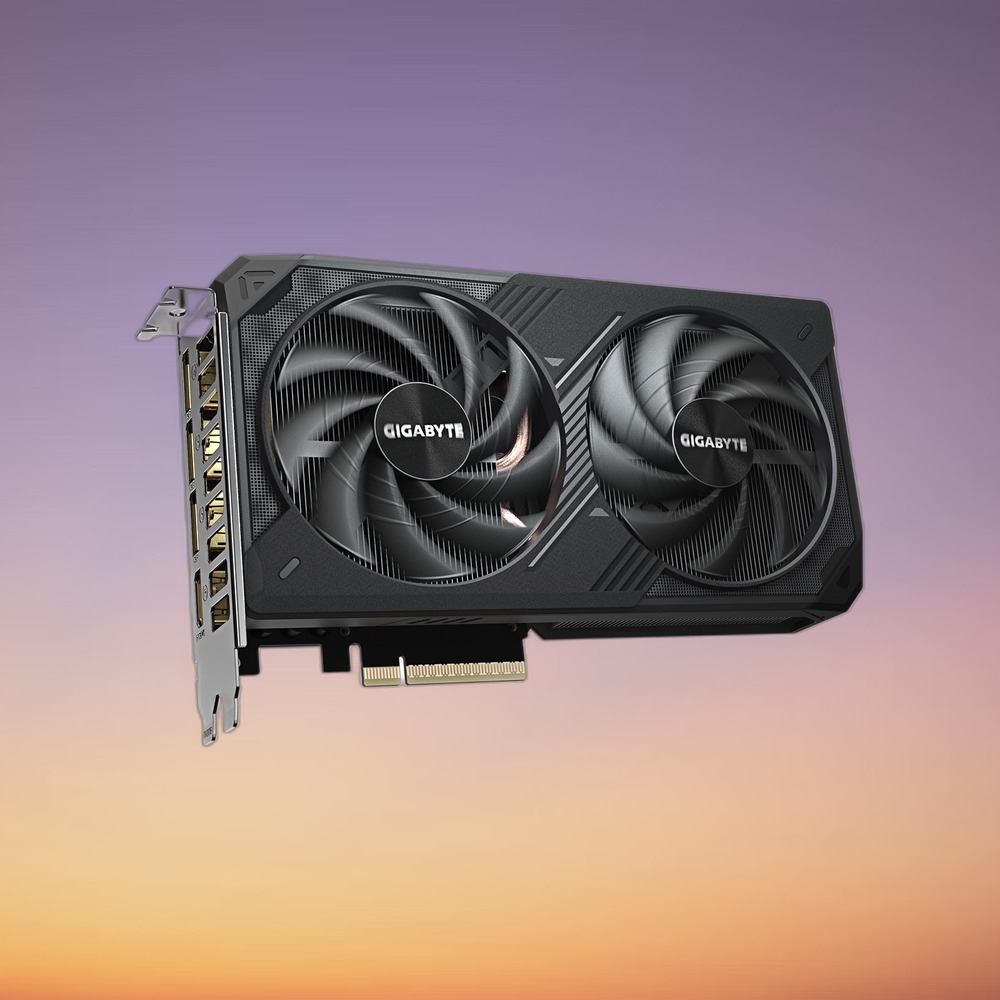

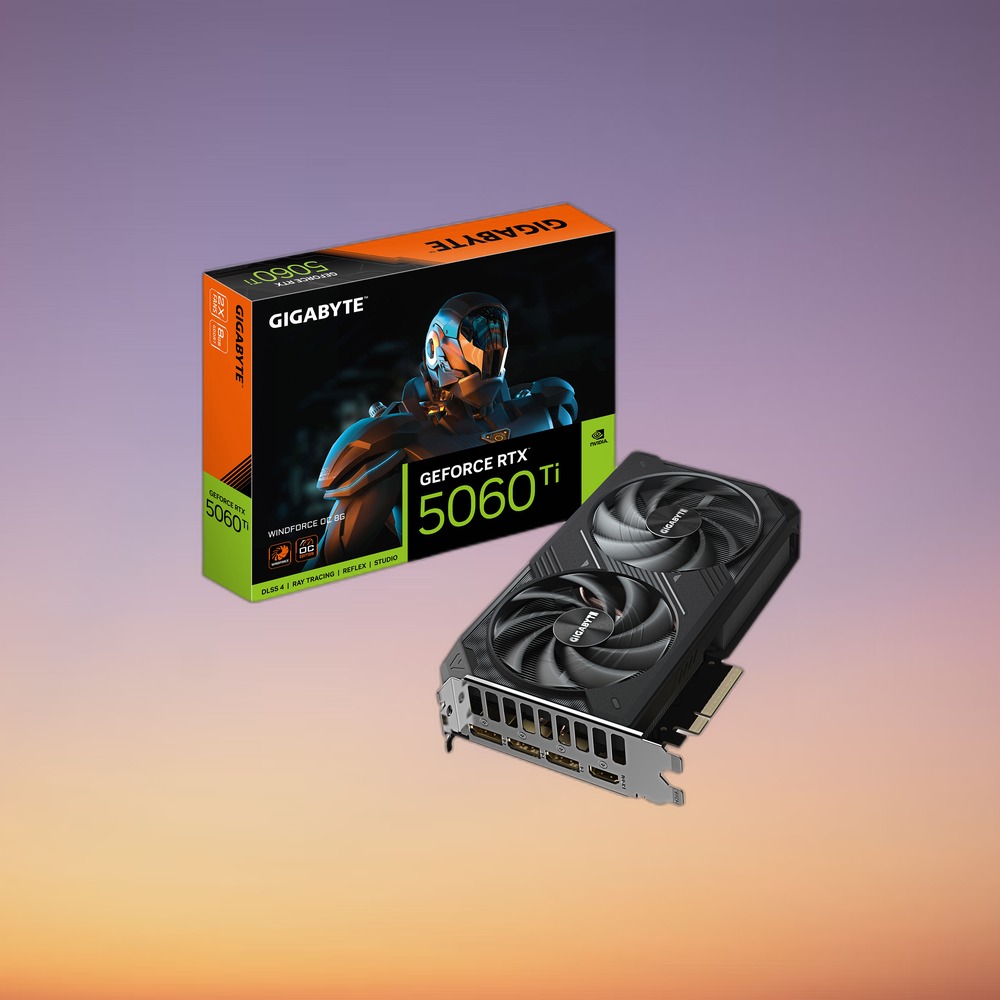

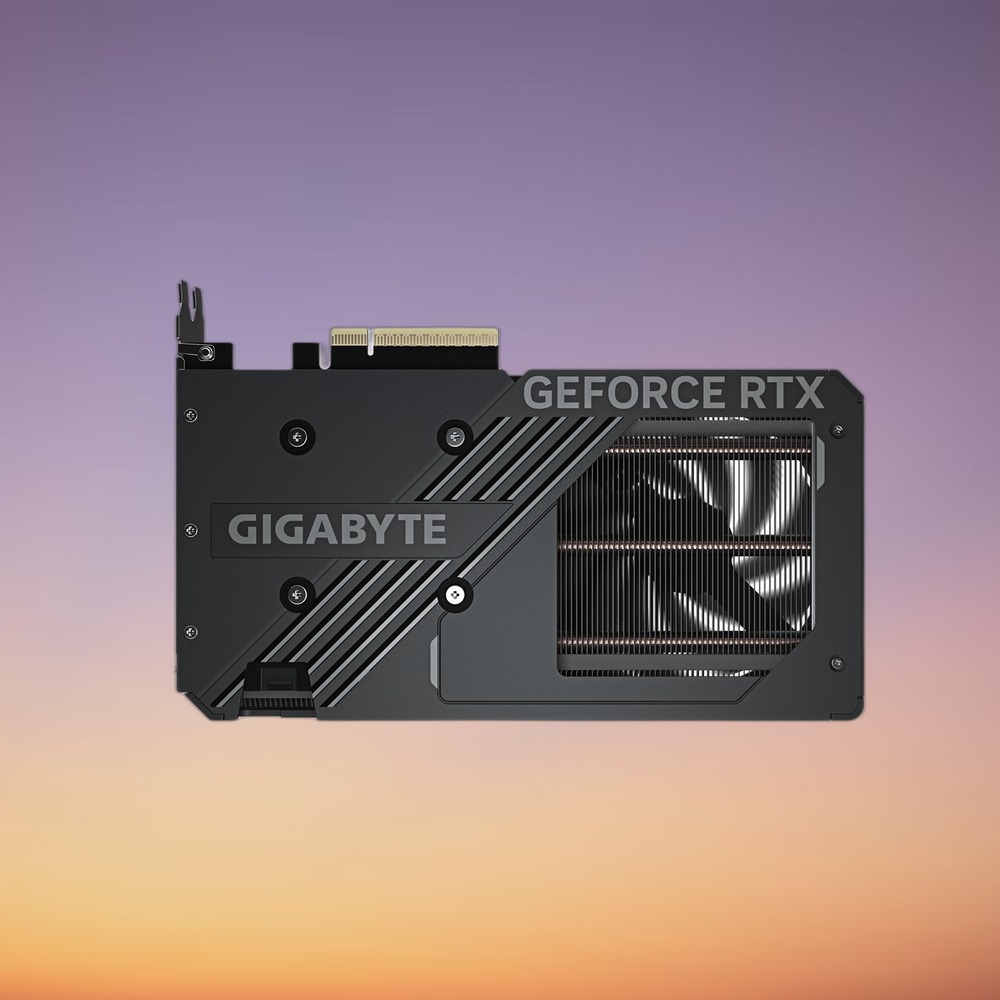

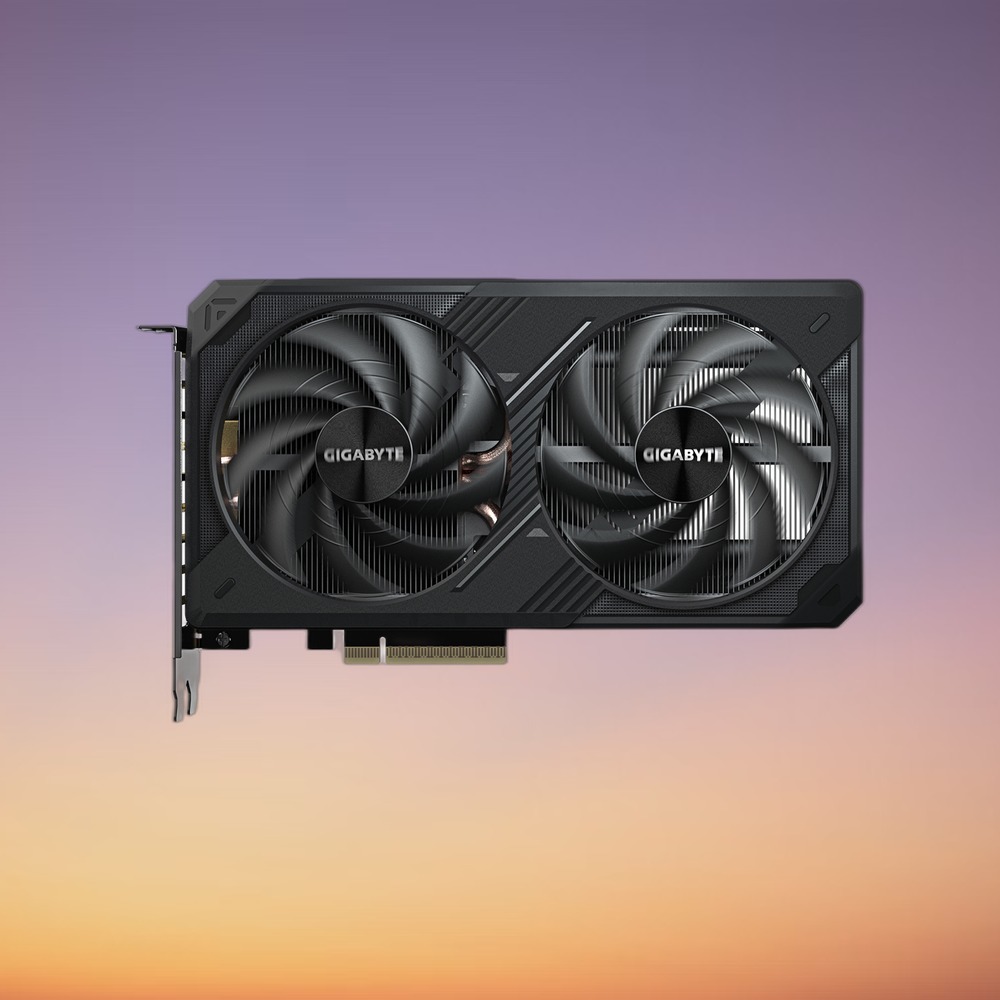

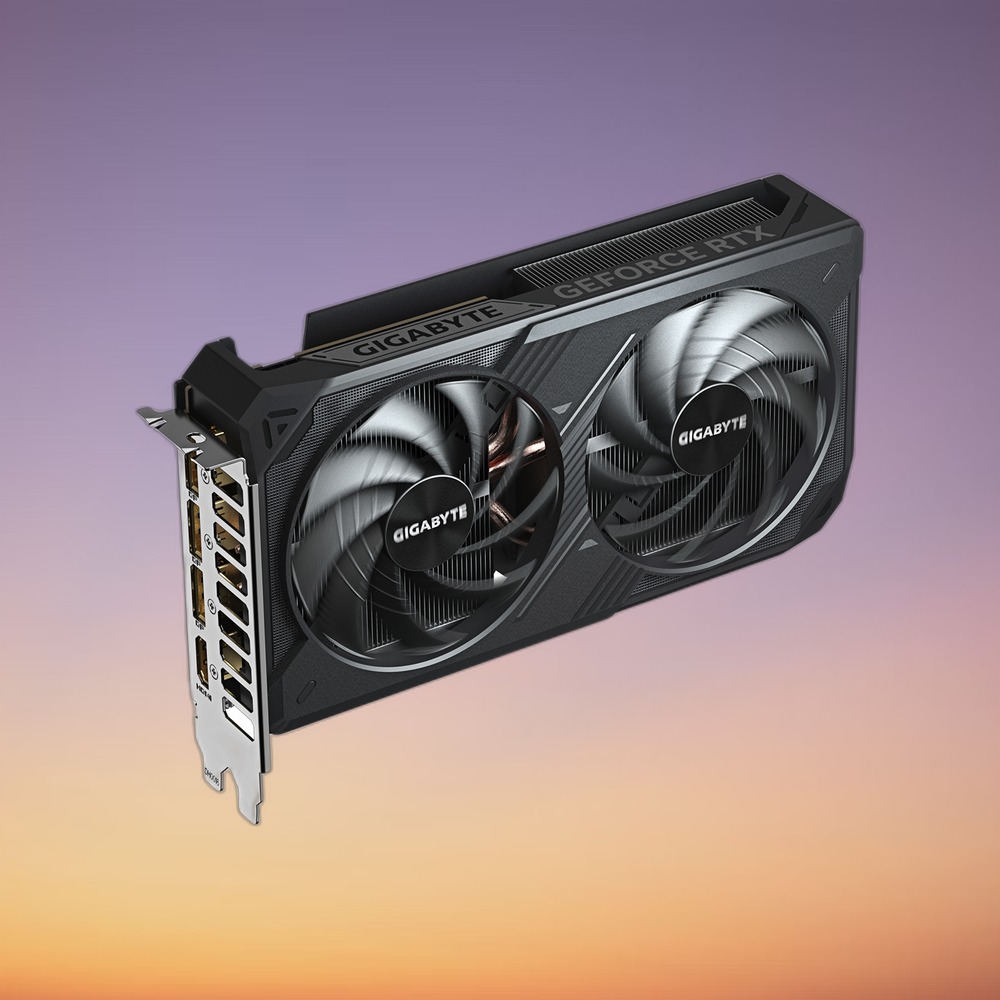

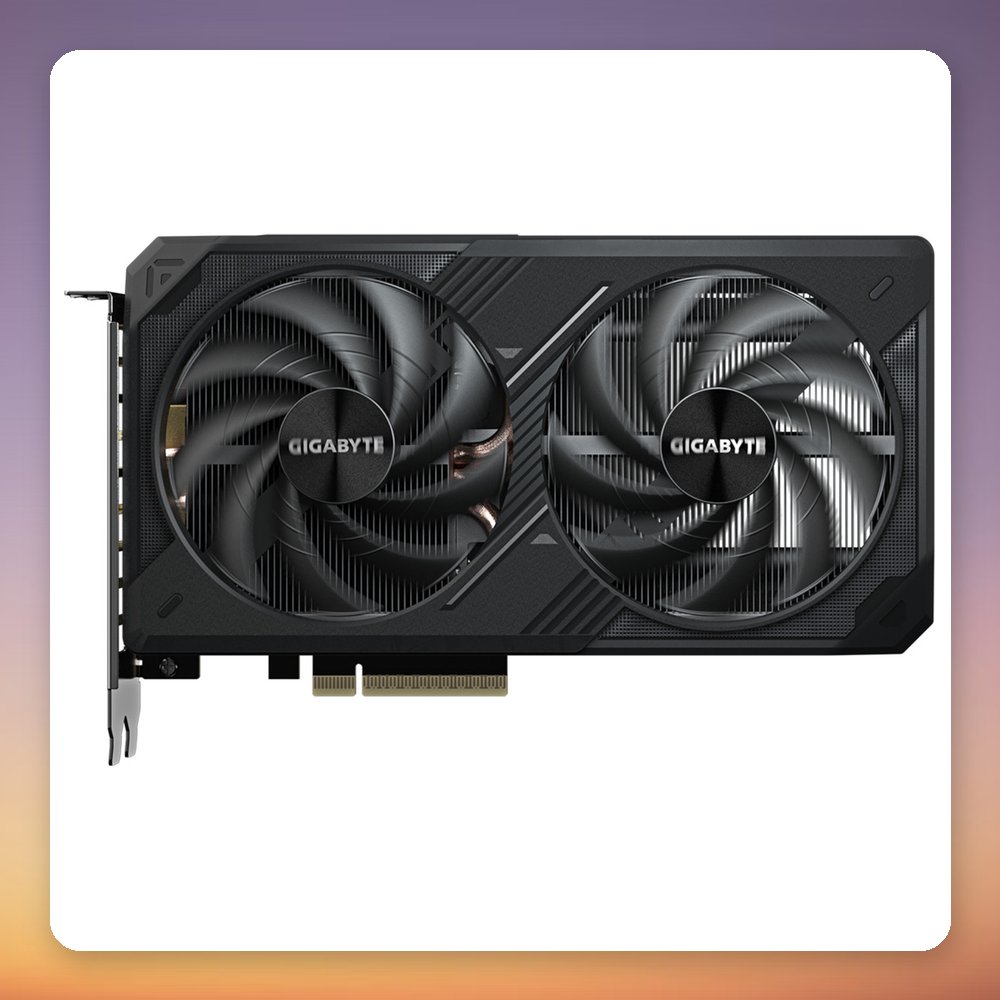

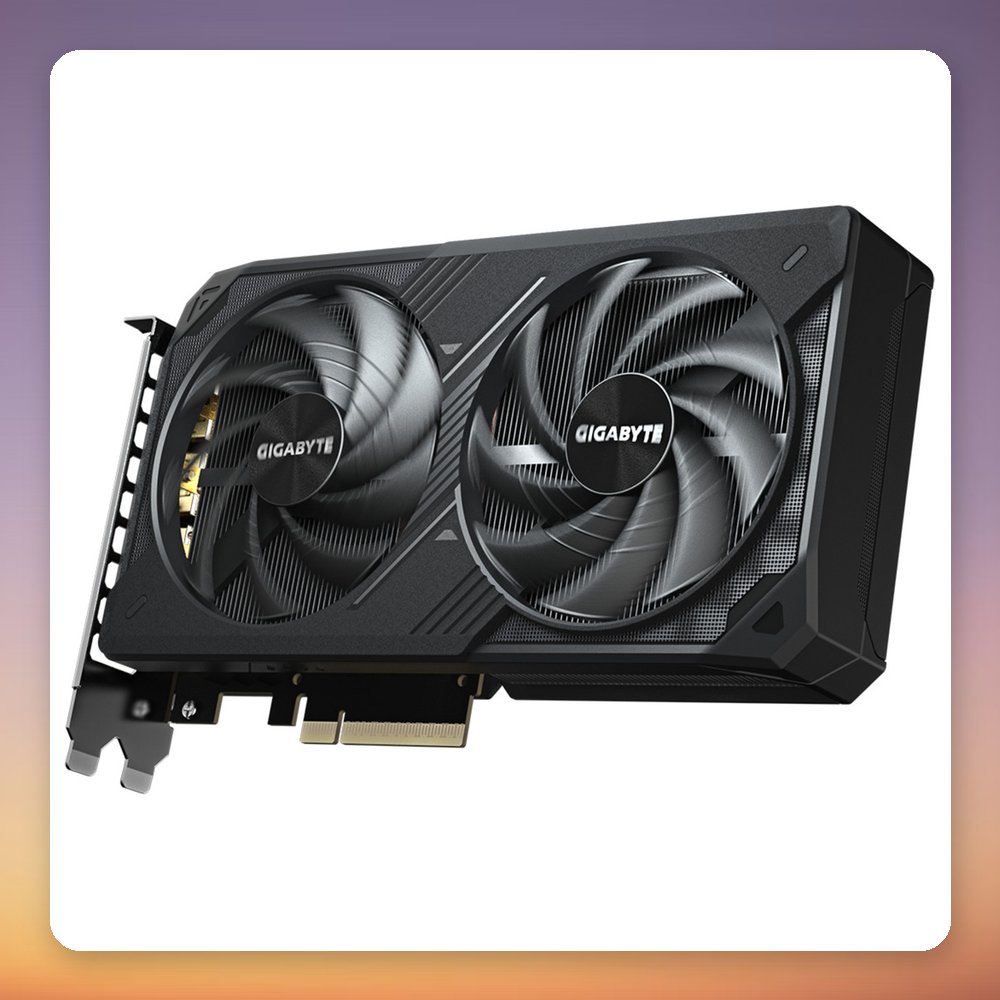

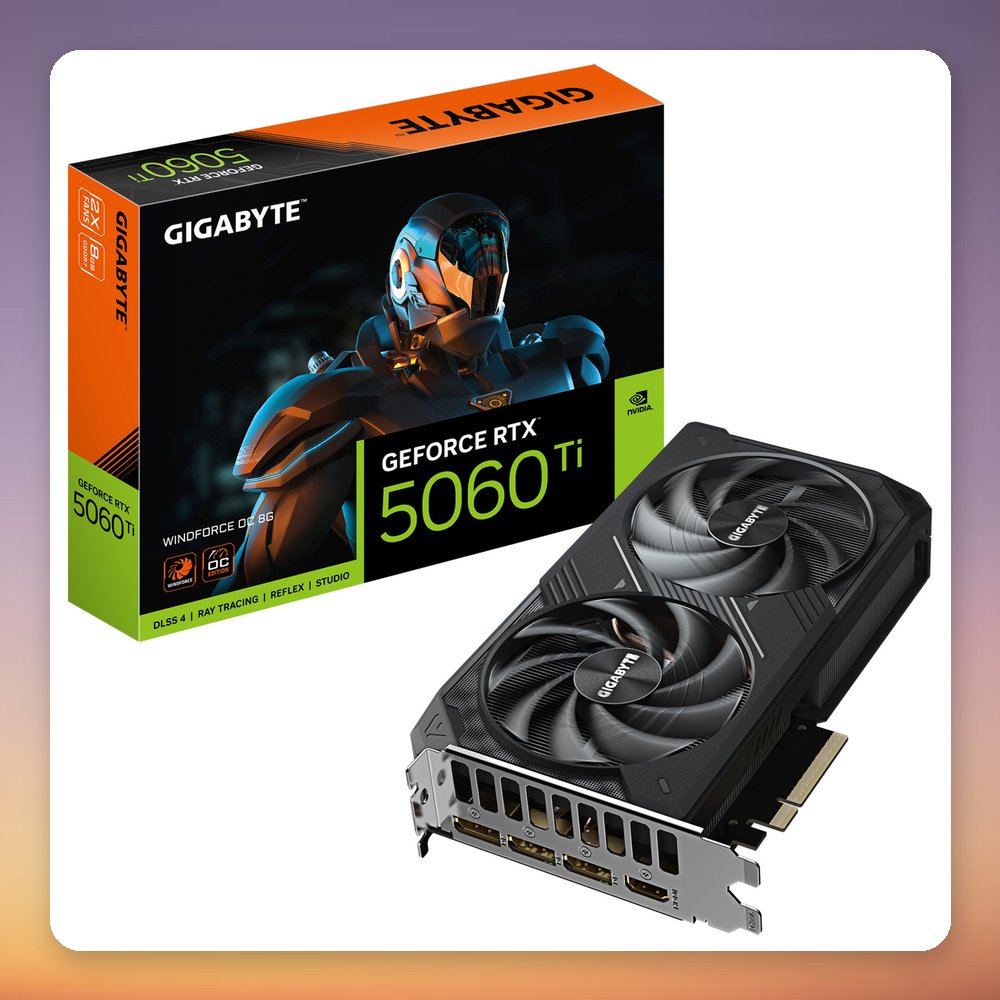

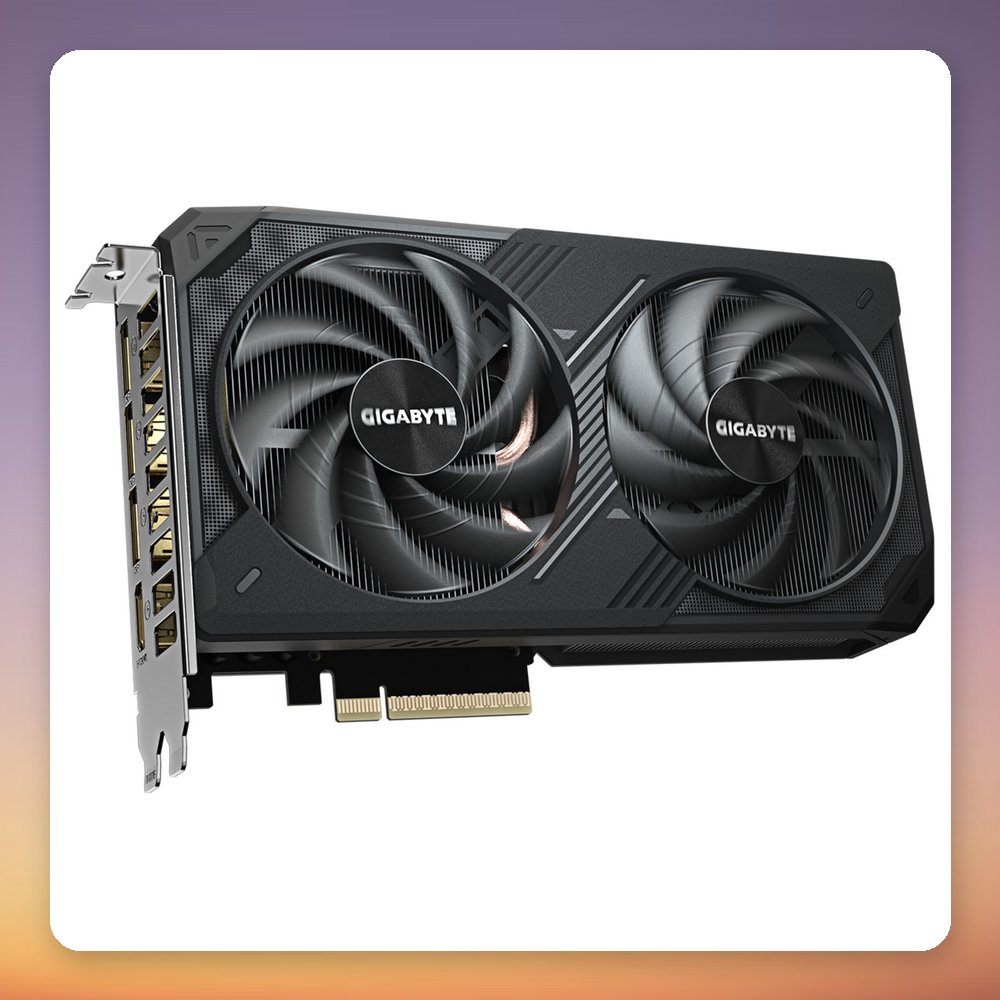

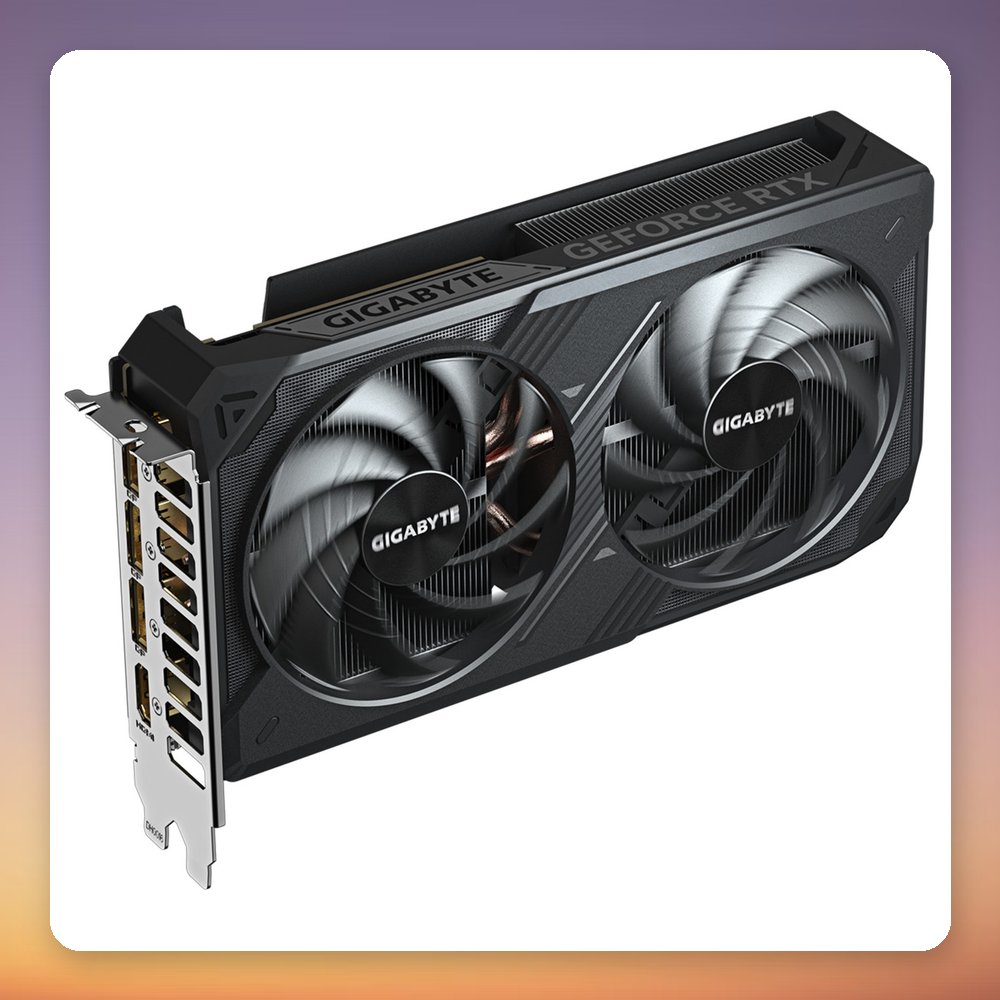

The GigaByte GeForce RTX 5060 Ti WINDFORCE OC 8G is a factory-overclocked graphics card built on NVIDIA’s Blackwell architecture. It pairs 4608 CUDA cores with 8 GB of GDDR7 memory on a 128-bit bus running at 28 Gbit/s, with a boost clock of up to 2617 MHz. Cooling comes from the WINDFORCE 2X design with two fans, in a compact 208 mm, two-slot body.

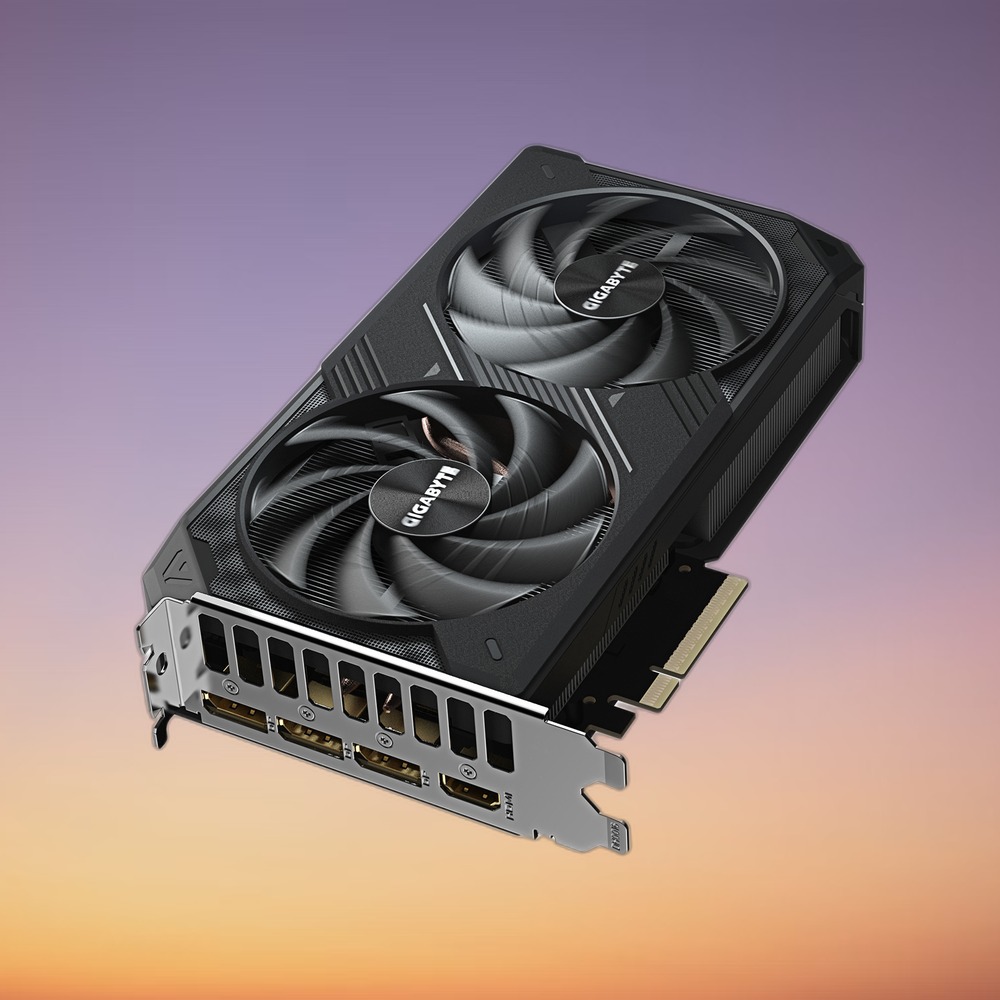

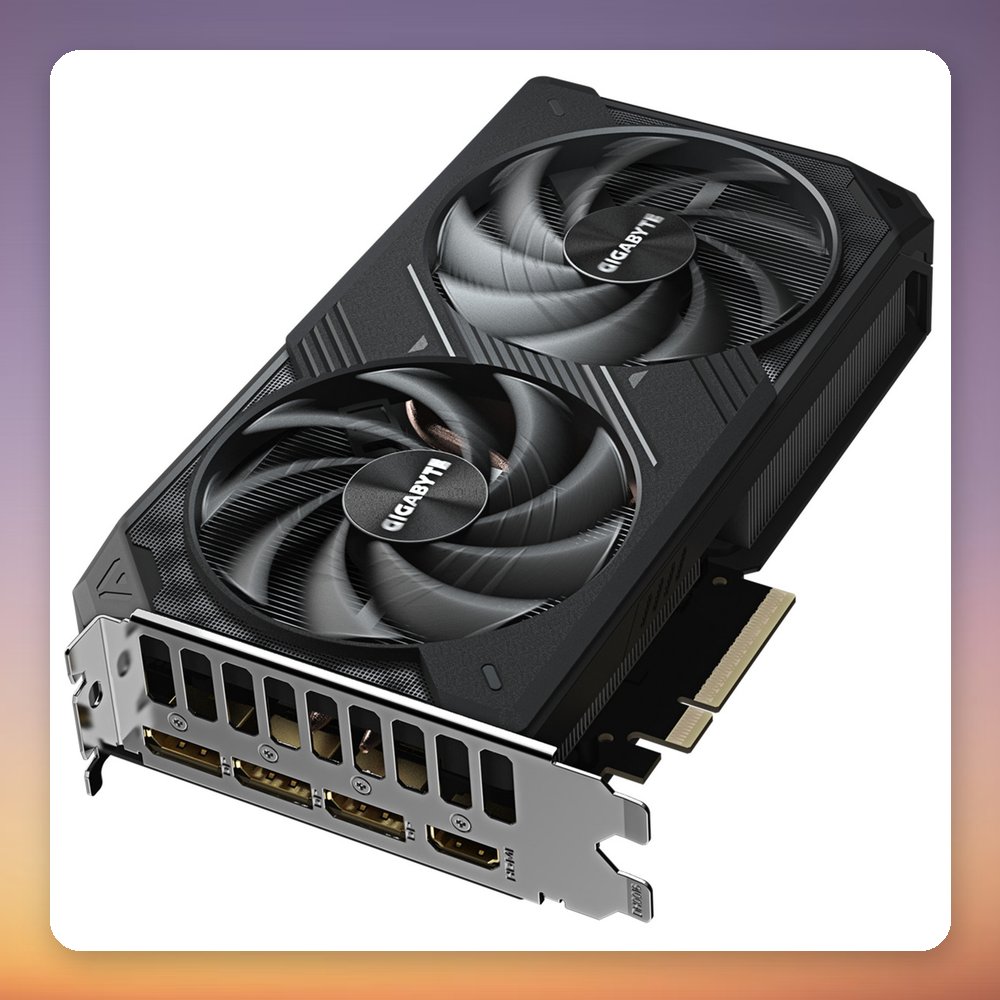

Suited to gaming PCs where space and power are limited: it needs a single 8-pin connector and a minimum 650 W power supply, and it fits Full-Height/Half-Length layouts. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to 4K at 480 Hz or 8K at 120 Hz with DSC. It supports DLSS, Reflex 2, ray tracing, AV1 encode and decode, and NVIDIA G-SYNC.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5060 Ti WINDFORCE OC 8G
• MPN: GV-N506TWF2OC-8GD
• EAN: 4719331356057
• GPU: NVIDIA GeForce RTX 5060 Ti
• CUDA cores: 4608
• Memory: 8 GB GDDR7, 128-bit, 28 Gbit/s
• Core / boost clock: 2407 MHz / 2617 MHz
• Interface: PCI Express x8 5.0
• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max. resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
• Cooling: GIGABYTE WINDFORCE 2X, 2 fans
• Power connector: 1x 8-pin
• Minimum PSU: 650 W
• Slots: 2
• Colour: Black
• Weight: 580 g
• Dimensions (W x H x D): 120 x 40 x 208 mm (as listed)
• Manufacturer warranty: 3 years
