Product Overview

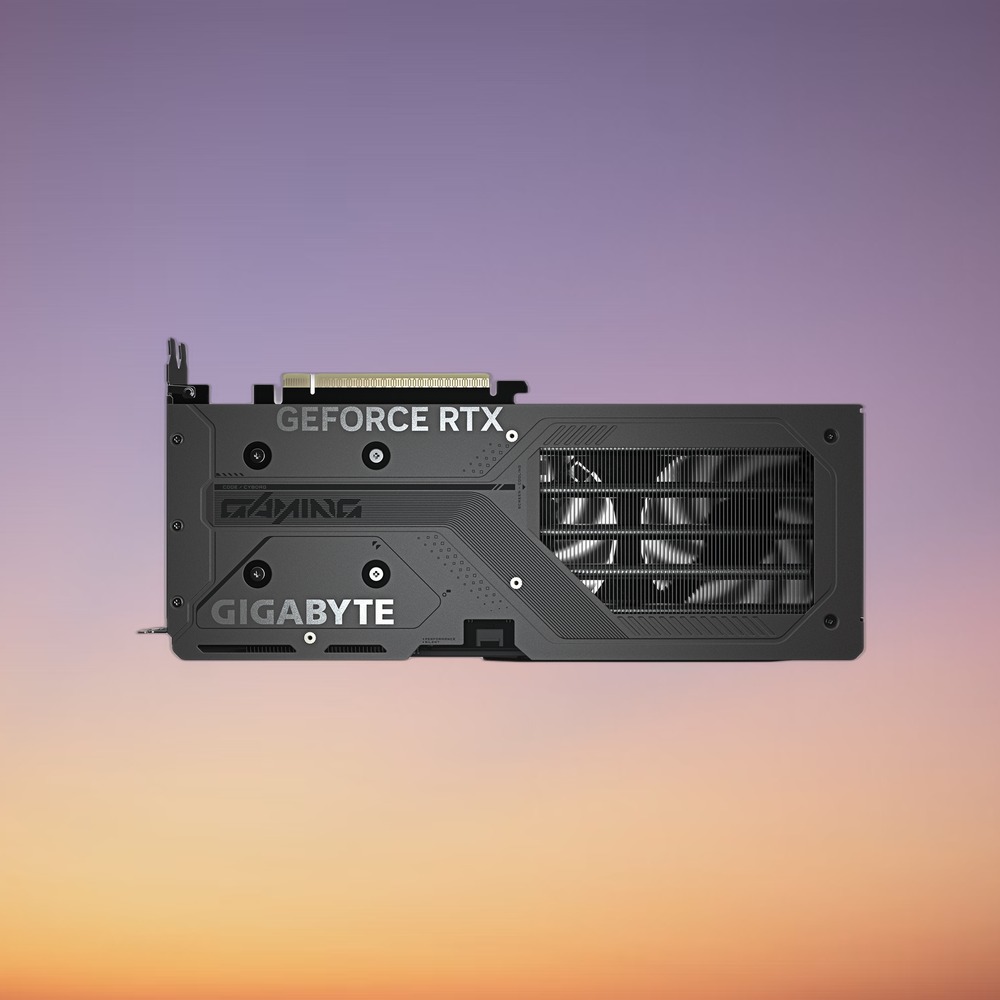

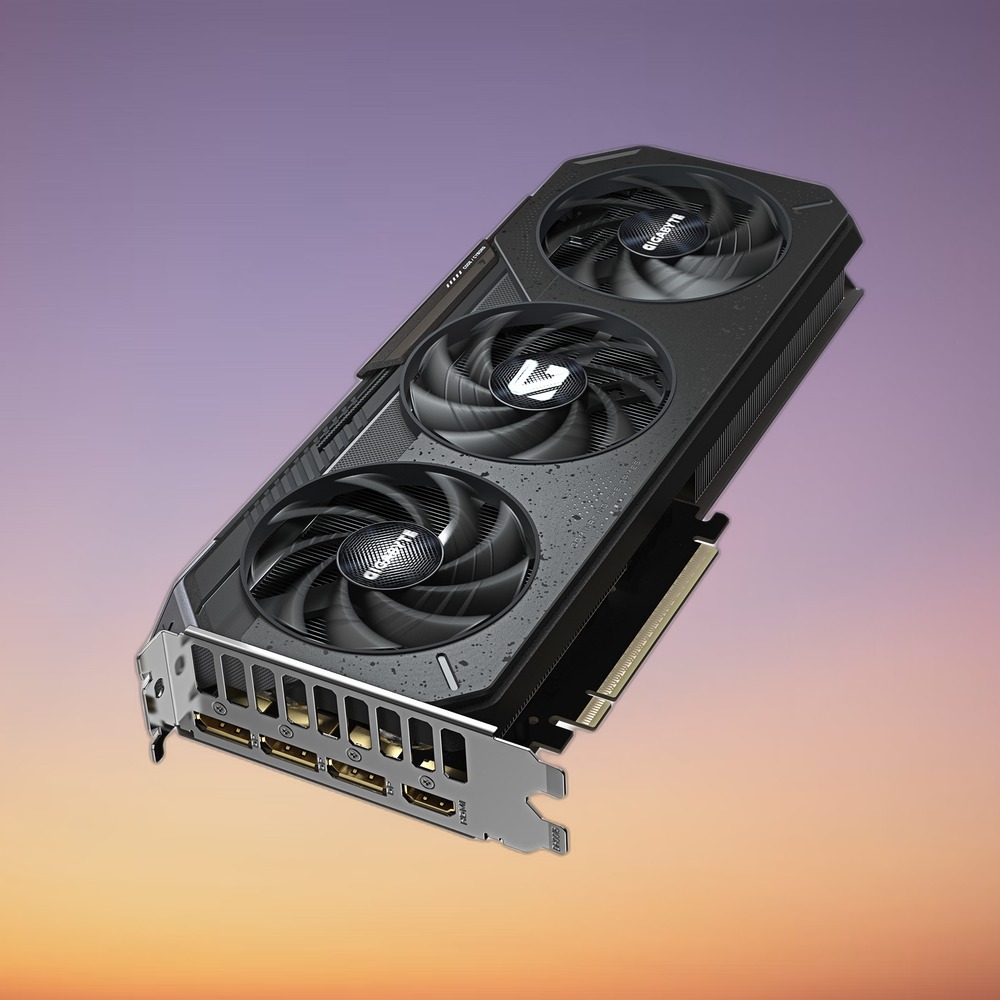

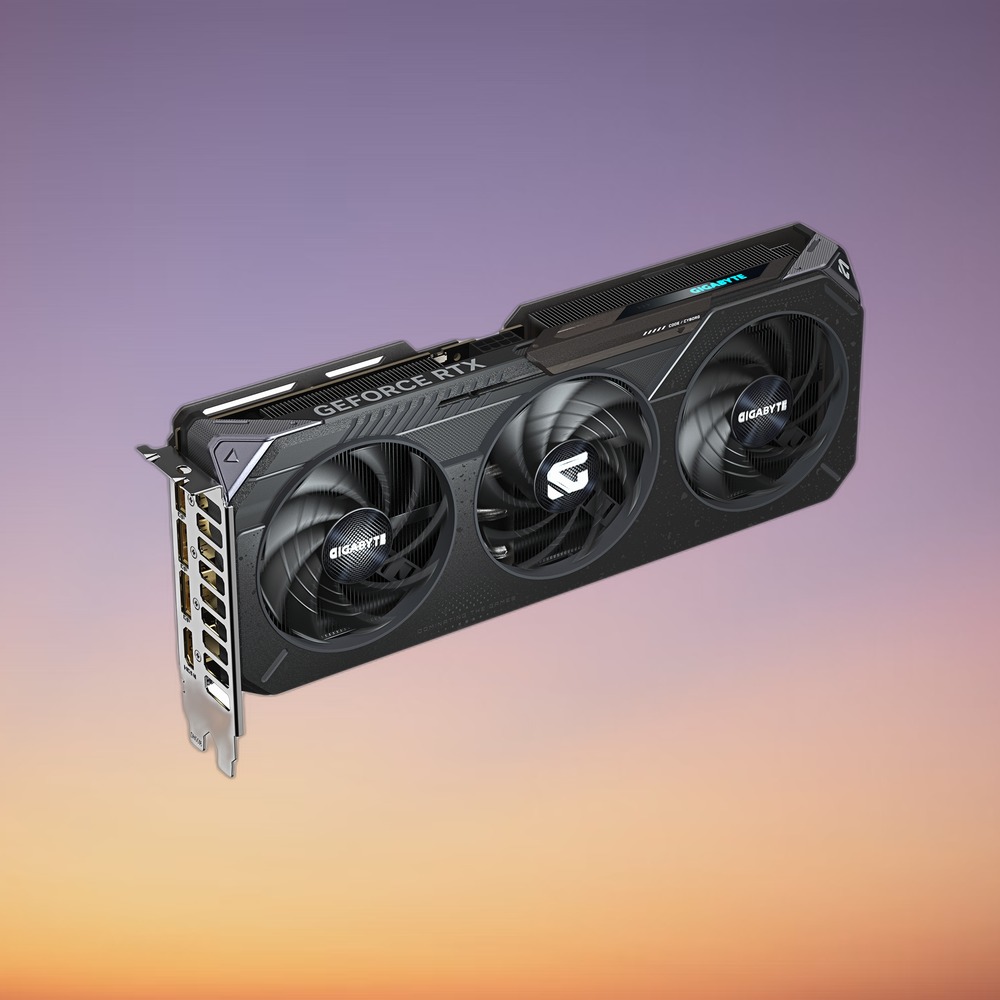

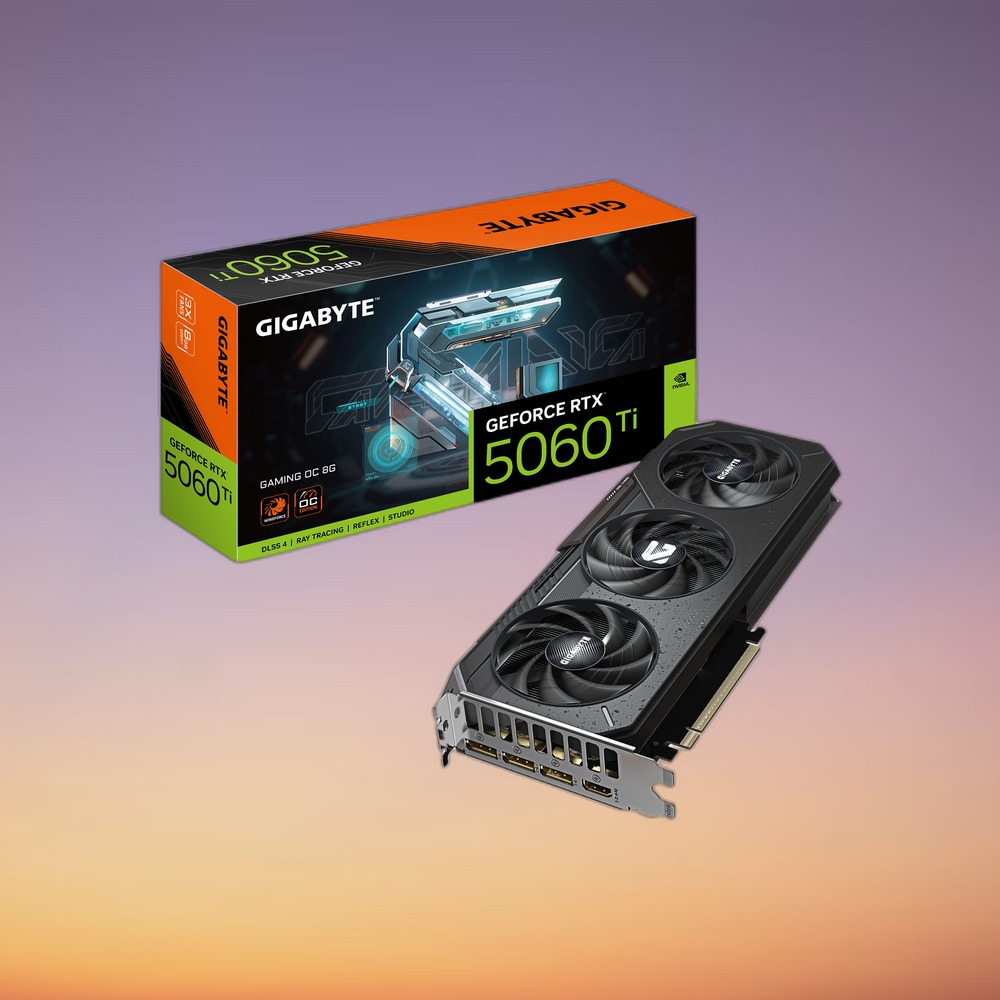

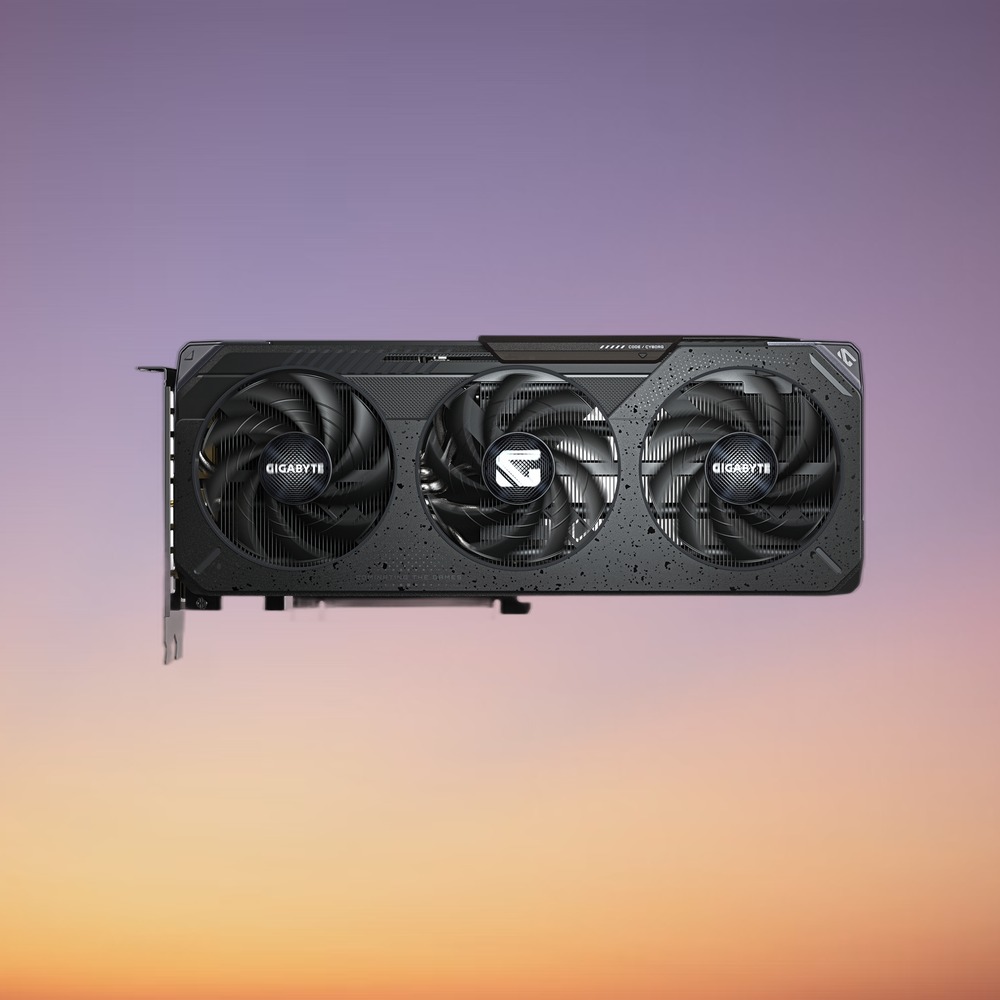

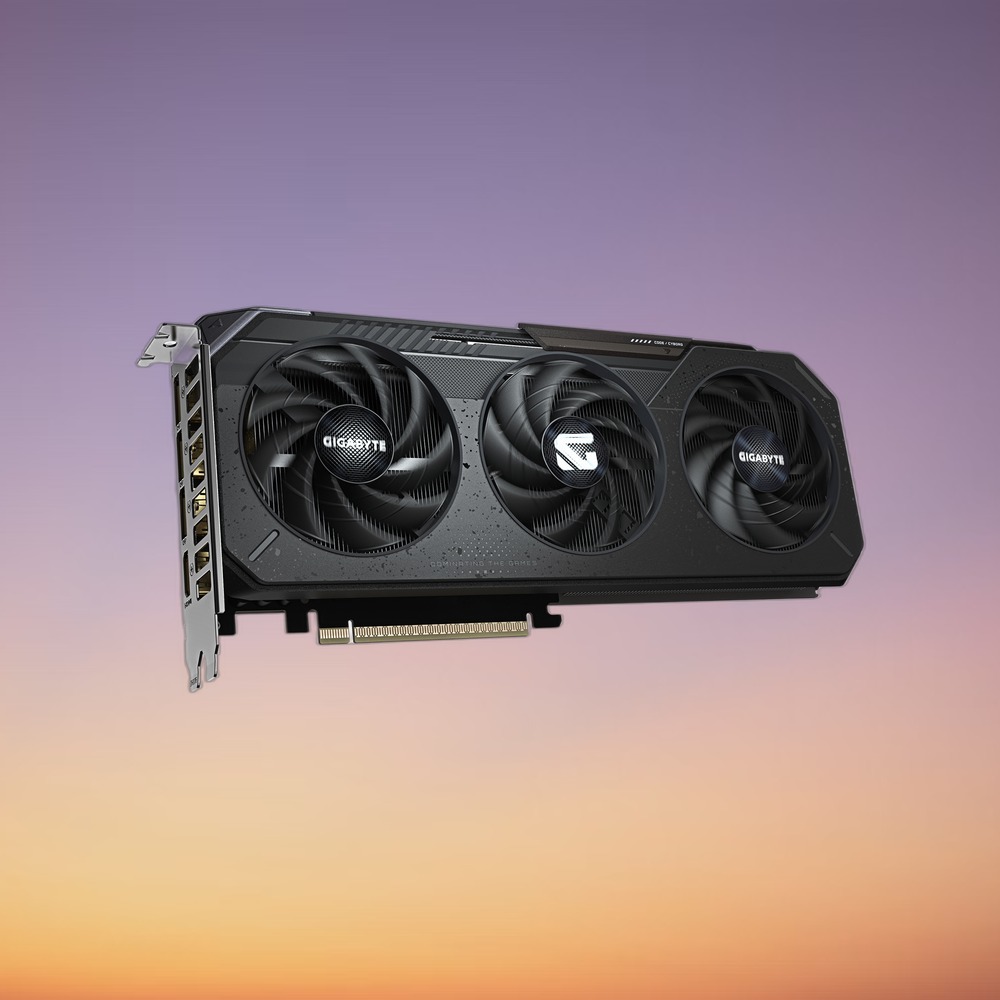

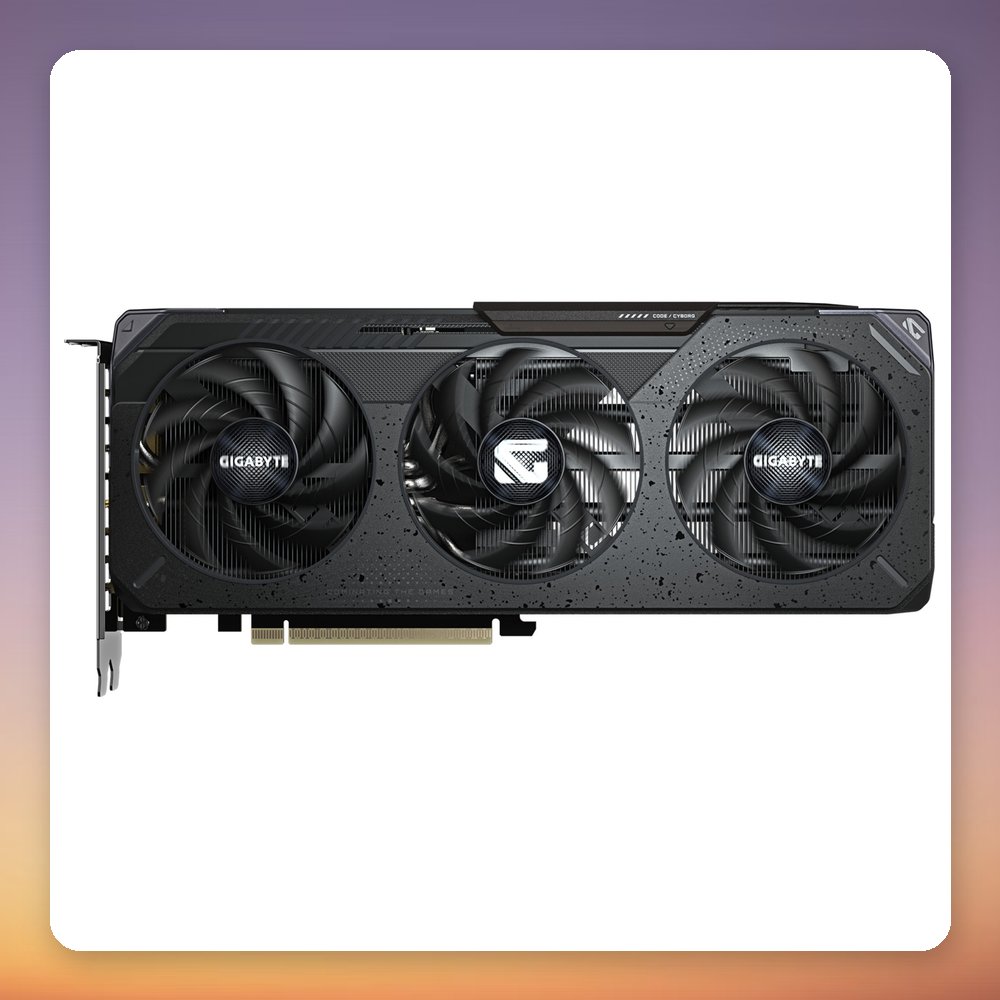

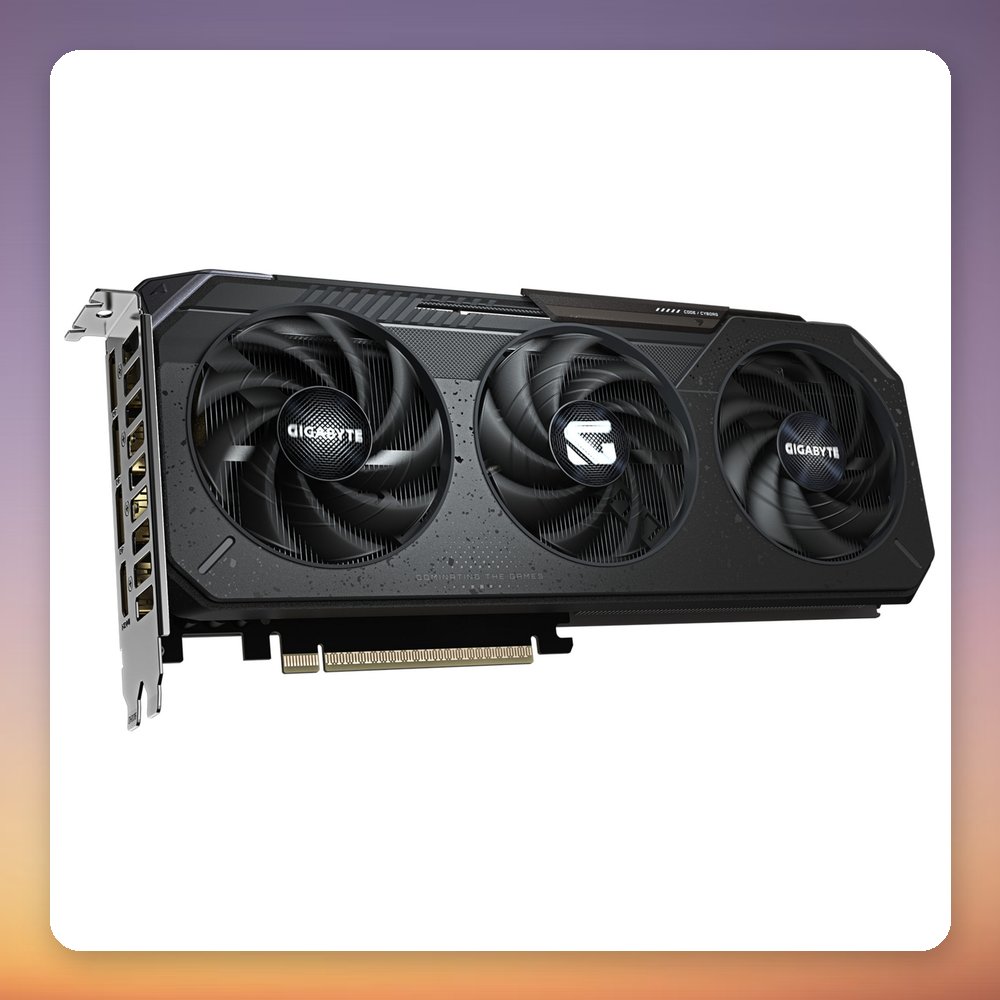

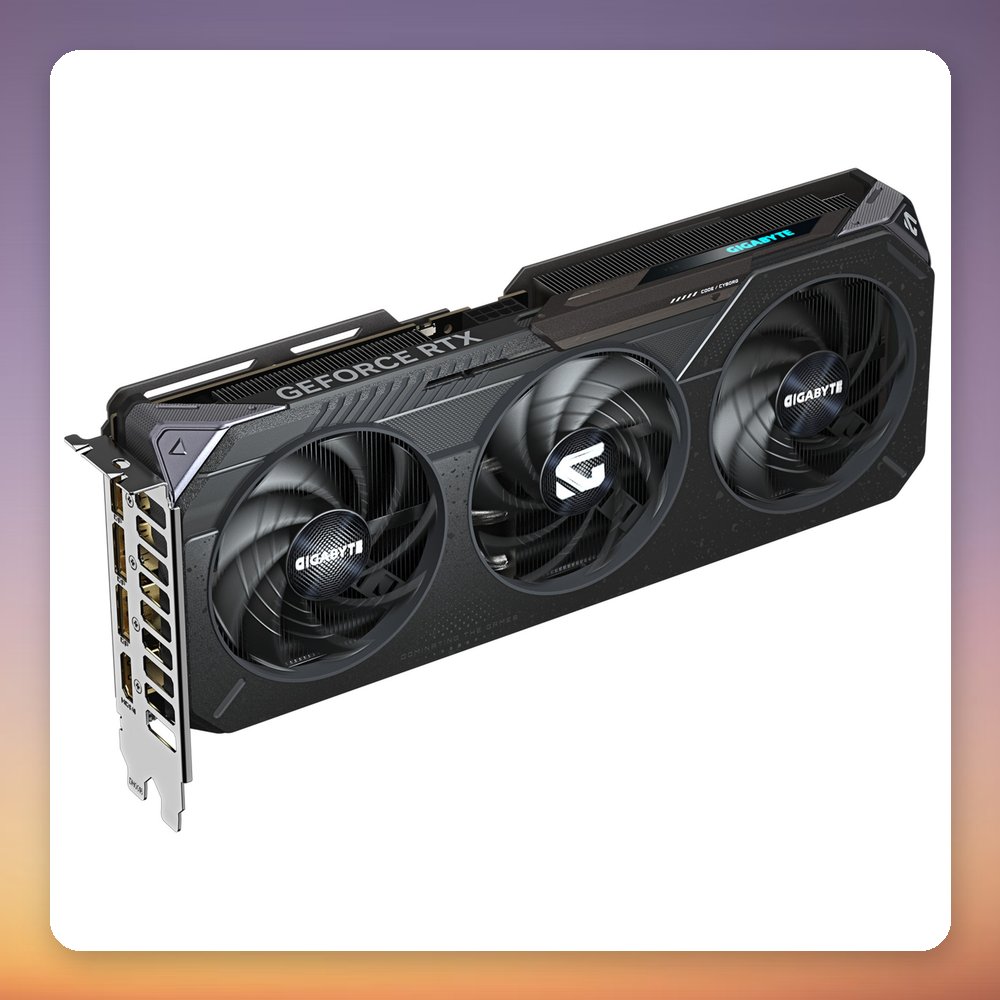

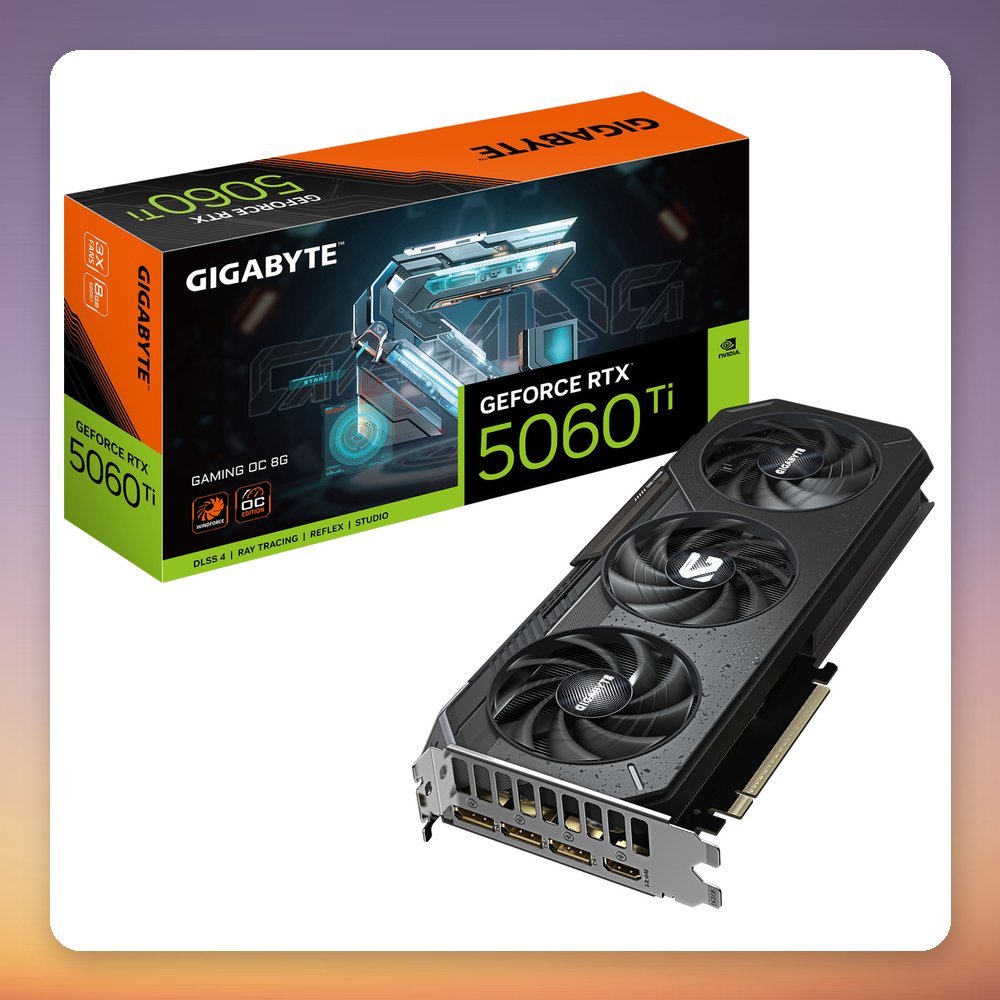

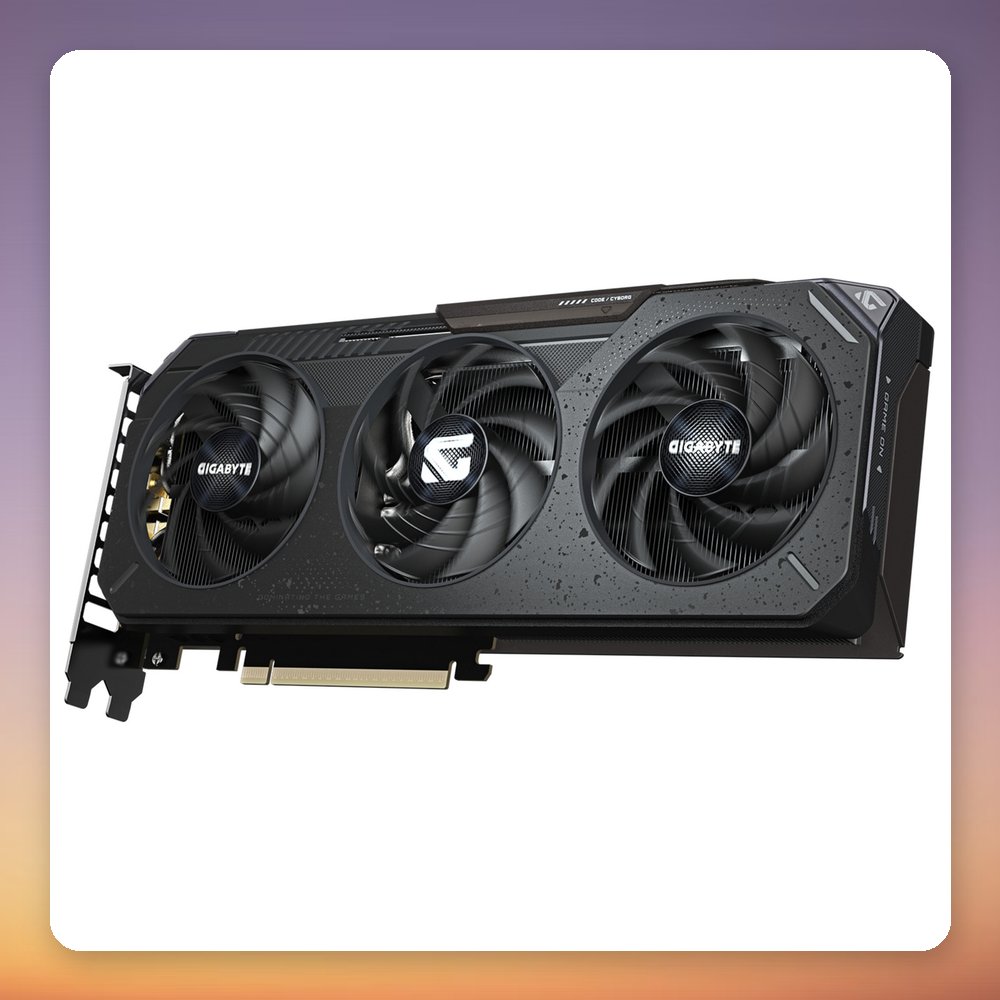

The GigaByte GeForce RTX 5060 Ti GAMING OC 8 GB is a factory-overclocked graphics card built on the NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores and 8 GB of GDDR7 memory on a 128-bit bus. The boost clock is 2647 MHz against a base clock of 2407 MHz, and the memory runs at 28 Gbit/s. A WINDFORCE 3X cooler with three fans keeps it in a 2-slot, 281 mm body.

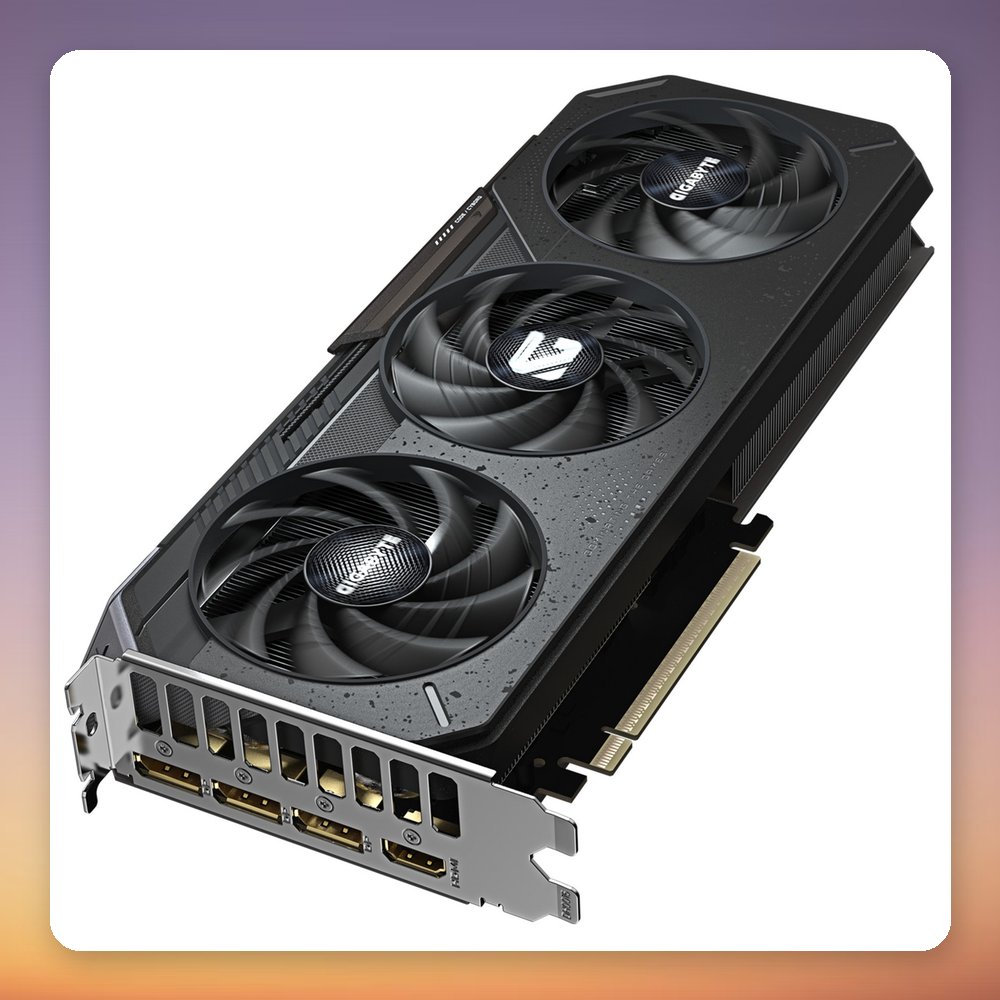

With 3x DisplayPort 2.1b and 1x HDMI 2.1b it can drive up to four displays, and the maximum resolution is 8K (7680 x 4320). It needs only a single 8-pin power connector and a minimum 650 W power supply, which makes it easy to fit into an existing gaming build. The RTX 50 series adds DLSS, fourth-generation ray tracing cores, fifth-generation Tensor cores and AV1 encode and decode, plus support for NVIDIA G-SYNC.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5060 Ti GAMING OC 8G
• MPN: GV-N506TGAMING OC-8GD
• EAN: 4719331356019
• GPU: NVIDIA GeForce RTX 5060 Ti
• CUDA cores: 4608
• Base clock: 2407 MHz
• Boost clock: 2647 MHz (OC edition)
• Memory: 8 GB GDDR7
• Memory bus: 128-bit
• Memory data rate: 28 Gbit/s
• Interface: PCI Express 5.0 (x8)
• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Maximum resolution: 7680 x 4320 (8K)
• Cooling: GIGABYTE WINDFORCE 3X, 3 fans
• Power connector: 1x 8-pin
• Minimum PSU: 650 W
• Dimensions (L x H x D): 281 x 119 x 40 mm, 2 slots
• Weight: 800 g
• Manufacturer warranty: 3 years
