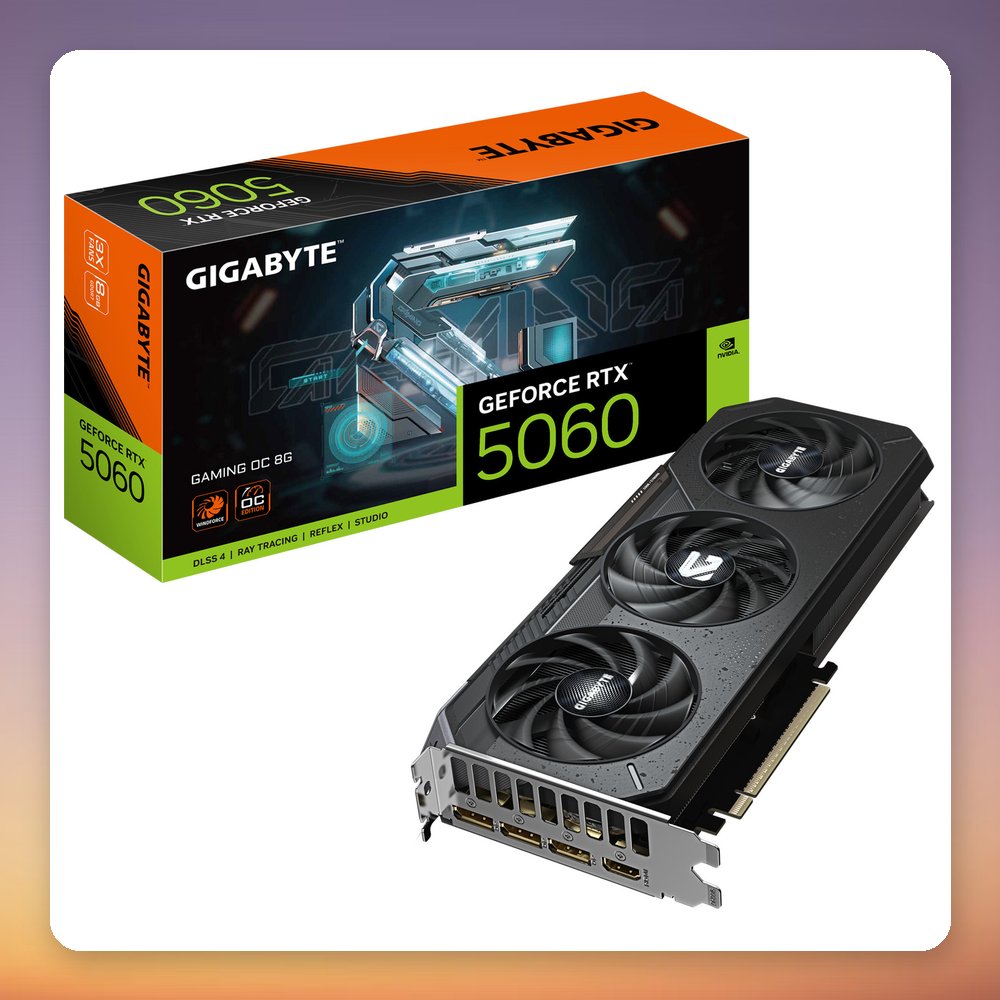

Product Overview

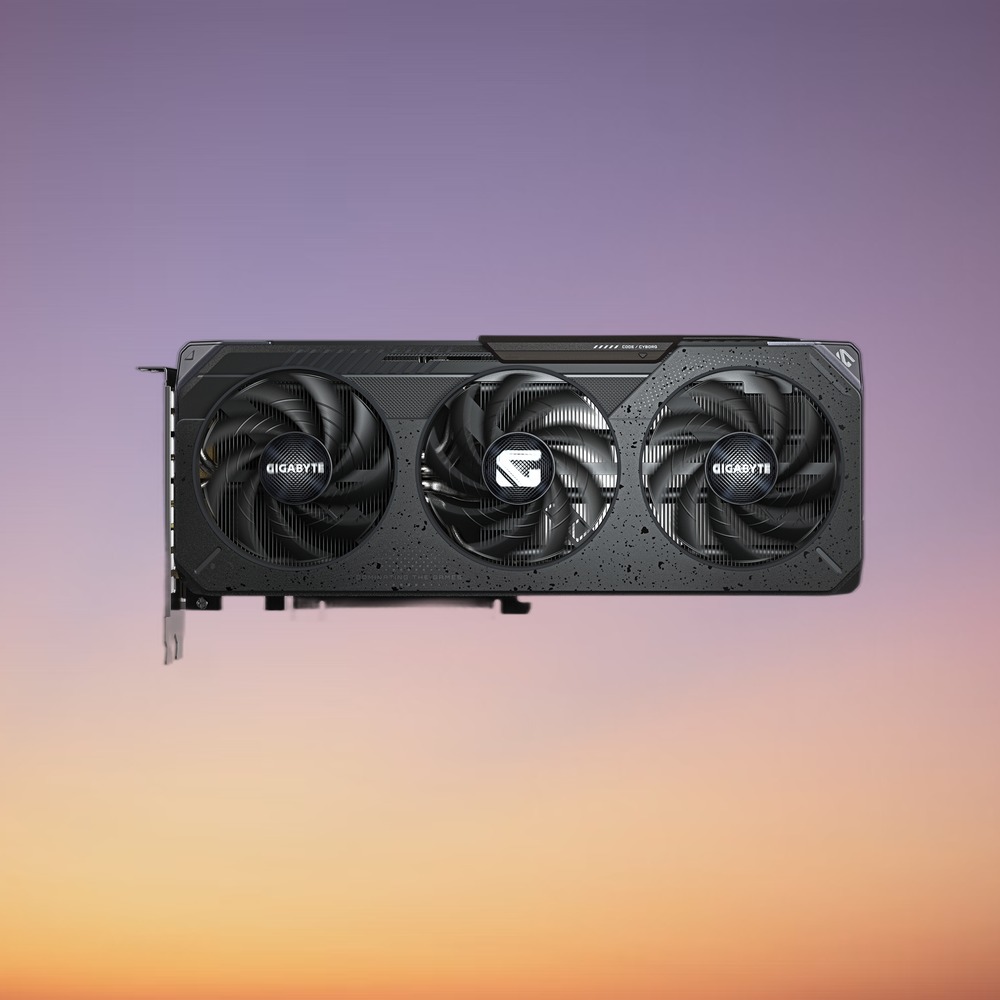

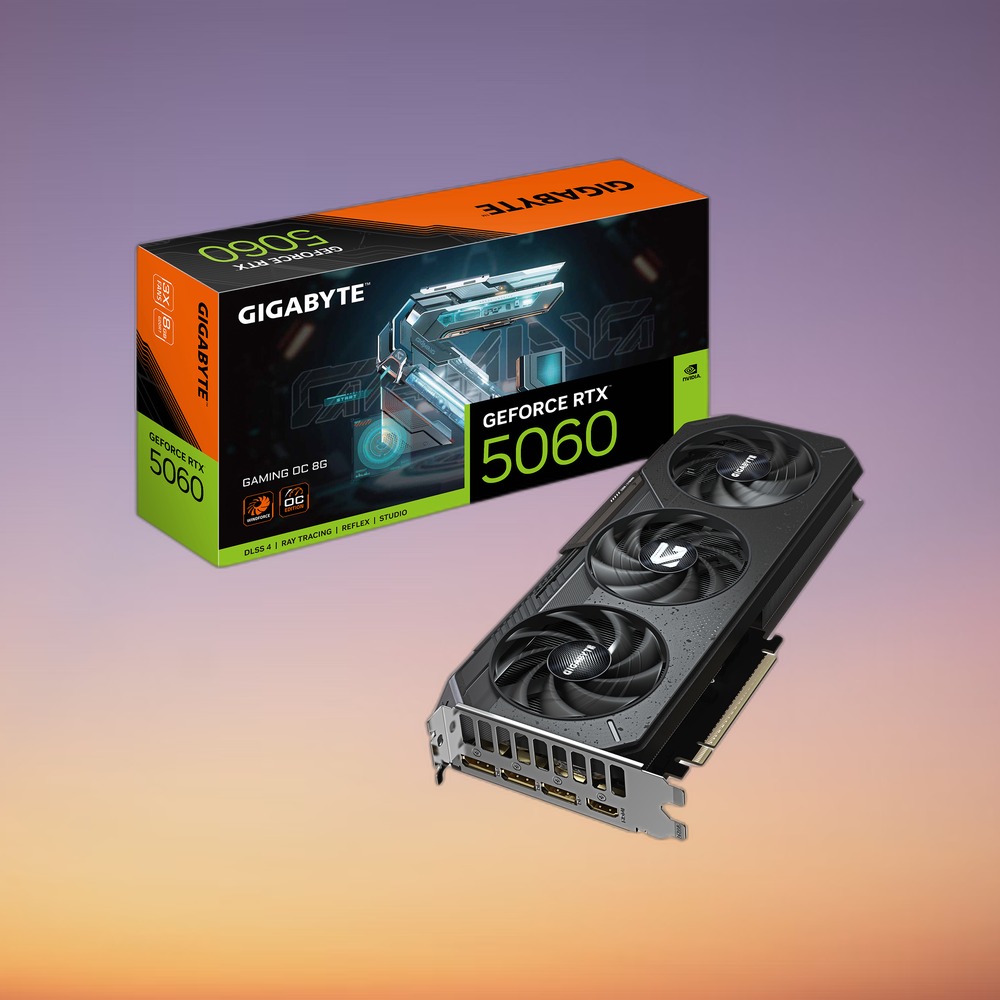

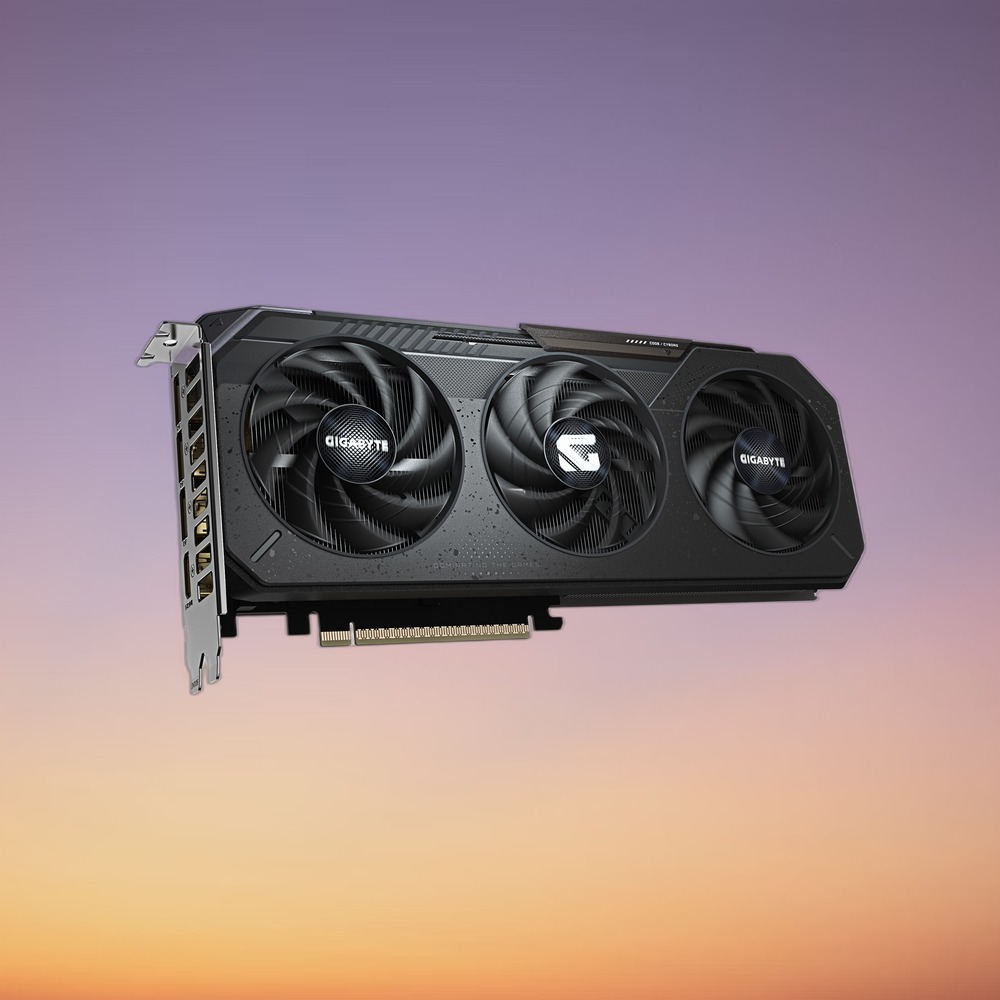

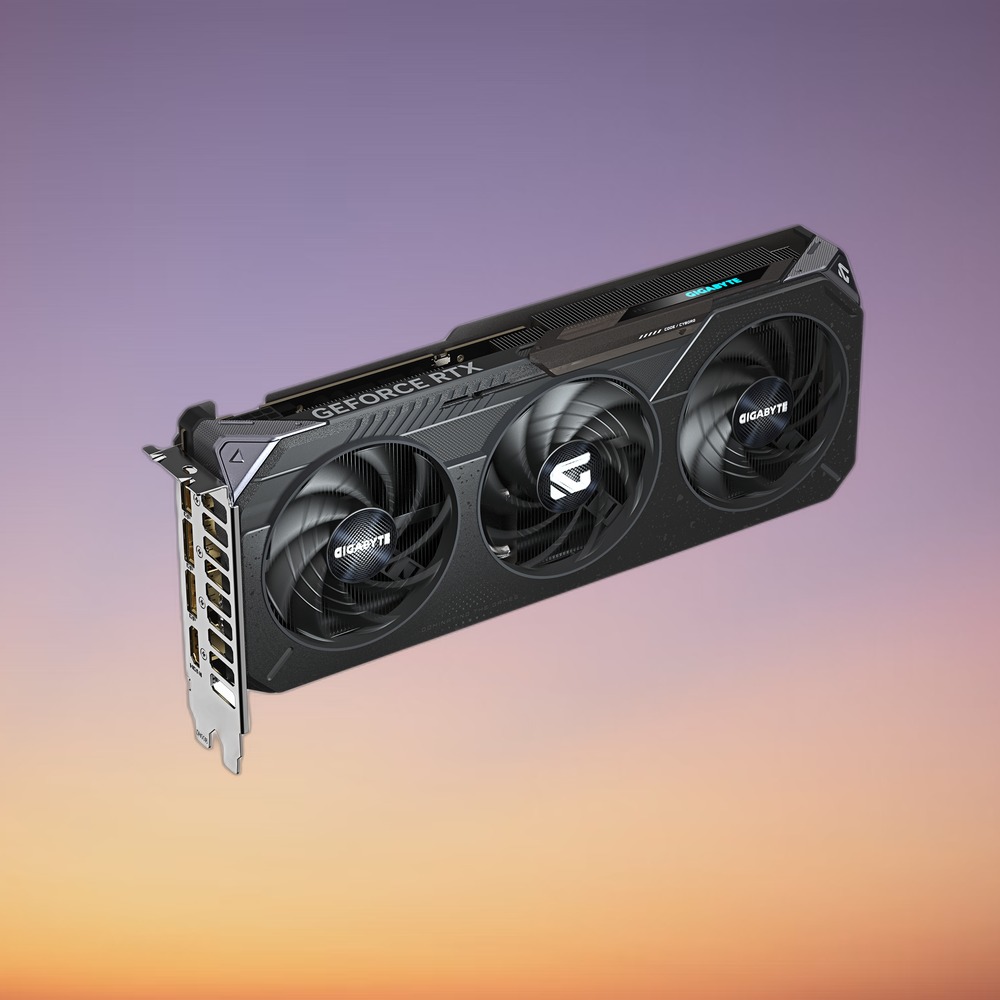

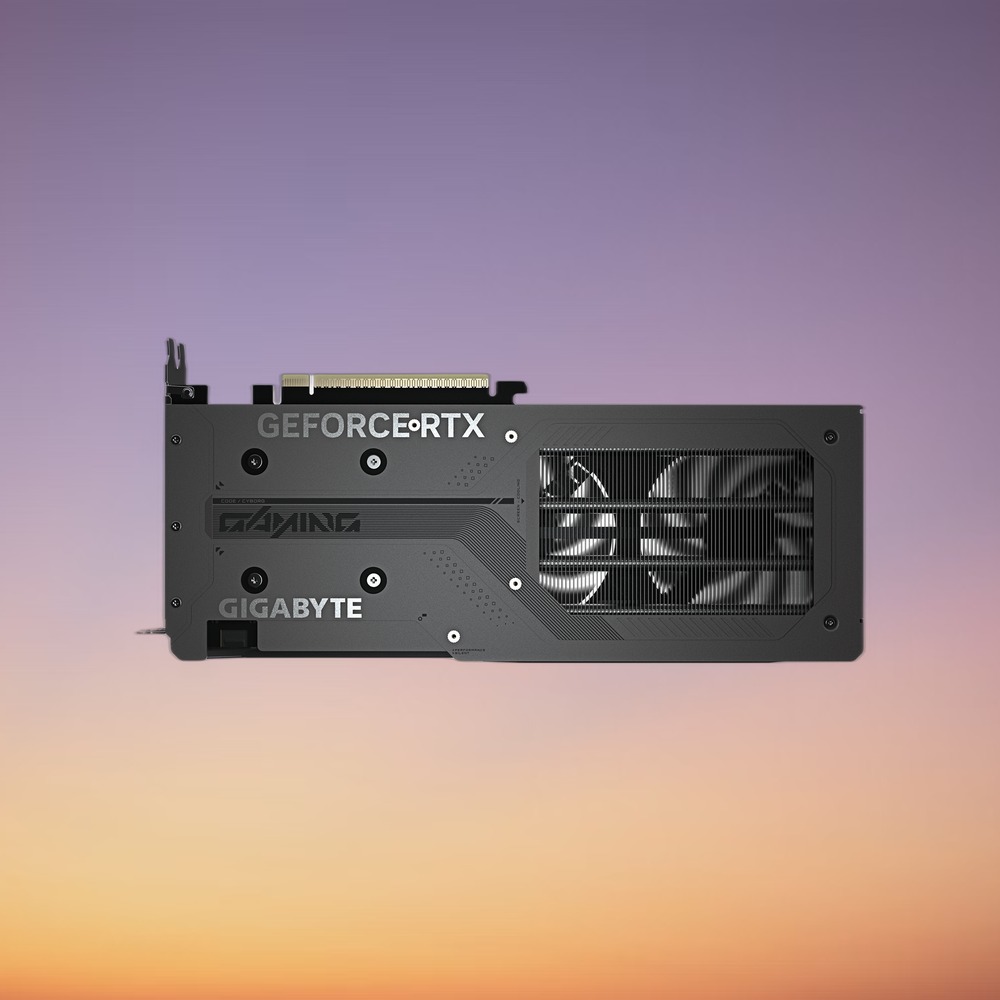

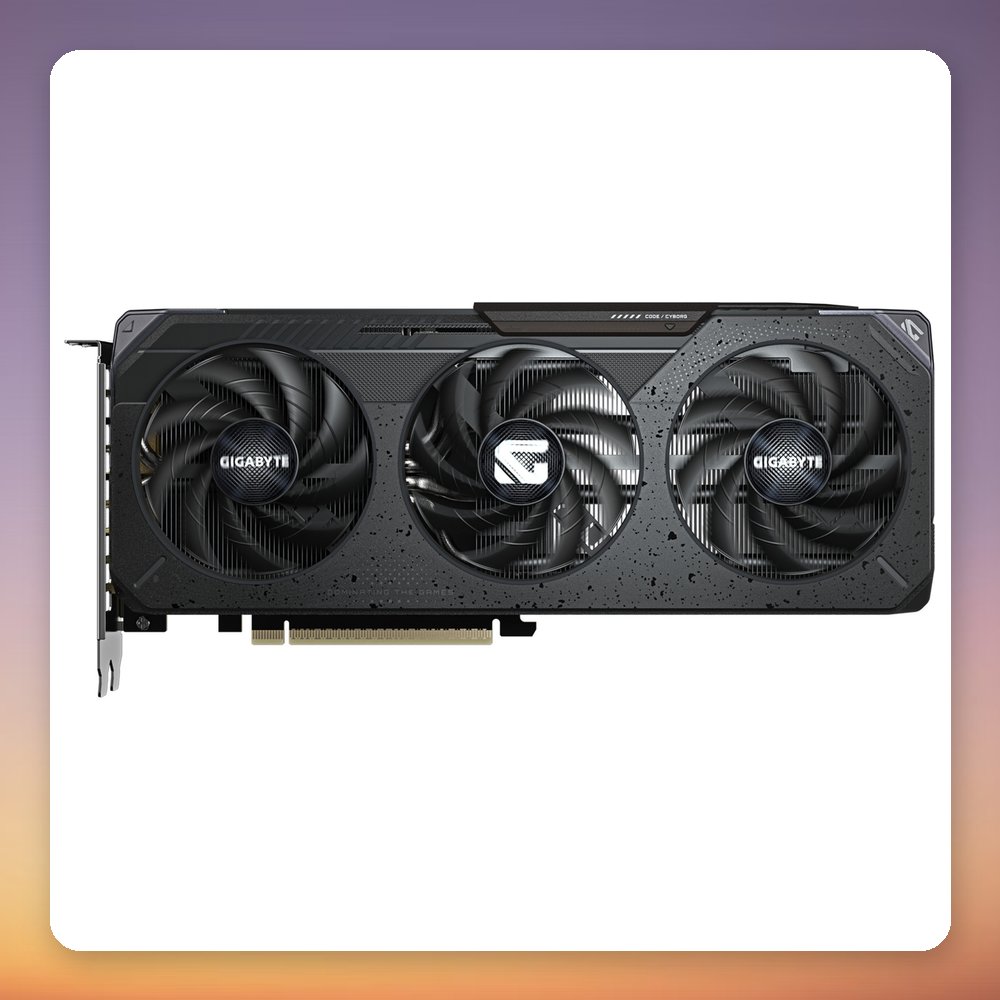

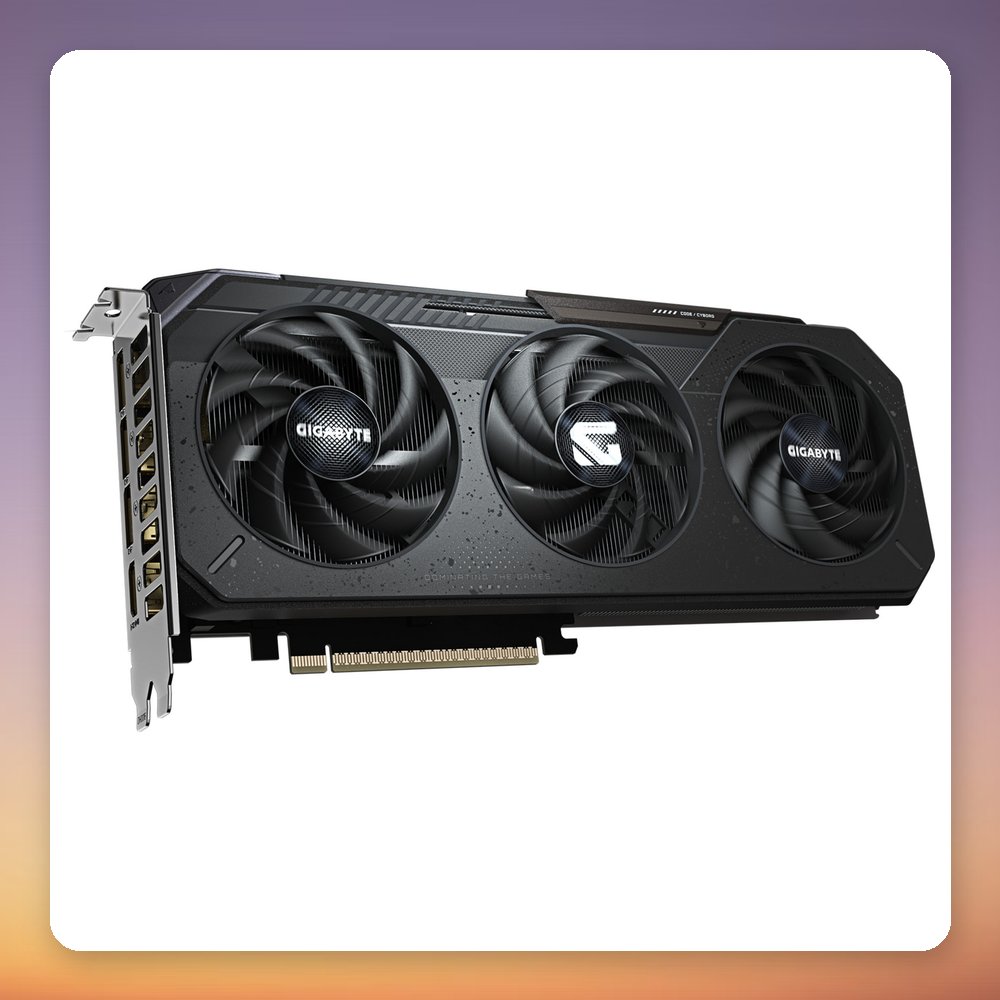

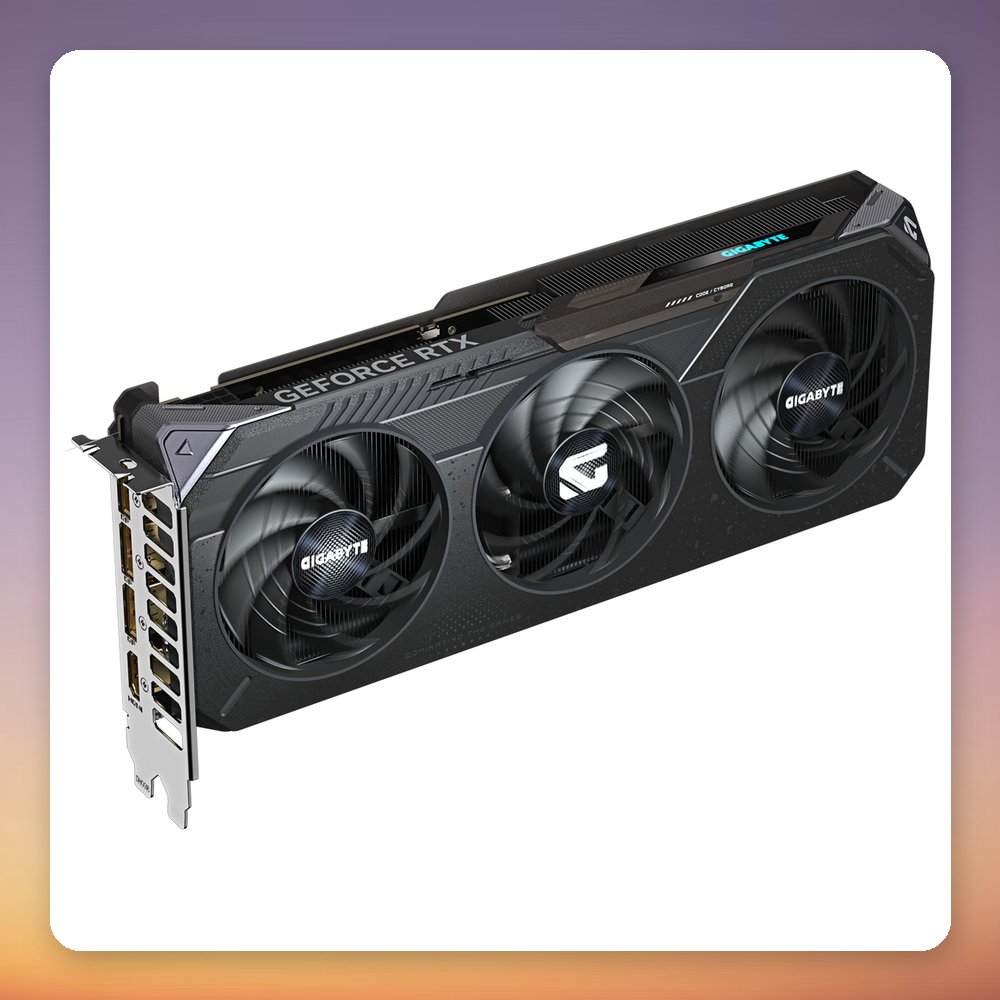

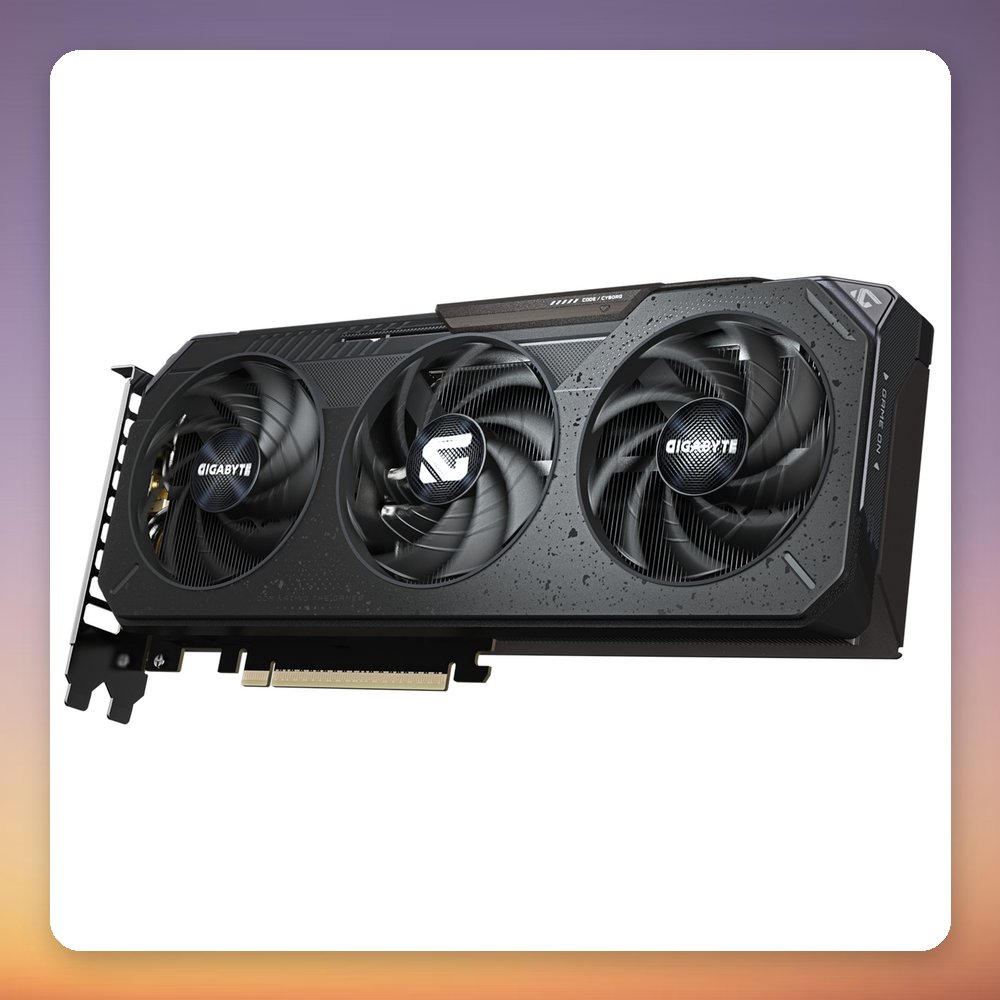

The GigaByte GeForce RTX 5060 Gaming OC is a factory-overclocked graphics card with 8 GB of GDDR7 on a 128-bit bus and 3840 CUDA cores, running at a 2595 MHz GPU clock. It uses the GIGABYTE WINDFORCE 3X cooler with three fans in a 2-slot design and needs just one 8-pin power connector, which keeps cabling simple compared with cards that require the newer 12V connector.

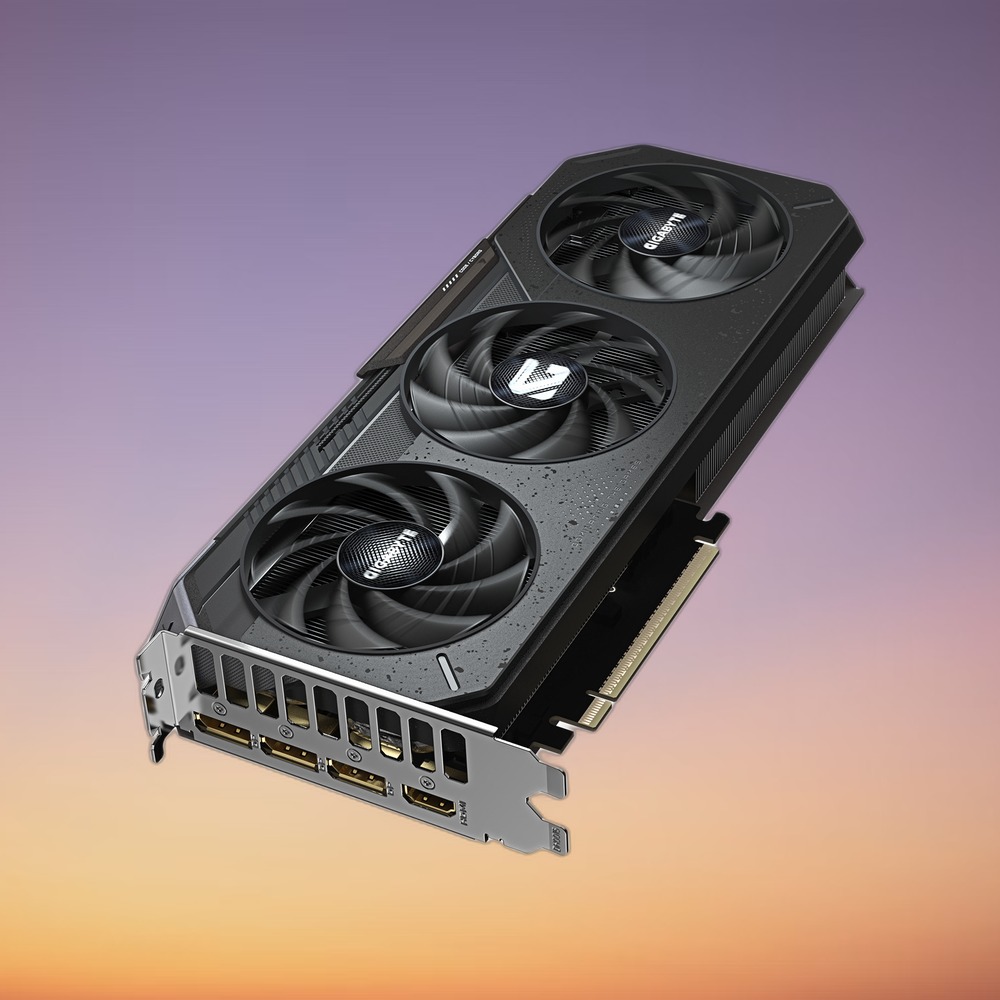

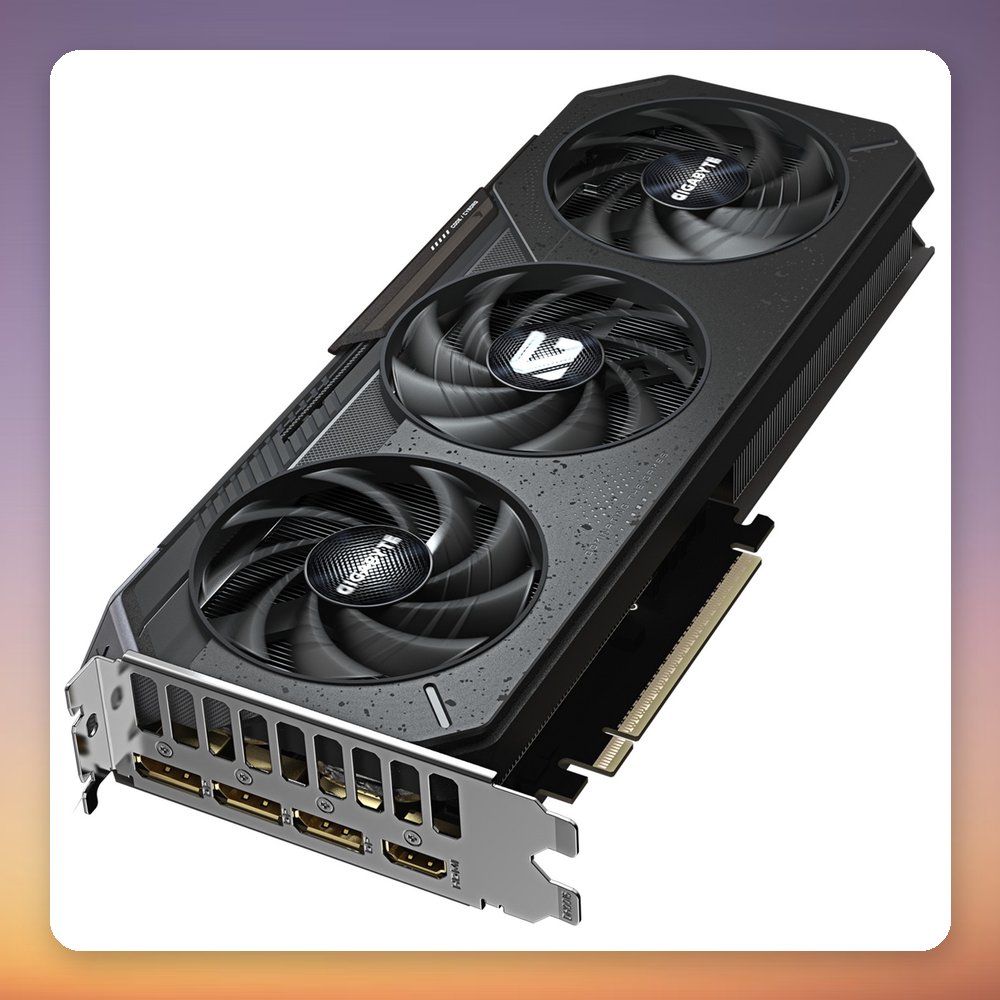

With 1x HDMI 2.1b and 3x DisplayPort 2.1b, it supports up to four displays and resolutions up to 7680 x 4320. It suits 1080p and 1440p gaming builds and streaming setups thanks to the 9th-gen NVENC encoder and AV1 support. At 281 mm long and 800 g, it fits most mid-tower cases. The card connects via PCIe 5.0 x16, but with x8 lanes. NVIDIA DLSS, Reflex and G-SYNC are supported, and RGB Fusion lighting is included.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5060 Gaming OC
• MPN: GV-N5060GAMING OC-8GD
• EAN: 4719331356408
• GPU: NVIDIA GeForce RTX 5060
• CUDA cores: 3840
• GPU clock: 2595 MHz (OC edition)
• Memory: 8 GB GDDR7, 128-bit, 28 Gbps
• Interface: PCIe 5.0 x16 slot (x8 lanes)
• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max resolution: 7680 x 4320 (4 displays max)
• Cooling: GIGABYTE WINDFORCE 3X, 3 fans
• Power connector: 1x 8-pin
• Power consumption (TDP): 109 W
• Minimum PSU: 550 W (Wave lists 500 W)
• Slots: 2
• Lighting: RGB Fusion
• Dimensions (L x H x D): 281 x 119 x 40 mm
• Weight: 800 g
• Manufacturer warranty: 3 years
