Product Overview

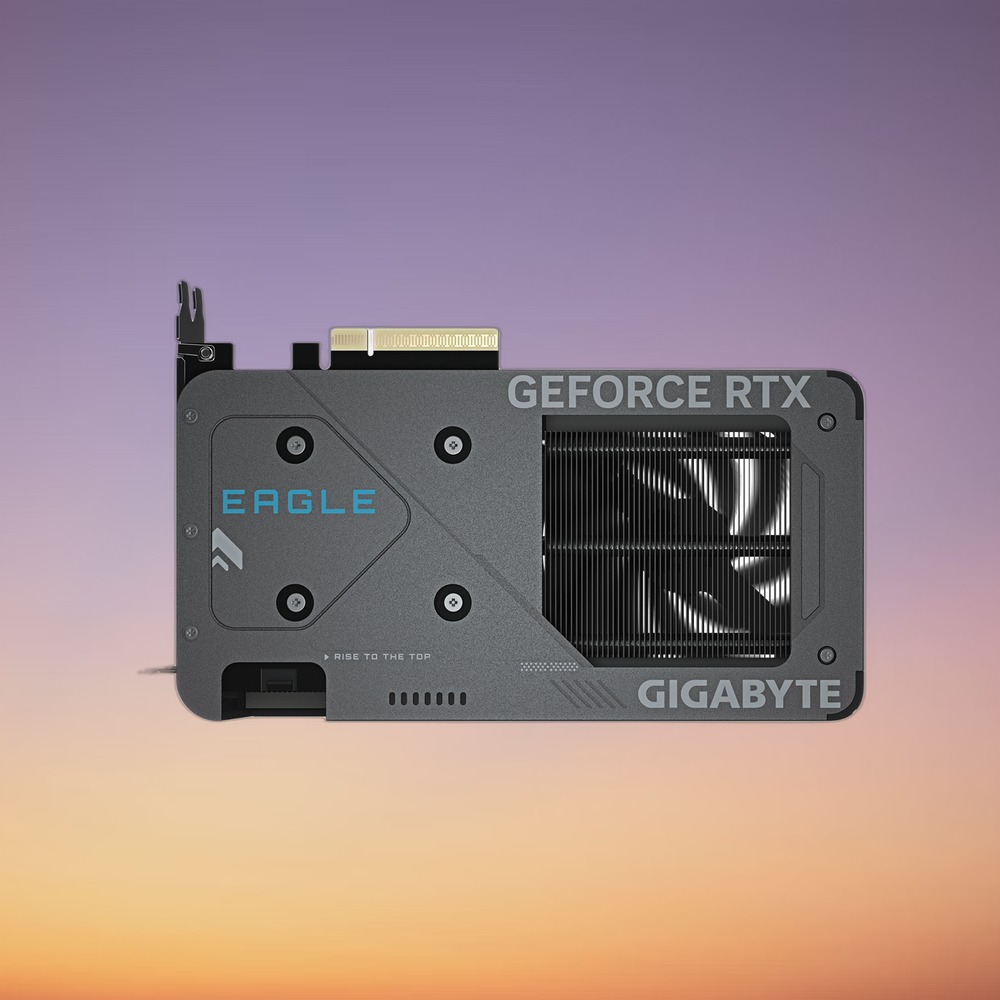

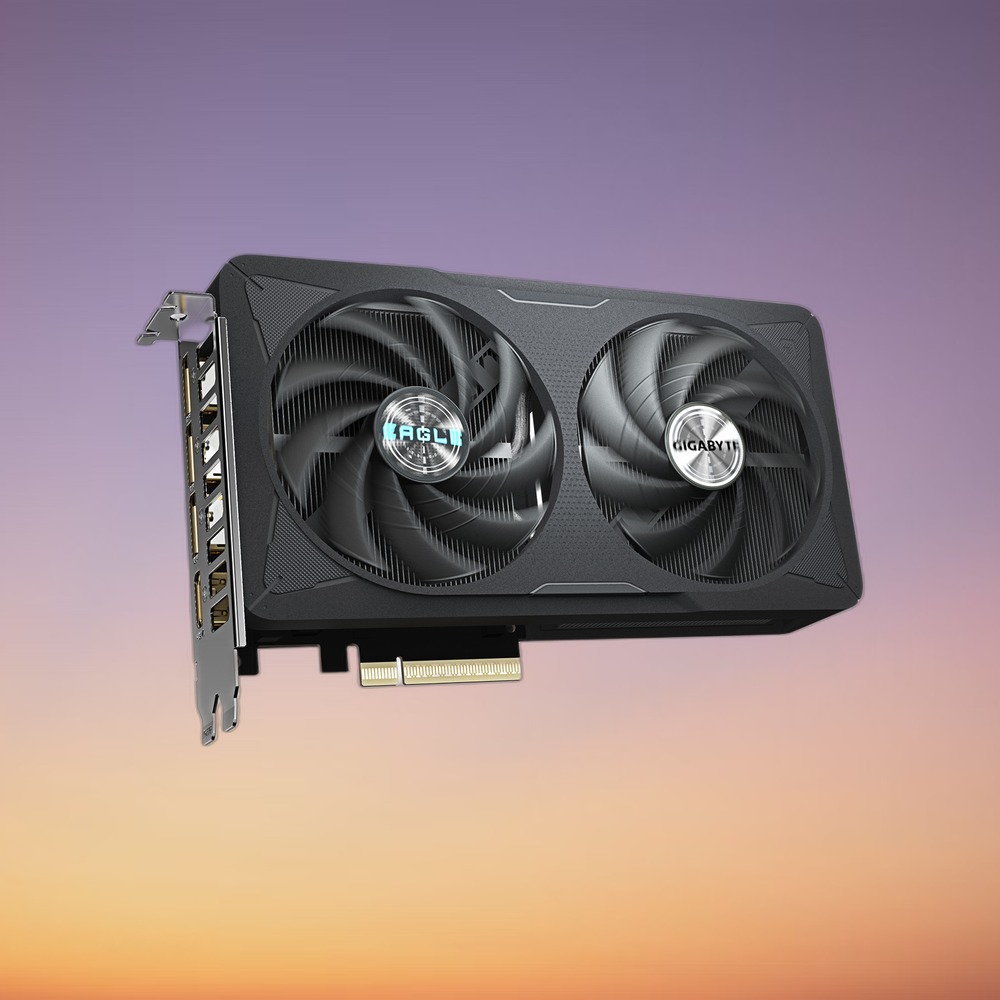

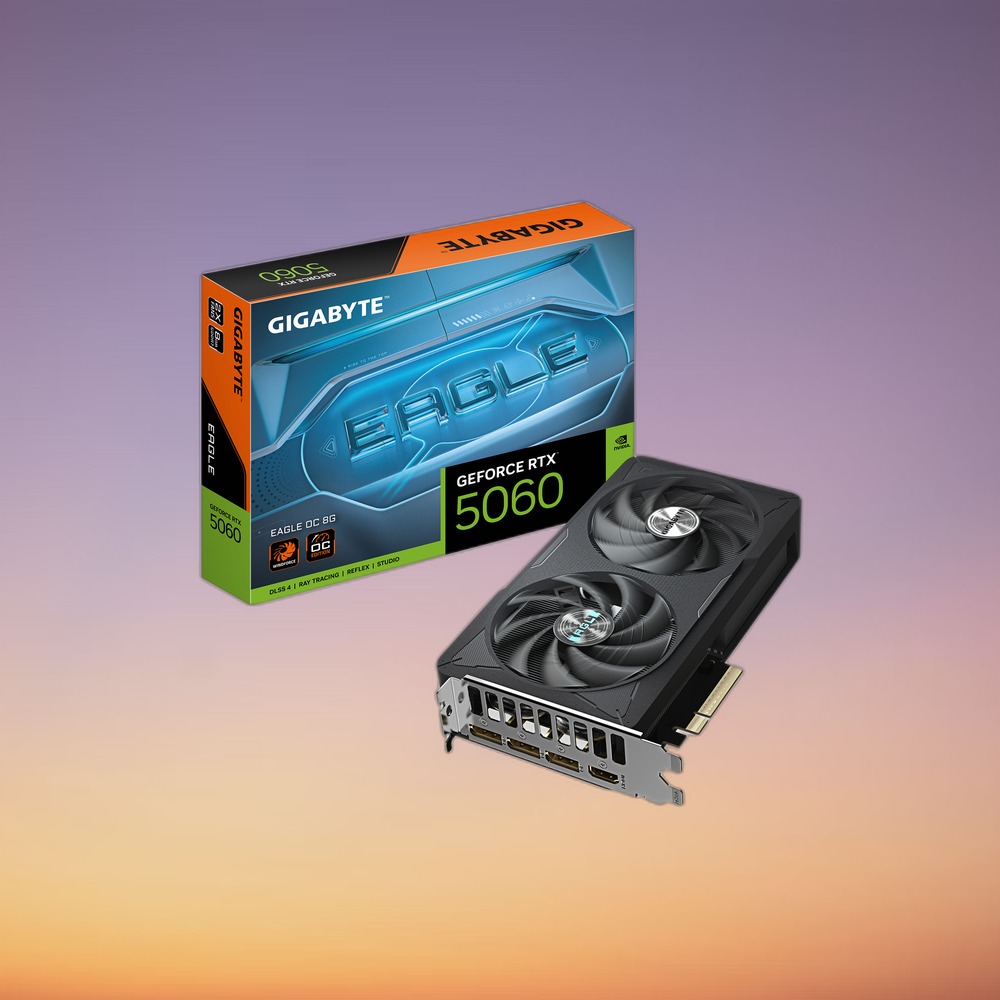

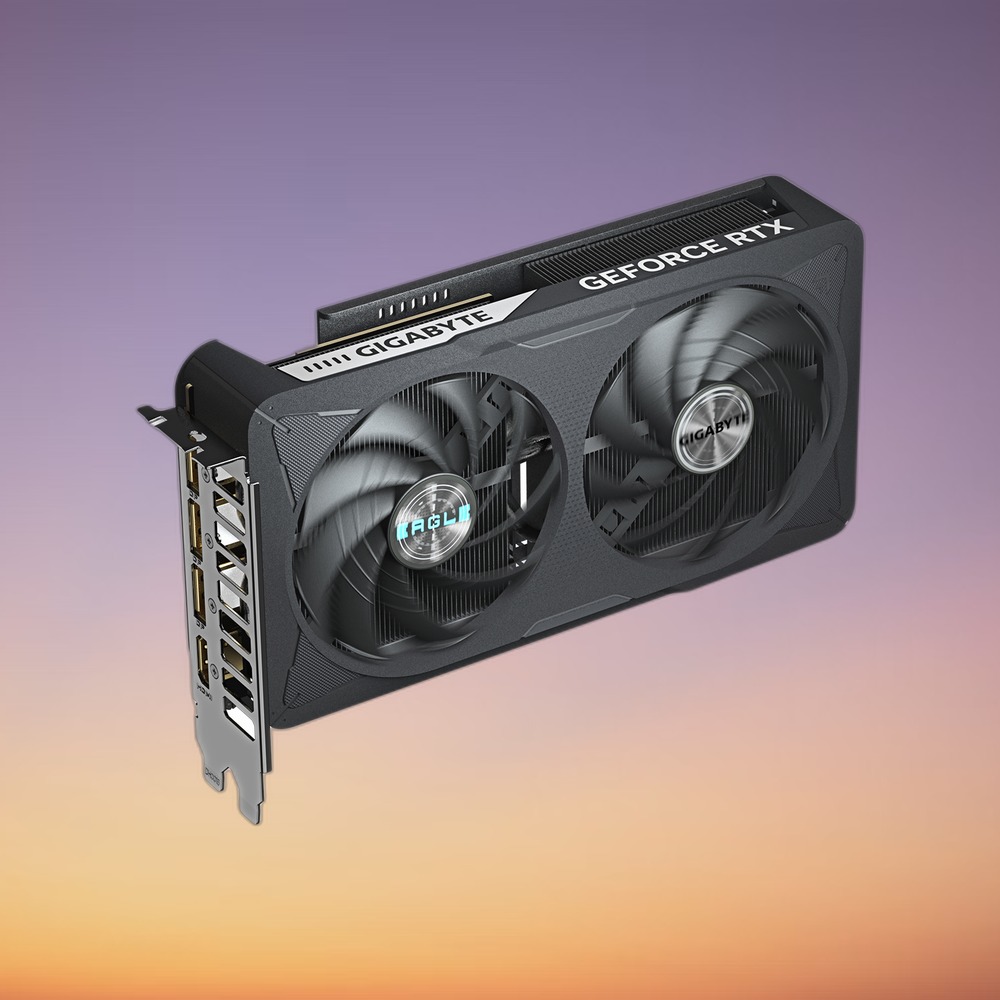

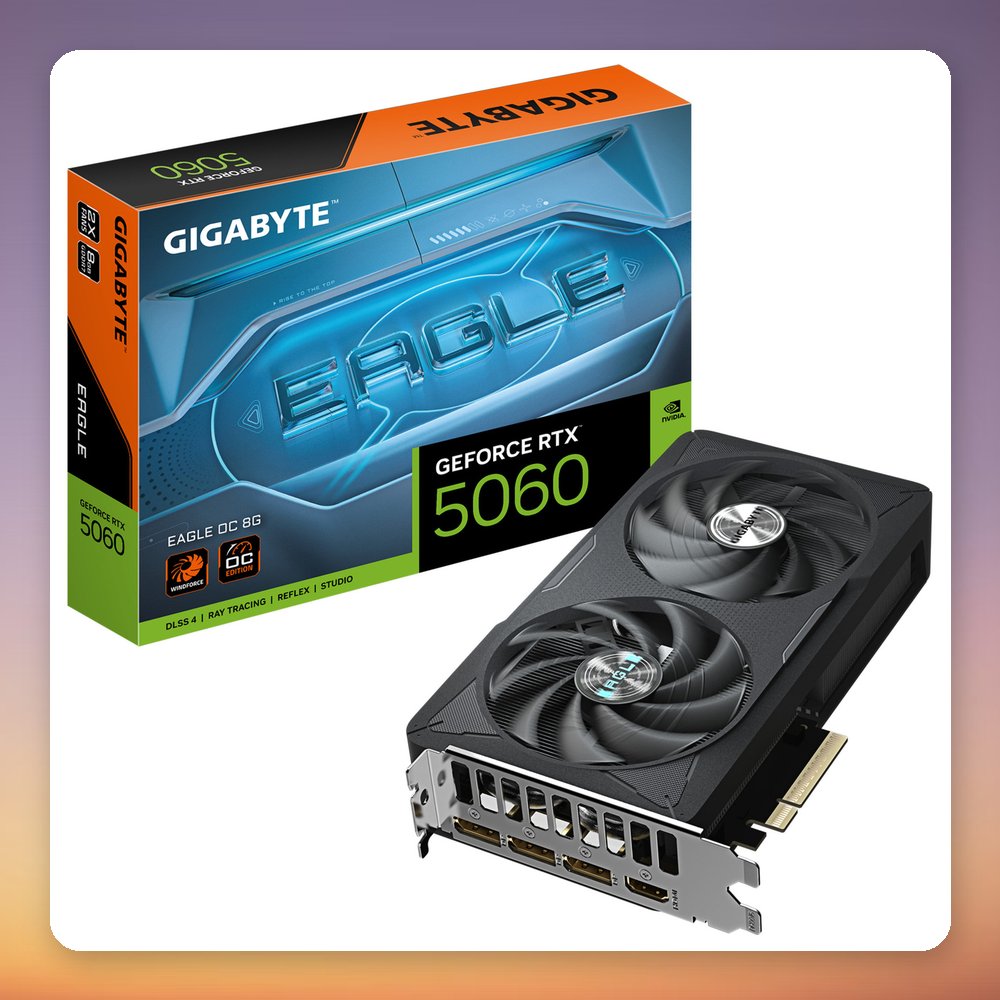

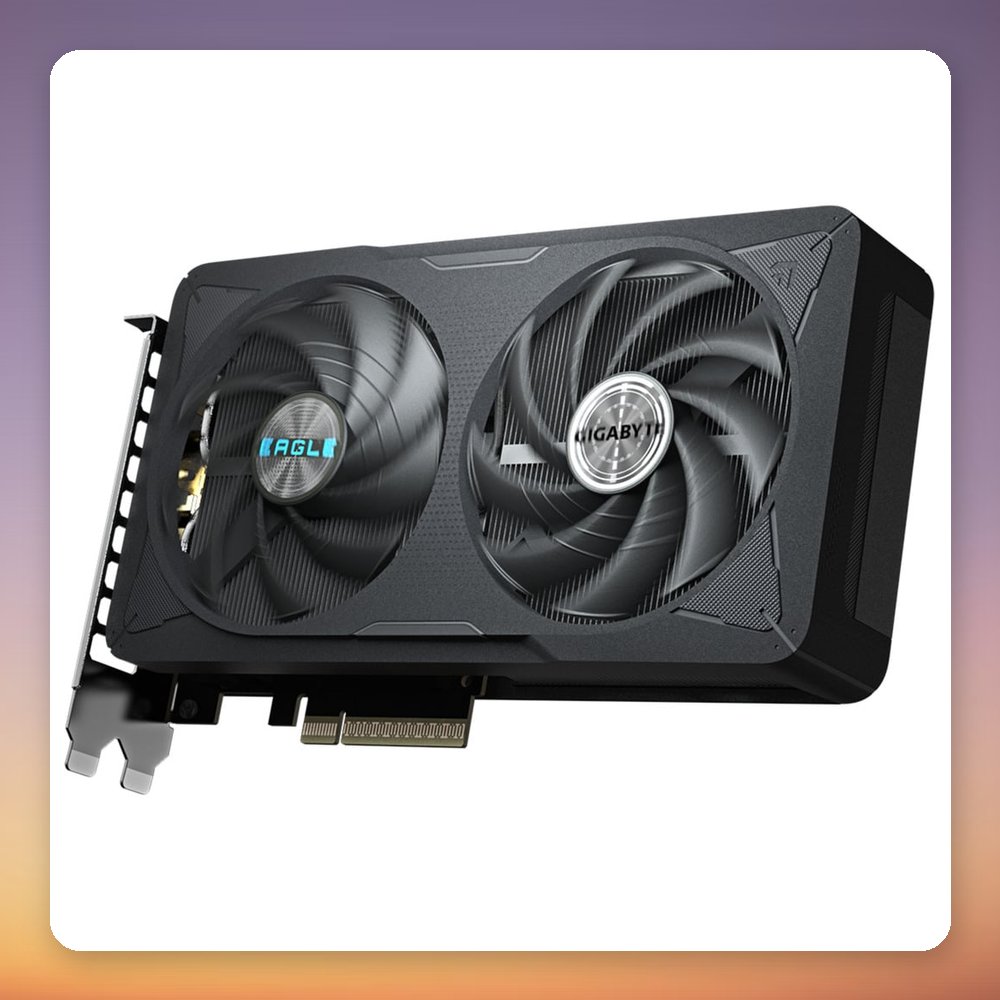

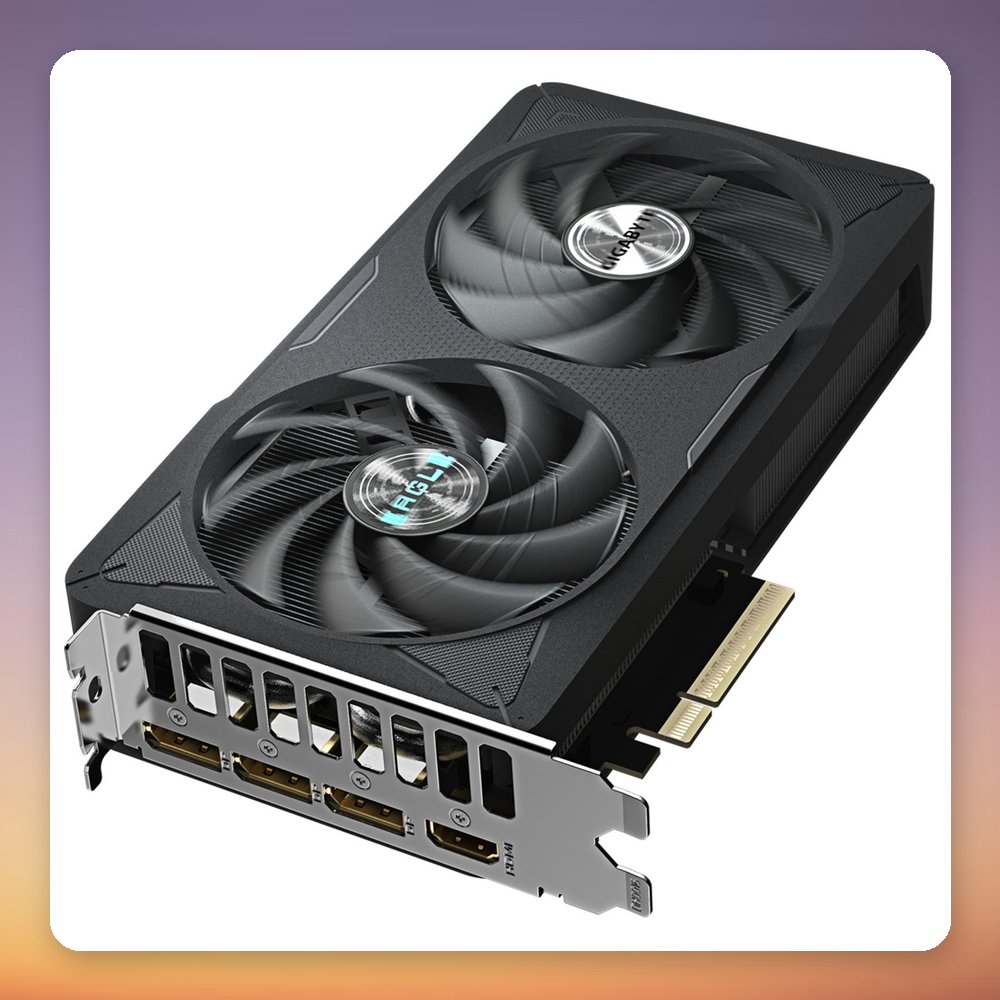

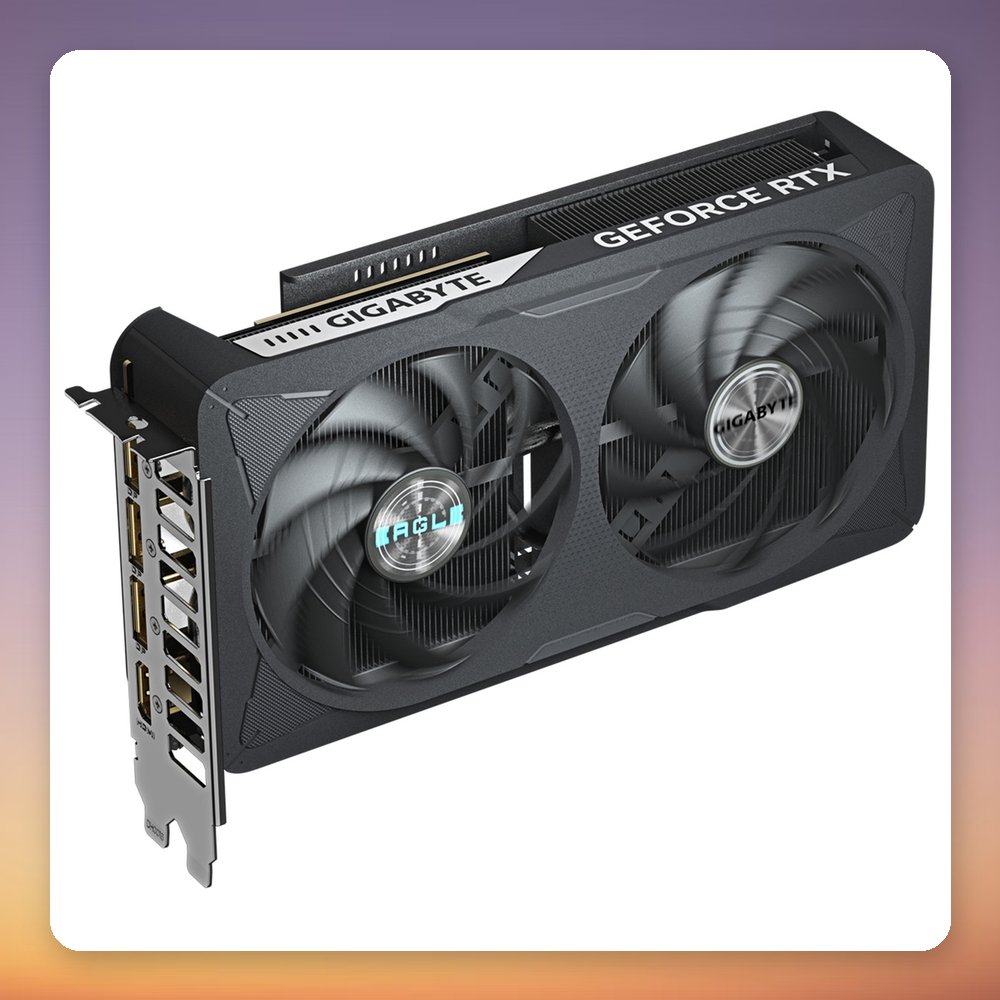

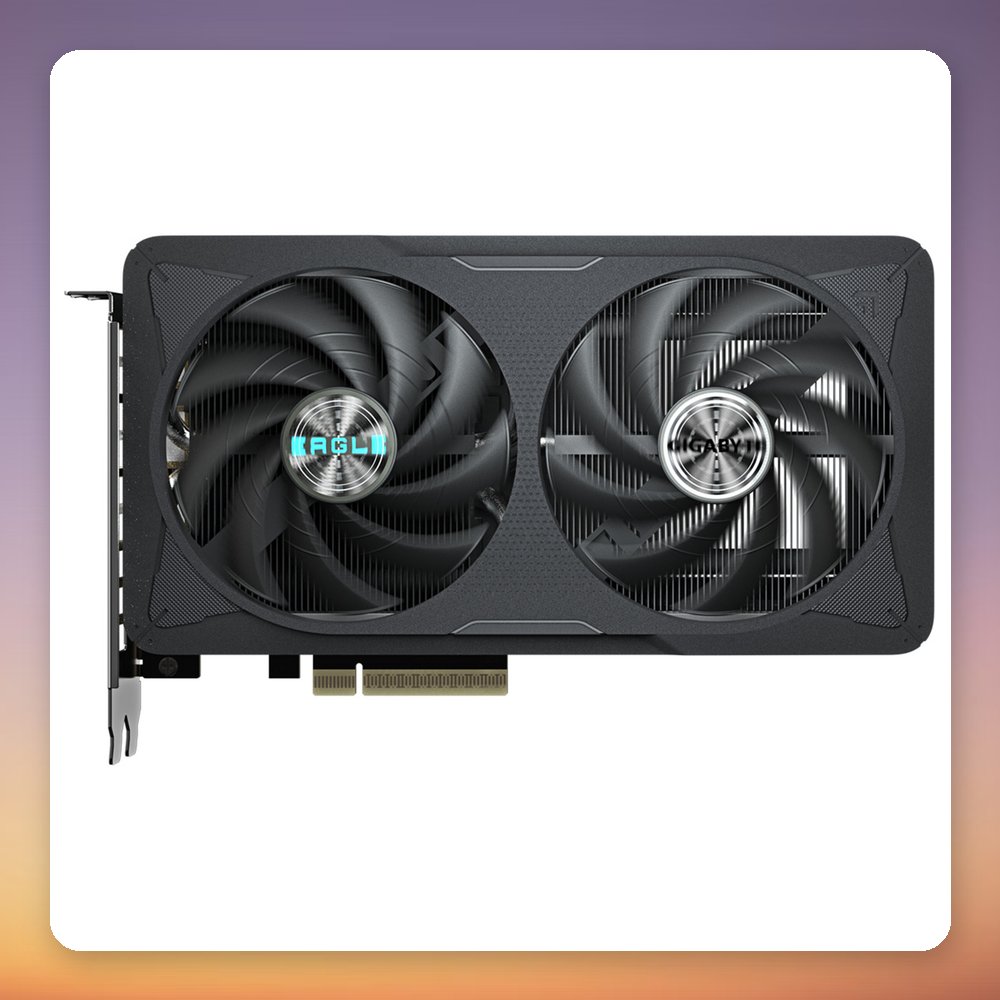

The GigaByte GeForce RTX 5060 EAGLE OC is a factory-overclocked graphics card built on the NVIDIA GeForce RTX 5060 GPU, with a 2550 MHz clock, 3840 CUDA cores and 8 GB of GDDR7 memory on a 128-bit bus. It connects over PCI Express 5.0 and is cooled by the GIGABYTE WINDFORCE 2X system with two fans in a compact 208 mm, two-slot design.

With a typical power draw of 145 W, a single 8-pin connector and a minimum 450 W PSU requirement, it suits mid-range gaming builds that do not need a high-end power supply. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to four displays. NVIDIA DLSS, Reflex 2, G-SYNC, AV1 encode and decode and 4th-gen ray tracing cores are supported. The card weighs 540 g and comes with a 3-year manufacturer warranty.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5060 EAGLE OC
• MPN: GV-N5060EAGLE OC-8GD
• EAN: 4719331356439
• GPU: NVIDIA GeForce RTX 5060
• GPU clock: 2550 MHz (factory overclocked)
• CUDA cores: 3840
• Memory: 8 GB GDDR7, 128-bit, 28 Gbit/s
• Interface: PCI Express 5.0 x16

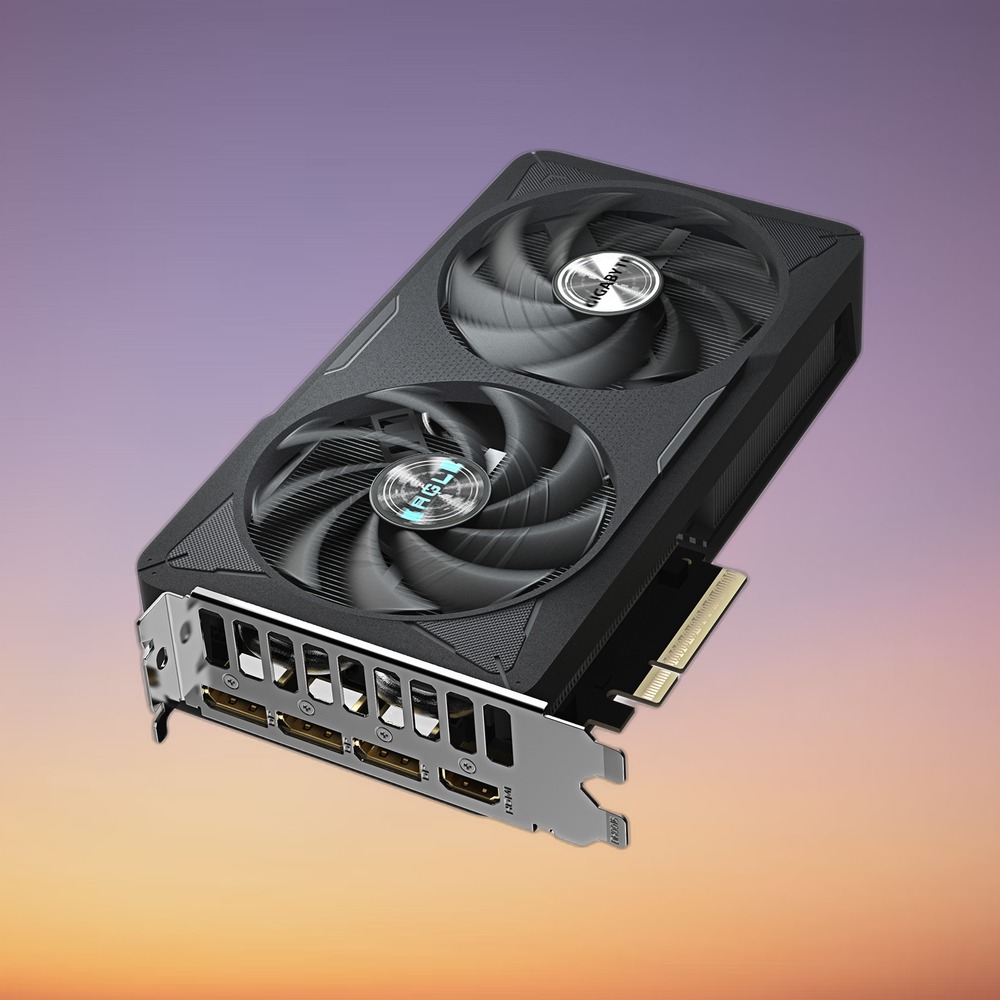

• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

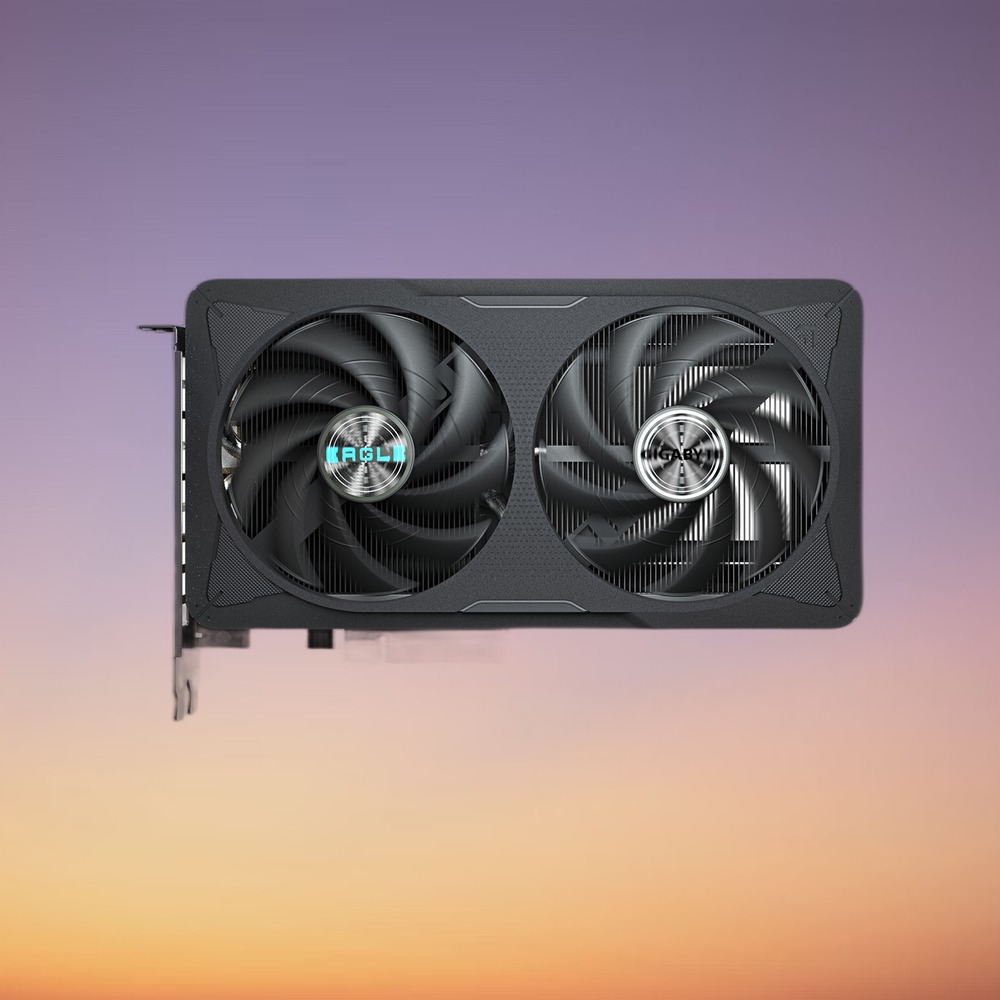

• Cooling: GIGABYTE WINDFORCE 2X, 2 fans
• Power connector: 1x 8-pin
• Average power consumption: 145 W
• Minimum PSU: 450 W
• Form factor: Full-height / half-length, 2 slots
• Dimensions (W x H x D): 120 x 40 x 208 mm
• Weight: 540 g
• Manufacturer warranty: 3 years
