Product Overview

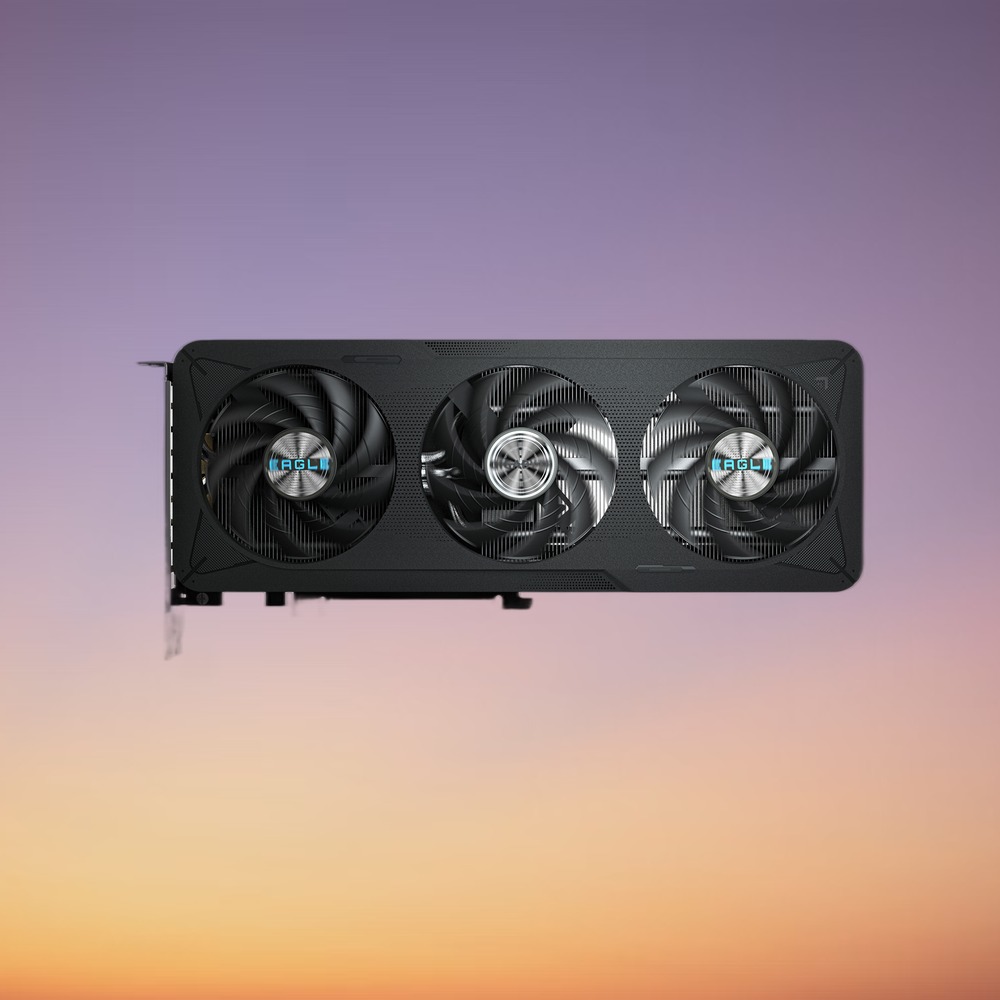

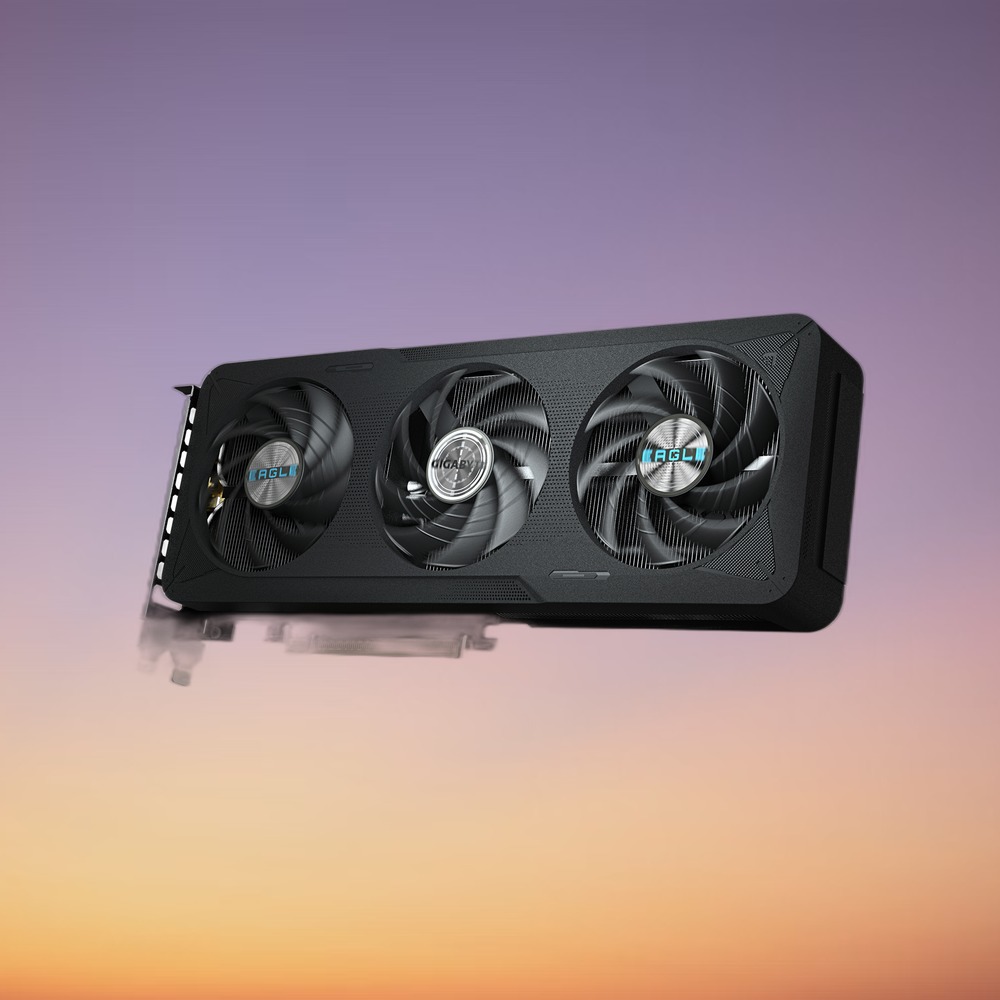

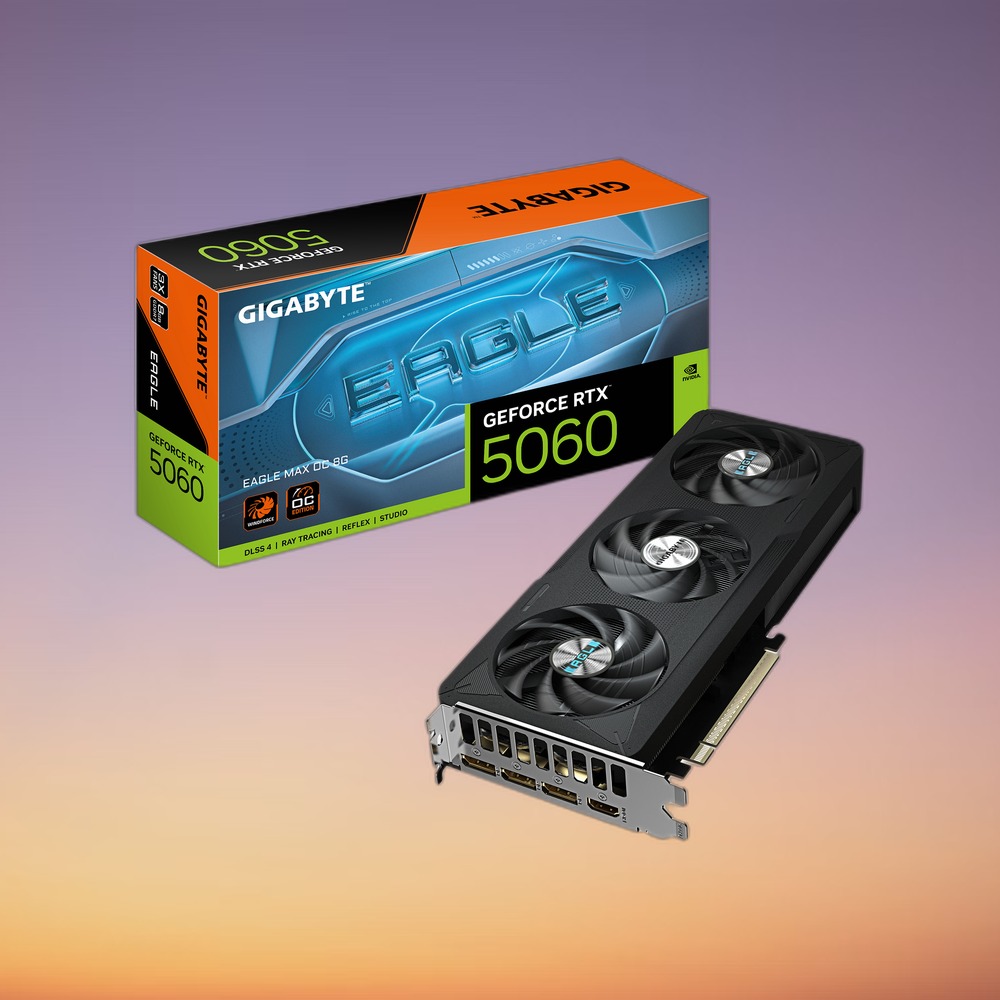

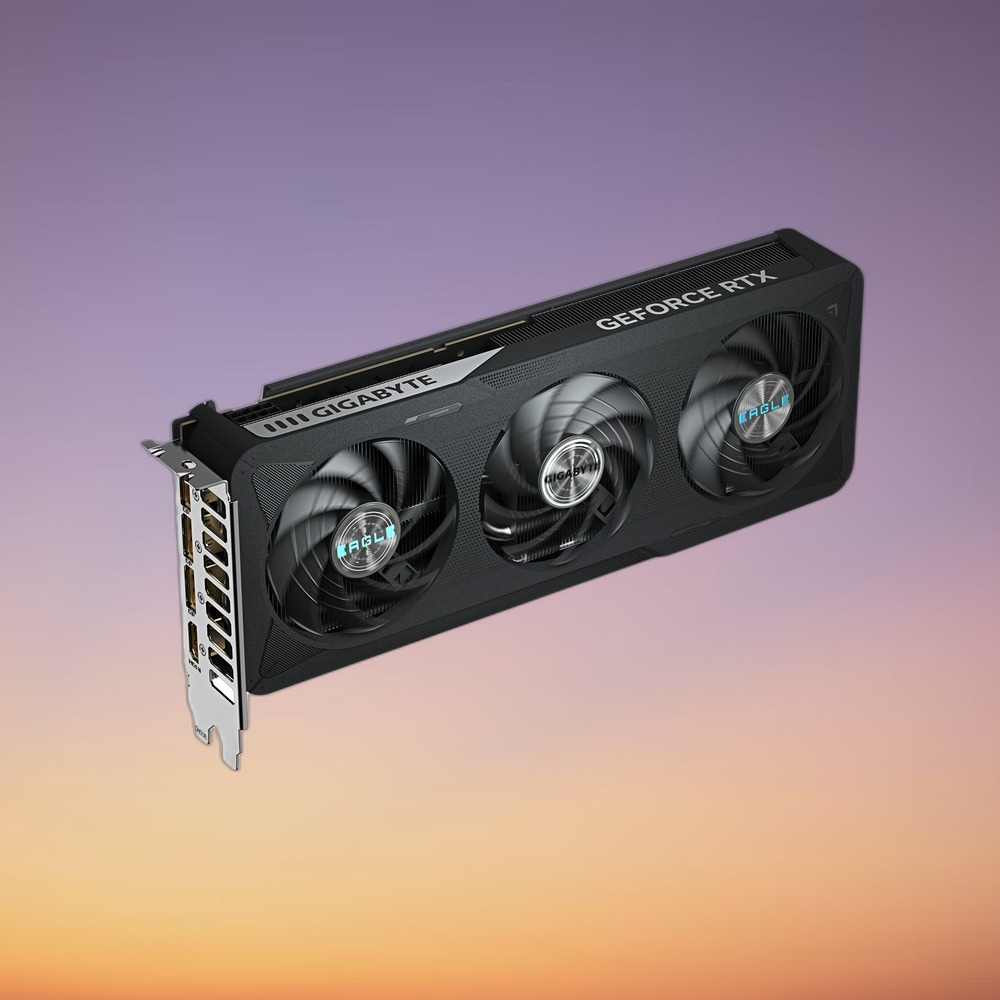

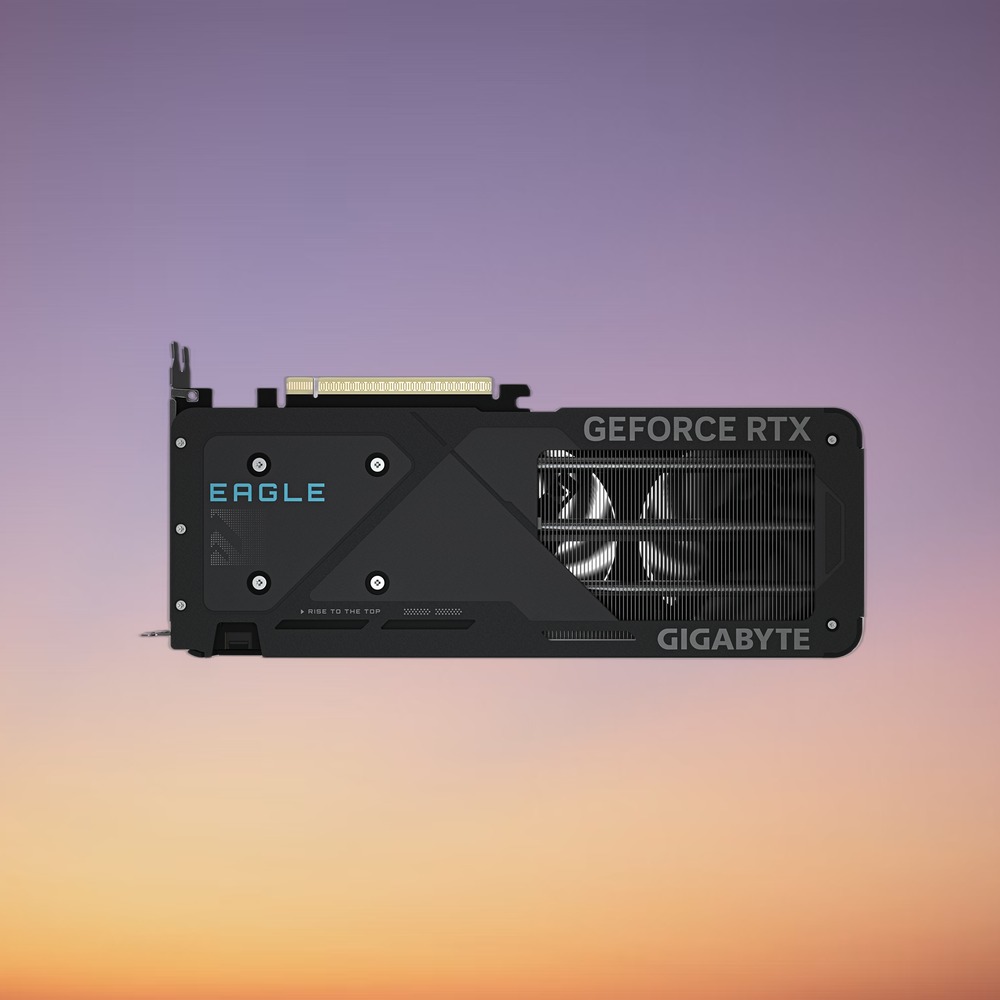

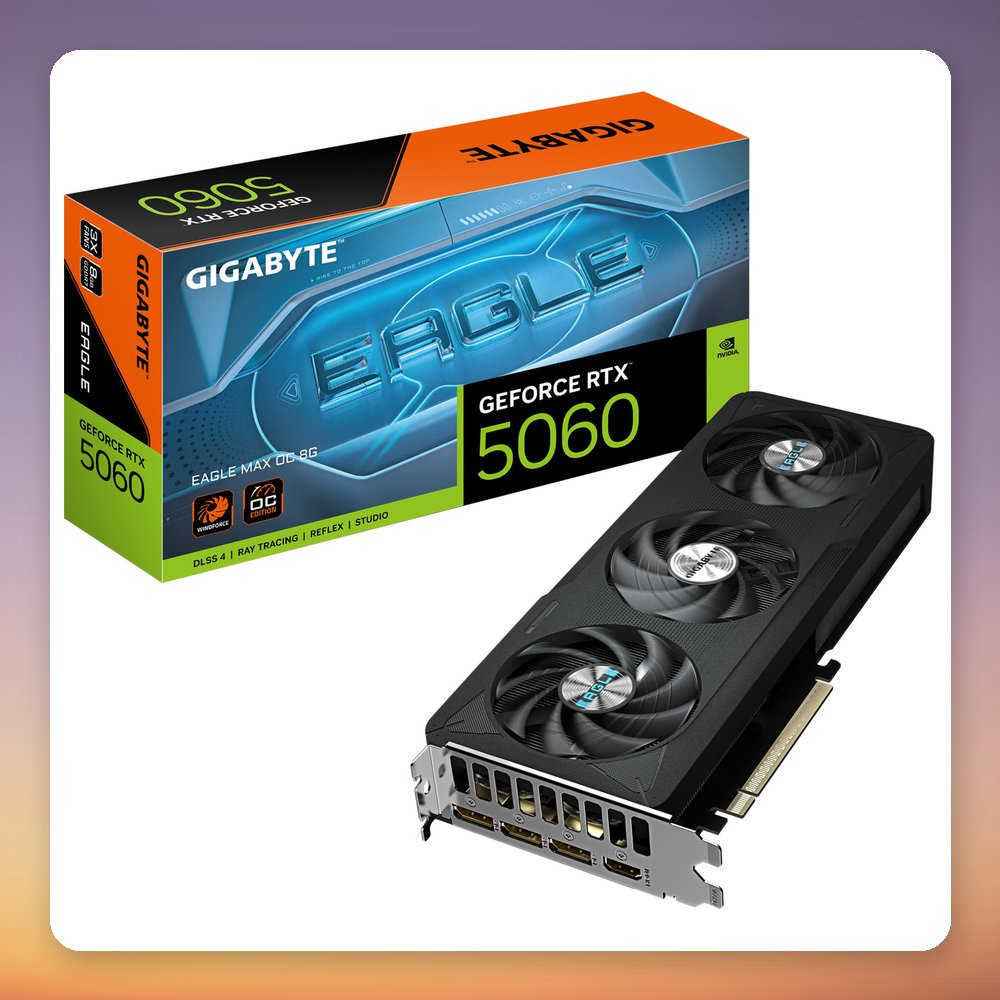

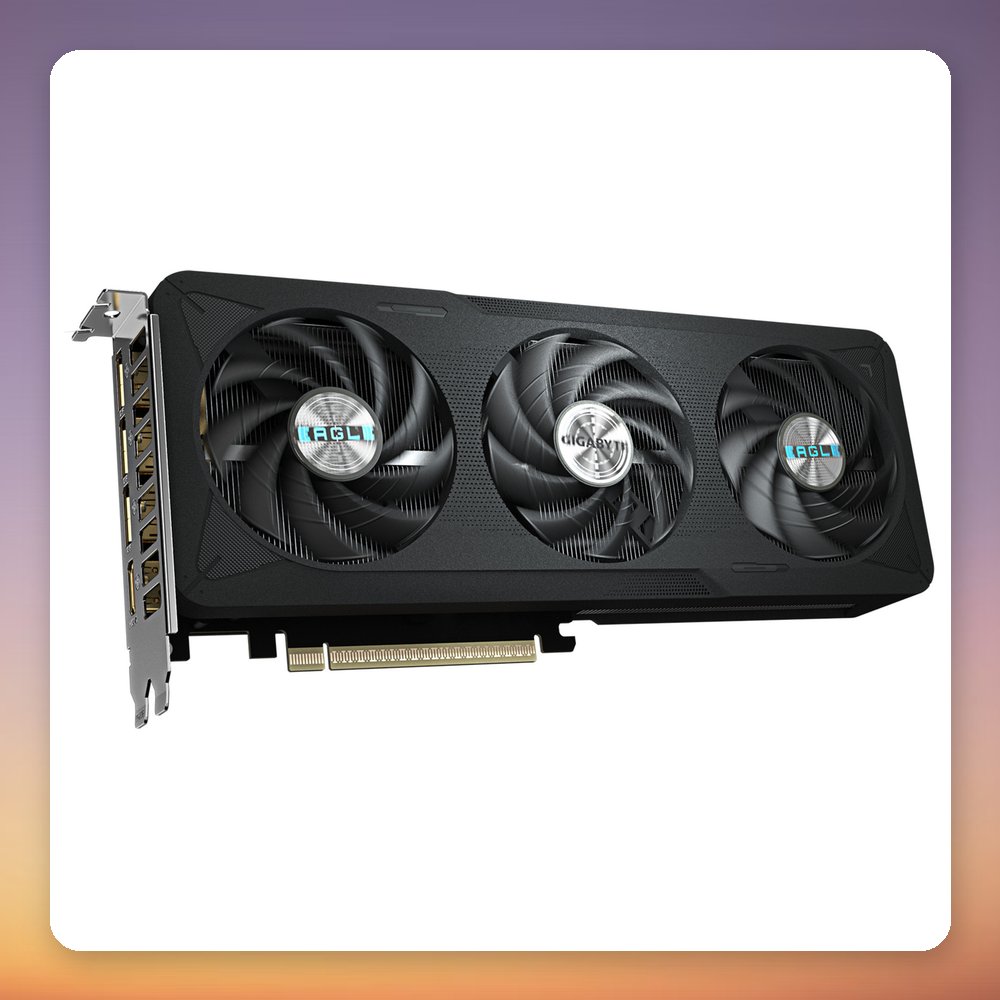

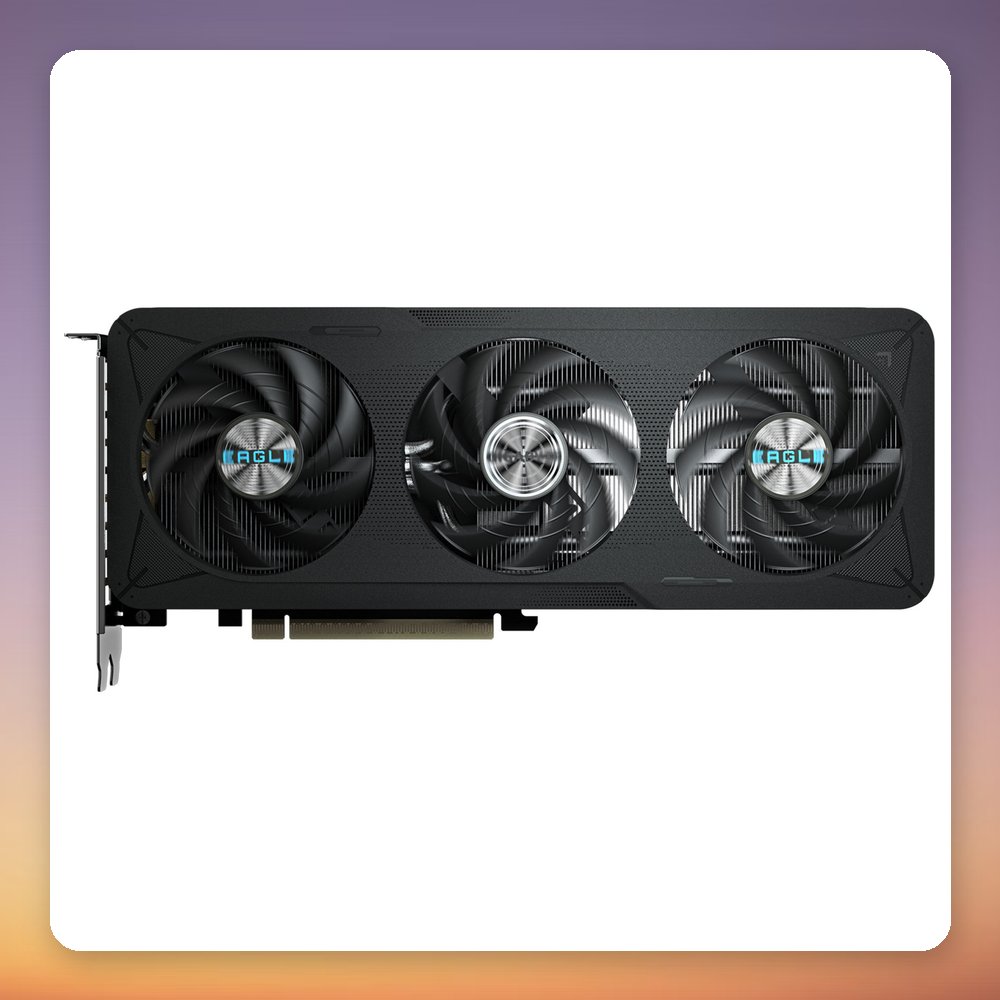

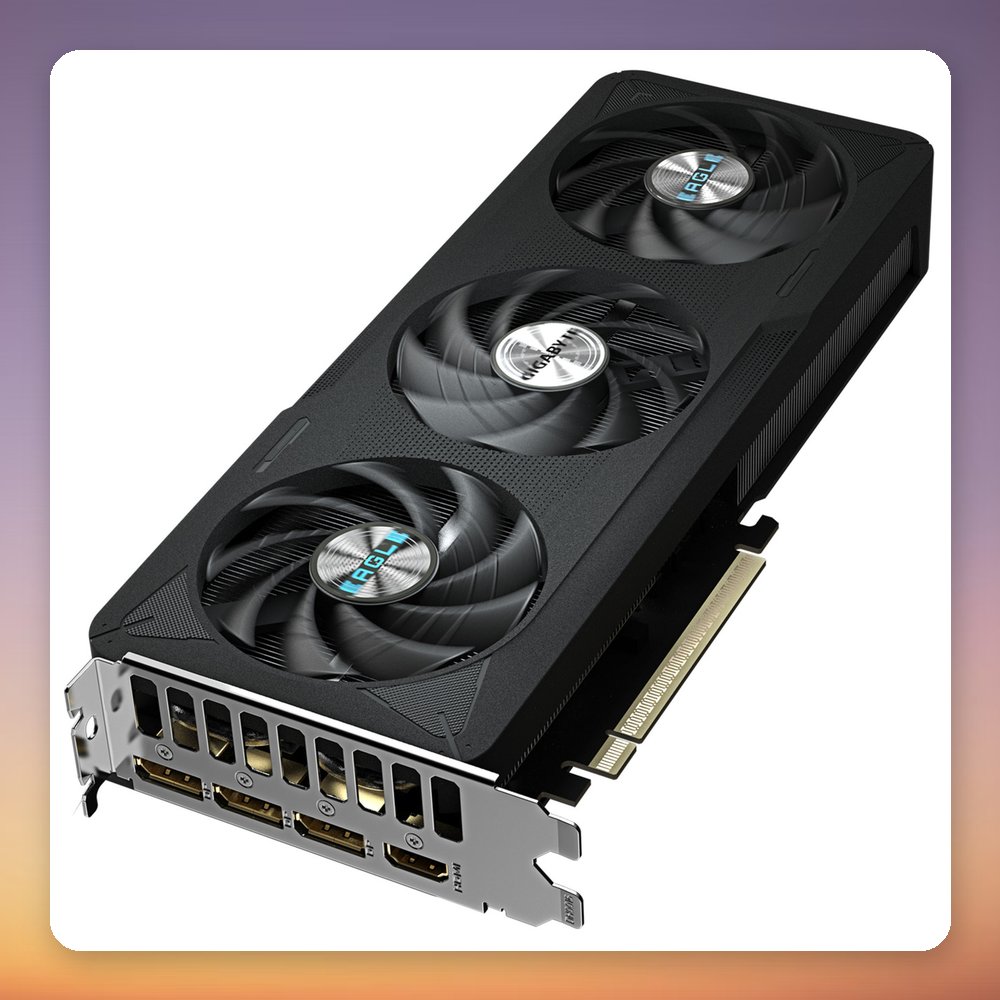

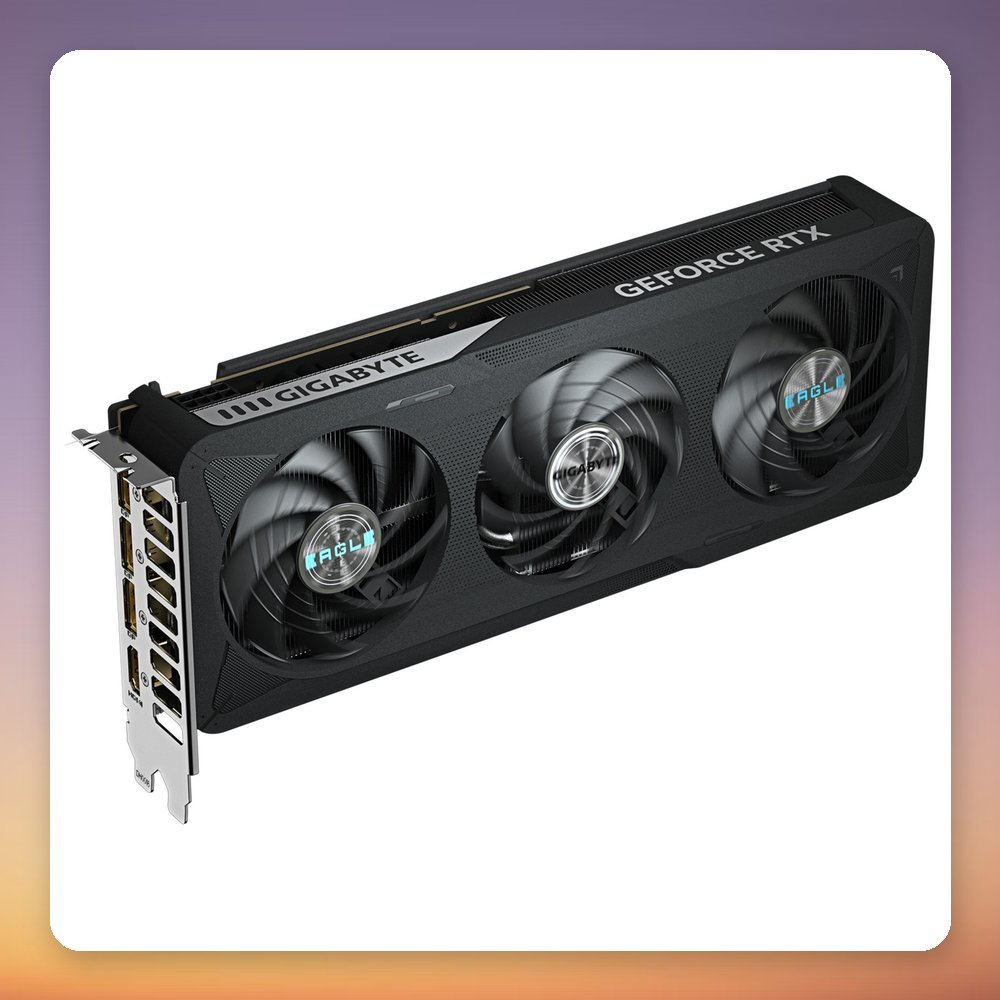

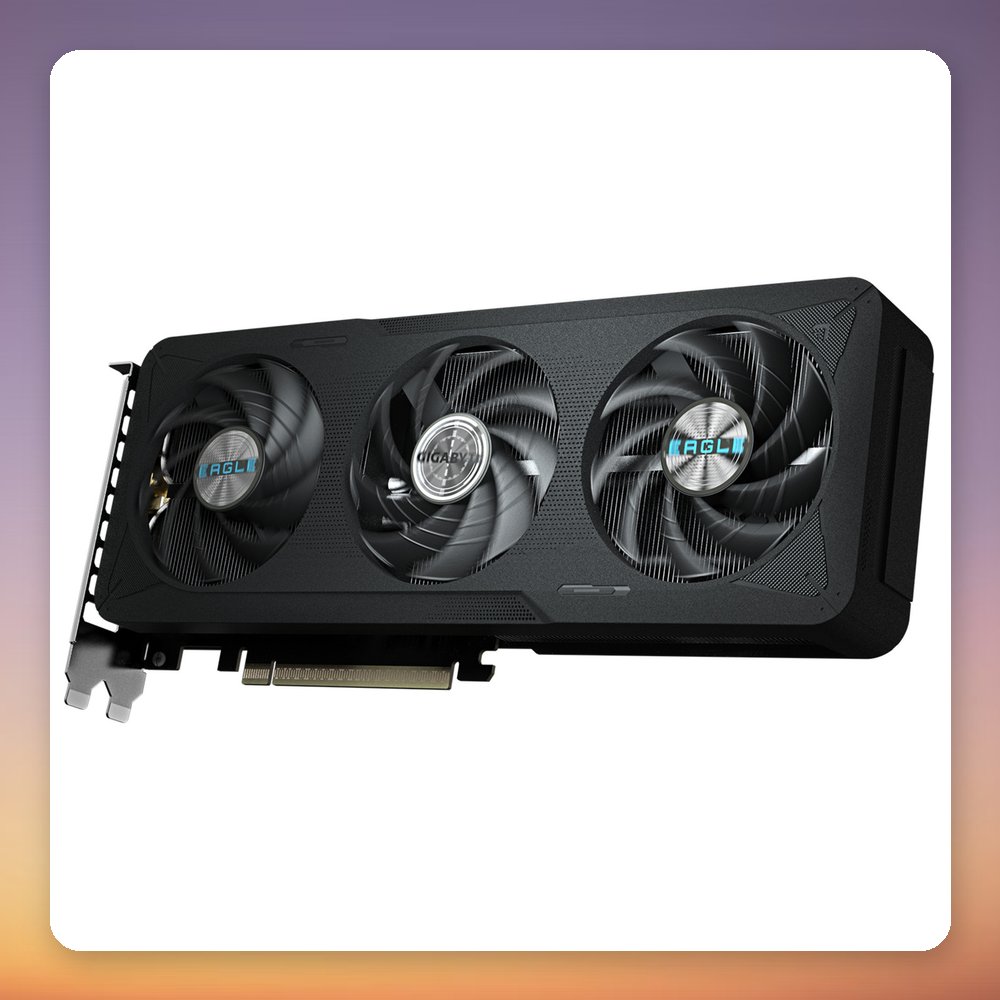

The Gigabyte GeForce RTX 5060 EAGLE MAX OC 8GB GDDR7 is a graphics card built on NVIDIA’s Blackwell architecture. It has 3,840 CUDA cores and a boost clock of 2,550 MHz, with 8 GB of GDDR7 memory on a 128-bit bus running at 28 Gbps. Outputs are generous for its class: three DisplayPort 2.1b and one HDMI 2.1b, supporting up to 4K at 480 Hz or 8K at 120 Hz with DSC.

This card suits 1080p and 1440p gaming builds that want DLSS 5, Multi Frame Generation and real-time ray tracing with 4th-gen RT cores and 5th-gen Tensor cores. It occupies two slots, measures 281 mm in length and needs a single 8-pin power connector with a PSU of at least 450 W, so it fits comfortably in compact and mid-size cases. The 9th-gen NVENC encoder and AV1 encode/decode also make it handy for streaming and recording.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5060 EAGLE MAX OC 8G
• MPN: GV-N5060EAGLEMAX OC-8GD
• EAN: 47193313567290
• GPU: NVIDIA GeForce RTX 5060
• CUDA cores: 3,840
• Boost clock: 2,550 MHz
• Memory: 8 GB GDDR7
• Memory bus: 128-bit
• Memory data rate: 28 Gbps
• Interface: PCIe 5.0 x16

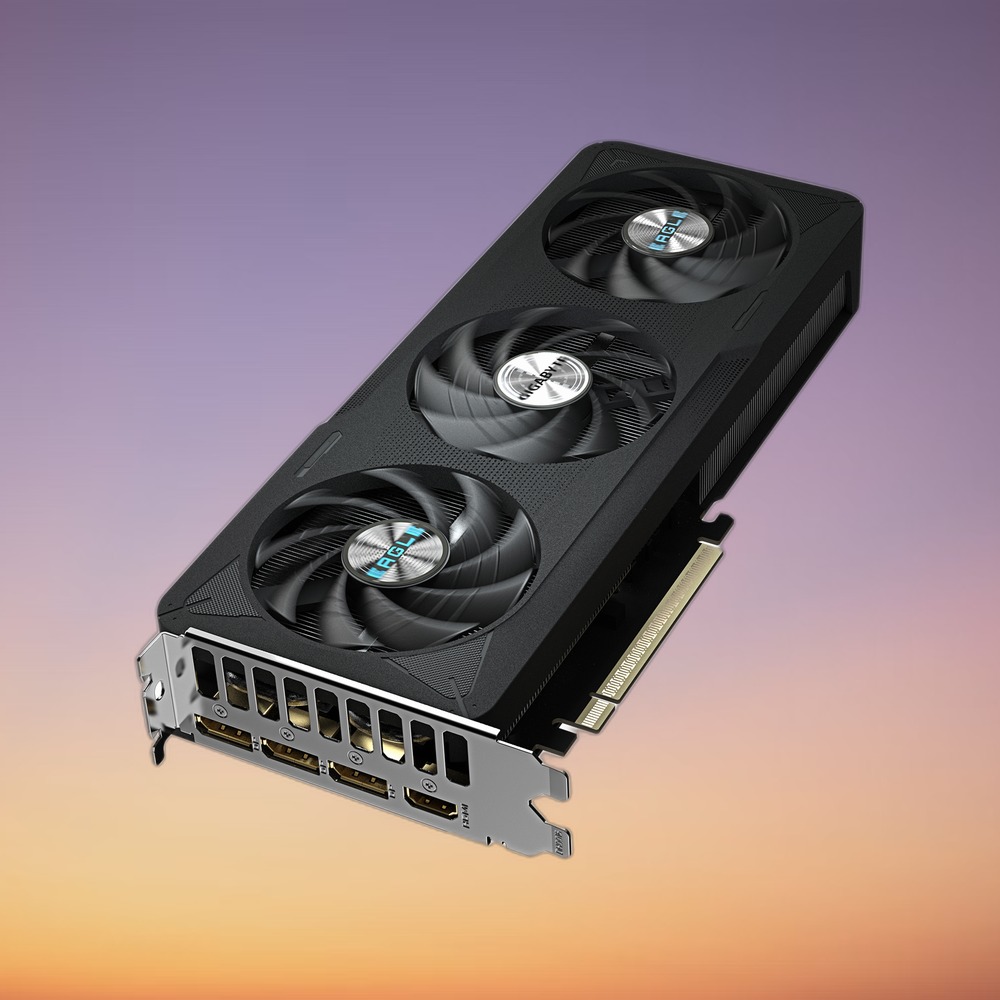

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max. resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
• Power connector: 1x 8-pin (6+2)
• Average power consumption: 145 W
• Minimum PSU: 450 W
• Slots occupied: 2
• Dimensions (W x H x D): 115 x 40 x 281 mm
• Weight: 540 g
