Product Overview

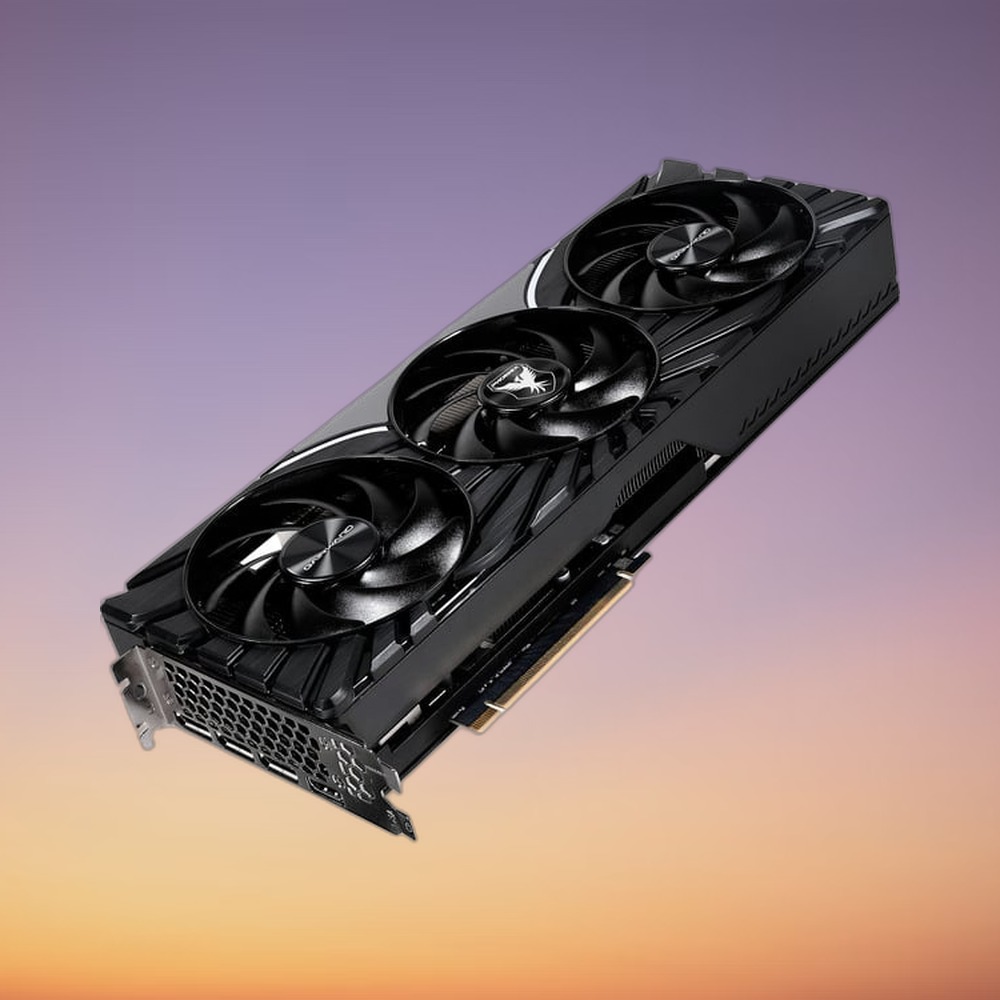

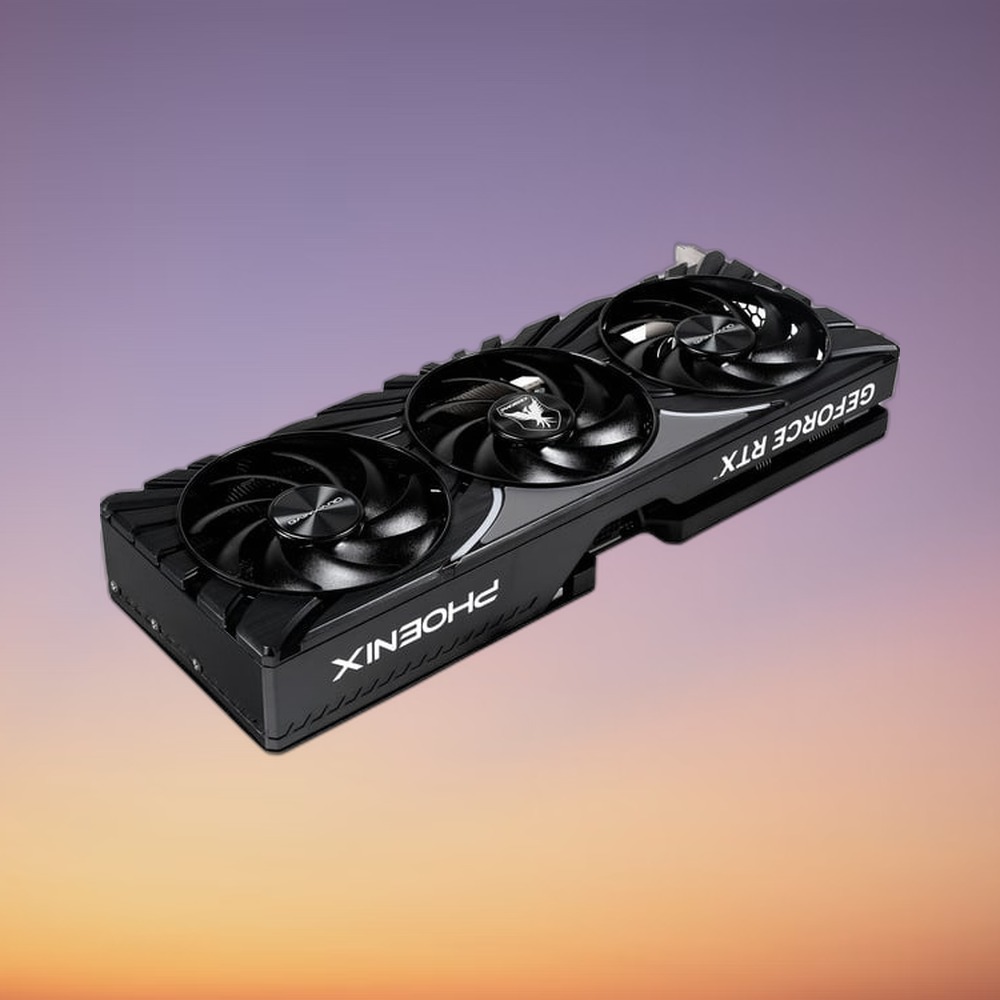

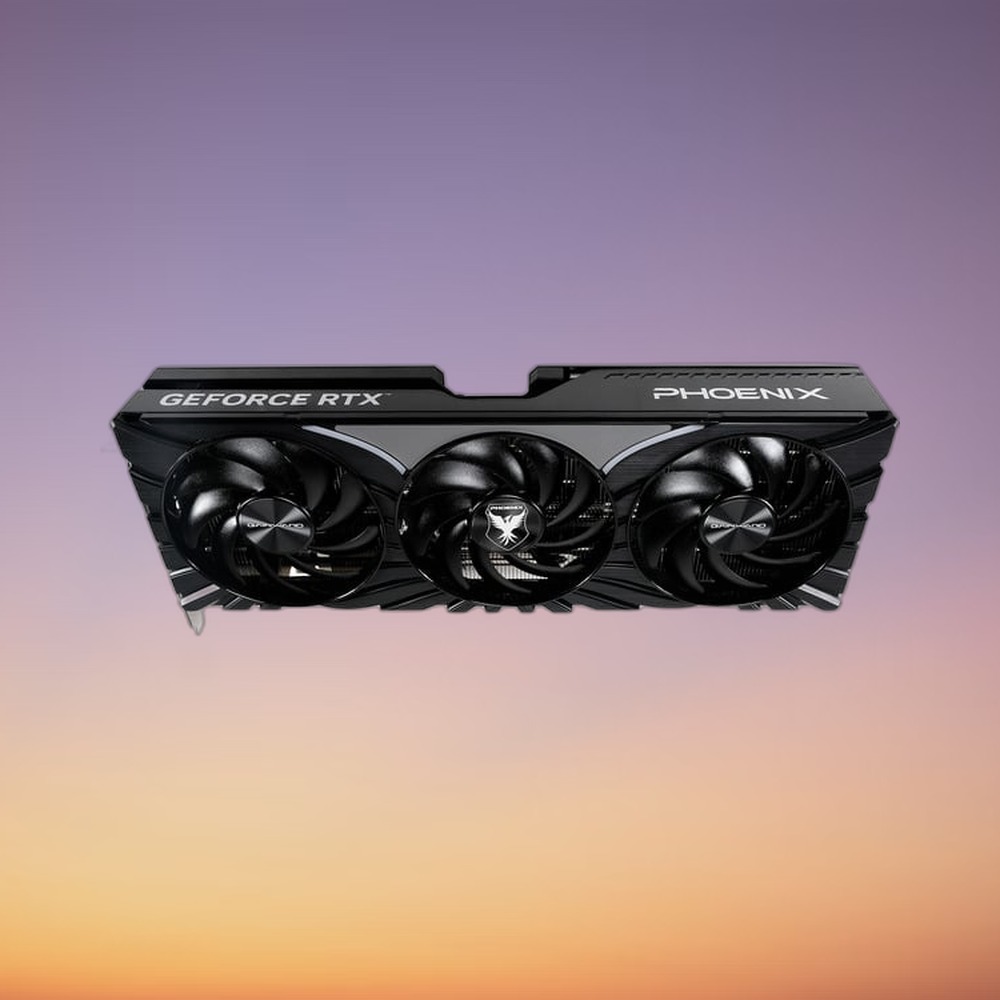

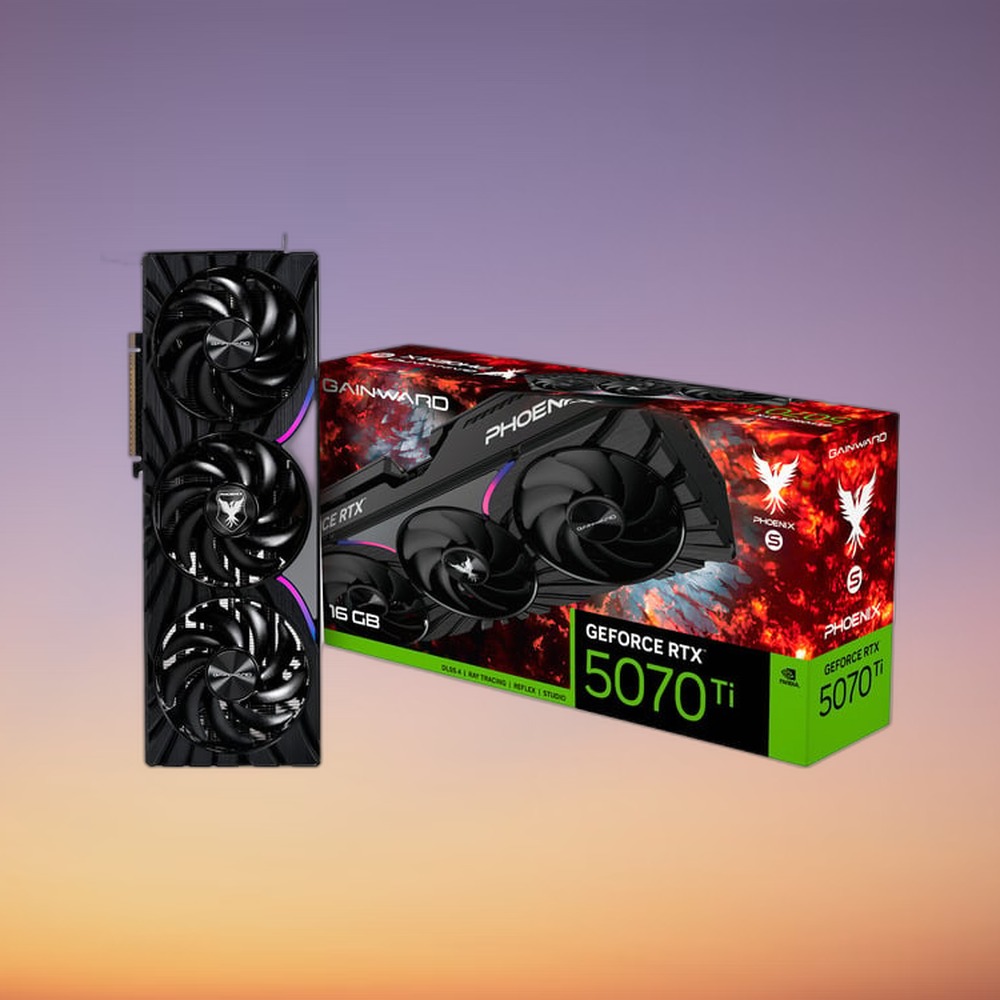

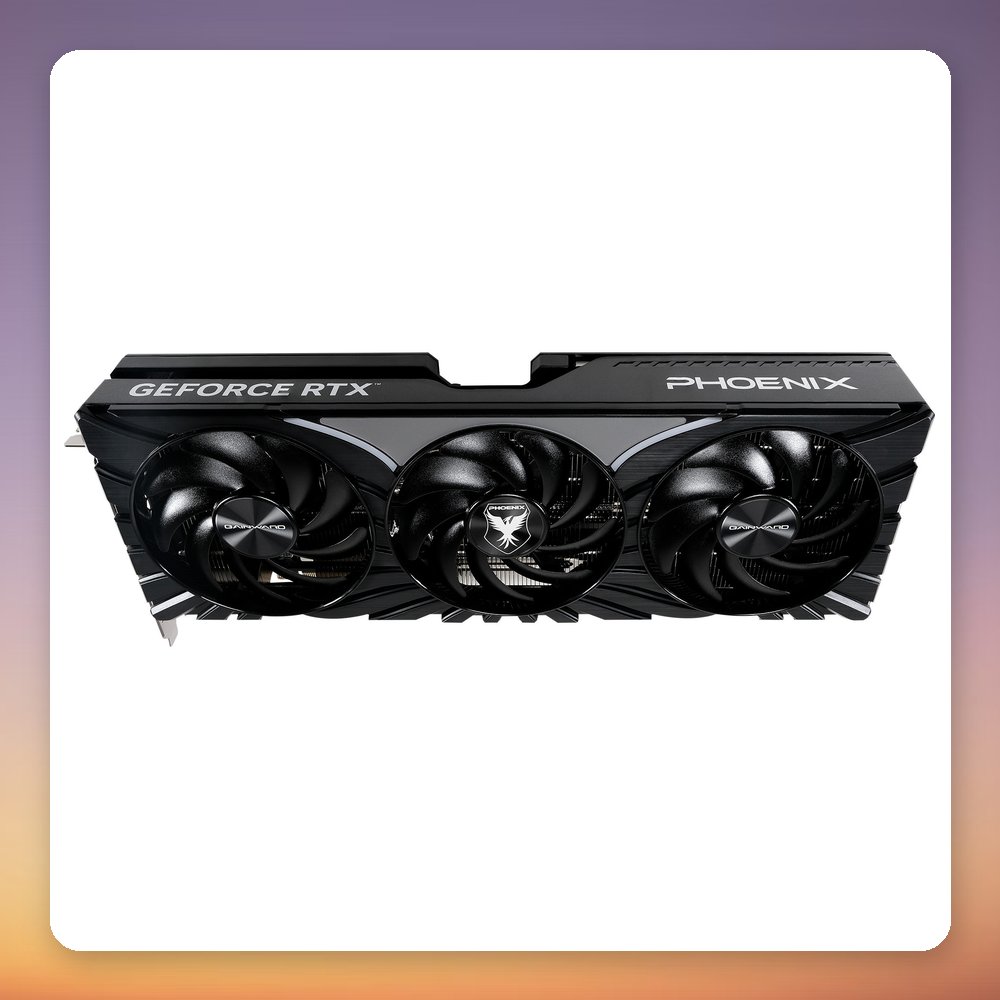

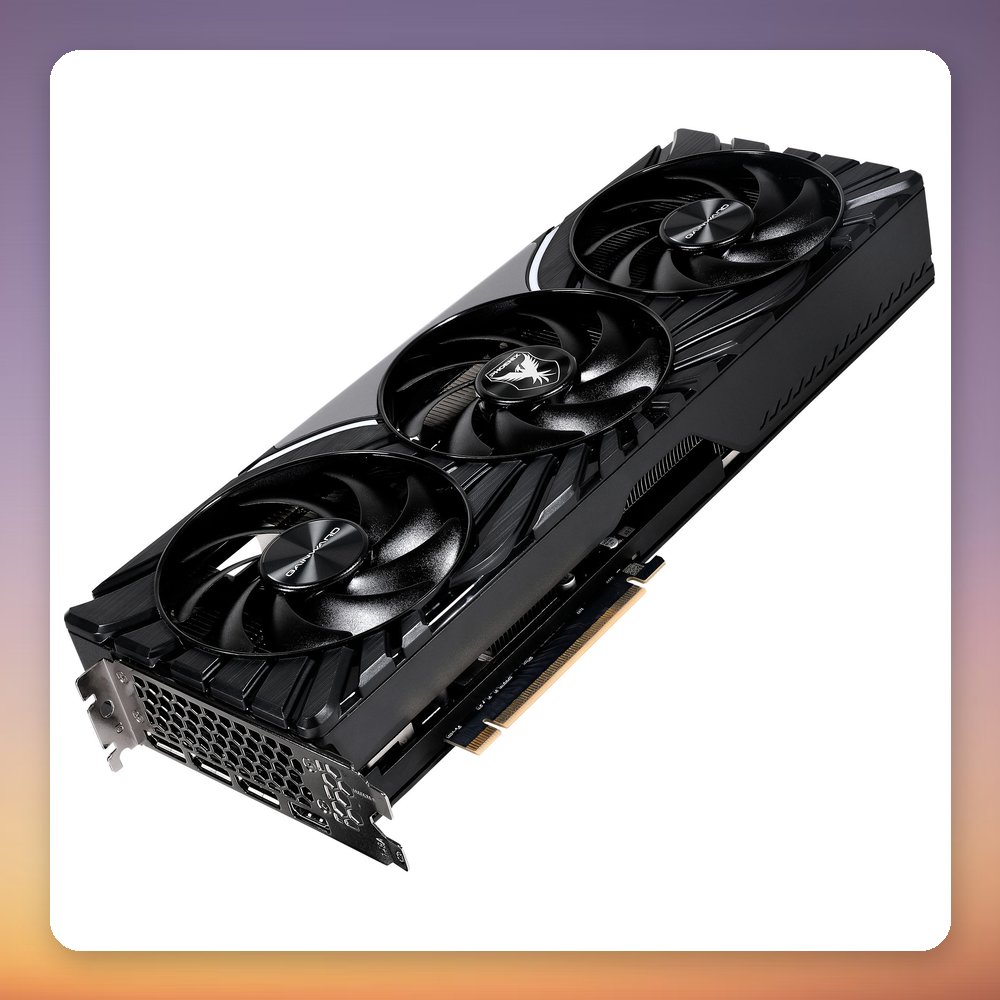

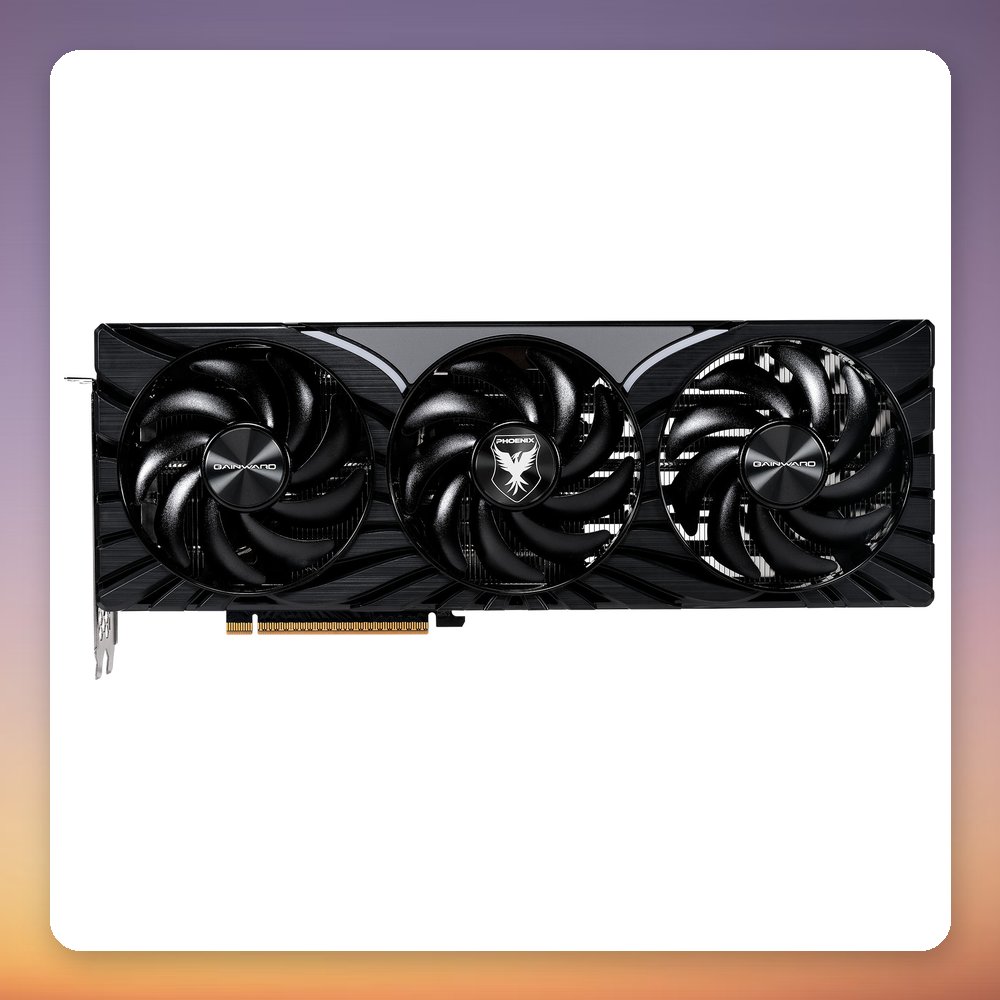

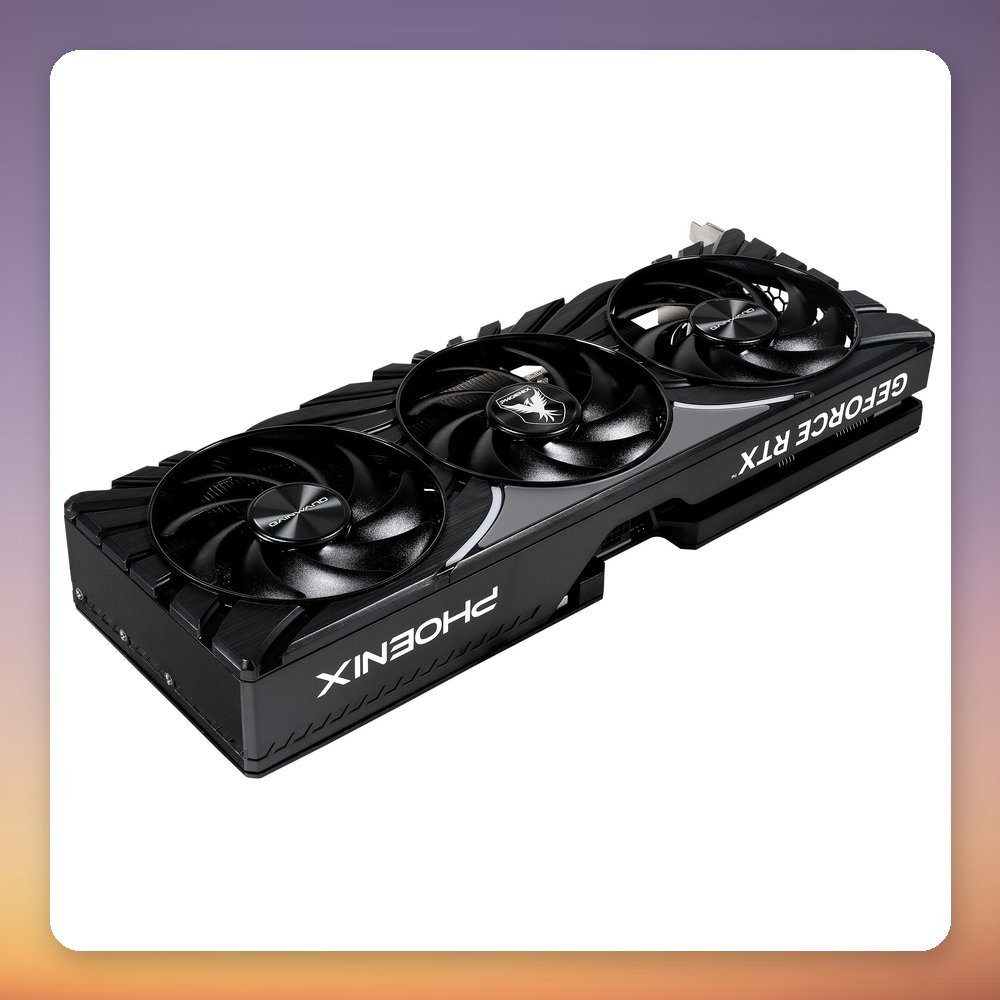

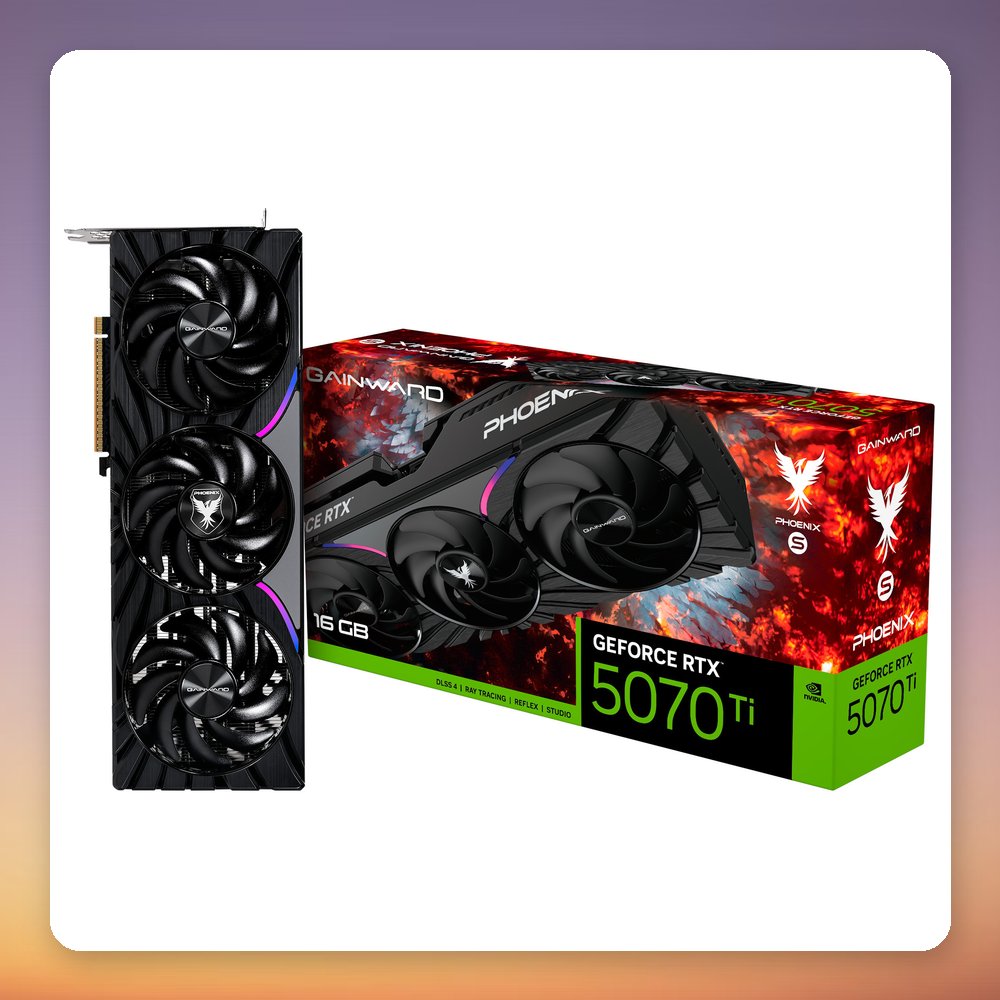

The Gainward GeForce RTX 5070 Ti Phoenix-S 16 GB is a high-end graphics card built on the NVIDIA GeForce RTX 5070 Ti GPU and the Blackwell architecture. It has 8,960 CUDA cores, a 2,300 MHz base clock and a 2,452 MHz boost clock, paired with 16 GB of GDDR7 memory on a 256-bit bus at 28 Gbps. It connects through PCIe 5.0 x16.

This card suits gamers and PC builders putting together a high-end system for 4K play, with DLSS 5, Multi Frame Generation, fourth-generation ray tracing cores and fifth-generation Tensor cores. It outputs through 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to 4K at 480 Hz or 8K at 120 Hz with DSC. Power comes from one 16-pin (12VHPWR) connector, and a power adapter is included for PSUs with 2x 8-pin PCIe. Gainward recommends a PSU of at least 750 W.

Specification

• Manufacturer: Gainward
• Model: GeForce RTX 5070 Ti Phoenix-S
• MPN: NE7507T019T2-GB2031K
• EAN: 4710562245547
• GPU: NVIDIA GeForce RTX 5070 Ti
• CUDA cores: 8,960
• Base clock: 2,300 MHz
• Boost clock: 2,452 MHz
• Memory: 16 GB GDDR7
• Memory interface: 256-bit
• Memory speed: 28 Gbps
• Interface: PCIe 5.0 x16
• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Power connector: 1x 16-pin (12VHPWR), adapter included
• Average power consumption: 300 W
• Recommended PSU: Min. 750 W
• Slot width: 3 slots
• Dimensions (W x H x D): 133.1 x 60 x 331.9 mm
