Product Overview

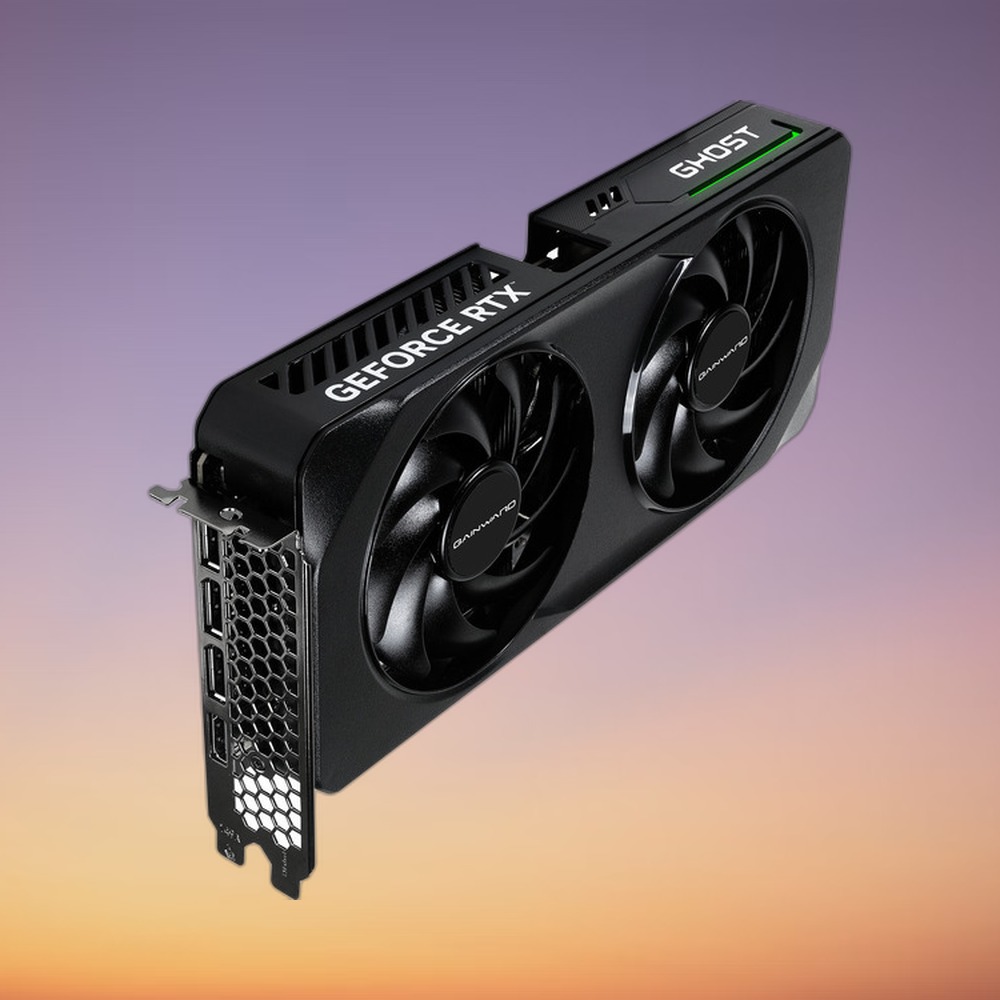

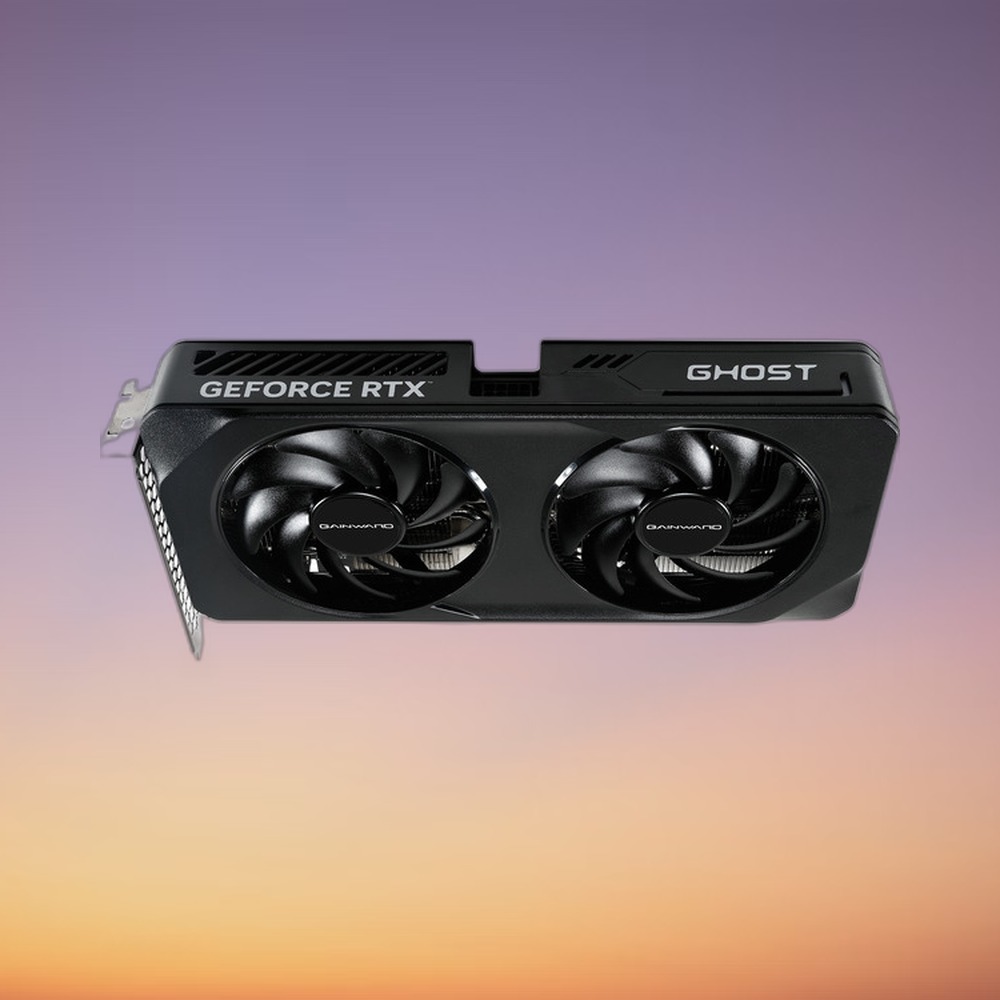

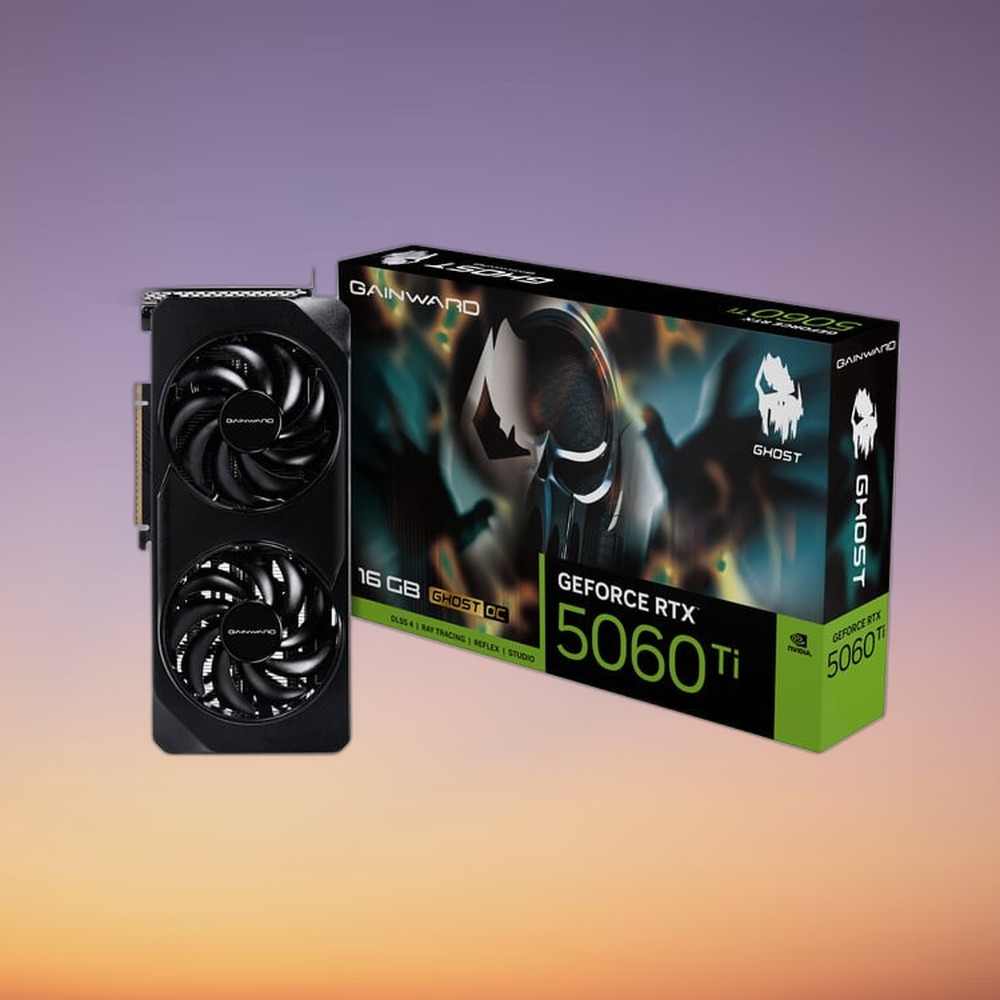

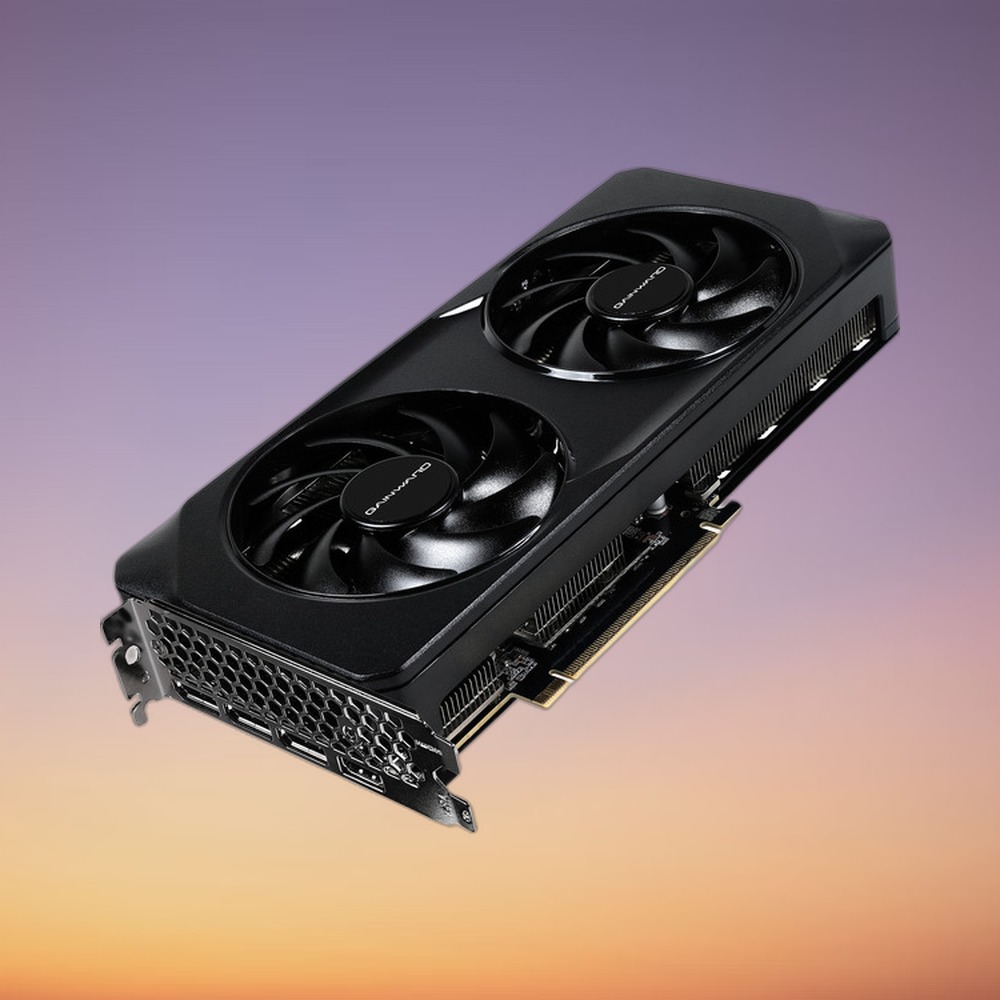

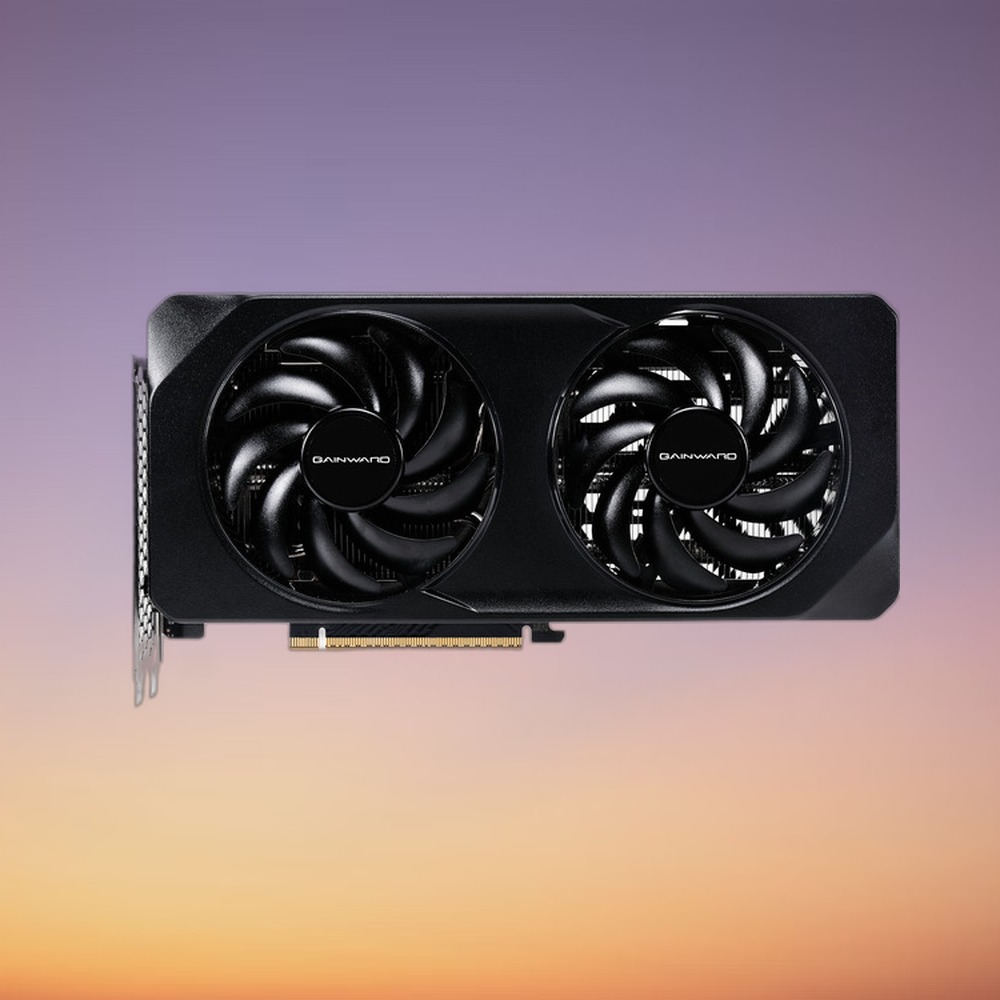

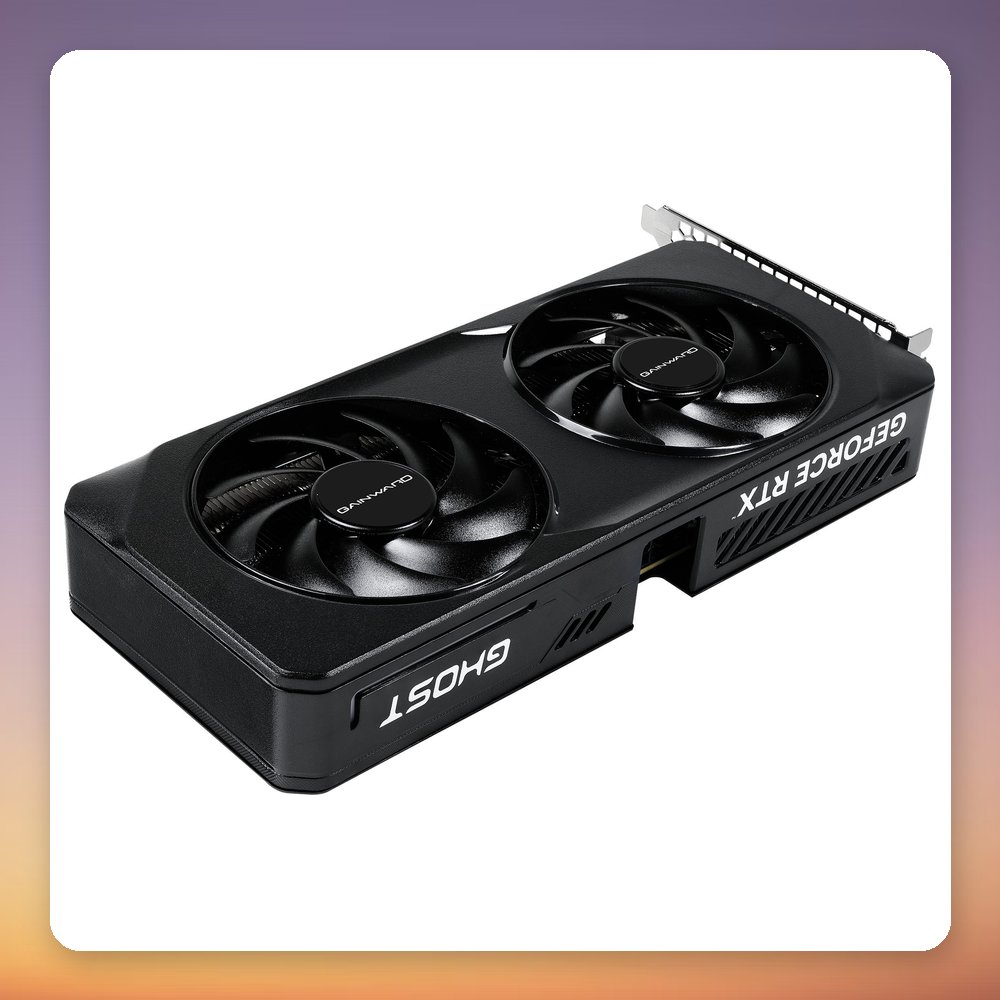

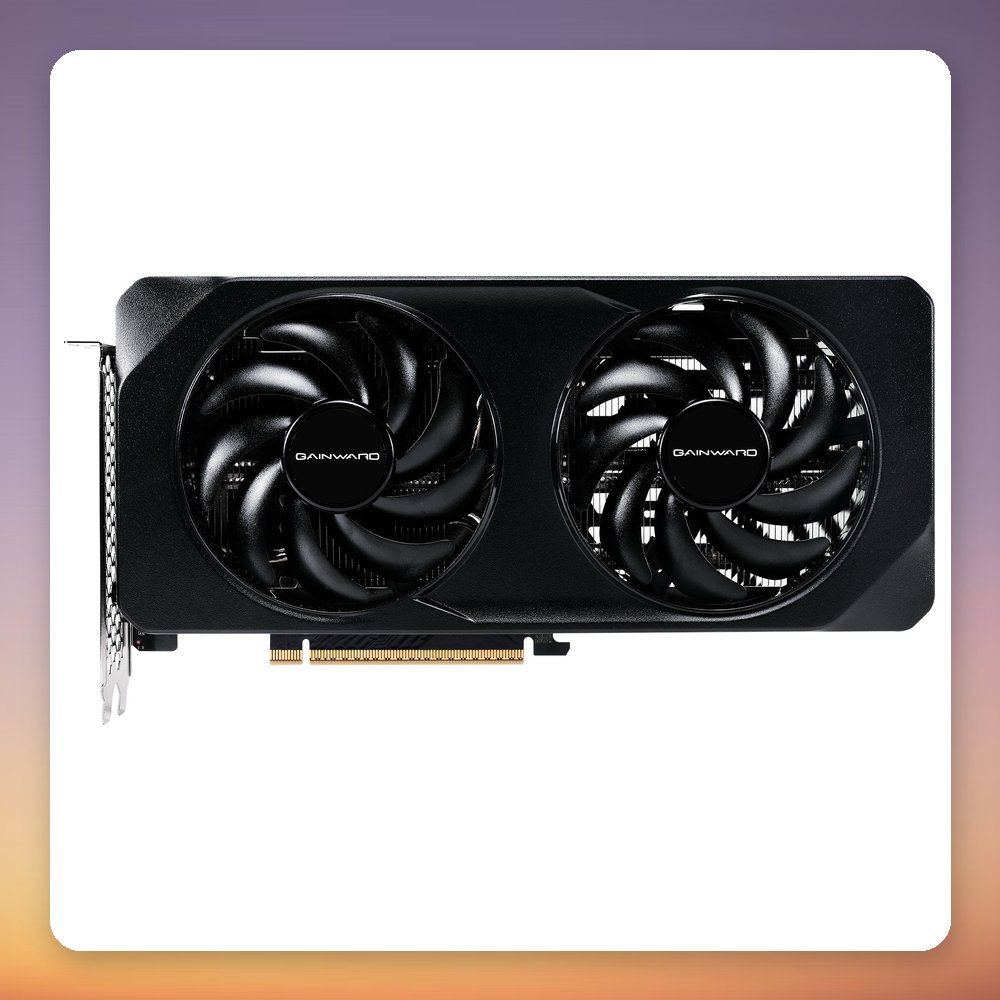

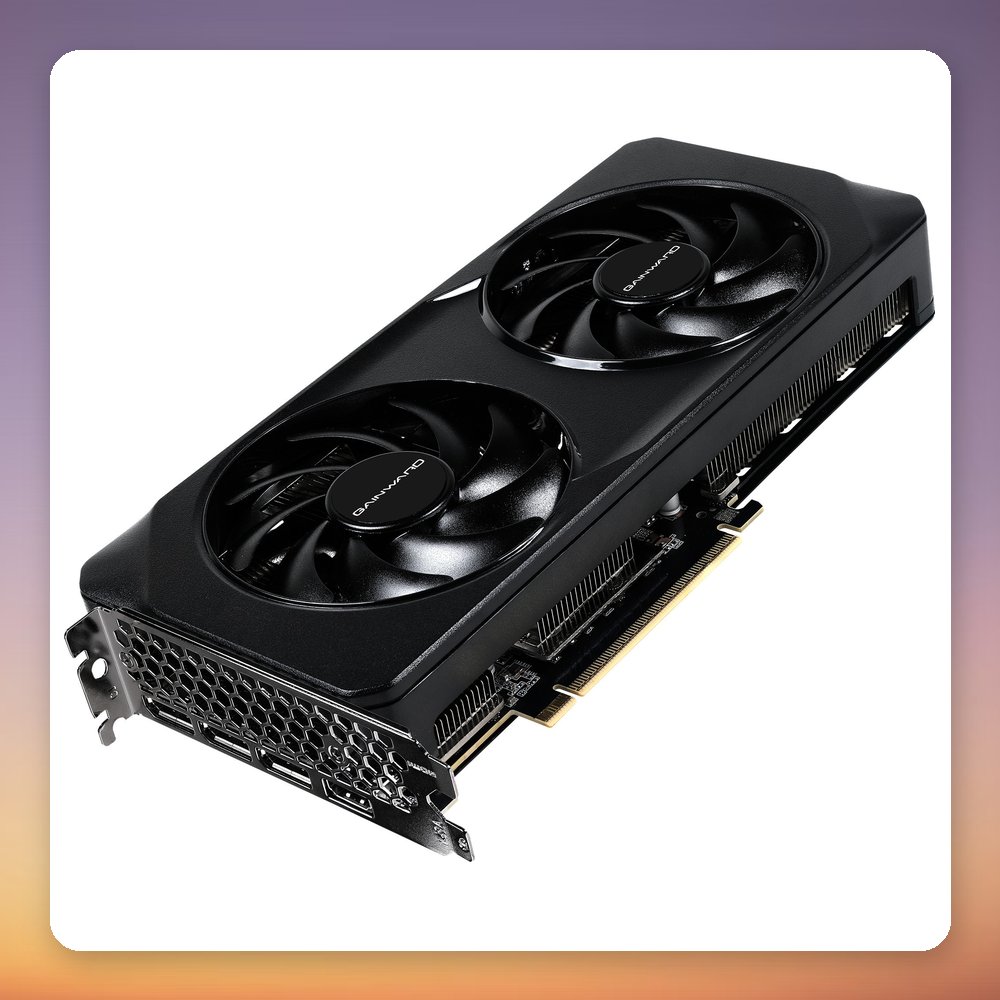

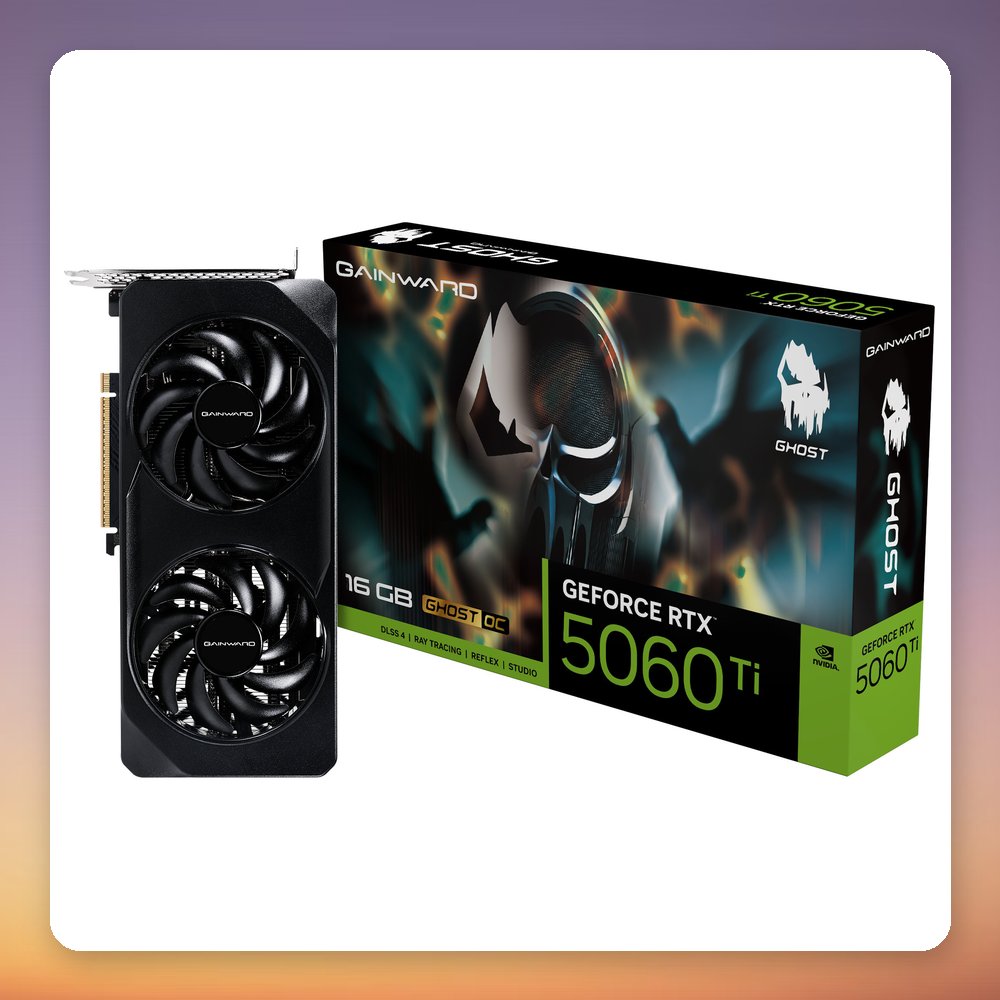

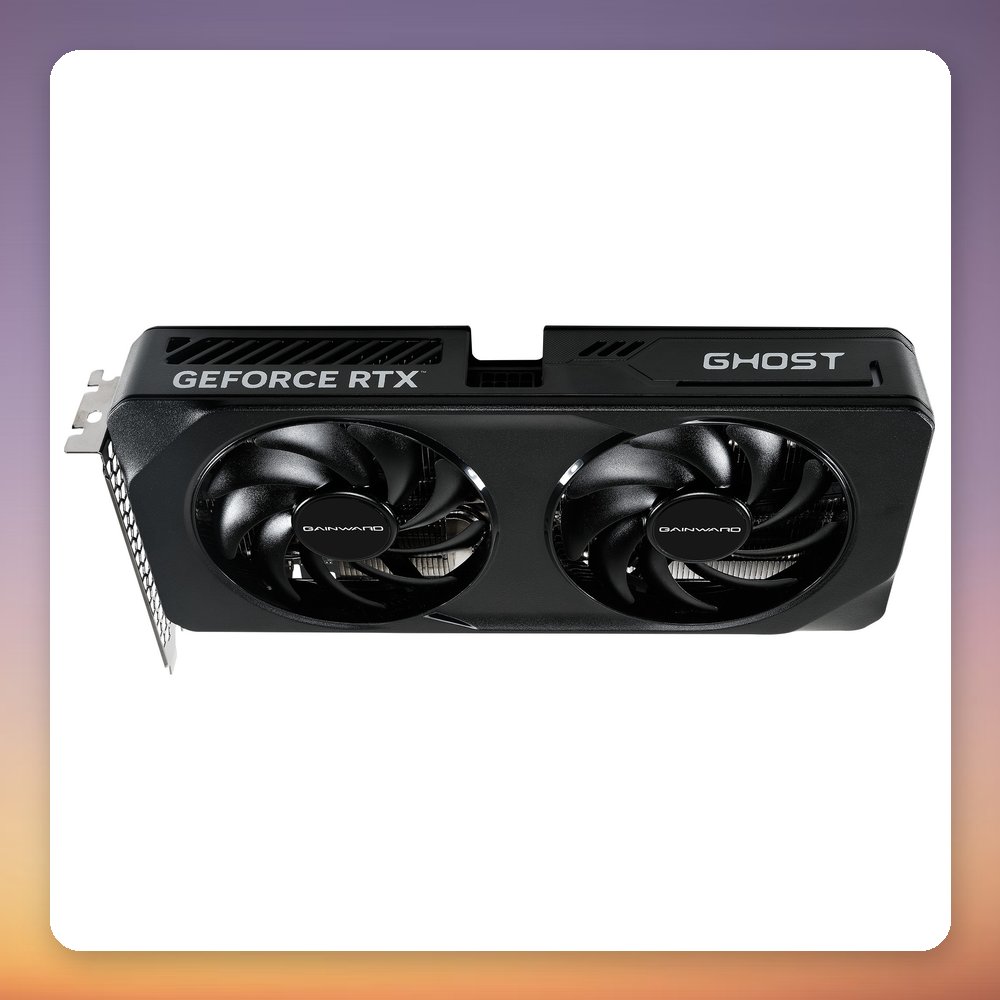

The Gainward GeForce RTX 5060 Ti Ghost OC 16 GB GDDR7 is a graphics card built on the NVIDIA GeForce RTX 5060 Ti GPU and the Blackwell architecture. It has 4608 CUDA cores, a 2407 MHz base clock and a 2632 MHz boost clock, with 16 GB of GDDR7 memory on a 128-bit bus at 28 Gbps. It supports DLSS 5, Multi Frame Generation, fourth-generation ray tracing cores and fifth-generation Tensor cores.

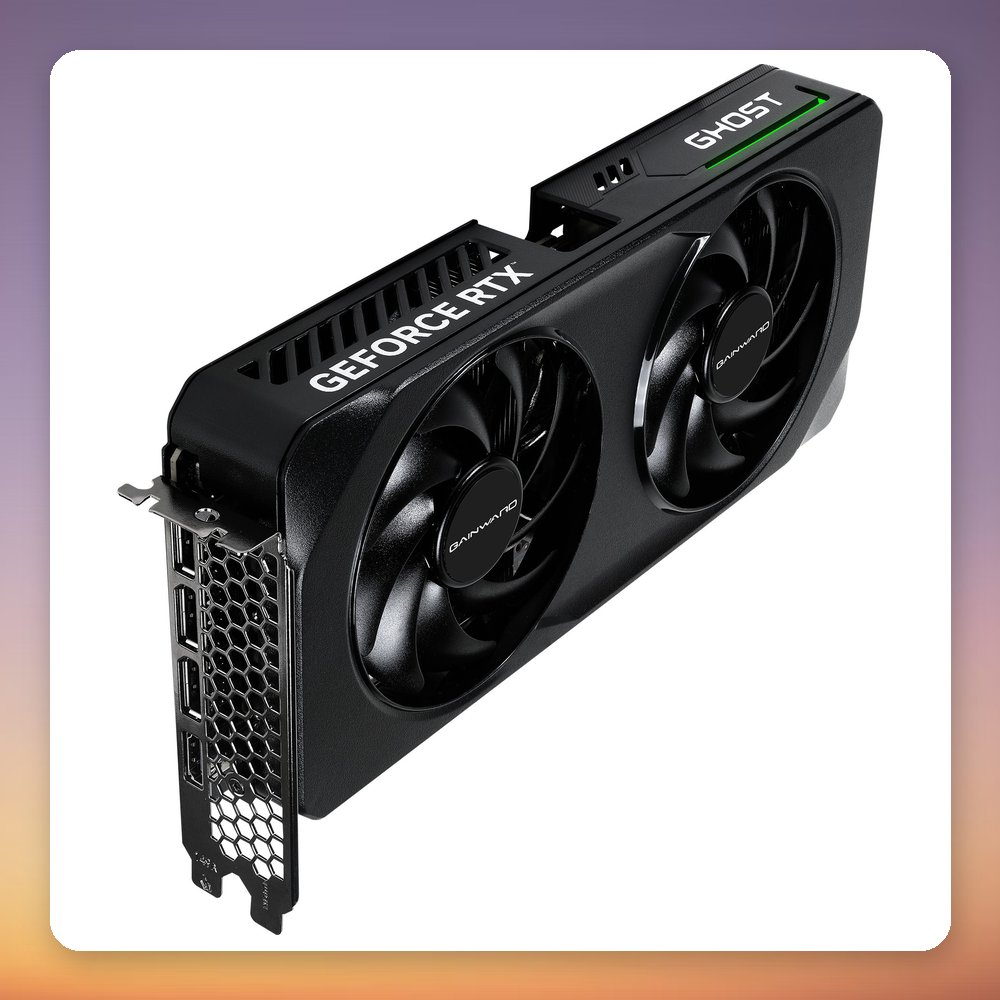

This card suits gaming PCs where you want 16 GB of video memory without a large power draw. It needs just one 8-pin (6+2) power connector, has an average consumption of 180 W and NVIDIA recommends a power supply of at least 600 W. At 262.1 mm long and two slots wide, it should fit many mid-size cases. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, with up to 4K at 480 Hz or 8K at 120 Hz using DSC.

Specification

• Manufacturer: Gainward
• Model: GeForce RTX 5060 Ti Ghost OC
• MPN: NE7506TU19T1-GB2061B
• EAN: 4710562245721
• GPU: NVIDIA GeForce RTX 5060 Ti
• Video memory: 16 GB GDDR7
• Memory bus: 128-bit
• Memory data rate: 28 Gbps
• CUDA cores: 4608
• Base clock: 2407 MHz
• Boost clock: 2632 MHz
• Interface: PCIe 5.0 x16
• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Power connector: 1x 8-pin (6+2)
• Average power consumption: 180 W
• Recommended PSU: Min. 600 W
• Slots occupied: 2
• Max. resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
• Dimensions (W x H x D): 126.3 x 40.1 x 262.1 mm
