Product Overview

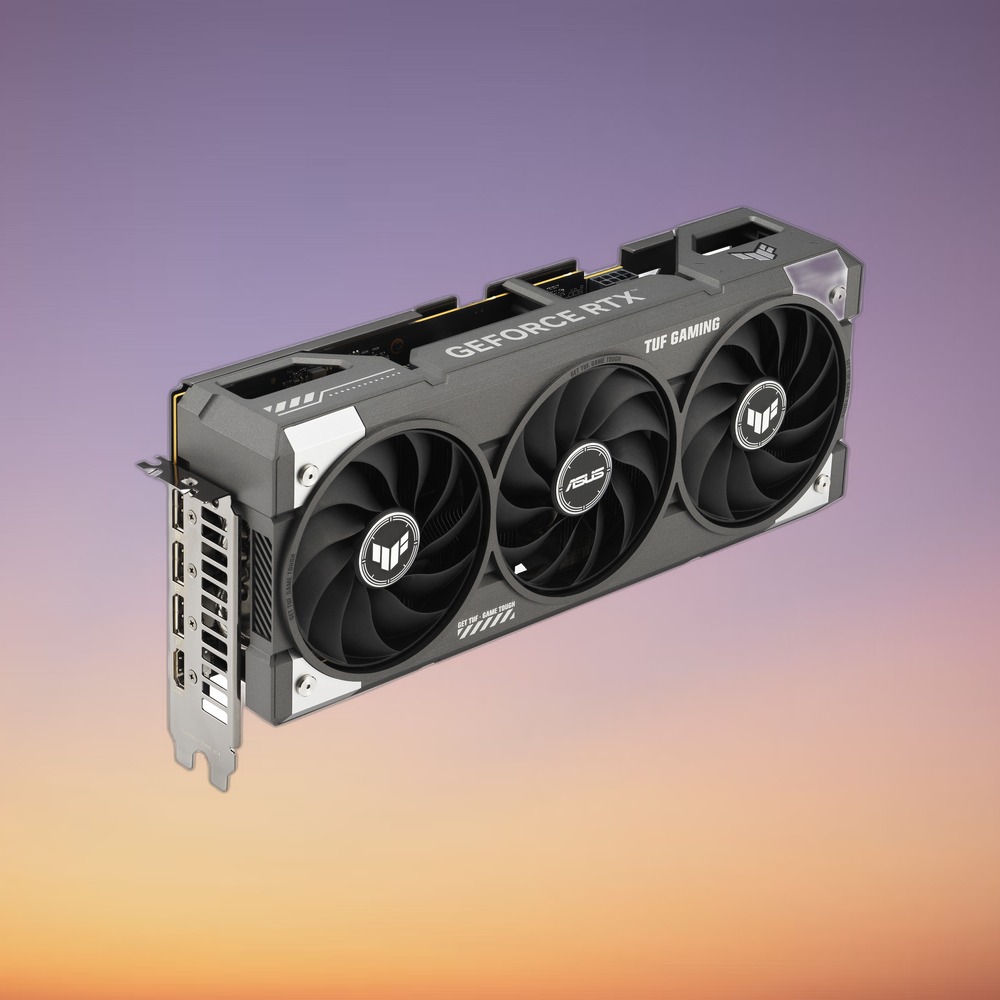

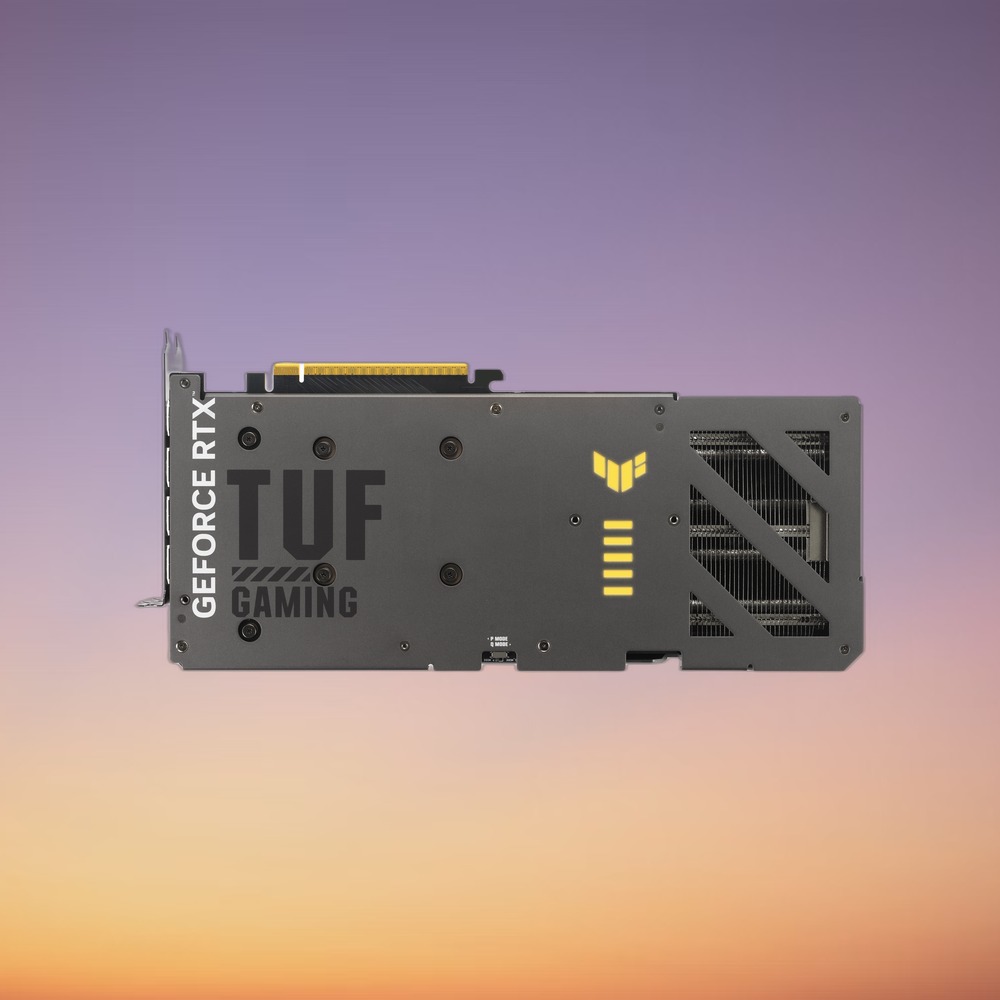

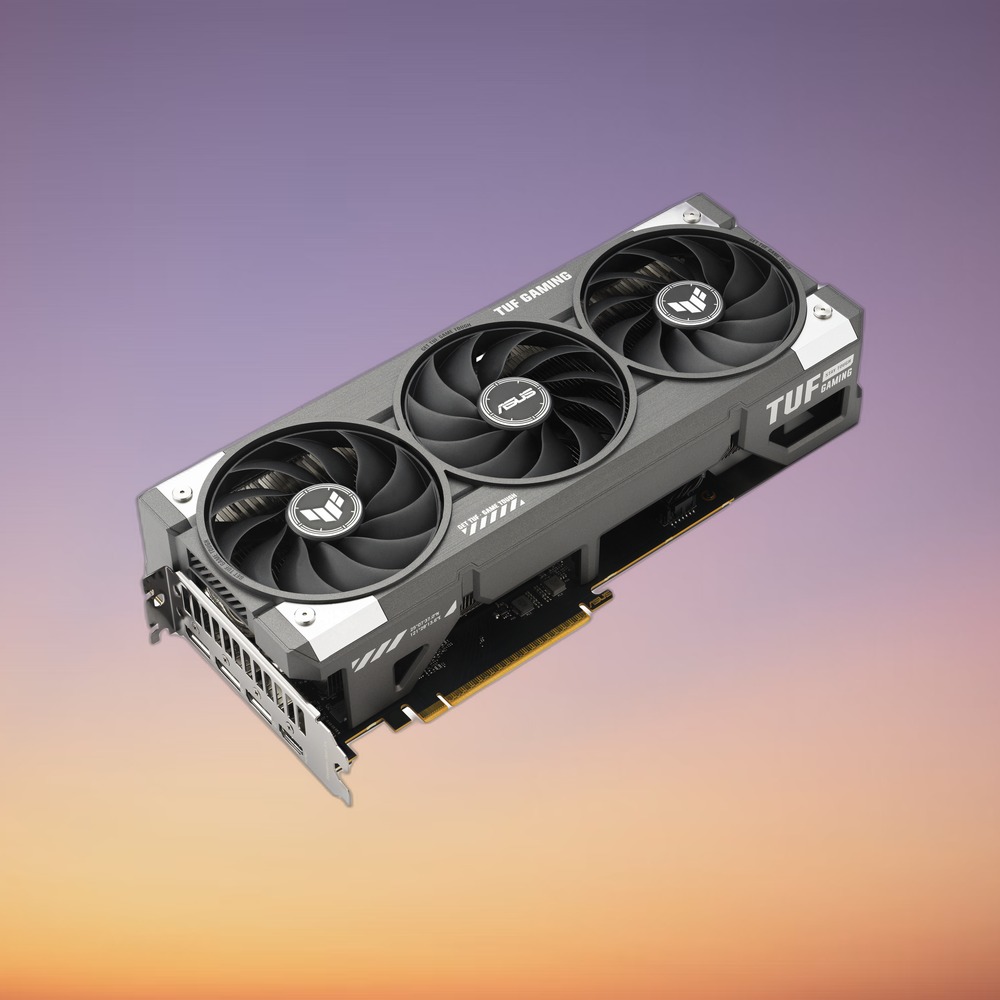

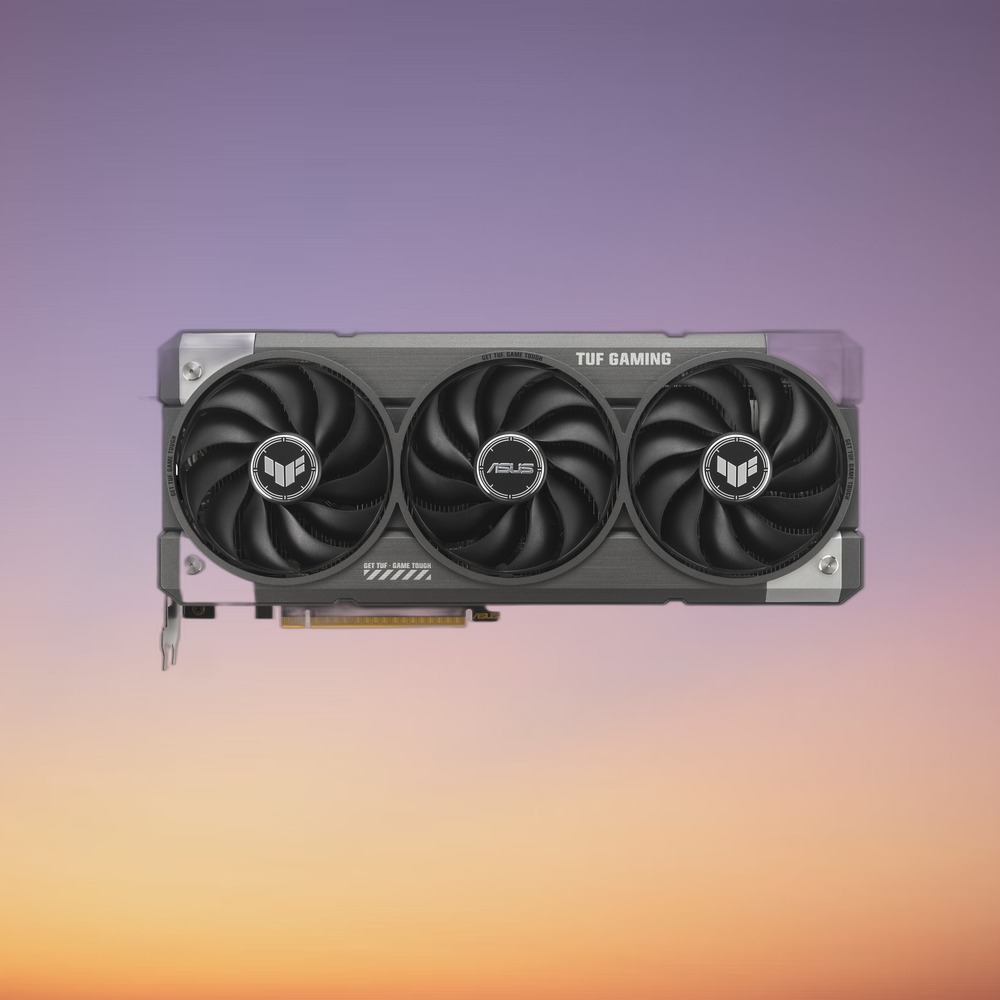

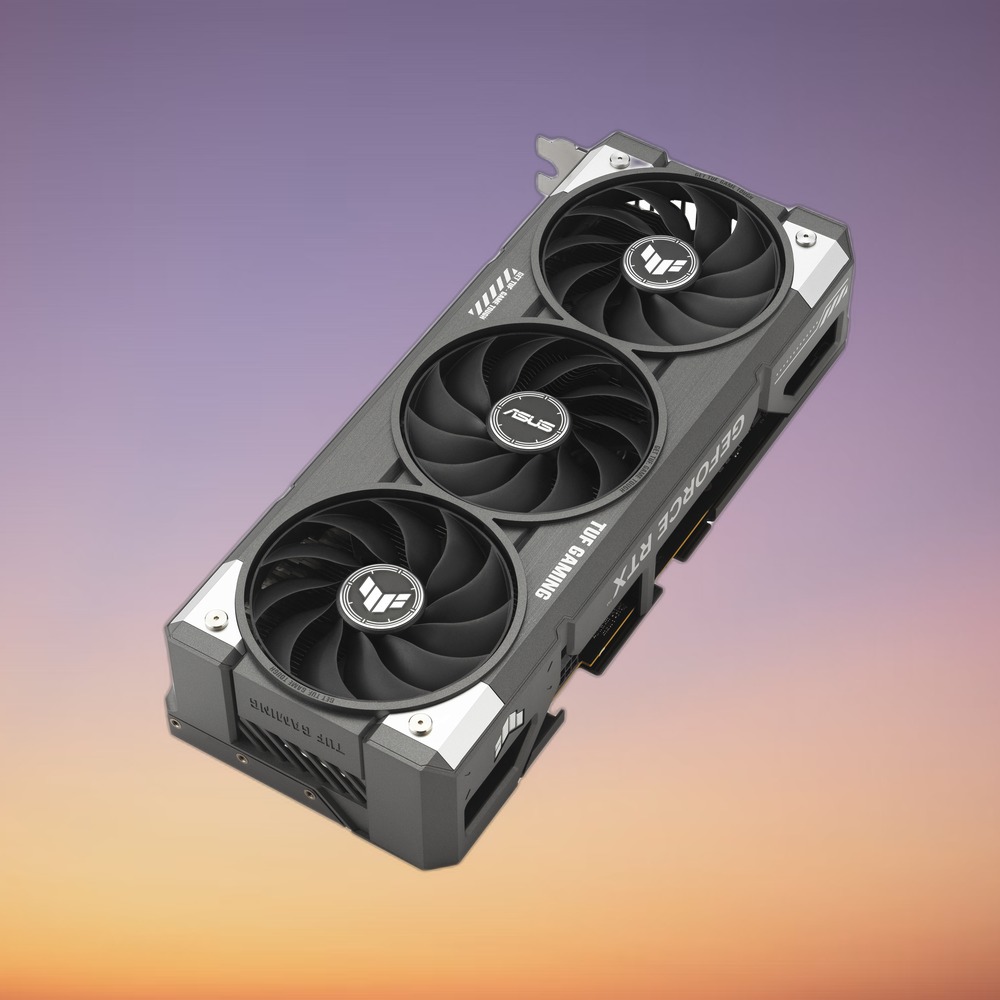

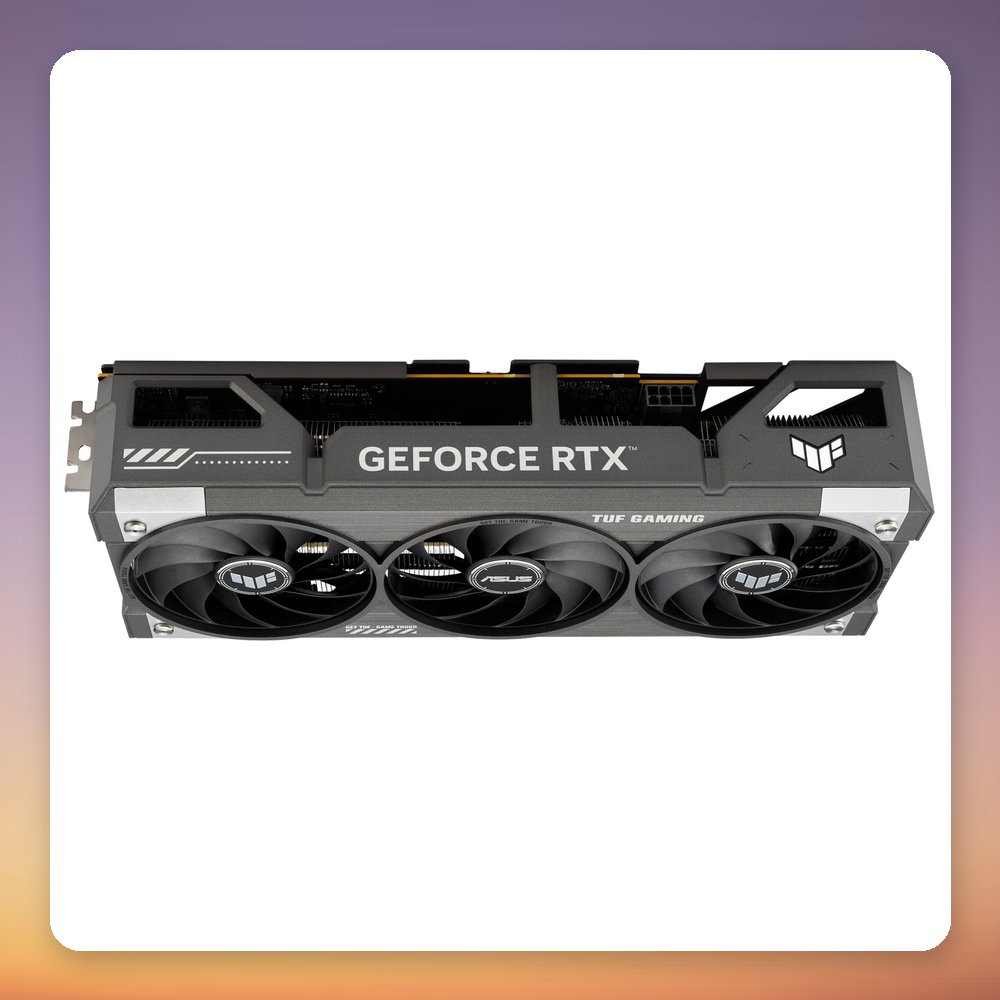

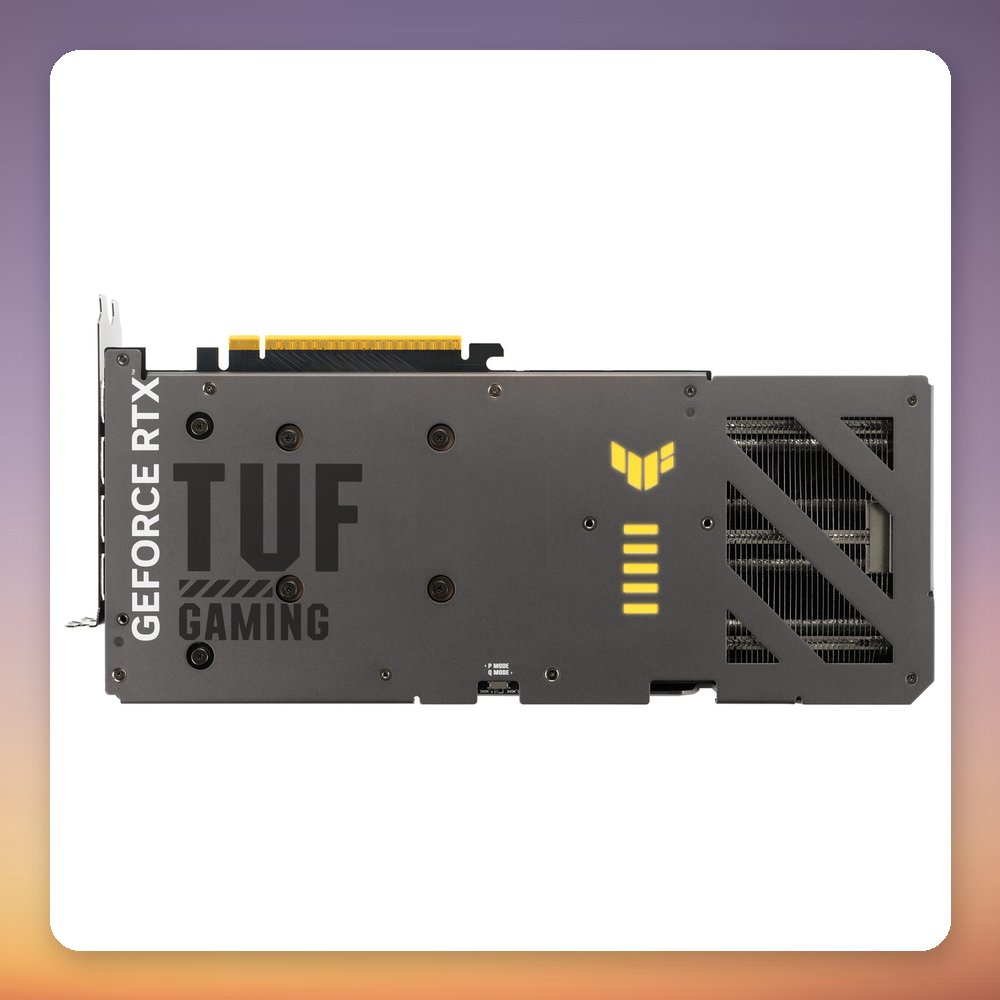

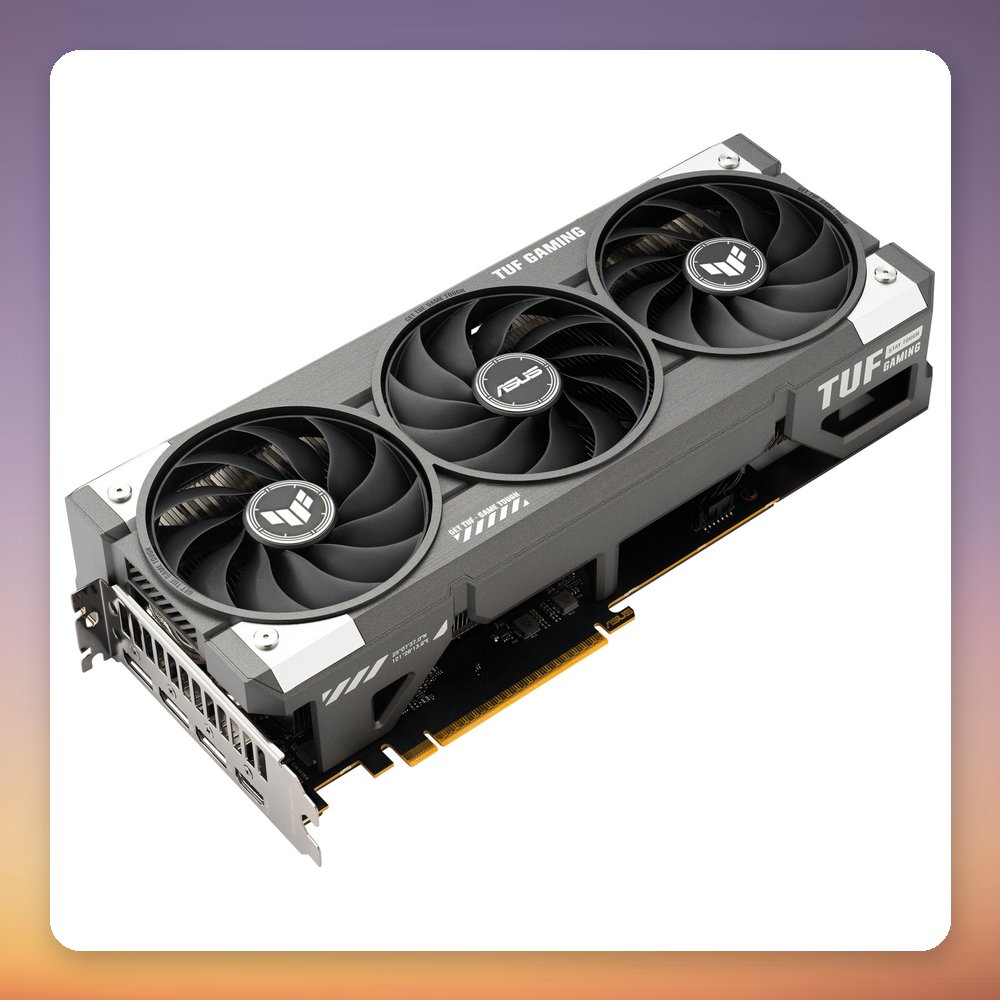

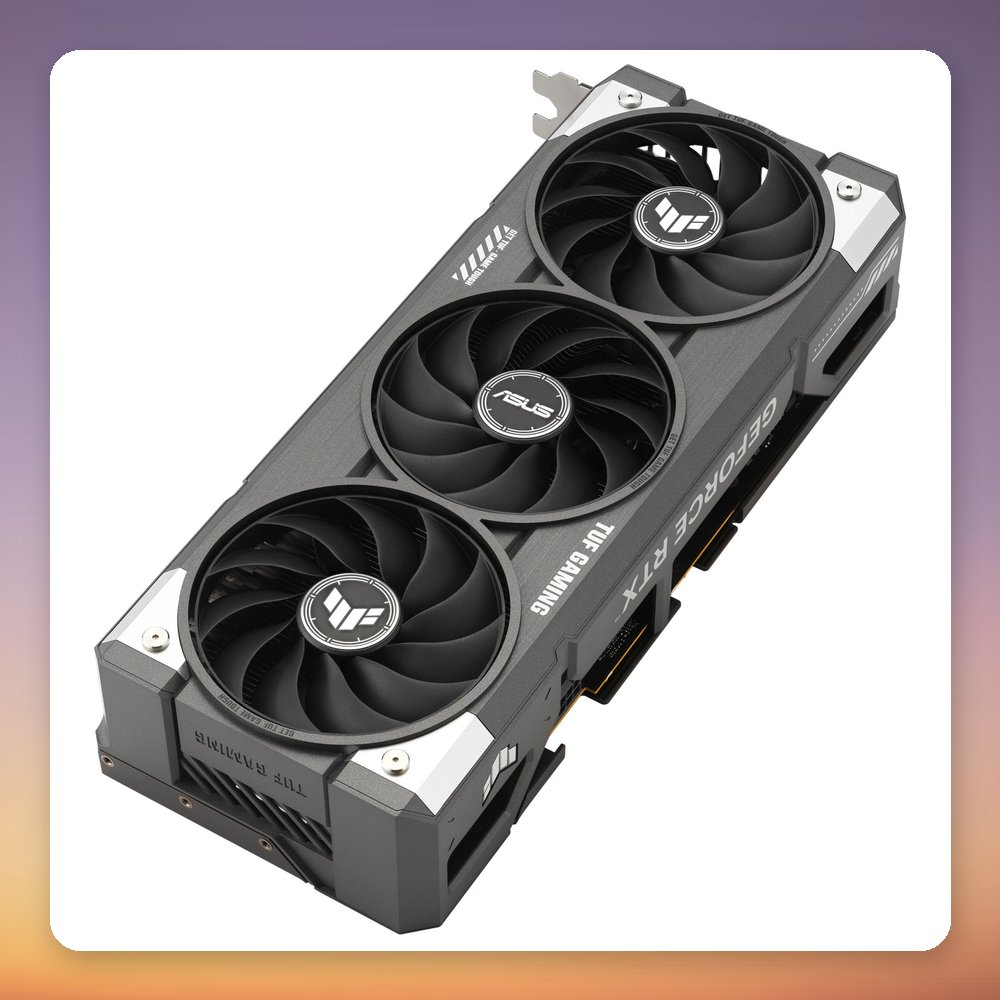

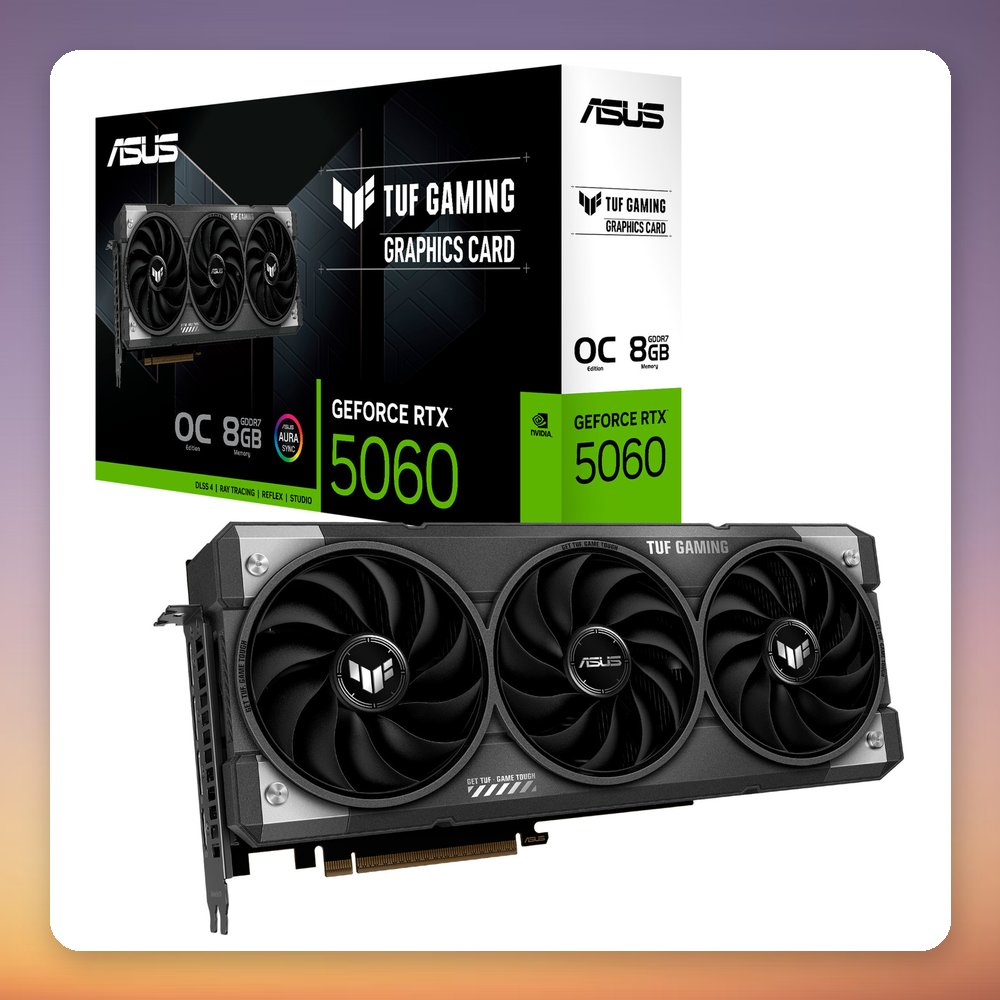

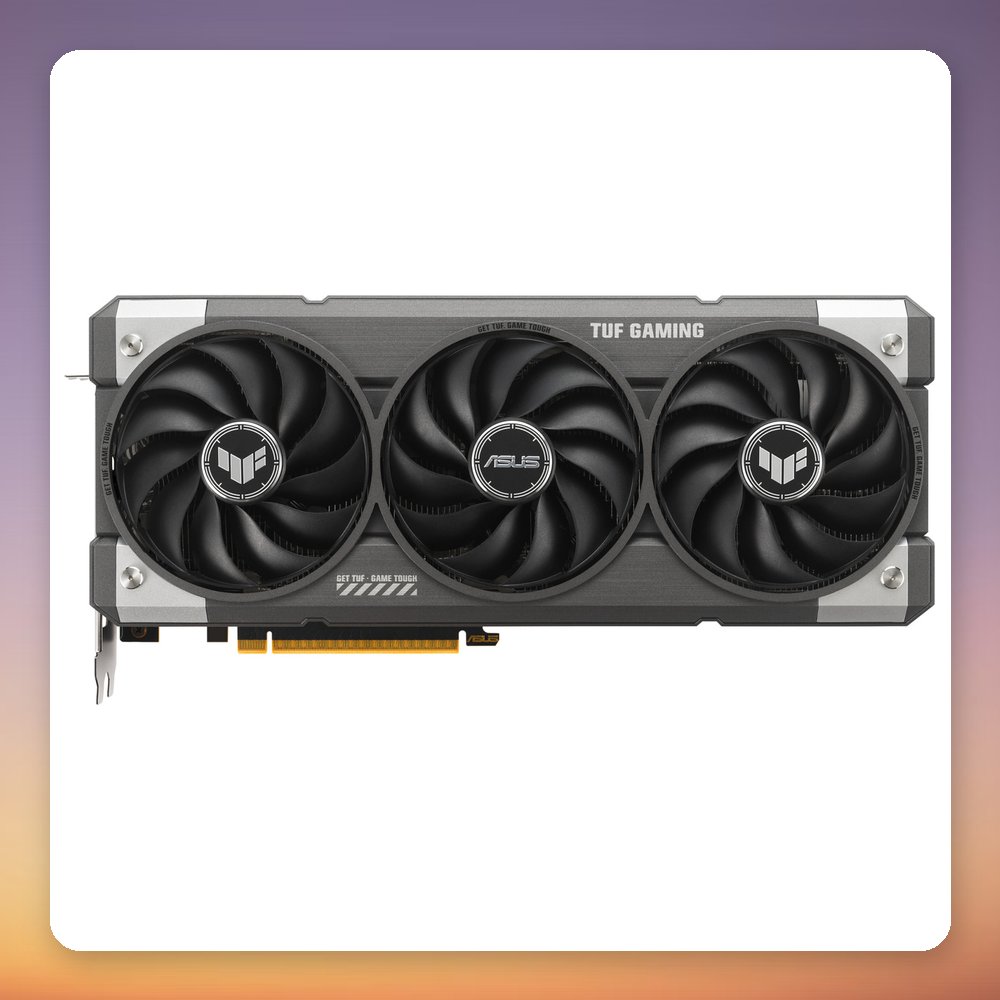

The Asus TUF Gaming GeForce RTX 5060 OC is a graphics card built on the NVIDIA GeForce RTX 5060 GPU with 3840 CUDA cores and 8 GB of GDDR7 memory on a 128-bit bus. The OC edition raises the boost clock to 2677 MHz (2640 MHz in standard mode). It uses a three-fan Axial-tech cooler, a die-cast shroud and an aluminium backplate, and supports DLSS, Reflex 2 and fourth-generation ray tracing cores.

This card suits 1080p and 1440p gaming builds and anyone wanting a PCIe 5.0 card with a single 8-pin power connector and a 550 W minimum PSU requirement. It offers three DisplayPort 2.1b outputs and one HDMI 2.1b port, supports up to four displays and G-SYNC, and includes NVENC with AV1 encode and decode for streaming and capture. Note that it occupies 3.1 slots and is 302 mm long, so check your case clearance before buying.

Specification

• Manufacturer: Asus
• Model: TUF Gaming GeForce RTX 5060 OC
• MPN: 90YV0N00-M0NA00
• EAN: 4711636058179
• GPU: NVIDIA GeForce RTX 5060
• CUDA Cores: 3840
• Boost Clock: 2640 MHz (2677 MHz in OC mode)
• Memory: 8 GB GDDR7, 128-bit
• Memory Speed: 28 Gbps
• Interface: PCI Express 5.0 x16
• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Maximum Resolution: 7680 x 4320 (8K at 120 Hz with DSC)
• Power Connector: 1x 8-pin
• Average Power Consumption: 145 W
• Minimum PSU: 550 W
• Cooling: Active, 3x Axial-tech fans (dual-ball bearings)
• Slots: 3.1
• Dimensions (W x H x D): 133.5 x 62 x 302 mm
• Weight: 1.13 kg
• Illumination: Multi-colour
