Product Overview

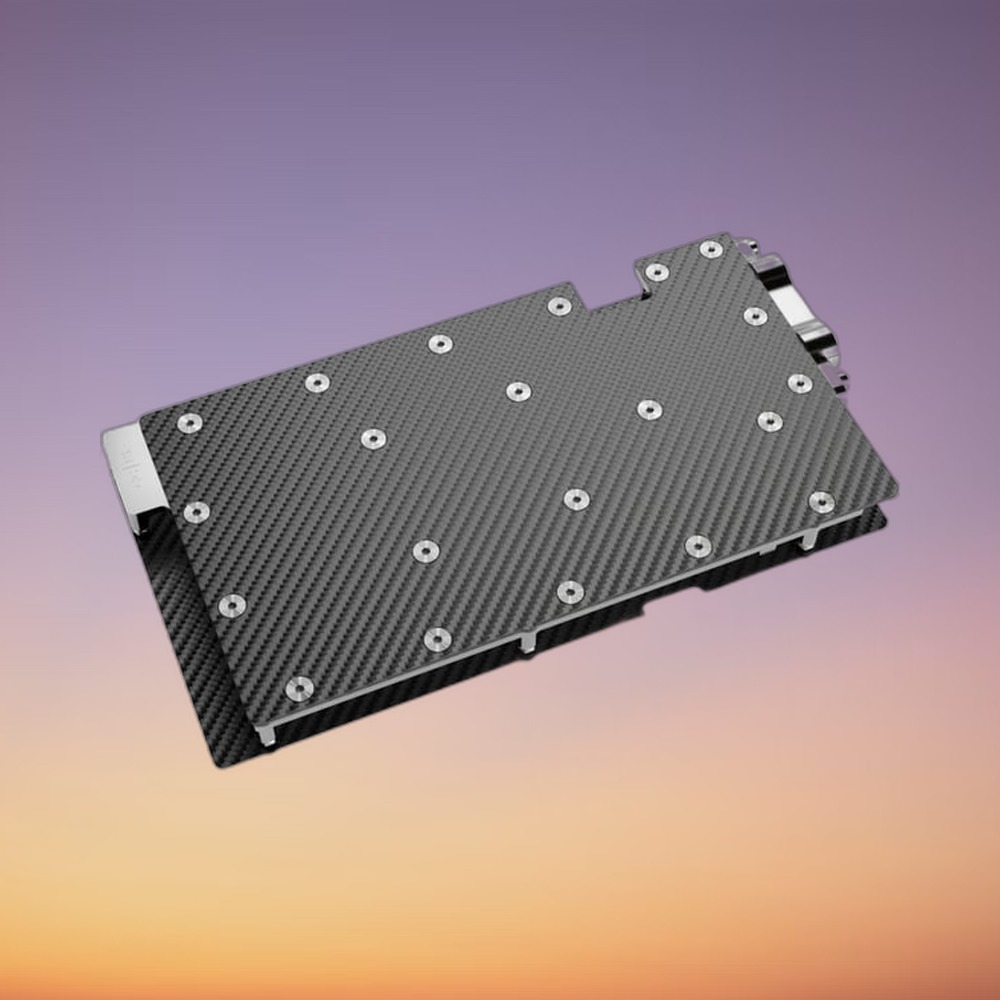

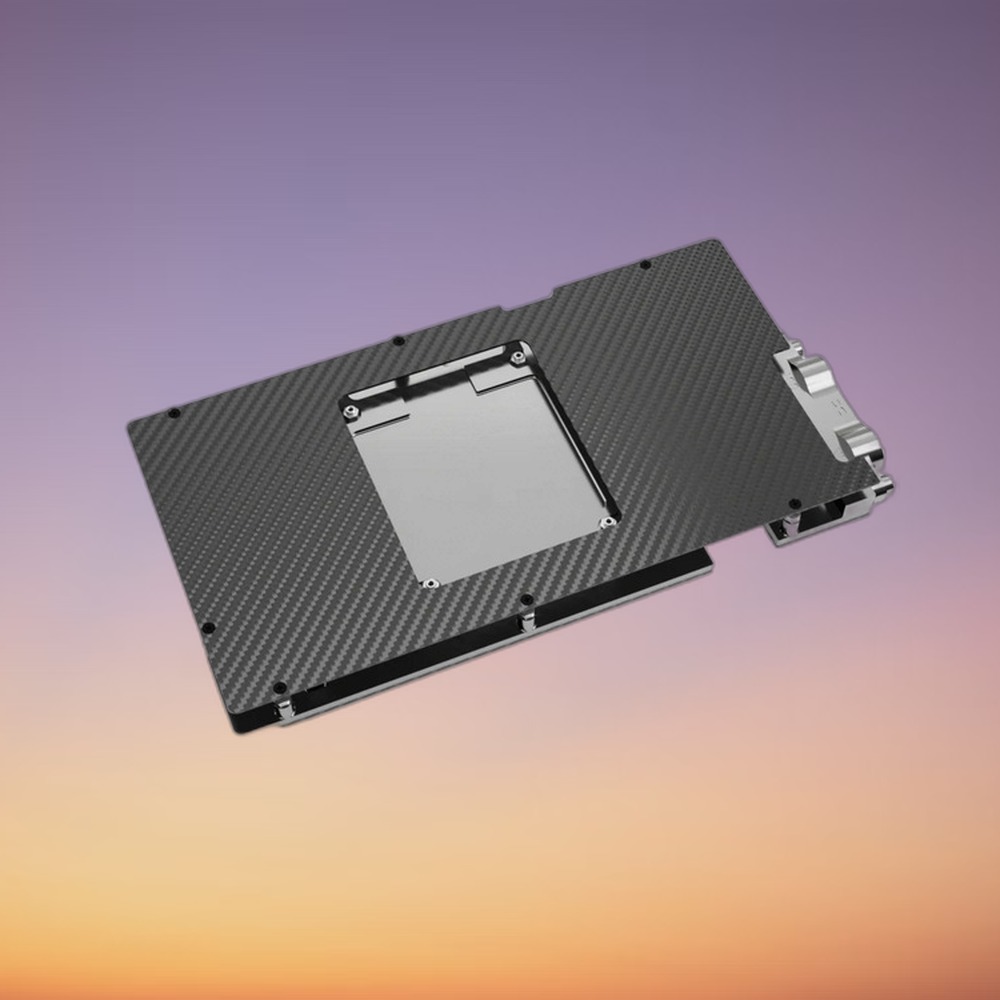

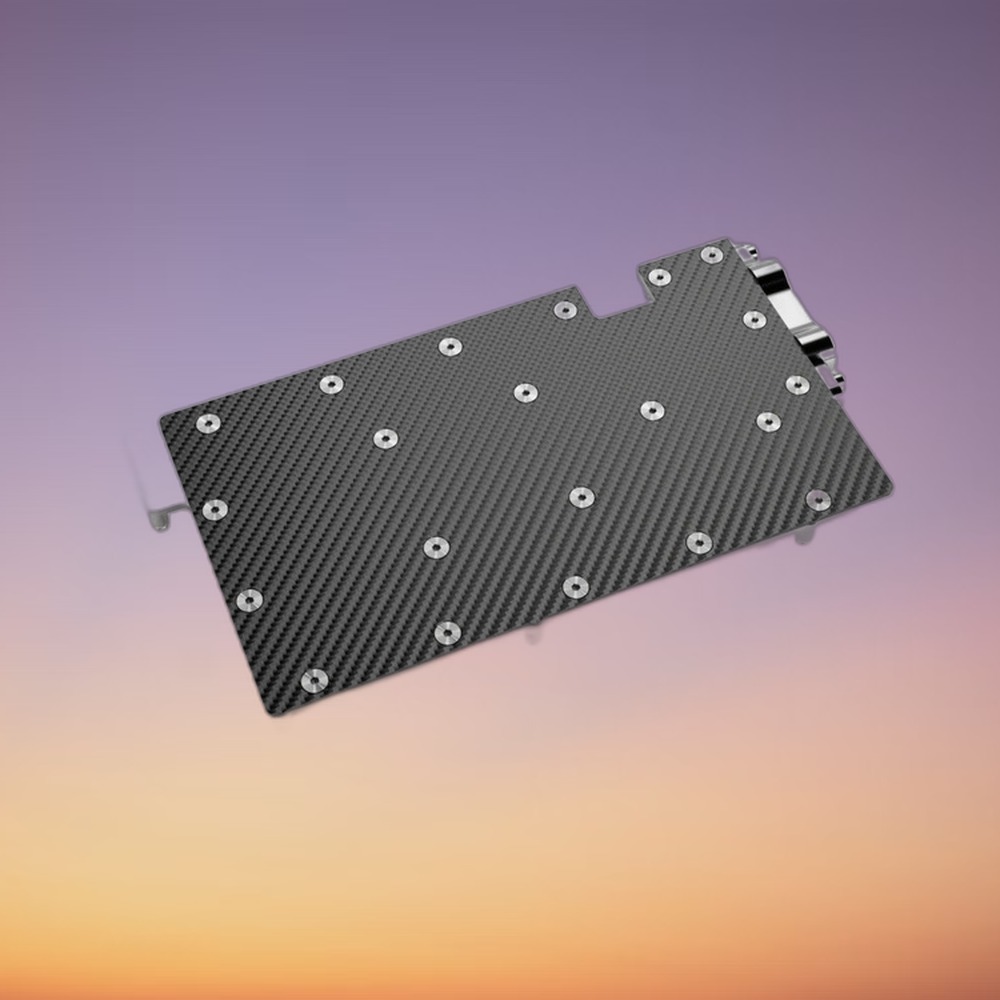

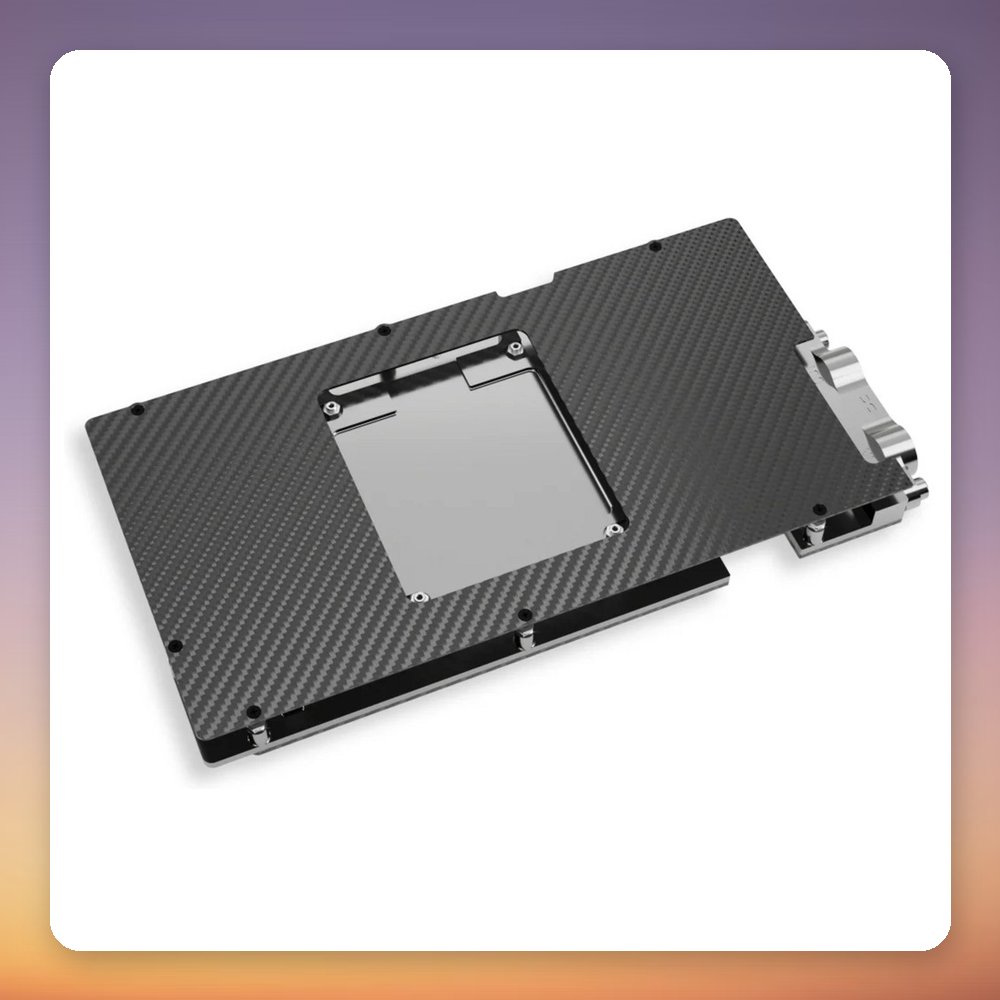

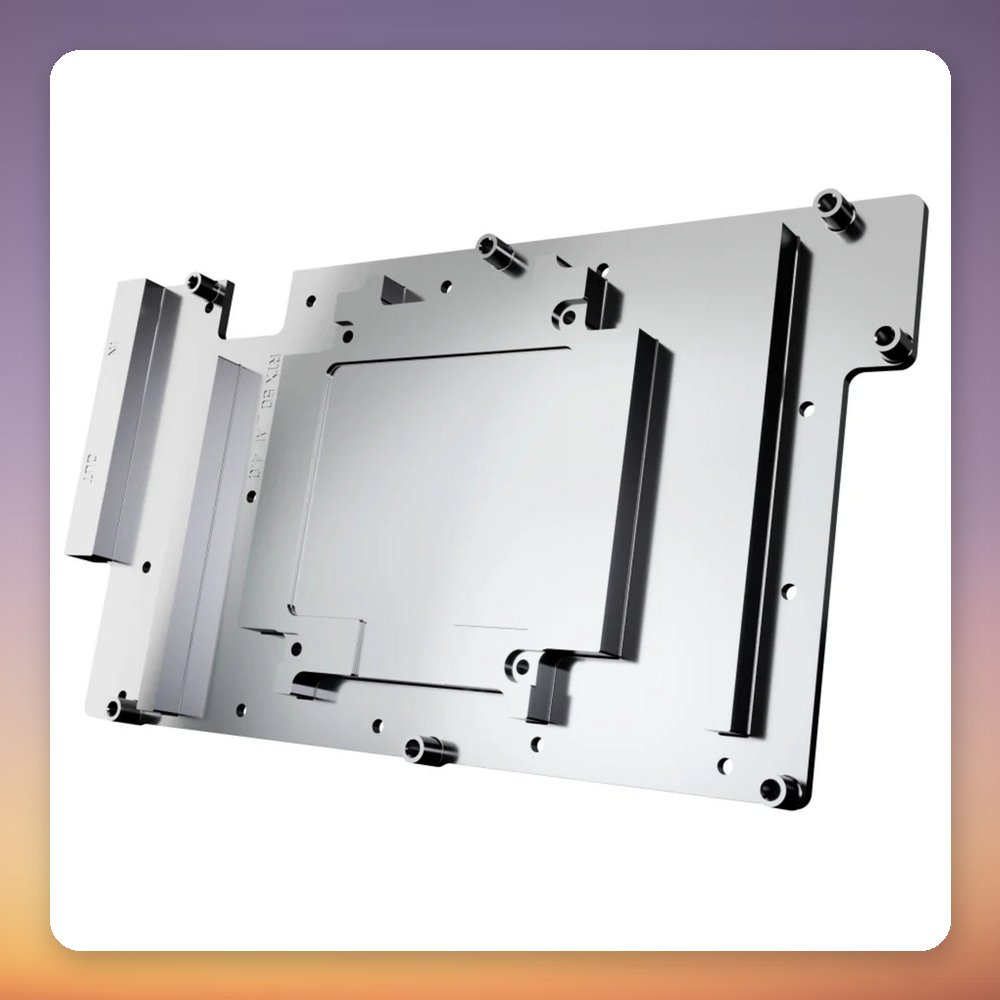

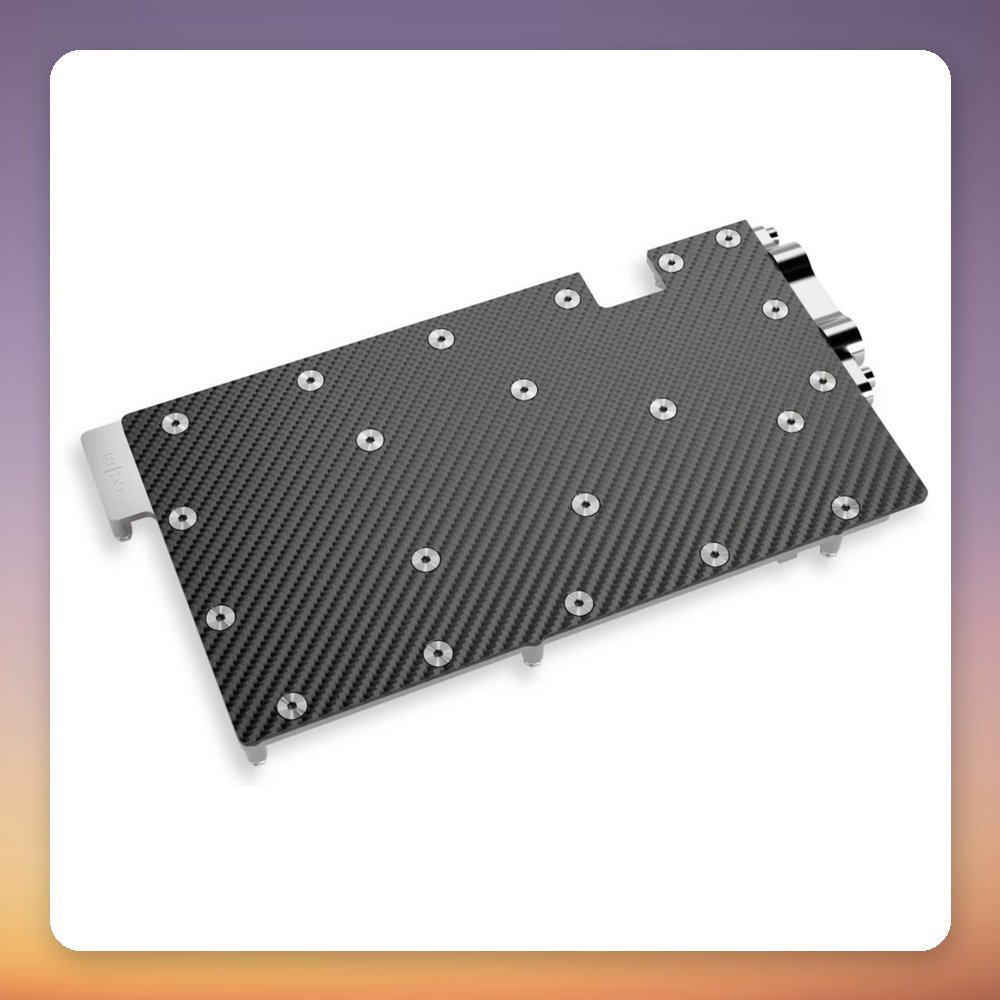

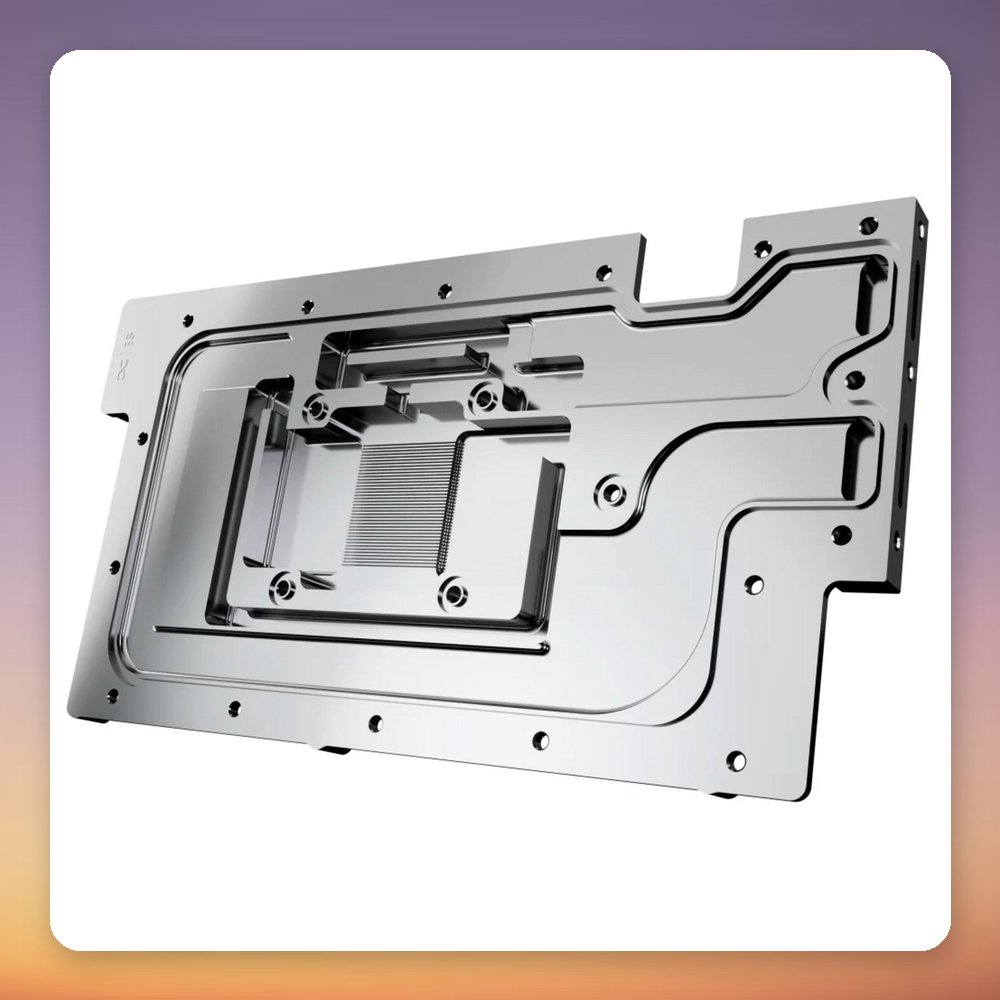

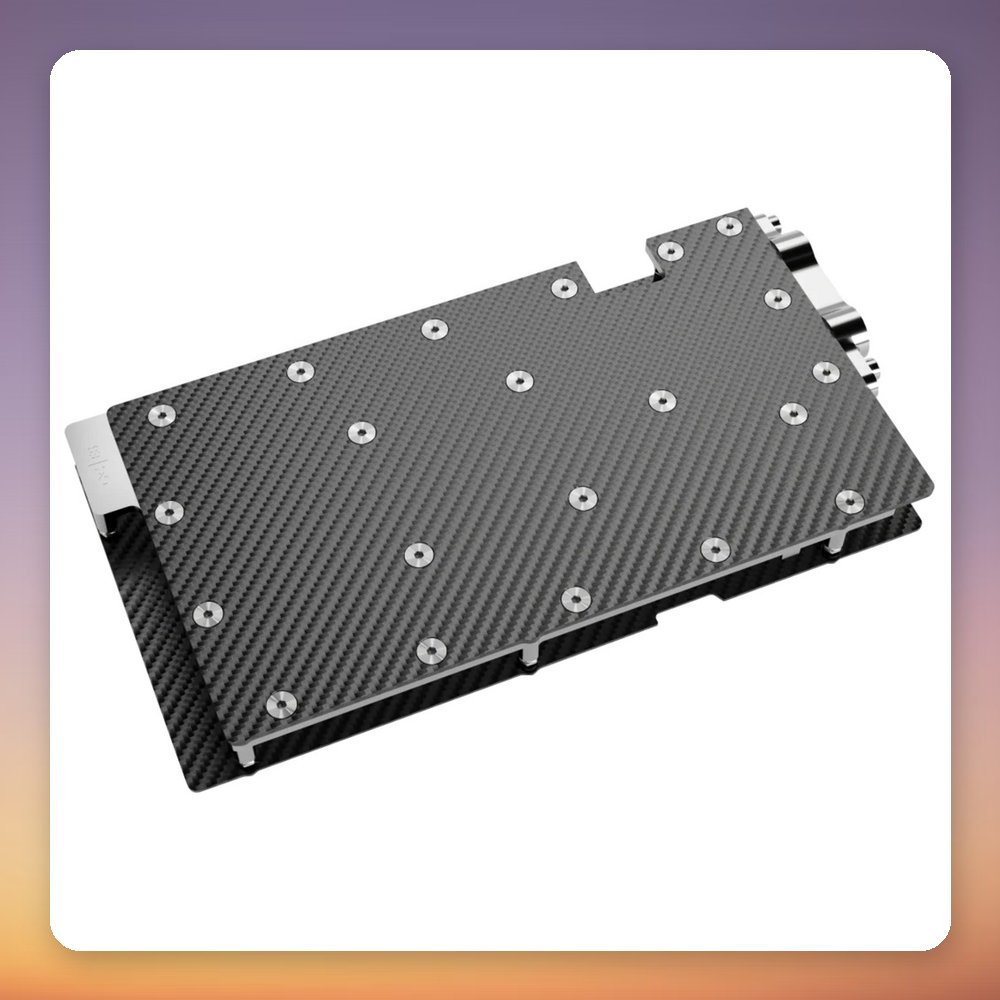

The Alphacool ES RTX 5090 Reference 1-Slot water block is a full-cover GPU water cooler from the Enterprise series, built for reference-design GeForce RTX 5090 cards. Its main selling point is the single-slot height of just 21.13 mm, made possible by a thin, very stable carbon plate that avoids compromising the copper block. It combines an acrylic top, chrome-plated copper and brass.

This block suits server cases and workstations, where a single-slot card lets you fit more GPUs into a densely populated system. It is listed as compatible with selected Inno3D, MSI and PNY RTX 5090 models (see the list below), so check your exact card before ordering. The kit includes a backplate, thermal pads, thermal paste, a PCIe bracket and the screws needed for installation. It has two G 1/4″ fittings and weighs 1.5 kg.

Specification

• Manufacturer: Alphacool
• Model: ES RTX 5090 Reference 1-Slot Design REV1
• MPN: 10291
• EAN: 42501971029190
• Type: GPU water block (full-cover)
• Design: 1-slot, reference design, REV1
• Colour: Black/transparent
• Backplate: Included
• Materials: Acrylic, chrome-plated copper, brass
• Fittings: 2x G 1/4″ thread
• Dimensions (W x H x D): 235.29 x 21.13 x 119.32 mm
• Weight: 1.5 kg
• Compatible cards: Inno3D RTX 5090 iChill Frostbite, iCHILL X3, X3, X3 OC; MSI RTX 5090 32G VENTUS 3X OC (MS-V530 VER:1.1); PNY RTX 5090 Triple Fan, Overclocked Triple Fan, ARGB EPIC-X RGB and ARGB EPIC-X RGB Overclocked
• Included accessories: Thermal pads, thermal paste, spatula tool, PCIe bracket, M2x8 mm and M2x10 mm screws
