Product Overview

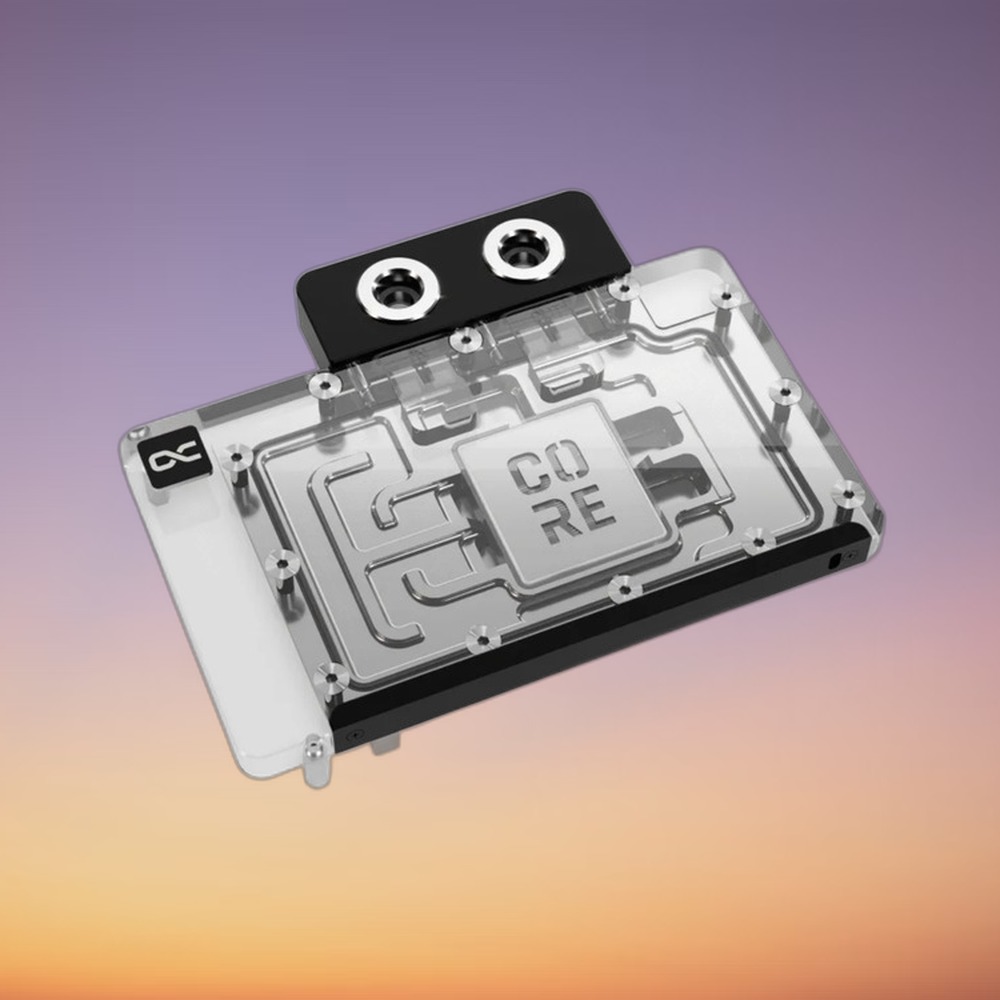

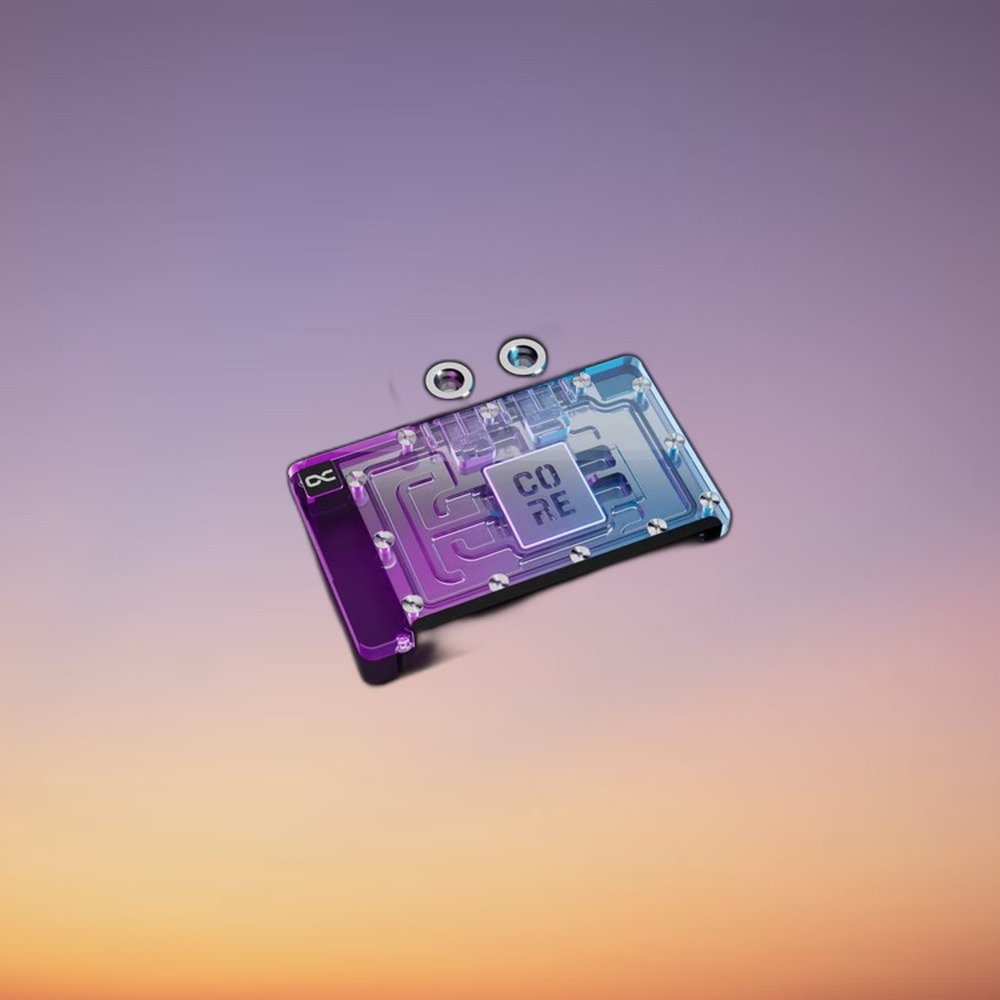

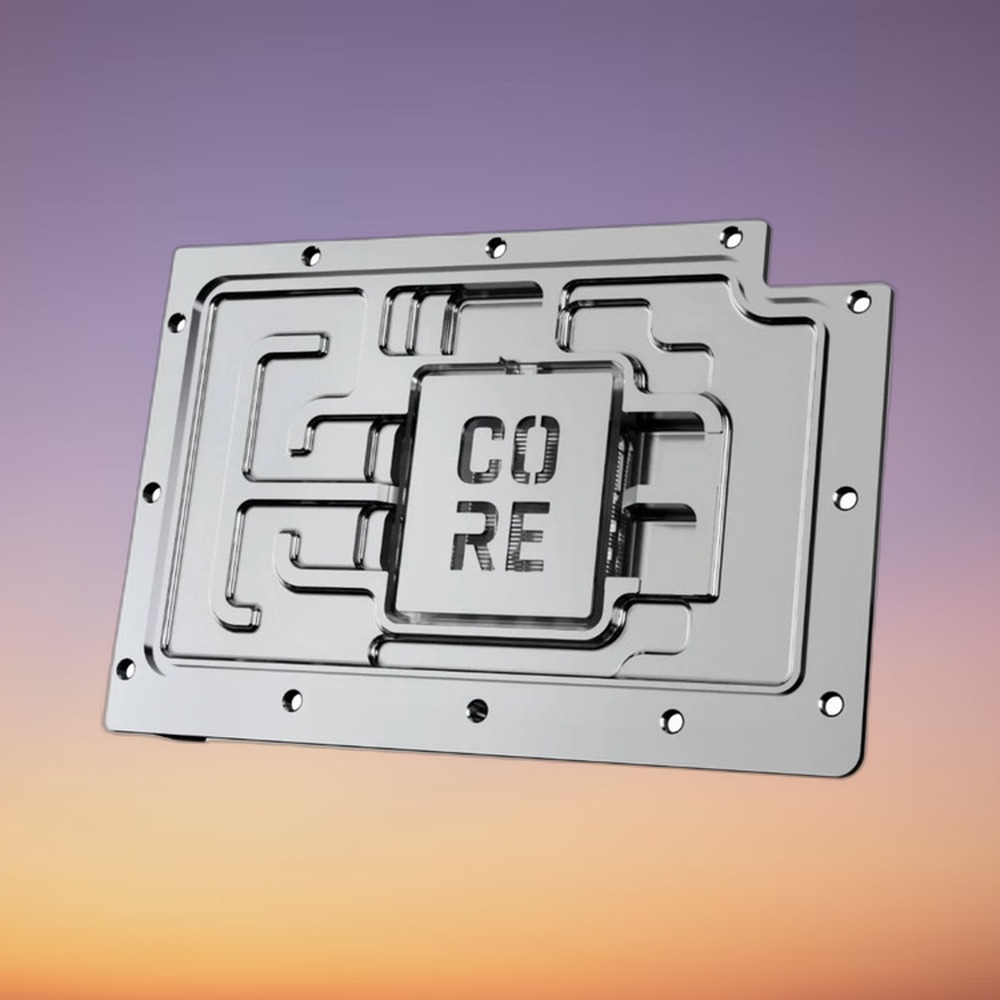

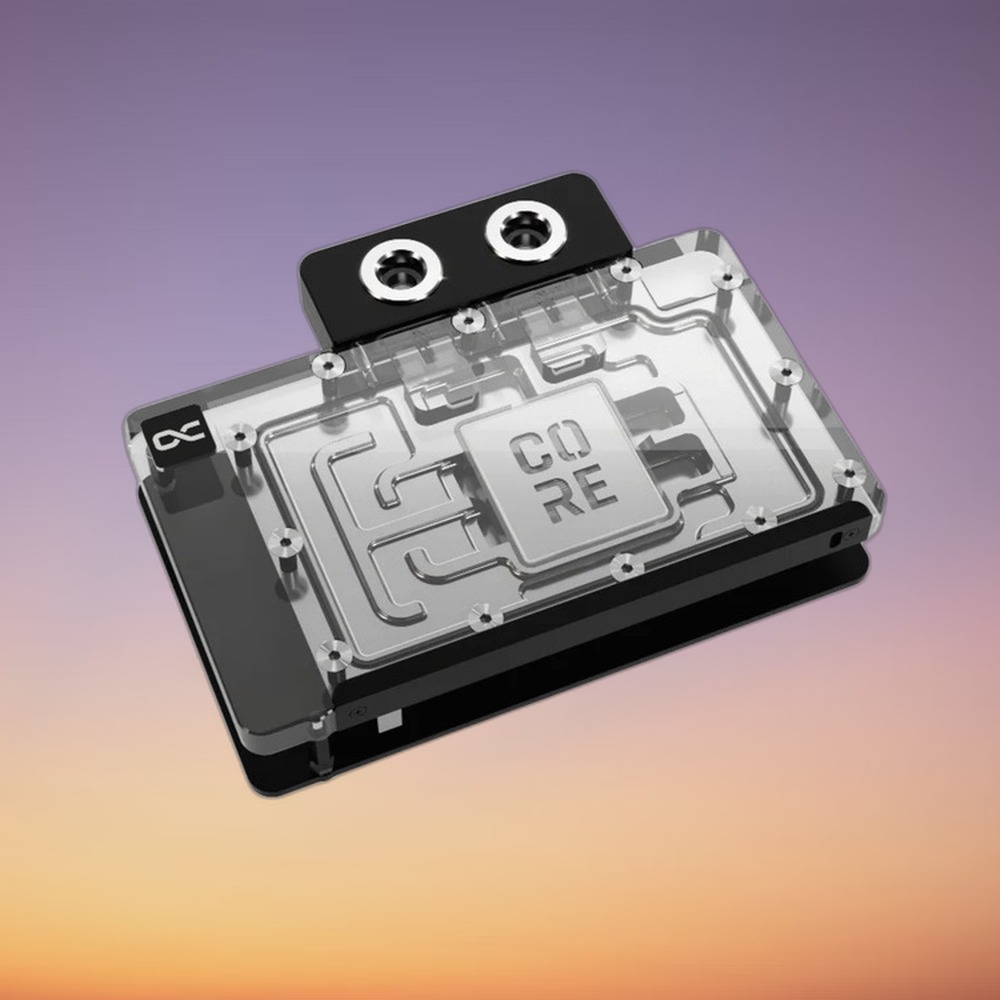

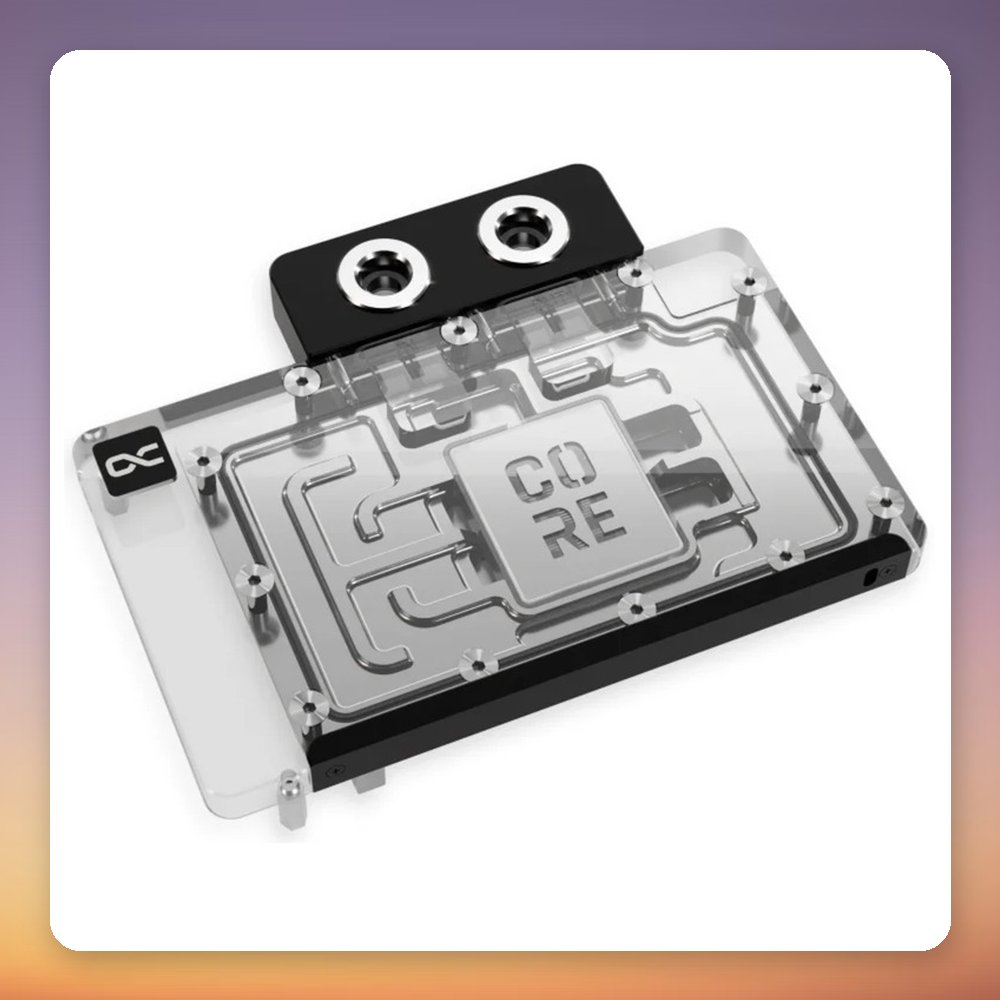

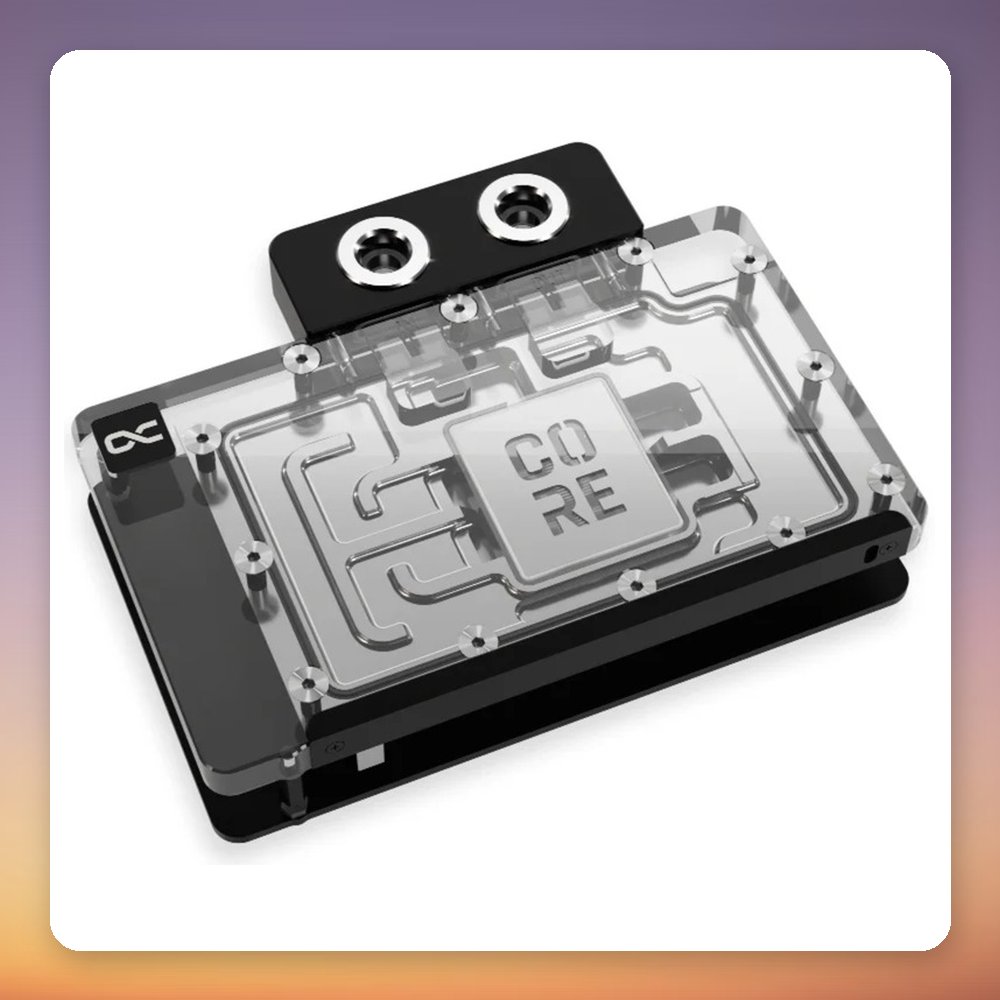

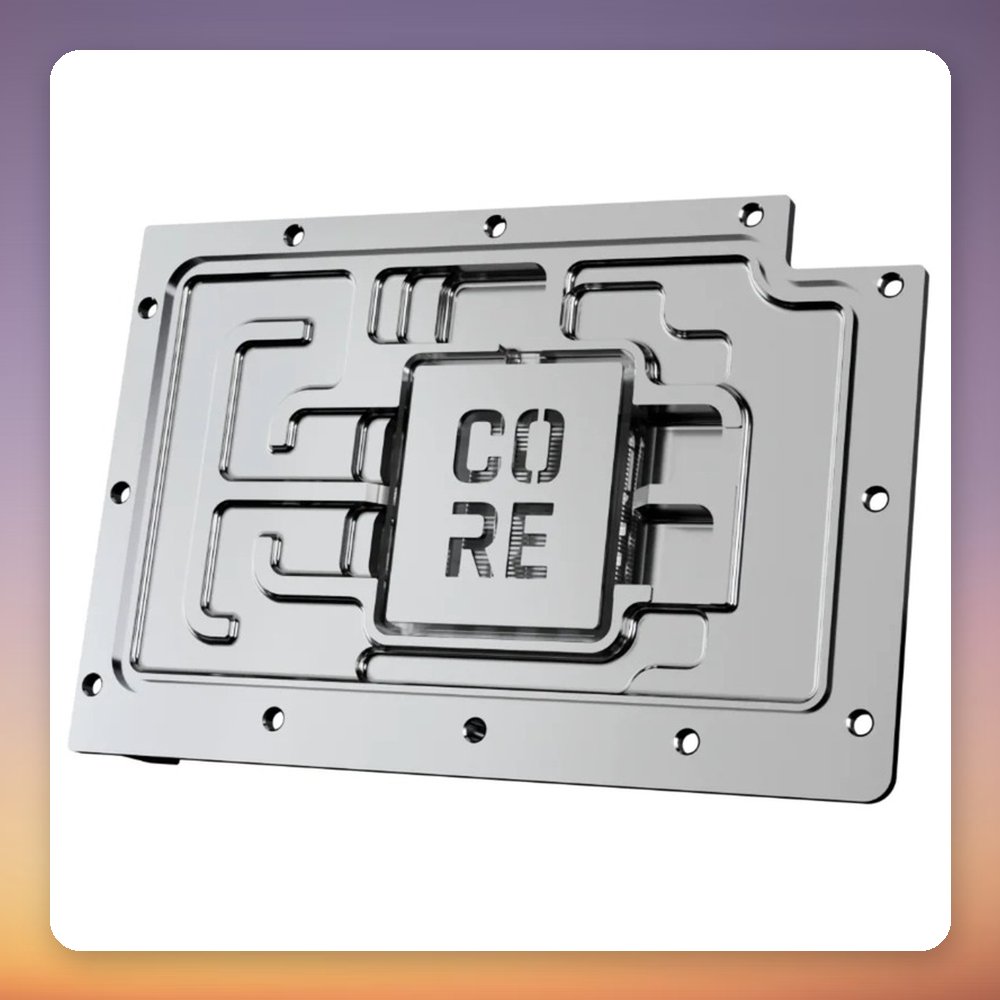

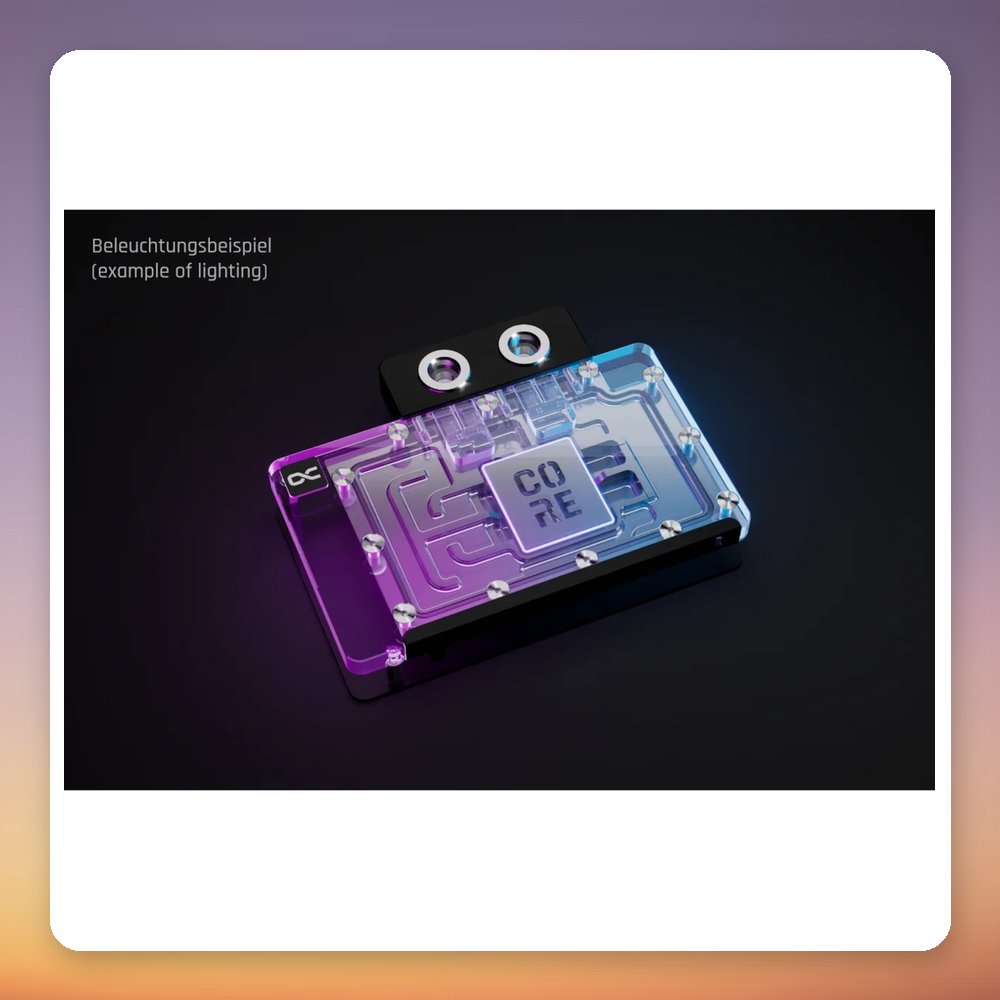

The Alphacool Core GeForce RTX 5080 Reference is a full-cover GPU water block with backplate for selected Inno3D GeForce RTX 5080 cards. It combines a chrome-plated copper base with brass, aluminium and acrylic parts, and adds addressable RGB lighting through a 3-pin header. The acrylic top spreads the light evenly across the whole block, while a redesigned cooler body targets the new Nvidia RTX generation.

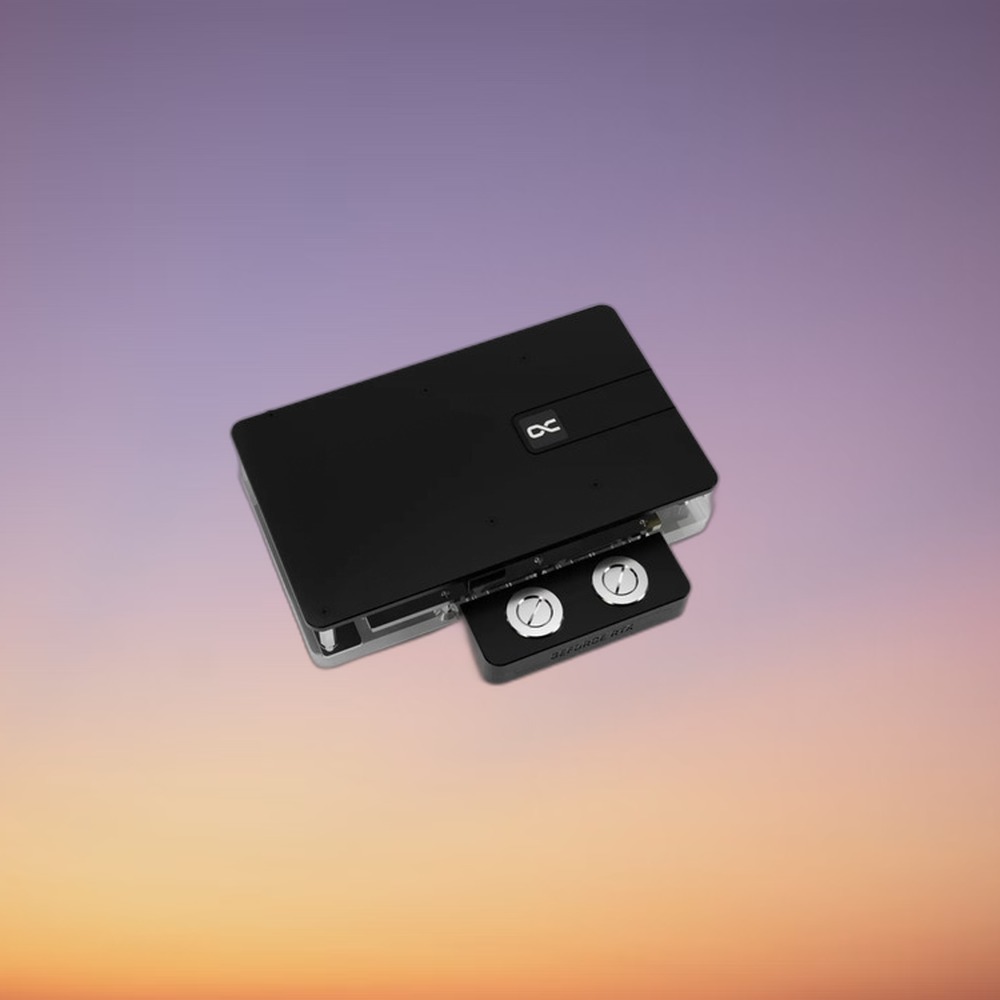

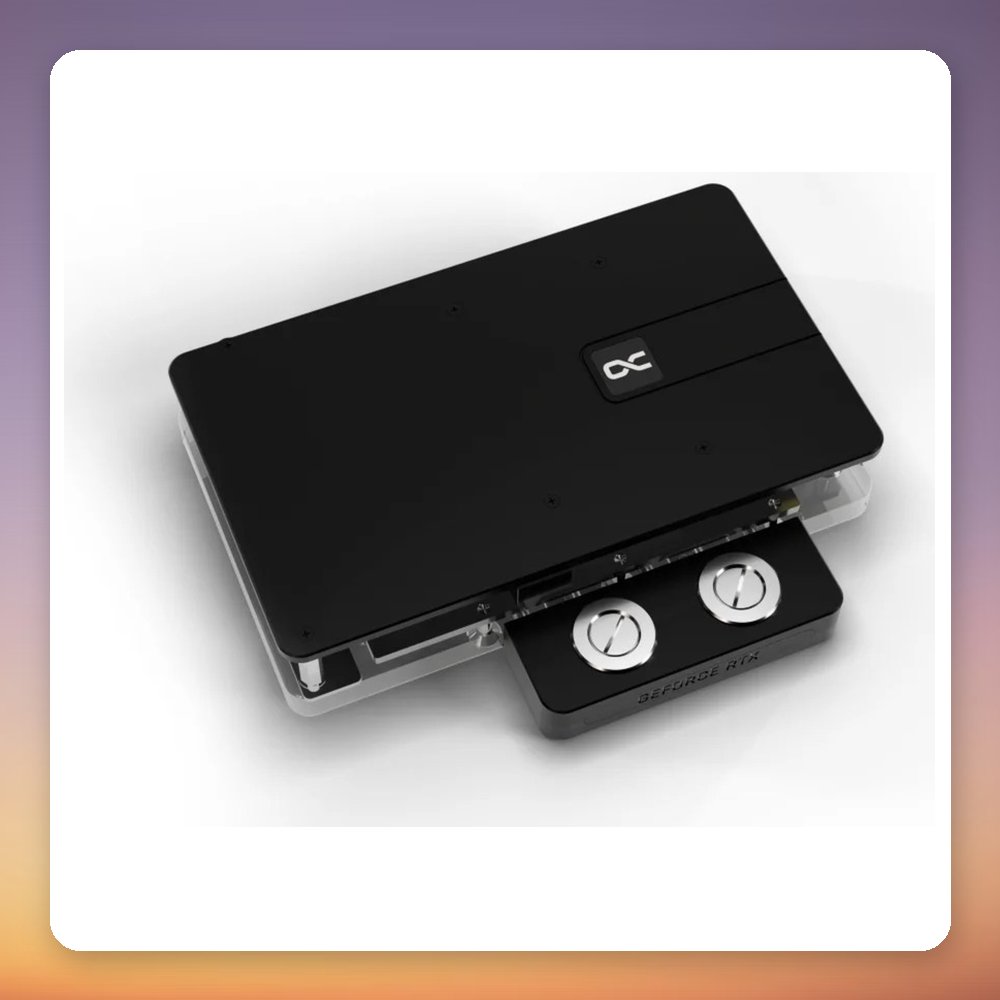

This block suits custom water-cooling loops built around an Inno3D RTX 5080 iChill Frostbite, iChill X3, X3, X3 OC or X3 OC White. Four G 1/4″ ports give flexible tubing layouts. The kit includes a backplate, a full set of thermal pads in several sizes, thermal paste, an ARGB adapter, a PCIe bracket, plugs, screws and the tools needed for installation. It measures 160 x 124.07 x 34.19 mm.

Specification

• Manufacturer: Alphacool
• Model: Core GeForce RTX 5080 Reference
• MPN: 10248
• EAN: 4250197102483
• Type: GPU water block with backplate
• Compatible cards: Inno3D GeForce RTX 5080 iChill Frostbite, iChill X3, X3, X3 OC, X3 OC White
• Materials: Aluminium, acrylic, chrome-plated copper, brass
• Fitting ports: 4x G 1/4″ thread
• Lighting: Addressable RGB (aRGB)
• Power connector: 3-pin
• Dimensions (W x H x D): 160 x 124.07 x 34.19 mm
• Included: Backplate, thermal pads, thermal paste, spatula, ARGB adapter, PCIe bracket, screwdriver, tightening tool, 2x G1/4″ plugs, 6x M2x10 mm screws
