Product Overview

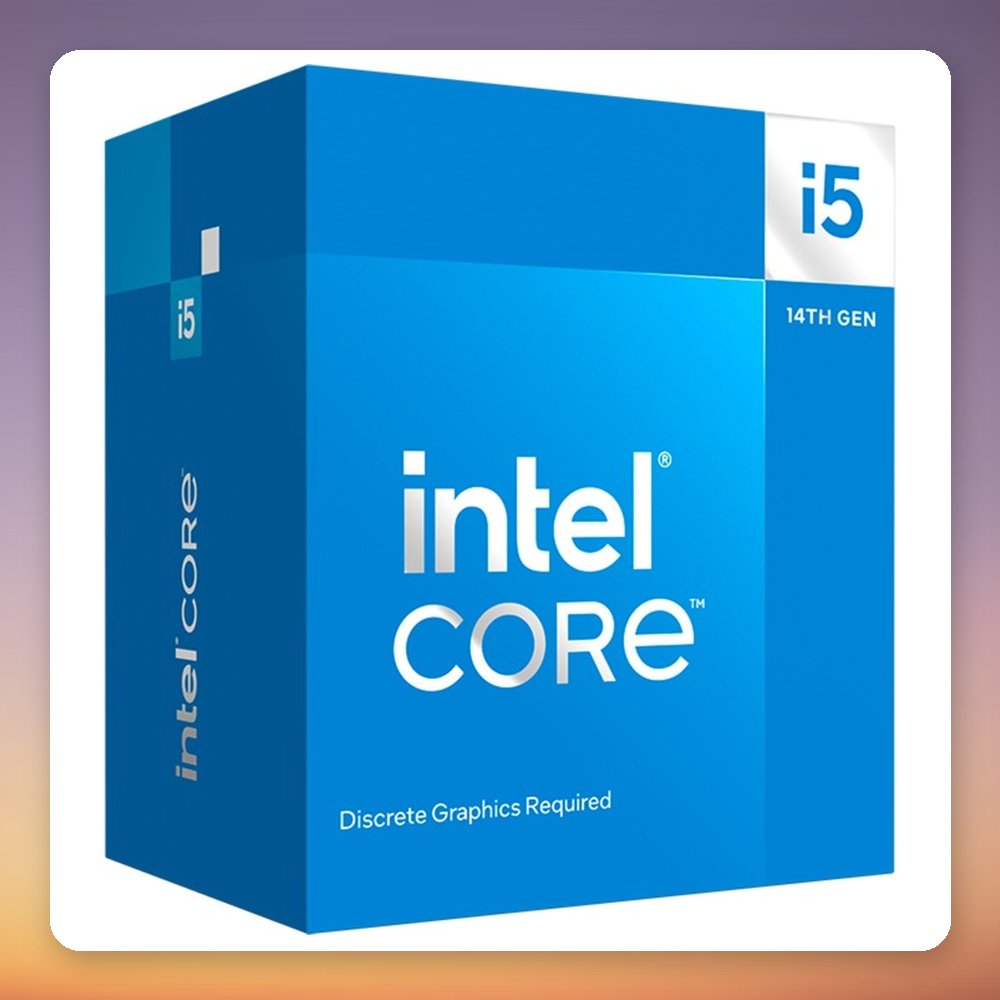

The Intel Core i5-14500 is a 14-core, 20-thread desktop processor from the Raptor Lake-S family for the LGA1700 socket. It combines 6 Performance cores, boosting up to 5.0 GHz, with 8 Efficiency cores that boost up to 3.7 GHz, backed by 24 MB of L3 cache and 11.75 MB of L2 cache. This is the boxed version, so a stock heatsink and fan are included in the pack.

With a 65 W base power rating (up to 154 W maximum), the i5-14500 suits mainstream gaming and general-purpose desktop builds. It works with motherboards based on Intel 700 and 600 series chipsets and supports PCIe 5.0 as well as DDR5 and DDR4 memory, depending on the board. Integrated Intel UHD Graphics 770 lets you get a system running without a dedicated graphics card.

Specification

• Manufacturer: Intel
• Model: Core i5-14500
• MPN: BX8071514500
• EAN: 5032037279178
• Socket: LGA1700
• Cores / Threads: 14 cores / 20 threads
• Performance Cores: 6 cores, 12 threads, 2.6 GHz base, up to 5.0 GHz boost
• Efficiency Cores: 8 cores, 8 threads, 1.9 GHz base, up to 3.7 GHz boost
• Microarchitecture: Raptor Lake-S
• L2 Cache: 11776 KB
• L3 Cache: 24576 KB
• Integrated Graphics: Intel UHD Graphics 770
• TDP: 65 W (maximum 154 W)
• Max. PCIe Version: 5.0
• Memory Support: DDR5 and DDR4, ECC supported
• Cooler: Boxed heatsink and fan included
• Chipset Compatibility: Intel 700 and 600 series
