Product Overview

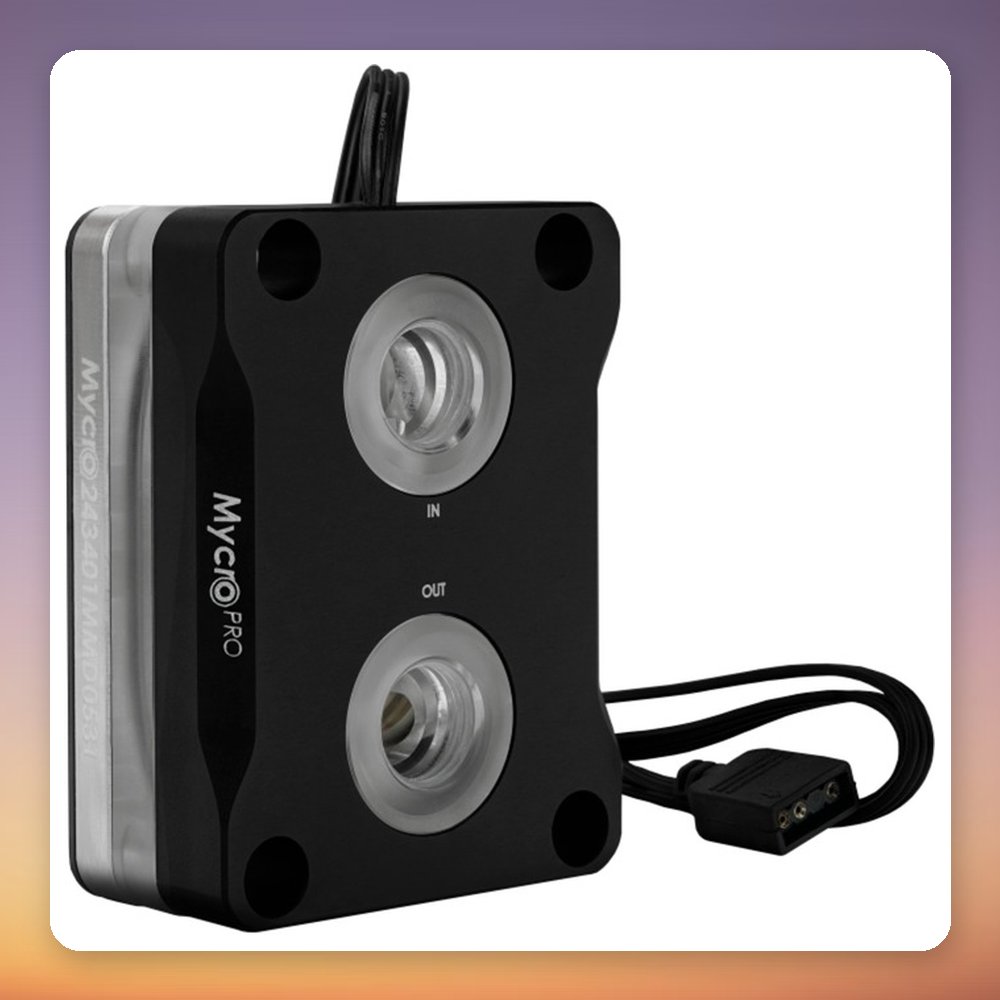

The Thermal Grizzly Intel Mycro Direct-Die Pro RGB is a water block built for the Intel LGA1700 platform, with a nickel-plated copper base plate and addressable RGB lighting. It sits directly on the die of a delidded Intel CPU. Compared with the standard Mycro Direct-Die, the Pro version has more cooling fins and a lower flow resistance.

This block is for custom water-cooling loops on Intel 12th, 13th and 14th Gen CPUs where the heat spreader has been removed. It connects to the loop through two female G 1/4″ fittings, and the lighting plugs into a 3-pin addressable RGB header. The body combines aluminium, acrylic and nickel-plated copper in a black and transparent finish. Mounting screws and two hex keys are included. Note that removing the heat spreader is a mechanical modification of the CPU and voids the return right, the manufacturer’s warranty and the statutory guarantee.

Specification

• Manufacturer: Thermal Grizzly
• Model: Intel Mycro Direct-Die Pro RGB V1
• MPN: TG-MY-DD-P-RGB-i-V1
• EAN: 4260711991011
• Type: Water block (direct-die)
• Compatible CPUs: Intel 12th, 13th, 14th Gen (LGA1700), delidded

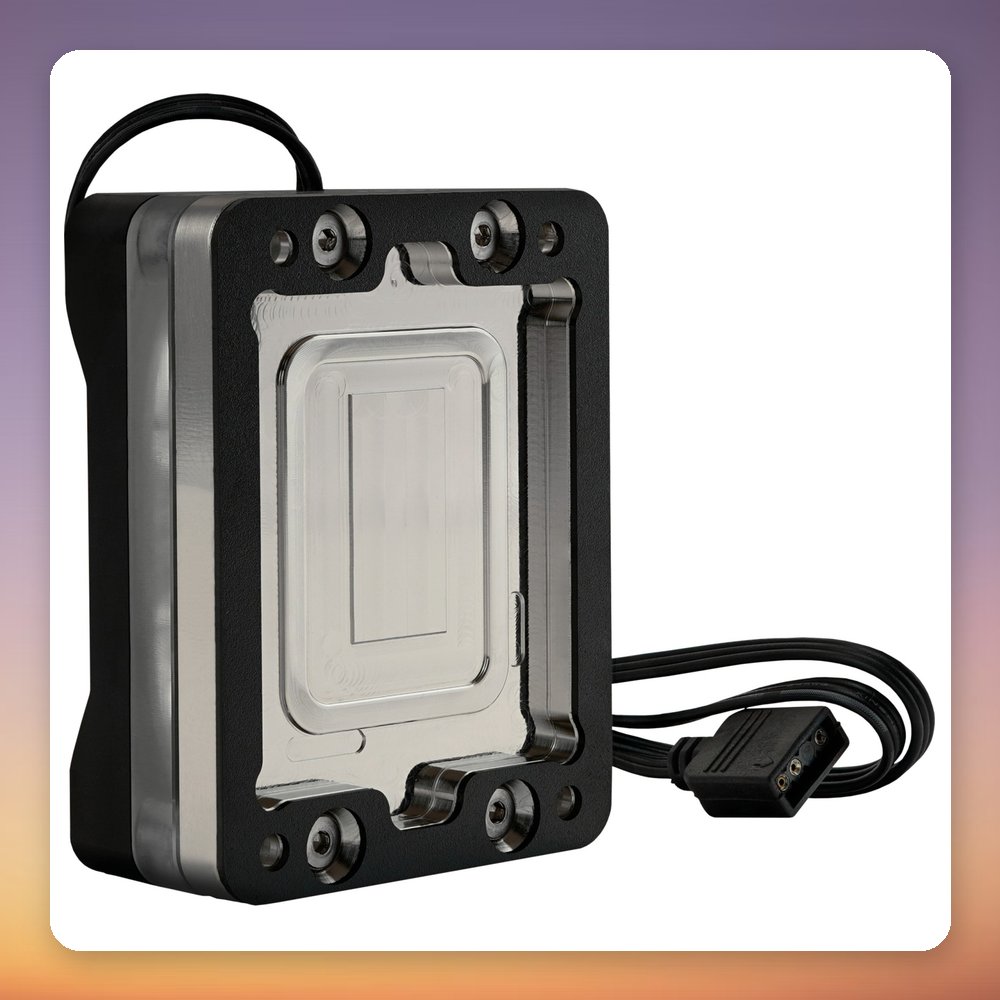

• Base plate: Nickel-plated copper
• Materials: Aluminium, acrylic, nickel-plated copper

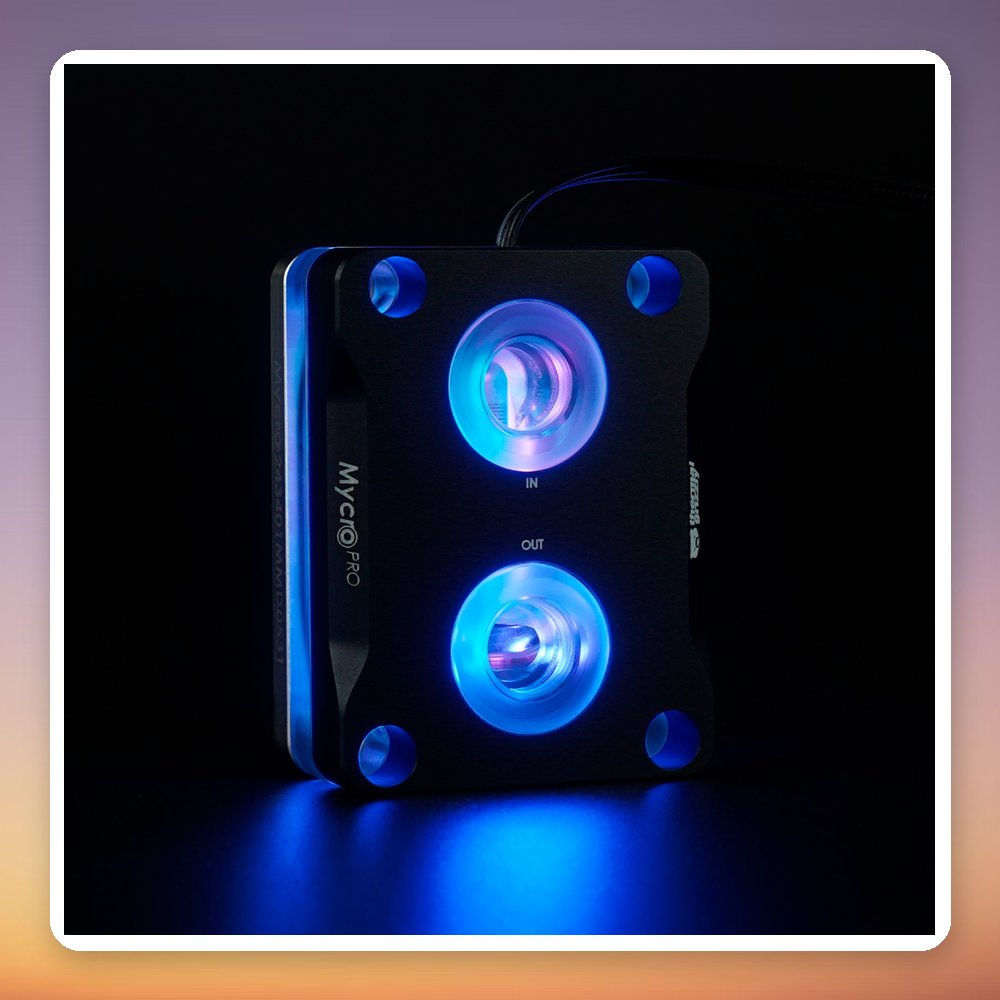

• Lighting: Addressable RGB
• Power connector: 3-pin
• Fittings: 2x female, G 1/4″ thread
• Colour: Black/transparent

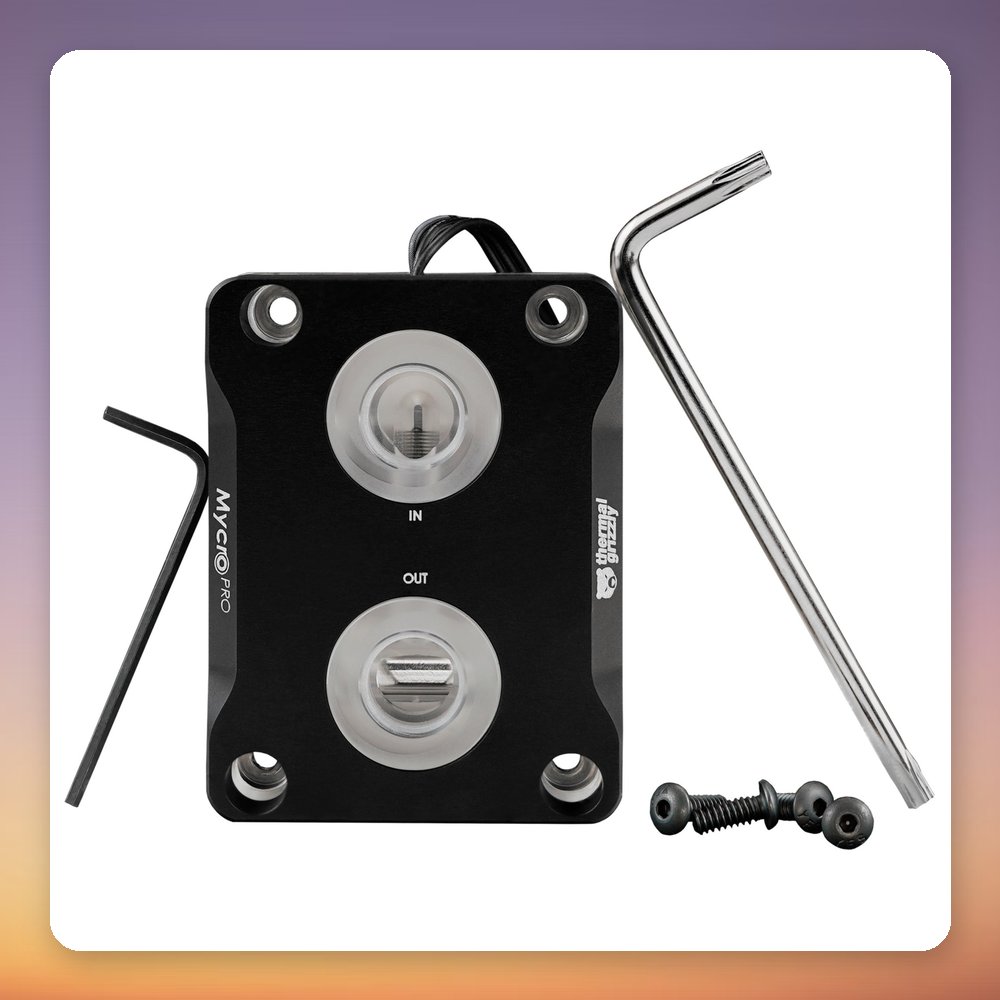

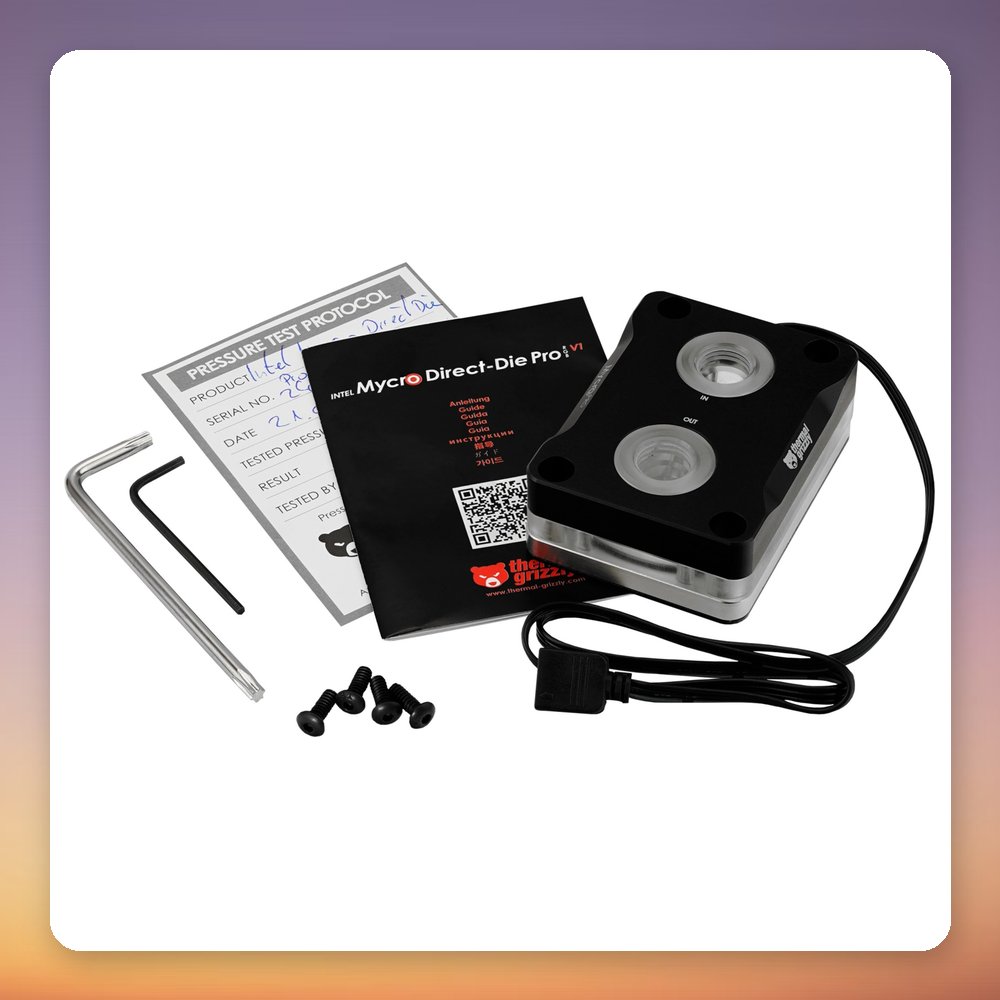

• Included accessories: 4x pan head screws (UNC thread), 1x hex key, 1x Torx key
