Product Overview

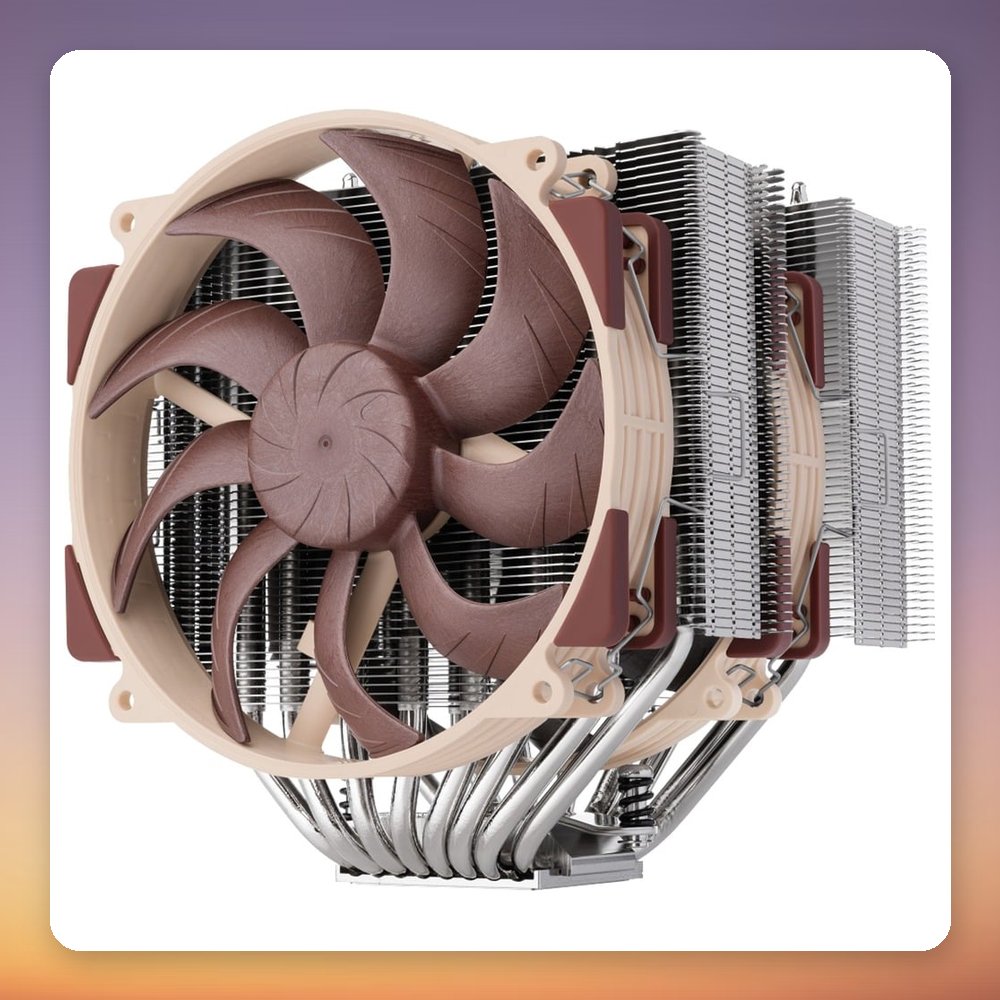

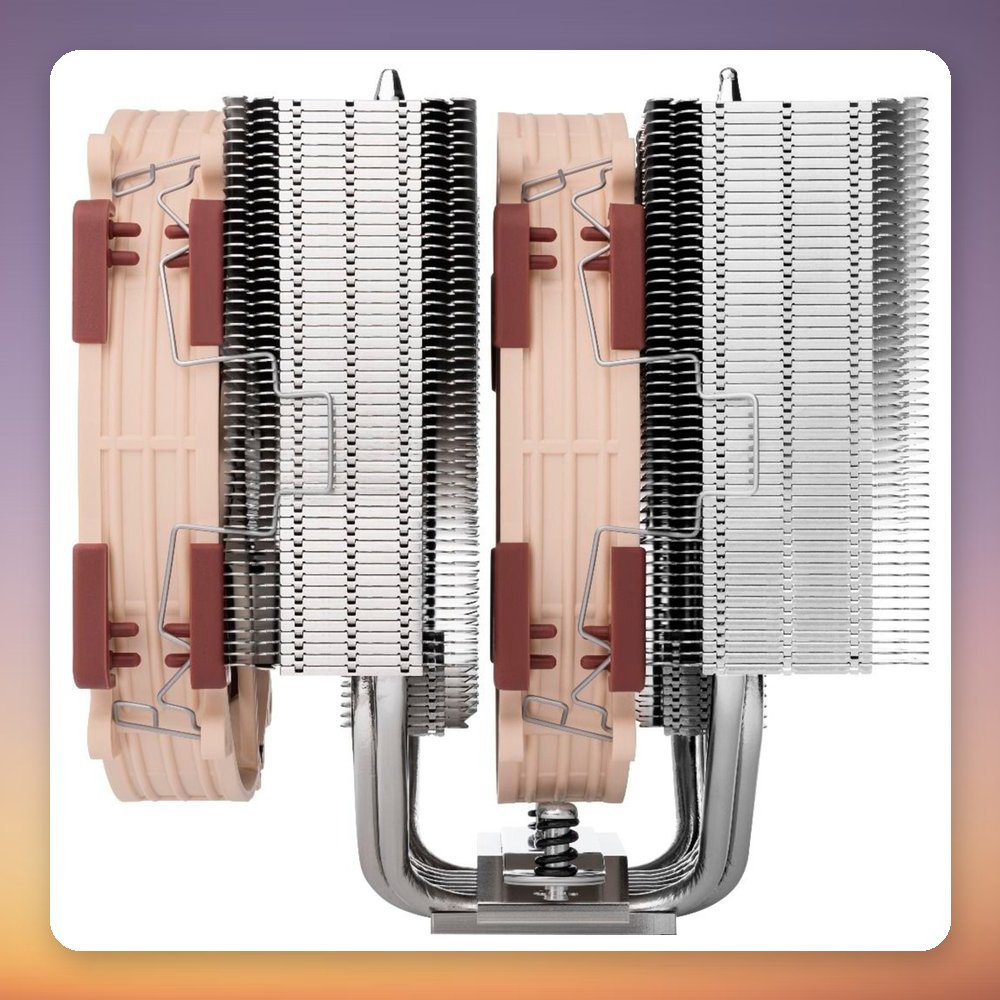

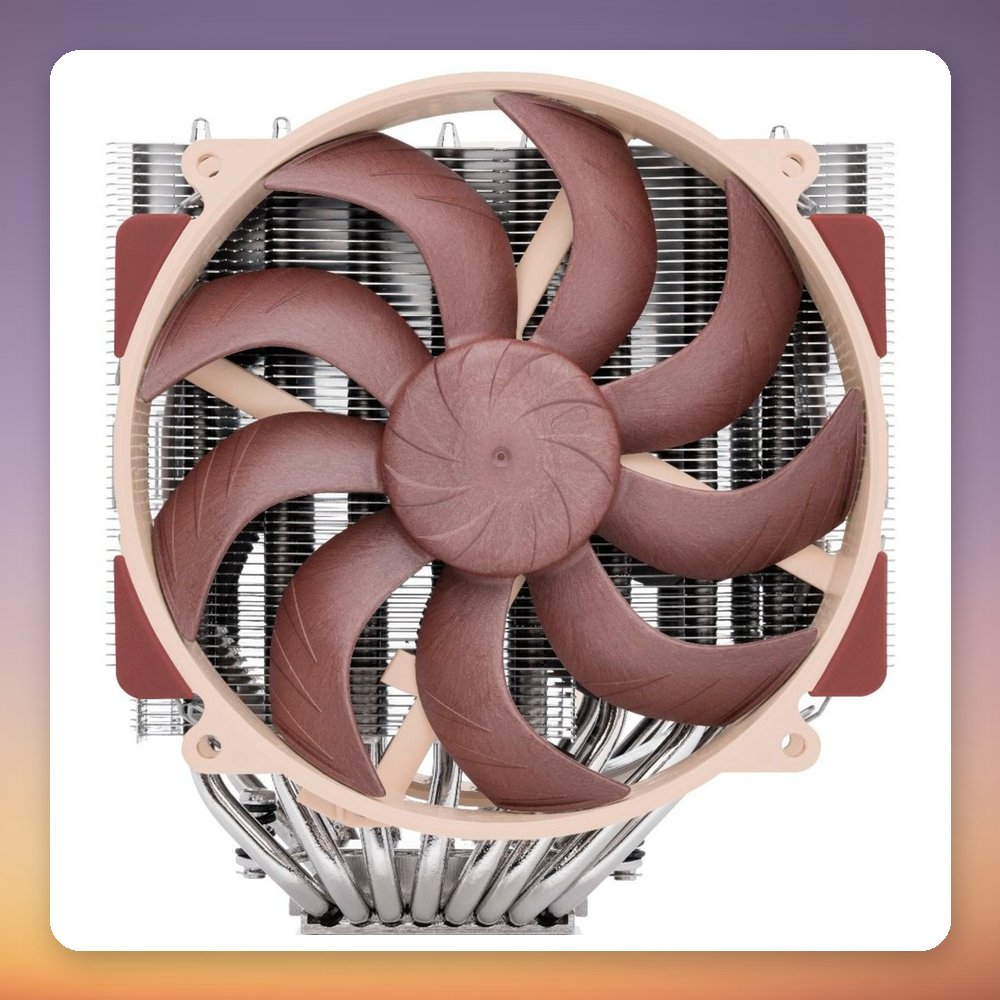

The Noctua NH-D15 G2 HBC is a dual tower CPU cooler and the second generation of the NH-D15. It uses two NF-A14x25r G2 PWM 140 mm fans, 16 heatpipe connections and offset towers, and is rated for CPUs up to 228 W TDP. The HBC (High Base Convexity) base is optimised for strongly concave CPUs, giving better contact on Intel LGA1700 processors under full ILM mounting pressure or already deformed by long use.

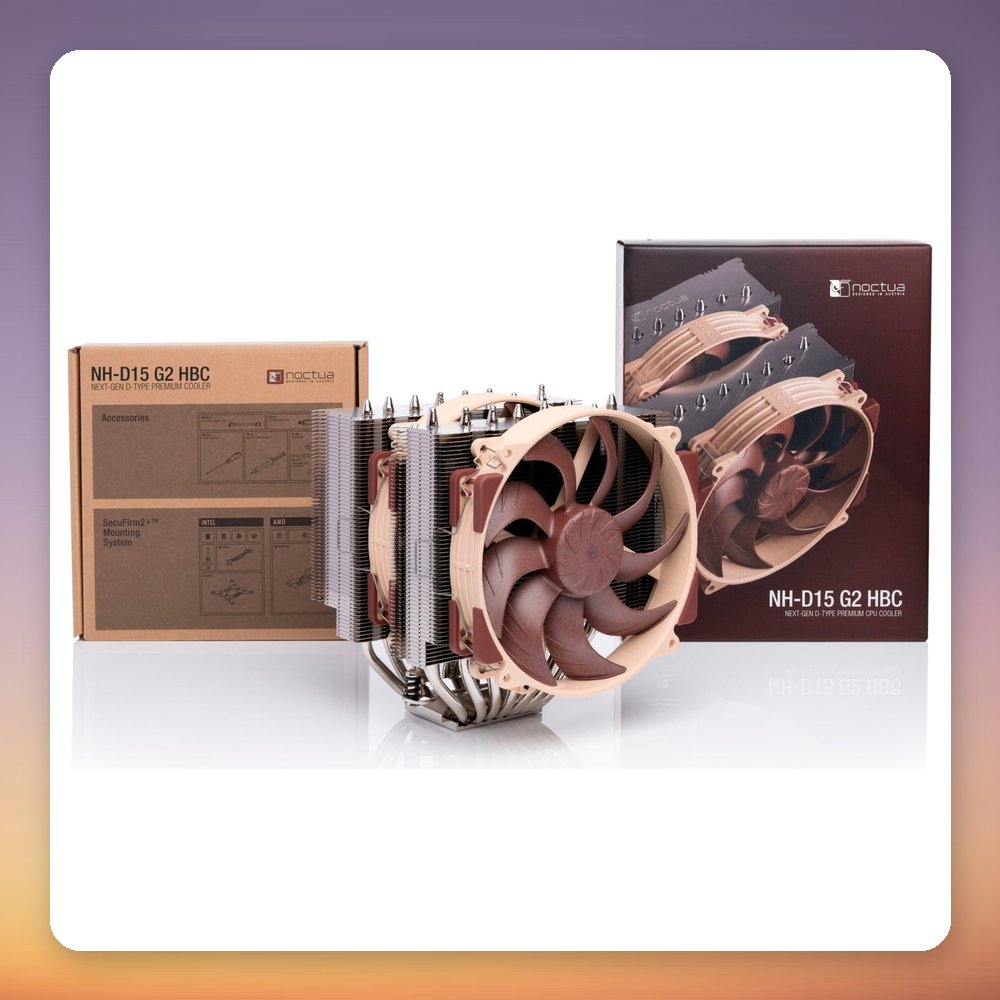

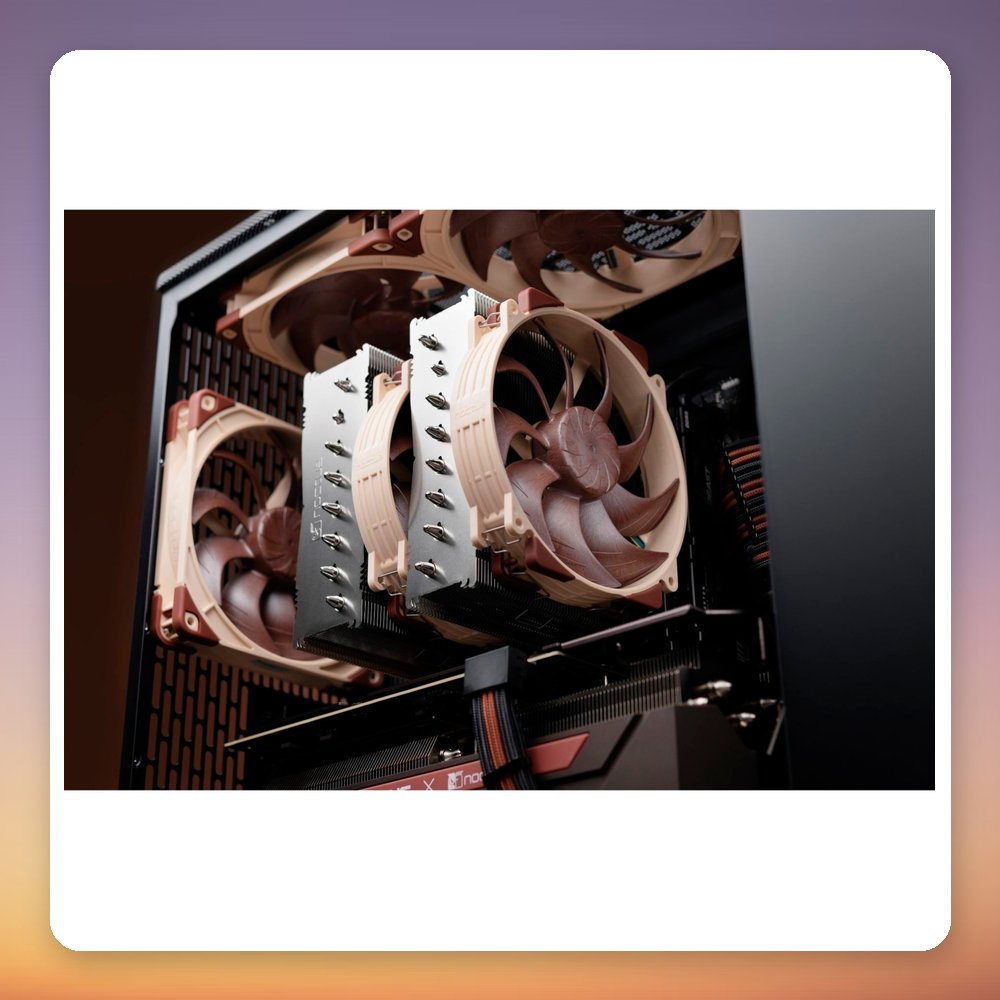

Thanks to its offset design, the cooler no longer extends over the top PCIe x16 slot on most current motherboards. With one fan fitted there is at least 59 mm clearance for tall memory modules; with both fans, RAM up to 32 mm is recommended. It suits Intel LGA1700 and LGA1851 builds as well as AM4 and AM5 systems, and ships with the SecuFirm2+ mounting kit, NT-H2 thermal paste, a screwdriver, a low-noise adapter and a Y-cable.

Specification

• Manufacturer: Noctua
• Model: NH-D15 G2 HBC
• MPN: NH-D15 G2 HBC
• EAN: 9010018000436
• Cooler type: Dual tower air cooler
• Max. CPU TDP: 228 W
• Compatible sockets: Intel 1150, 1151, 1155, 1156, 1200, 1700, 1851; AMD AM4, AM5
• Fans: 2x NF-A14x25r G2 PWM, 140 x 140 x 25 mm
• Fan speed: 1,250 – 1,500 RPM
• Noise level: 19.7 – 24.8 dB
• Airflow: 127.1 – 155.6 m³/h
• Static pressure: 1.3 – 2.56 mm H2O
• Fan bearing: SSO2
• Fan connector: 4-pin PWM, 12 V, 2.28 W
• Heatpipe connections: 16
• Heatsink material: Aluminium, copper, nickel
• Dimensions (W x H x D): 150 x 168 x 152 mm
• Weight: 1,180 g (cooler), 1.5 kg total
