Product Overview

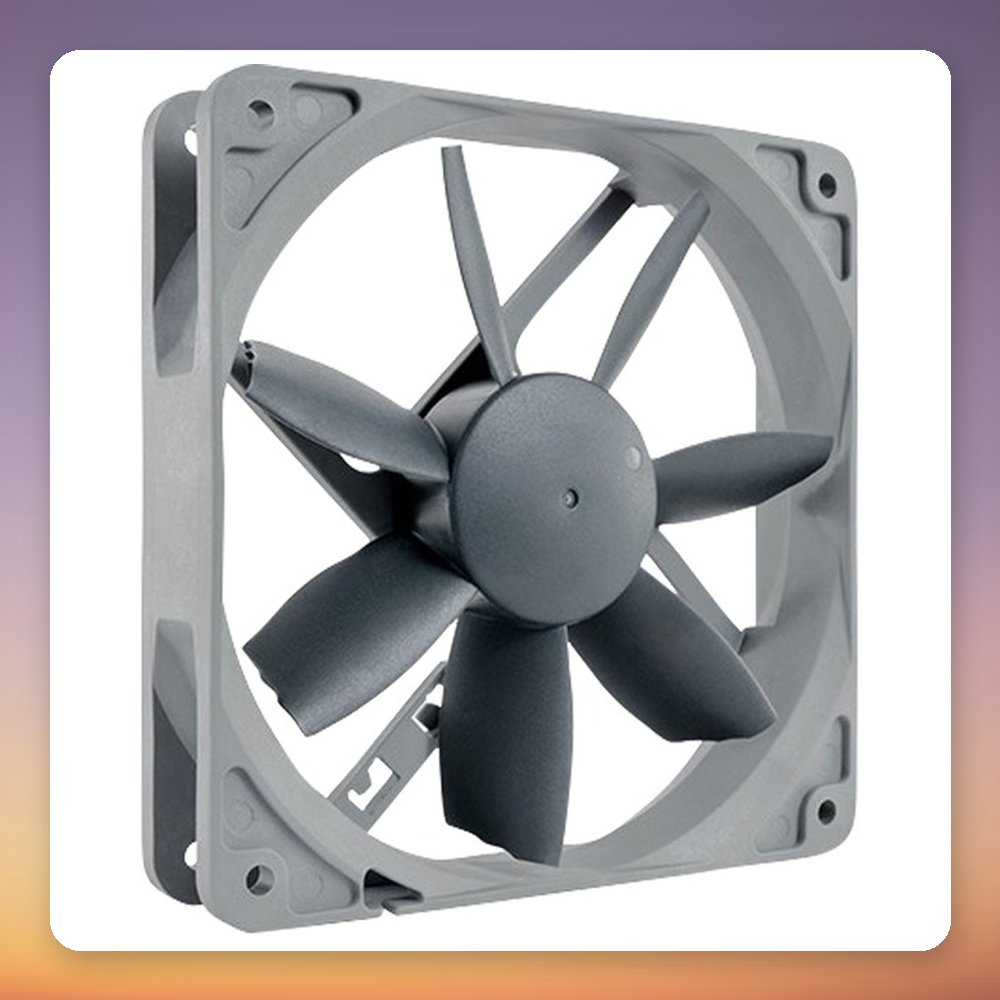

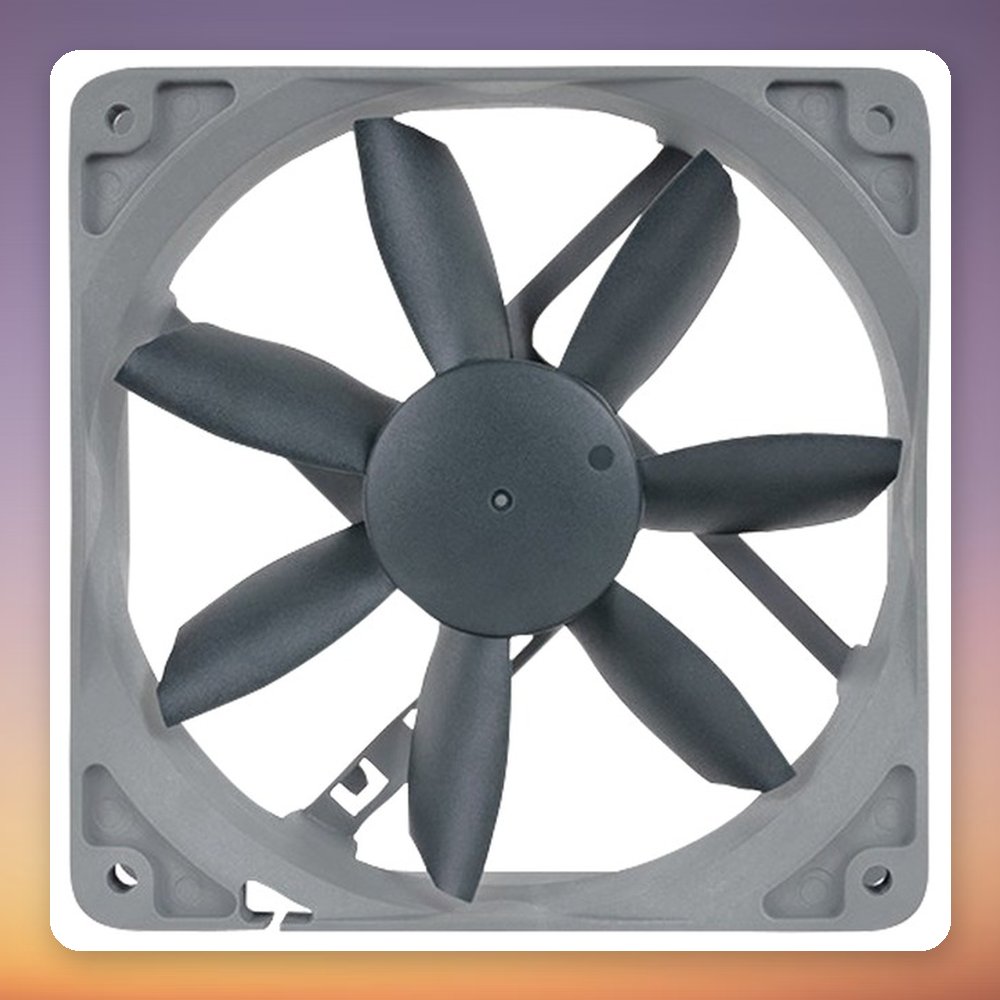

The Noctua NF-S12B redux-1200 PWM is a 120 mm case fan designed for low-resistance applications such as general case cooling. It runs from 400 to 1,200 RPM under 4-pin PWM control, moving up to 100.6 m³/h (59.2 cfm) of air at a rated noise level of just 18.1 dB. It uses Noctua’s SSO bearing and the in-house NE-FD1 PWM IC for fully automatic speed control.

The redux edition is a slimmed-down, more affordably priced version of the well-regarded NF-S12B, reduced to the fan itself. It suits gaming and general-purpose PC builds where quiet running matters, and works as an intake or exhaust fan on any 120 mm mount. The fan is screw-mounted, draws only 1.2 W from 12 V and has an MTBF of over 150,000 hours.

Specification

• Manufacturer: Noctua
• Model: NF-S12B redux-1200 PWM
• MPN: NF-S12B redux-1200 PWM
• EAN: 4716123315285
• Fan size: 120 x 120 x 25 mm
• Speed: 400 – 1,200 RPM
• Airflow: 100.6 m³/h (59.2 cfm)
• Noise level: 18.1 dB
• Static pressure: Up to 1.31 mm H2O
• Bearing: SSO
• Connector: 4-pin PWM
• Voltage: 12 V
• Power consumption: 1.2 W
• MTBF: Over 150,000 hours
• Mounting: Screw-mounted
• Weight: 238 g
