Product Overview

The Inter-Tech 1U K-126L is a 1U rack server case in black that takes Mini-ITX motherboards. It is built for a small, low-cost server: the case is only 285 mm deep (250 mm of internal build depth) and 45 mm high, so it fits into practically any server cabinet. The body is made from 1.0-1.2 mm steel and weighs 3.4 kg.

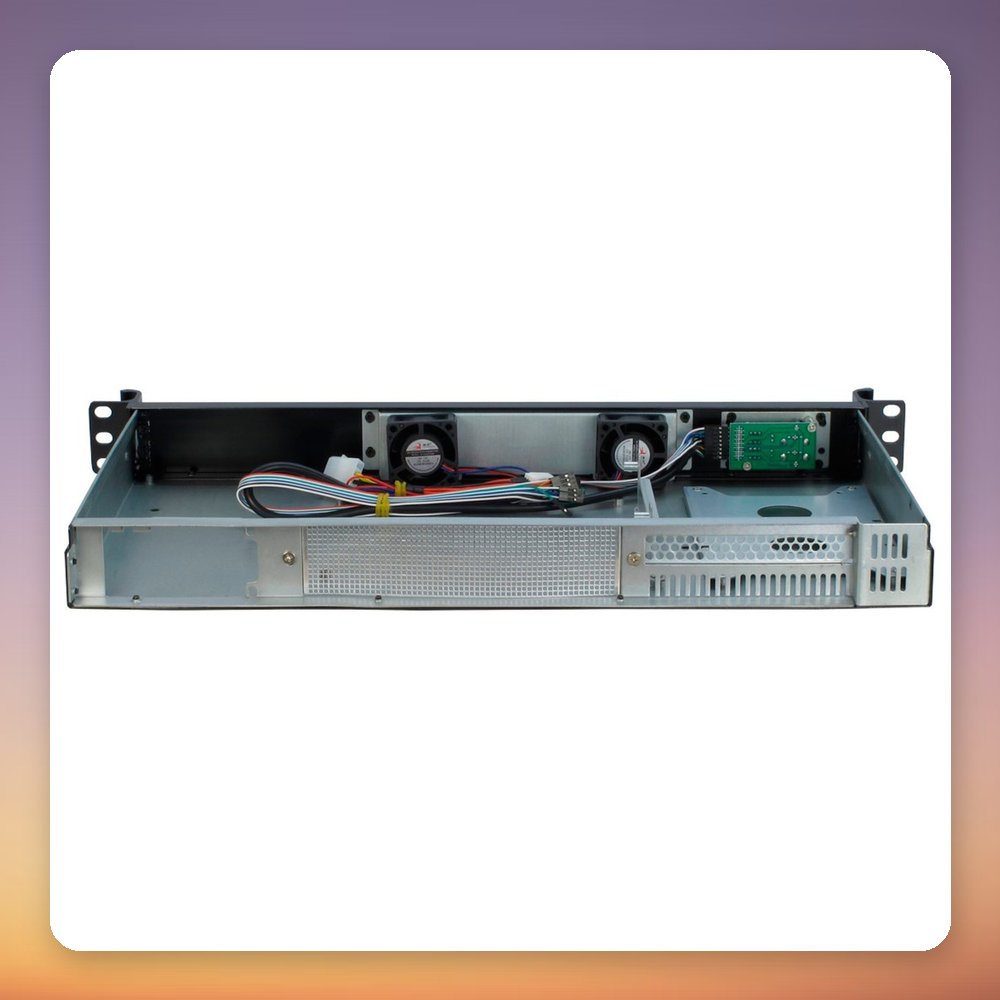

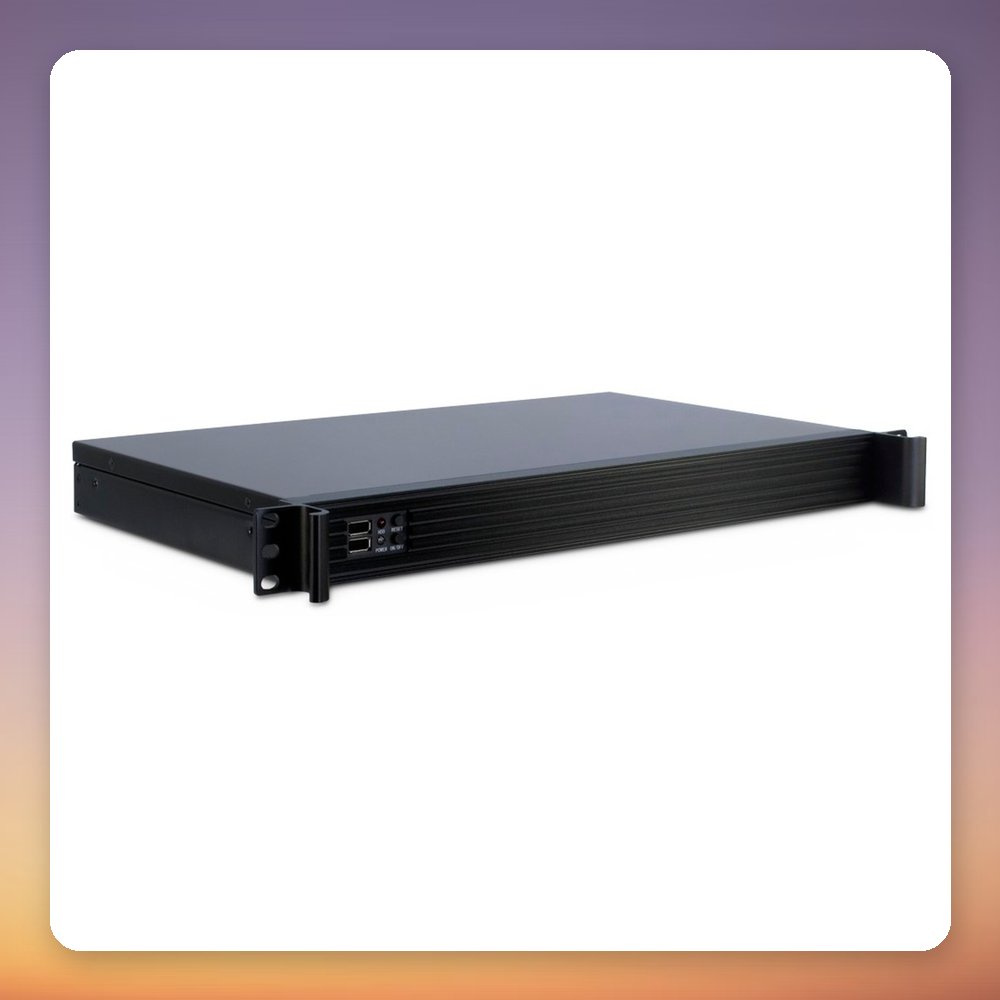

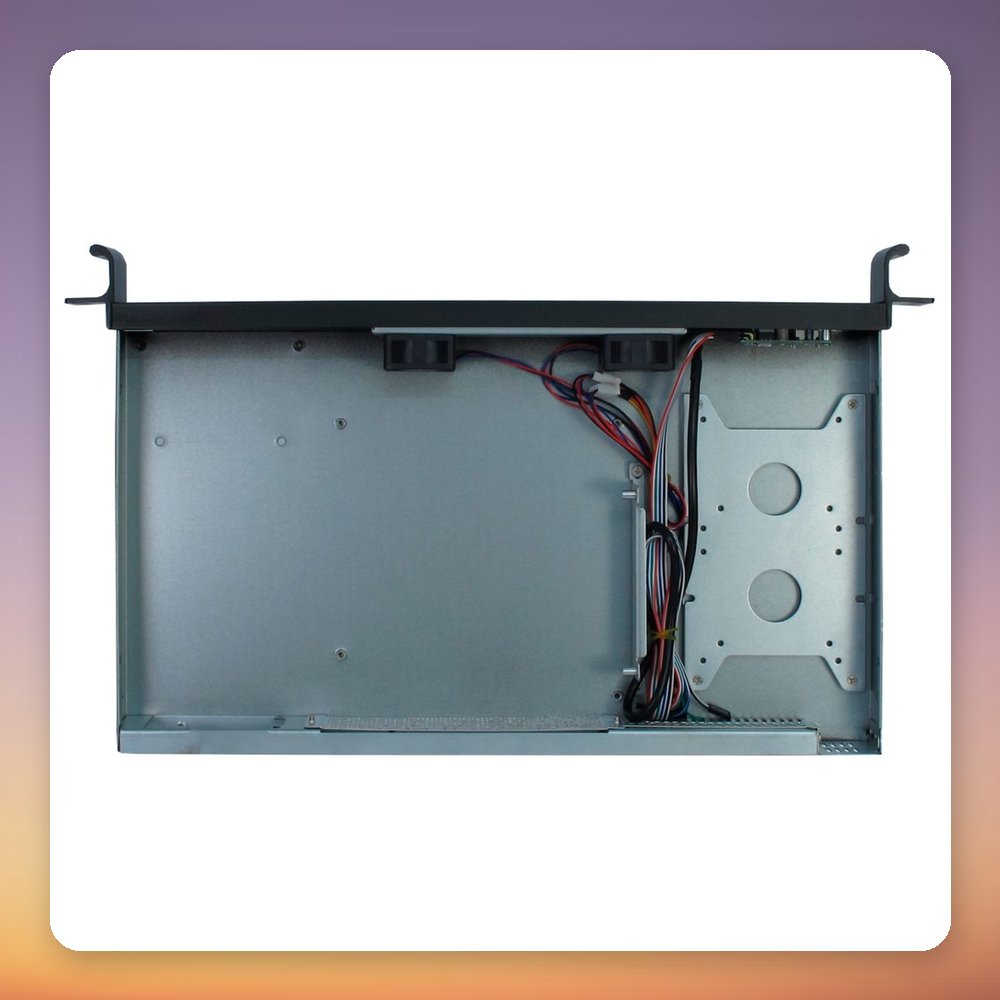

Inside there is room for either one 3.5″ drive or two 2.5″ drives, and two 40 mm fans sit directly behind the front panel for airflow. The front carries two USB 2.0 Type-A ports next to the power switch, reset button and power and drive activity LEDs. A Flex ATX power supply is supported (not included, a mounting bracket is supplied). The case suits compact home-lab, NAS or firewall builds based on a Mini-ITX board.

Specification

• Manufacturer: Inter-Tech
• Model: 1U K-126L
• MPN: 88887000
• EAN: 4260133129849
• Type: Rack server case
• Height: 1U (45 mm)
• Motherboard form factor: Mini-ITX
• Power supply form factor: Flex ATX (optional, bracket included)
• Drive bays: 1x 3.5″ or 2x 2.5″
• Included fans: 2x 40 mm
• Front I/O: 2x USB 2.0 Type-A
• Front controls: Power switch, reset button, power and HDD activity LEDs
• Material: 1.0-1.2 mm steel
• Colour: Black
• Dimensions (W x H x D): 485 x 45 x 285 mm
• Weight: 3.4 kg
• Volume: 6 l
• Accessories: Screw set, Flex ATX PSU bracket, universal cut-out I/O shield
