Product Overview

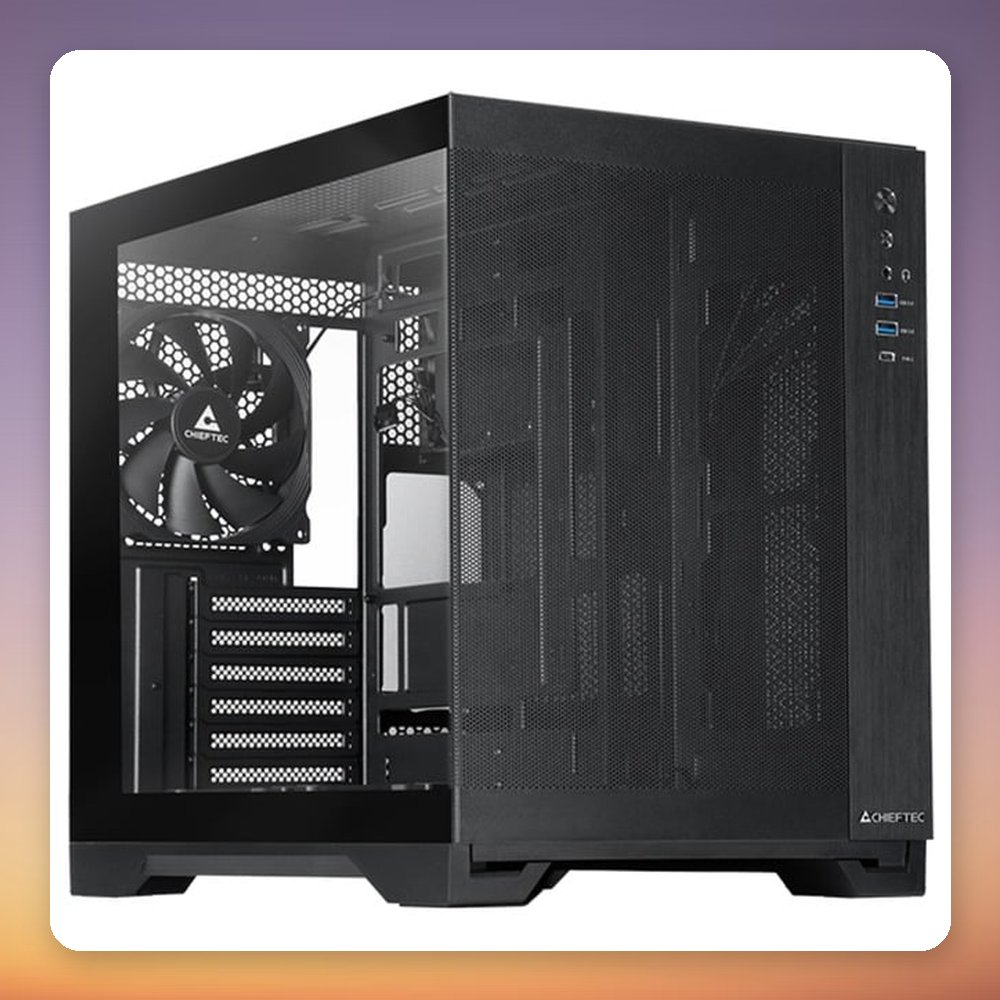

The Chieftec Visio Air GM-30B-M-OP is a black midi-tower case with a tempered glass side panel and a brushed aluminium and mesh front. It uses a dual-chamber layout built for back-connect motherboards and is compatible with ASUS BTF and MSI Project Zero. Three PWM fans come pre-installed: two 140 mm at the bottom and one 140 mm at the rear.

With room for 360 mm radiators at the top and bottom, a 240 mm radiator on the motherboard side, graphics cards up to 410 mm and CPU tower coolers up to 175 mm, the case suits a high-airflow gaming build or a custom water-cooled setup. It takes ATX boards and ATX power supplies up to 200 mm long. The front panel has one USB-C 3.2 Gen 2 port, two USB-A 3.2 Gen 1 ports and audio. No power supply is included.

Specification

• Manufacturer: Chieftec
• Model: Visio Air GM-30B-M-OP
• MPN: GM-30B-M-OP
• EAN: 0753263078704
• Form factor: Midi-Tower
• Motherboard support: ATX, micro ATX (back-connect compatible, ASUS BTF / MSI Project Zero)
• Side panel: Tempered glass

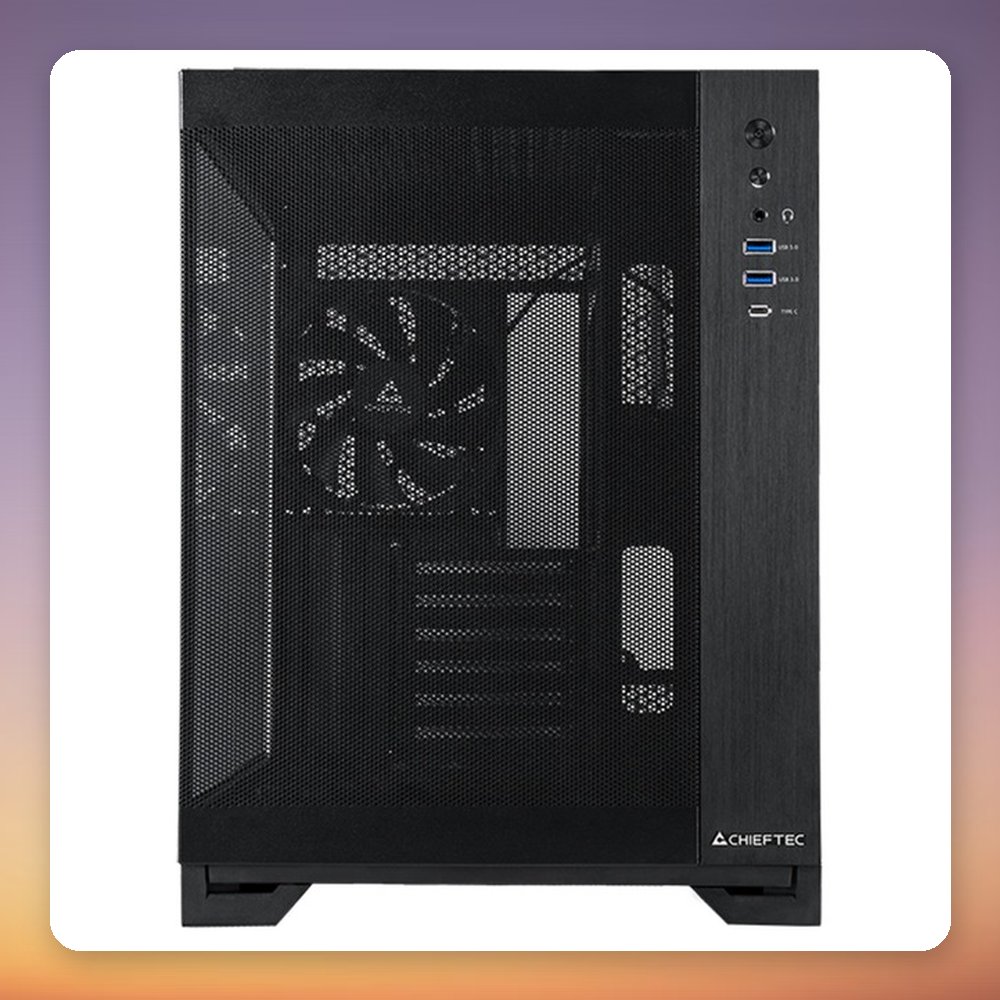

• Front panel: Brushed aluminium and mesh
• Pre-installed fans: 2x 140 mm PWM (bottom), 1x 140 mm PWM (rear)
• Radiator support: Top: 240/280/360 mm, Bottom: 240/280/360 mm, Motherboard side: 240 mm
• Max. graphics card length: 410 mm
• Max. CPU cooler height: 175 mm
• Max. PSU length: 200 mm (ATX PSU, not included)
• Expansion slots: 6 full-height
• Storage bays: 2x 3.5″, 2x 2.5″
• Front I/O: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, audio
• Dimensions (W x H x D): 295 x 390 x 430 mm
• Weight: 6.8 kg
