Product Overview

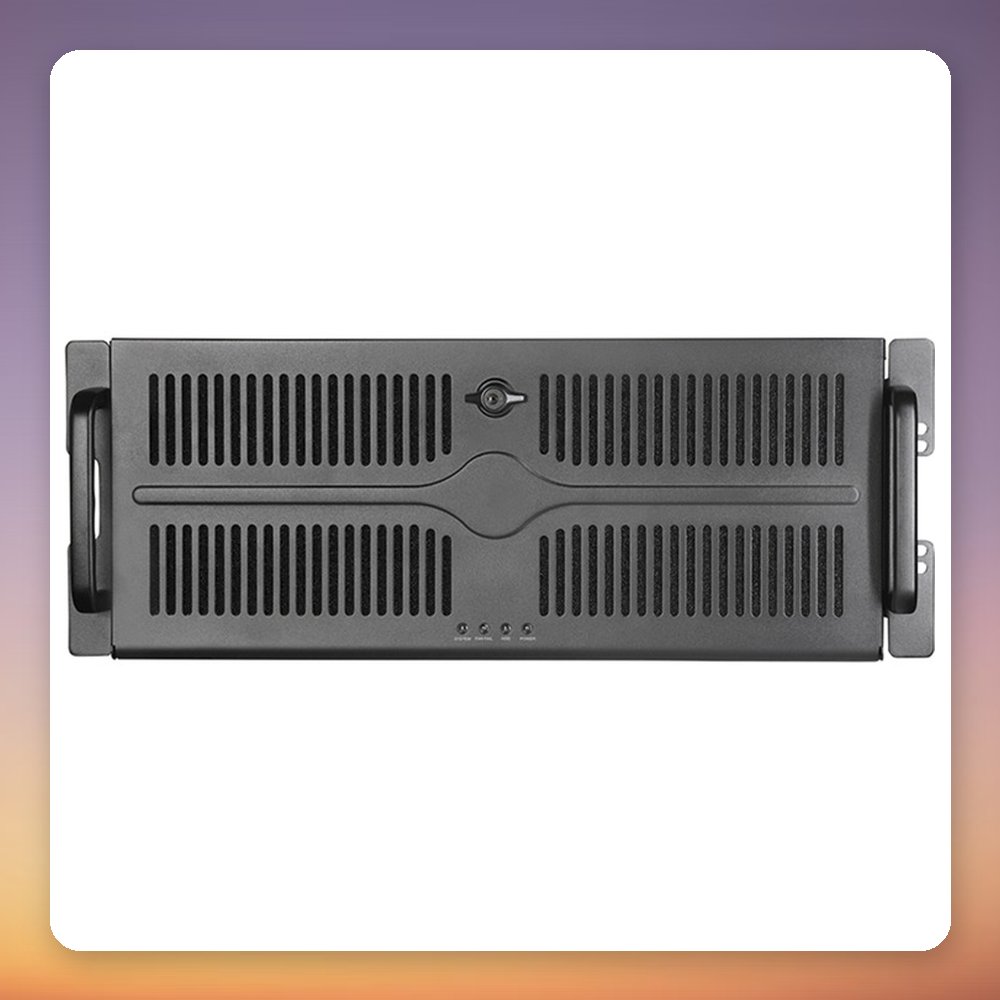

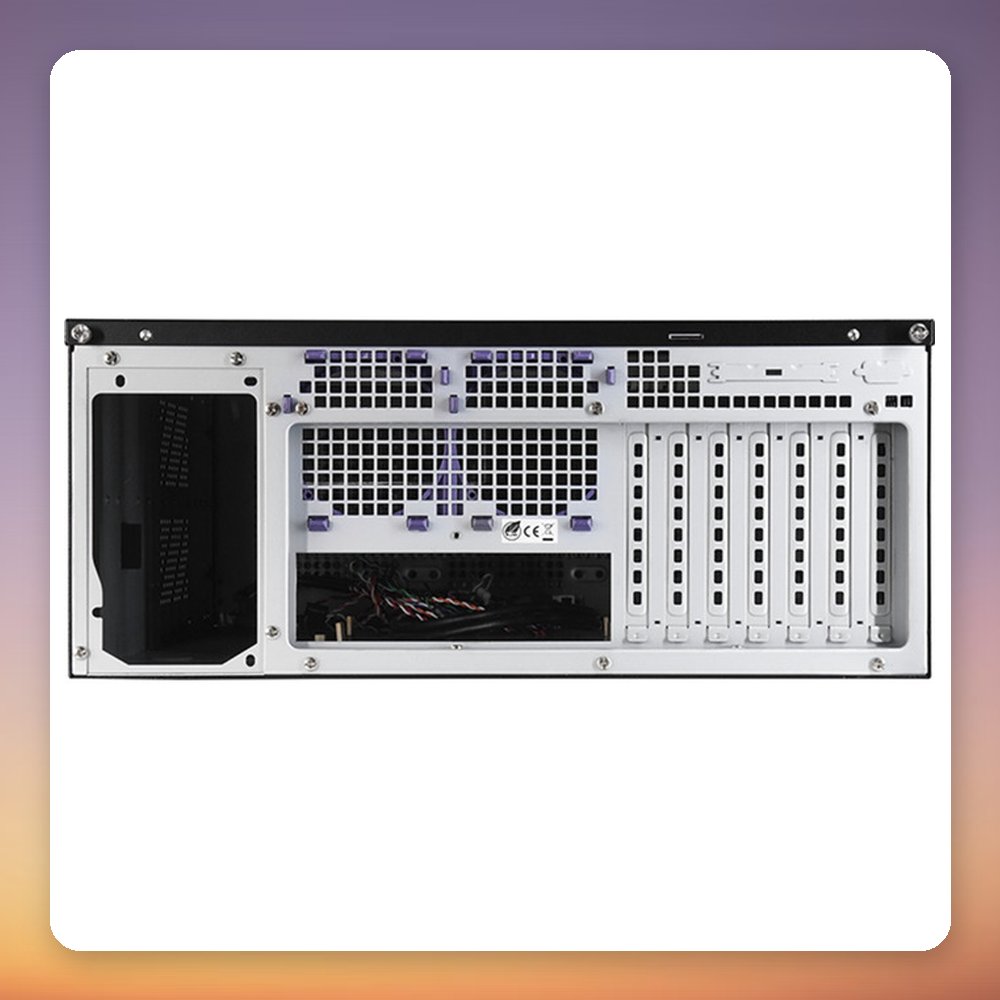

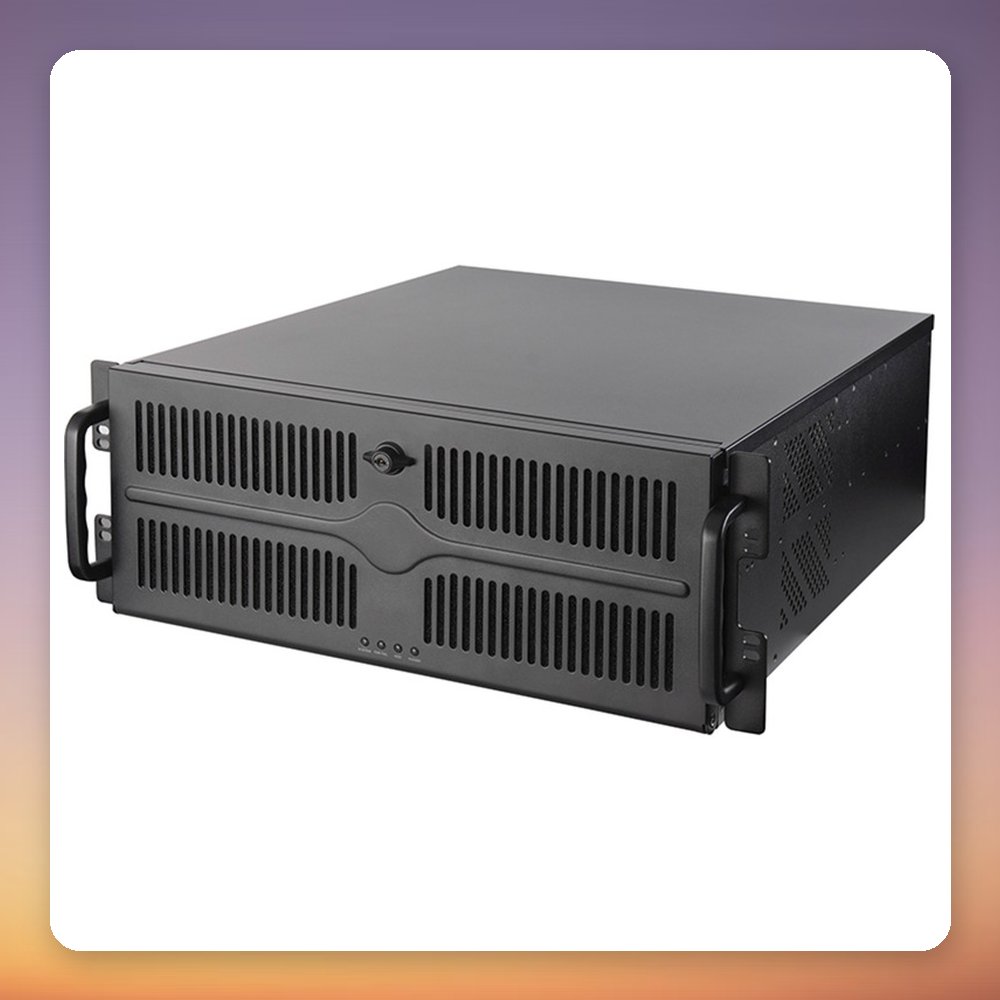

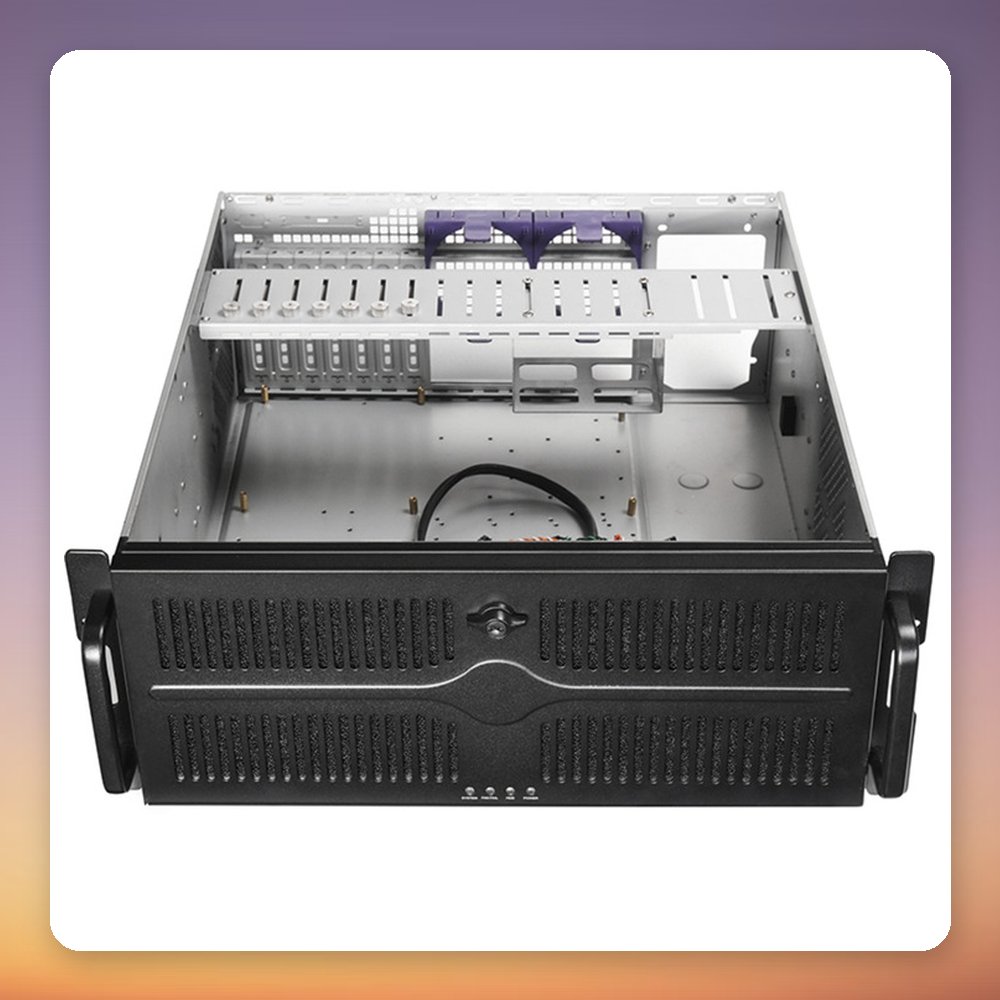

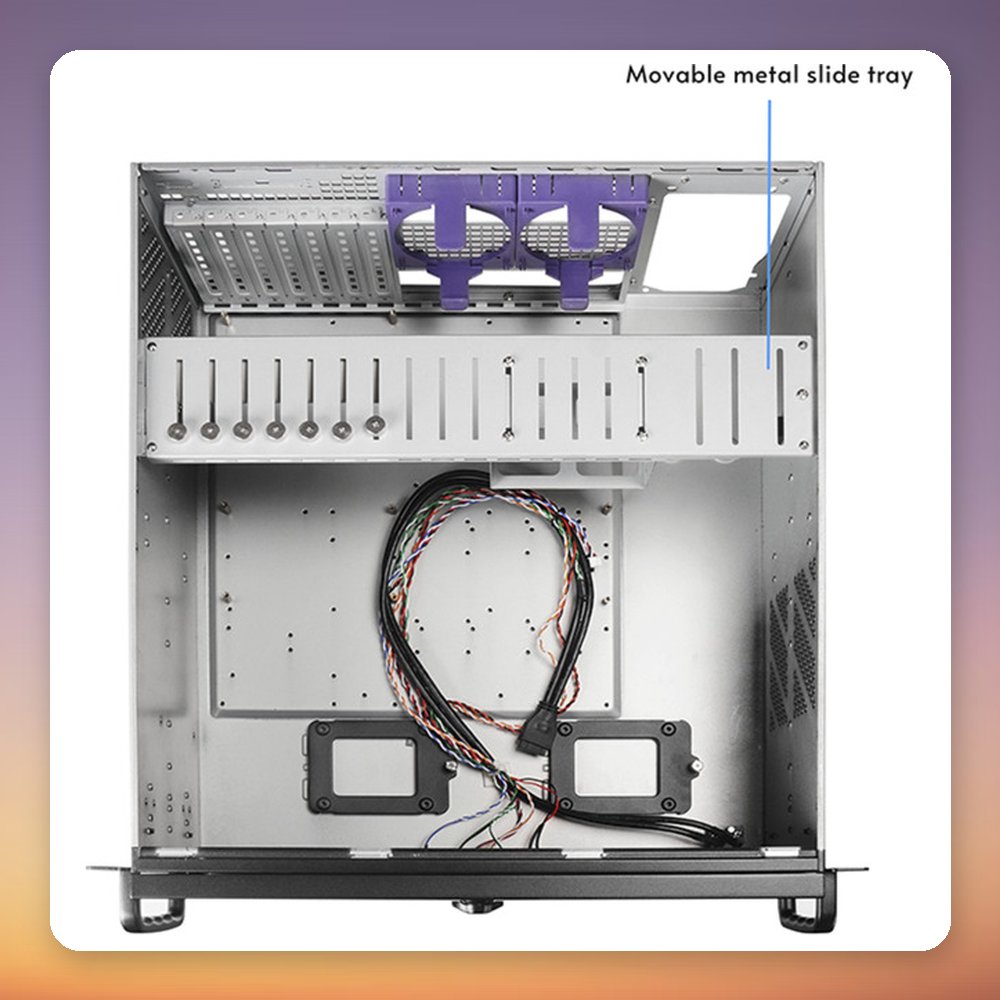

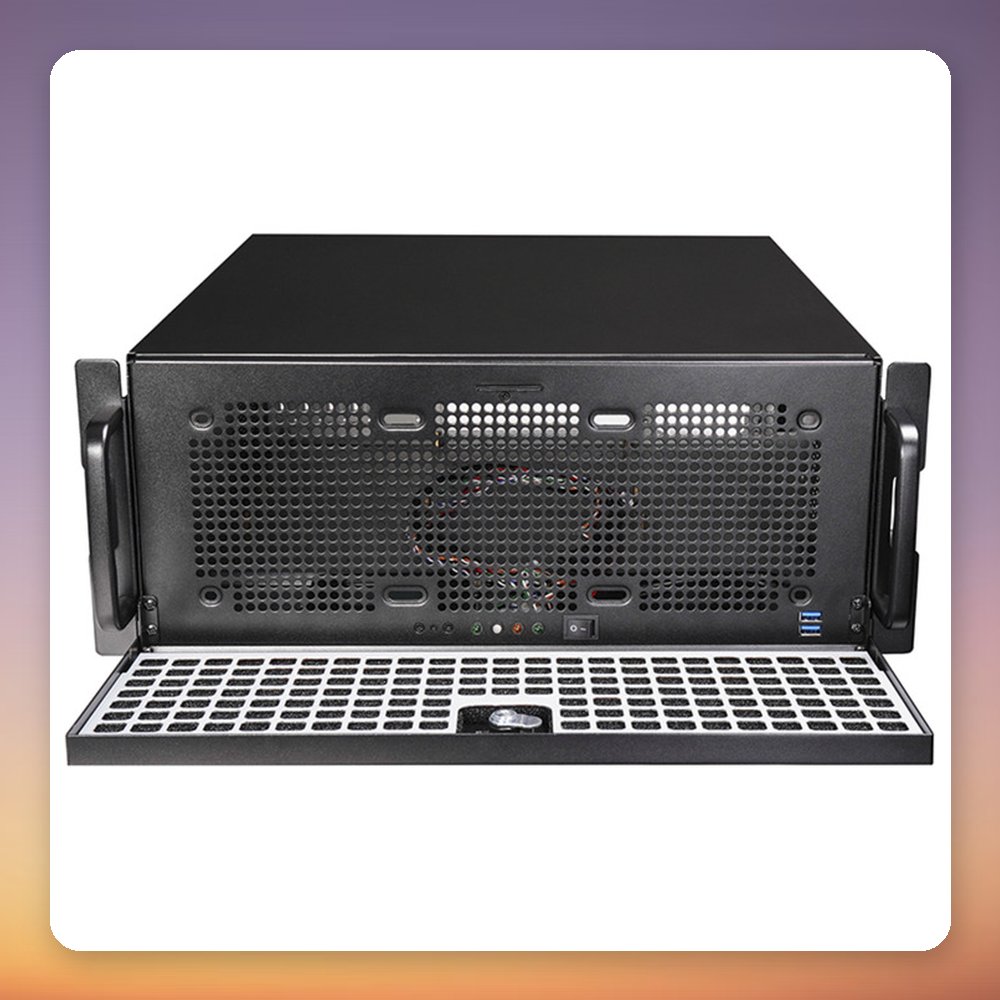

The Chieftec UNC-409S-AIO-OP 4U rackmount server case is built from 1.2 mm SGCC steel and supports E-ATX and SSI-EEB motherboards. What sets it apart from many rack cases is support for a front-mounted 240 mm or 360 mm AIO radiator, plus room for graphics cards up to 450 mm long when no radiator is installed. It offers 7 full-size expansion slots and a 36 litre internal volume.

This case suits server, workstation and industrial builds that need rack mounting and a standard ATX power supply, or a 1+1 redundant power supply (mounting kit not included). Cooling options include three 120 mm front fans and two 80 mm rear fans. The front panel has 2x USB-A 3.2 Gen 1 (5 Gbit/s) ports. Note that CPU cooler clearance is 70 mm with the 3.5″ drive cage installed and 130 mm without it. The case weighs 9.7 kg and is made in Taiwan.

Specification

• Manufacturer: Chieftec
• Model: UNC-409S-AIO-OP
• MPN: UNC-409S-AIO-OP
• EAN: 0753263079213
• Type: Rackmount server case, 4U
• Colour: Black
• Motherboard support: E-ATX, SSI-EEB (also ATX, Mini-ITX, SSI CEB per Icecat)
• Material: 1.2 mm SGCC steel
• Expansion slots: 7 full-size
• Max graphics card length: 450 mm (without AIO radiator installed)
• Max CPU cooler height: 130 mm (70 mm with 3.5″ drive cage installed)
• Power supply: ATX (optional 1+1 redundant PSU, mounting kit not included)
• Front fans: 3 x 120 mm
• Rear fans: 2 x 80 mm
• Radiator support: Front: 240/360 mm
• Drive bays: 2 x 3.5″ and 2 x 2.5″
• Front I/O: 2x USB-A 3.2 Gen 1 (5 Gbit/s)
• Included accessories: Screw set, 7x PCI-E guide rails, PCI-E card holder
• Dimensions (W x H x D): 42.7 x 17.68 x 48 cm
• Weight: 9.7 kg
