Product Overview

The Chieftec UNC-210T-B-U3-OP 2U rack case is a 19-inch server chassis built from 1.2 mm SECC steel, which gives it a sturdy, rigid build. It fits ATX motherboards in a 2U height of just 89 mm, and it has four low-profile expansion slots that take low-profile cards without a riser card. Icecat lists a 400 W power supply as included.

This case suits anyone building a rack-mounted server, storage box or network machine who wants to use a standard ATX or micro ATX board. It offers four 3.5″ bays and one 5.25″ bay, three pre-installed 80 mm fans and two USB 3.2 Gen 1 ports on the front. The box includes a mains cable, screw set and key set. At 13 kg and 557 mm deep, check your rack depth before ordering.

Specification

• Manufacturer: Chieftec
• Model: UNC-210T-B-U3-OP
• MPN: UNC-210T-B-U3-OP
• EAN: 4710713230187
• Type: Server case, 19″ rack mount
• Rack height: 2U
• Motherboard support: ATX, micro ATX
• Material: SECC steel, 1.2 mm
• Colour: Black
• Expansion slots: 4x low-profile (no riser card needed)
• Drive bays: 4x 3.5″, 1x 5.25″
• Fans: 3x 80 mm pre-installed

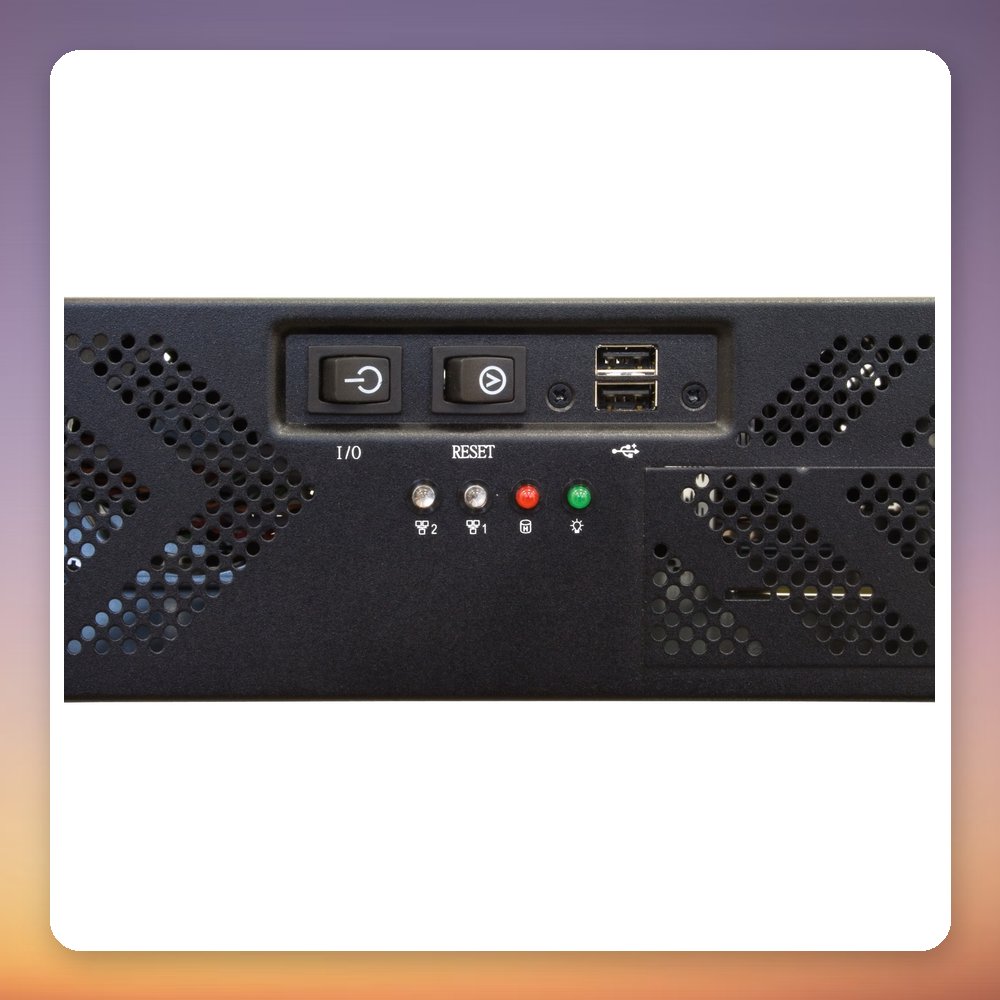

• Front I/O: 2x USB 3.2 Gen 1 Type-A (5 Gbit/s), reset button, LED indicators
• Power supply: 400 W (1 unit, included per Icecat)
• Max CPU cooler height: 65 mm
• Dimensions (W x H x D): 482.6 x 89 x 557 mm
• Weight: 13 kg
• Volume: 24 l
